Description

Brief Product Description

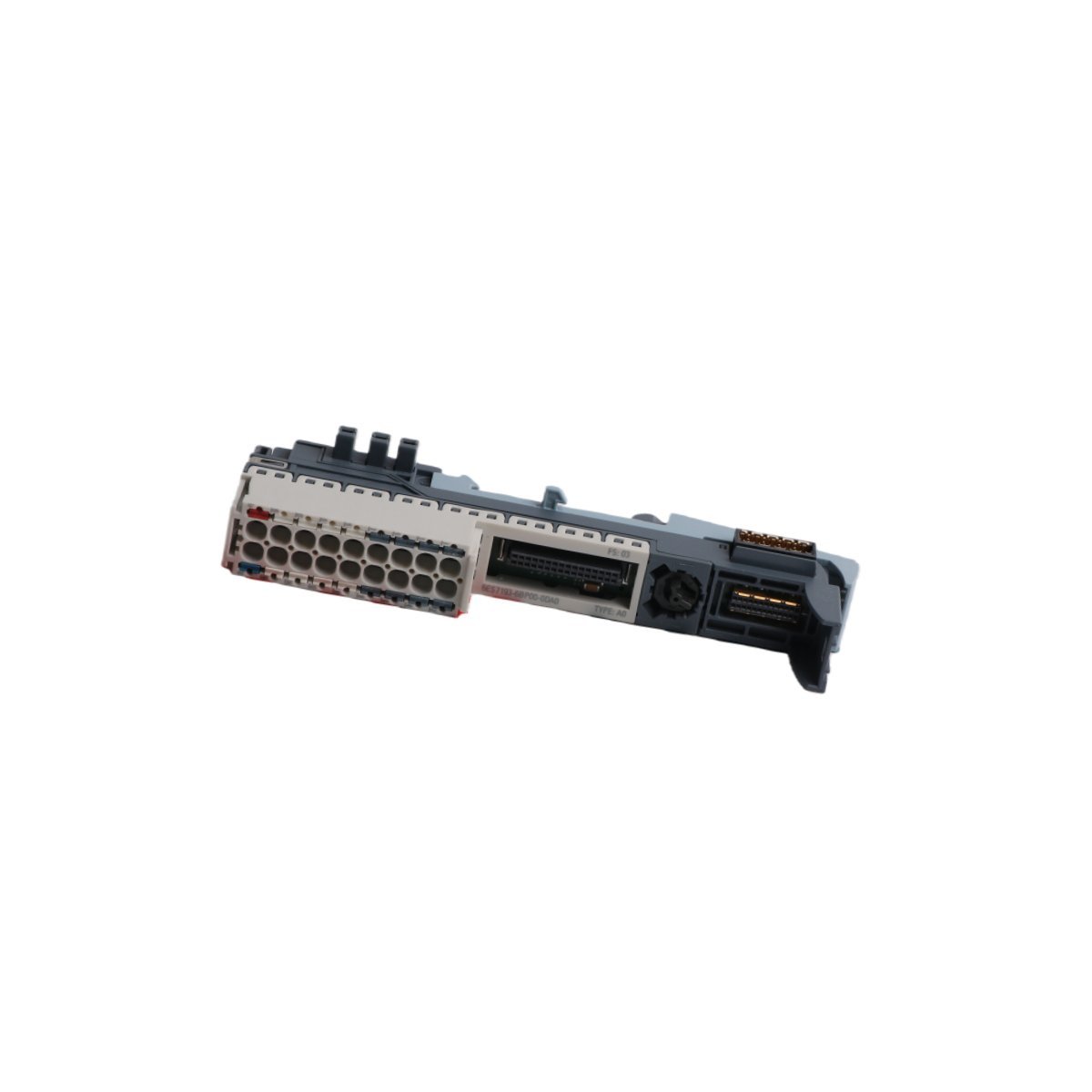

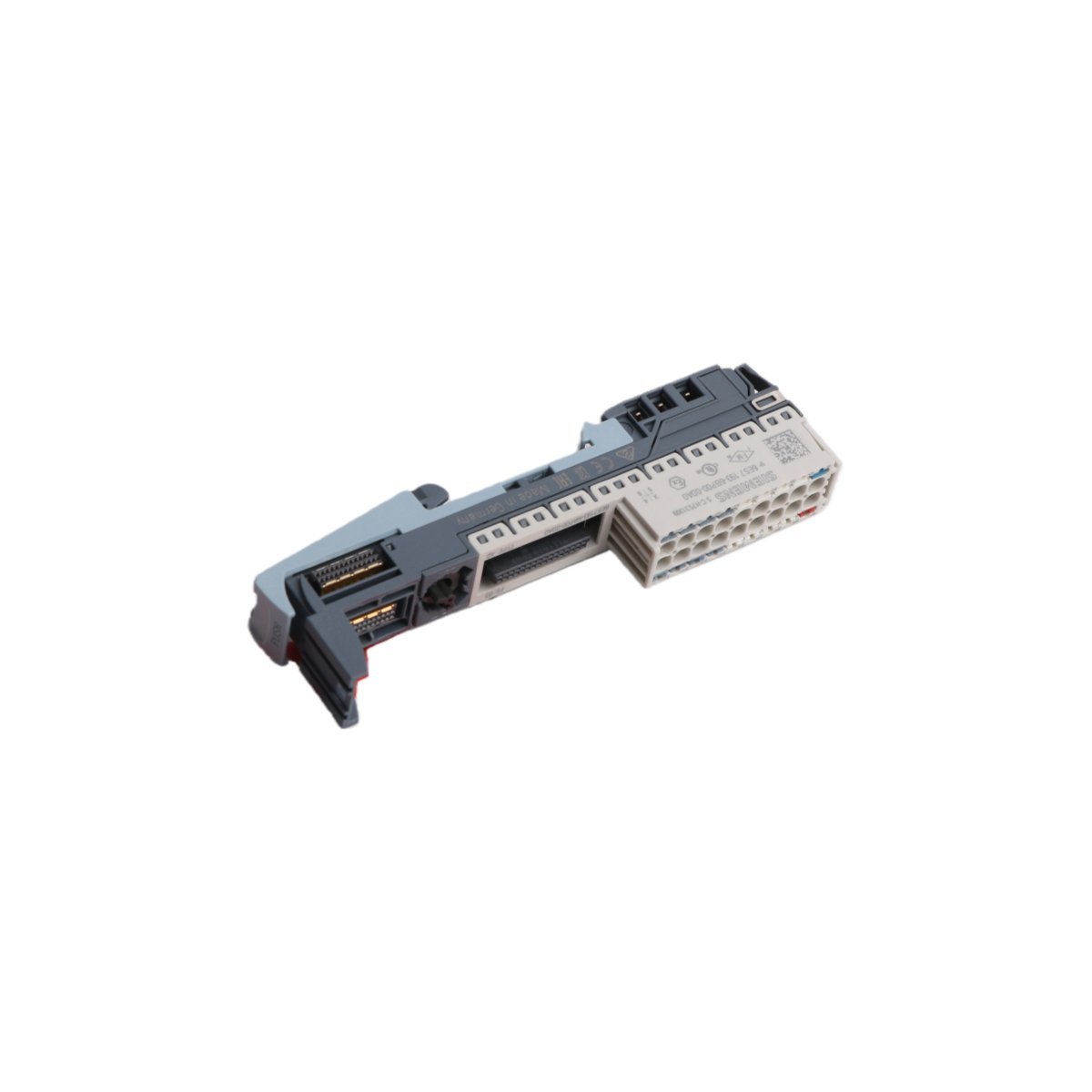

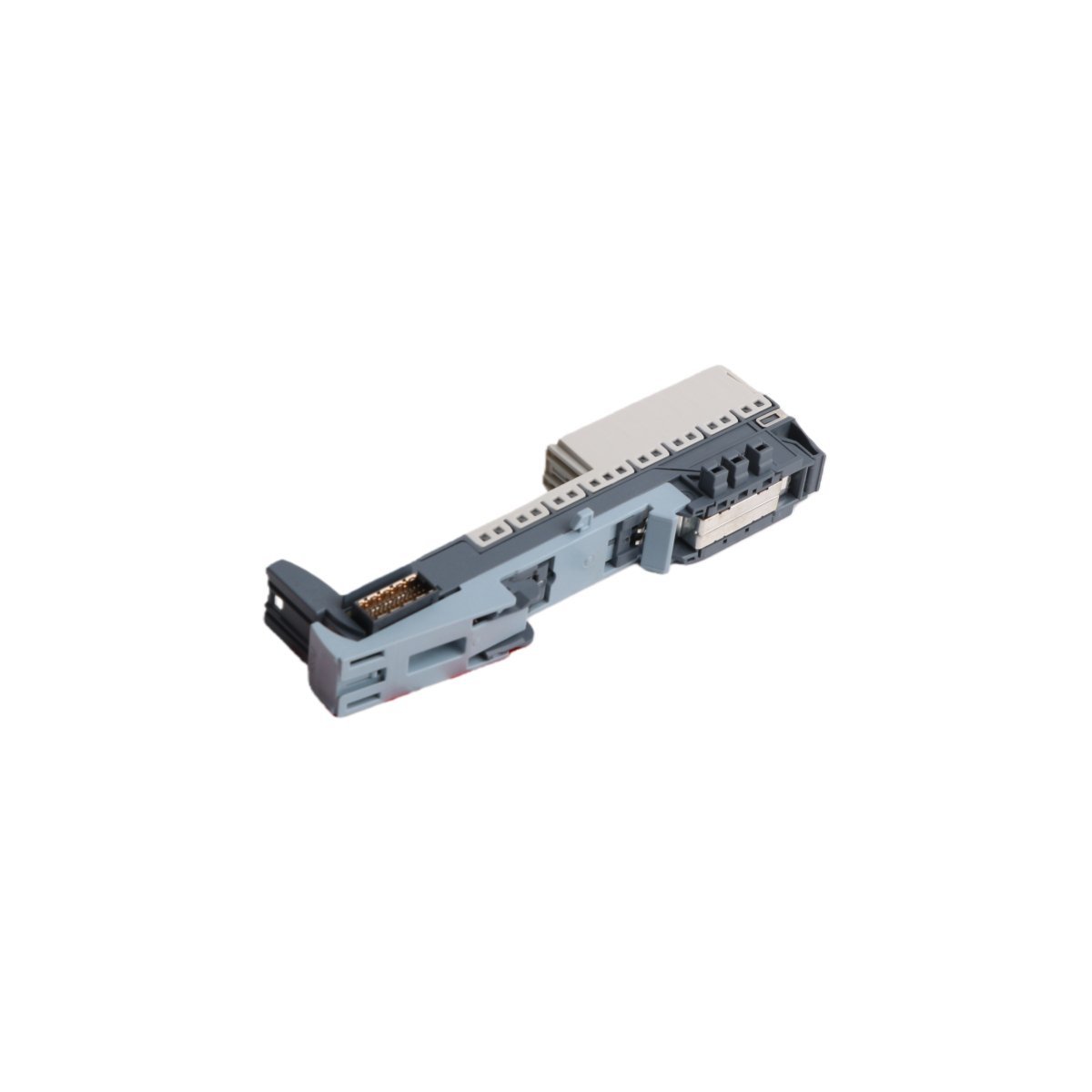

The Siemens 6ES7193-6BP00-0DA0 is a Type A0 BaseUnit designed for the SIMATIC ET 200SP distributed I/O system, providing the mechanical and electrical interface for I/O modules.¹ It features 16 integrated push-in terminals to facilitate rapid, tool-free field wiring in space-constrained control cabinets.²

​Product Description

The Siemens 6ES7193-6BP00-0DA0 serves as the primary structural and electrical foundation for modules within the SIMATIC ET 200SP distributed I/O architecture. As a Type A0 BaseUnit, it establishes the necessary connection between the internal backplane bus and the external process signals. This module supports a “dark” potential group, meaning it bridges the load voltage from the preceding left-hand module to facilitate a continuous power bus across the I/O rack. By utilizing this daisy-chain approach, the system significantly reduces the complexity of external wiring and simplifies the overall electrical design of the automation station.

Advanced Wiring and Thermal Management

Engineered for high-density environments, this BaseUnit incorporates 16 push-in terminals that allow for rapid, tool-free installation of solid or stranded conductors.³ This design choice effectively lowers labor costs and minimizes the risk of loose connections often associated with traditional screw terminals. Furthermore, the 15 mm slim profile maximizes DIN rail space, allowing for more I/O points per square inch of cabinet area. The hardware also includes integrated shielding and grounding capabilities, which shield sensitive control signals from electromagnetic interference (EMI) commonly found on the factory floor.

System Safety and Integration

Reliability remains a core feature of the 6ES7193-6BP00-0DA0 hardware. It offers high-level dielectric strength, with electrical isolation between the backplane bus and the process terminals tested at $707$ V DC. Because it supports the “hot-swapping” of I/O modules, maintenance teams can replace faulty components during active operation without disrupting the communication of the remaining modules. Additionally, the unit provides dedicated slots for color-coded identification labels, which helps prevent wiring errors and speeds up diagnostic procedures during commissioning or repair cycles.
