Description

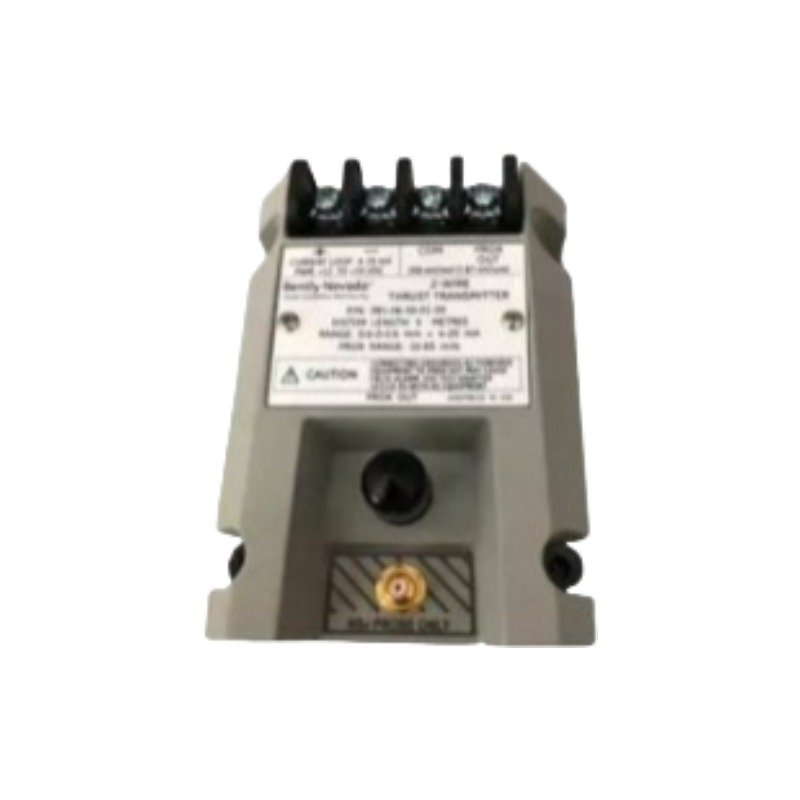

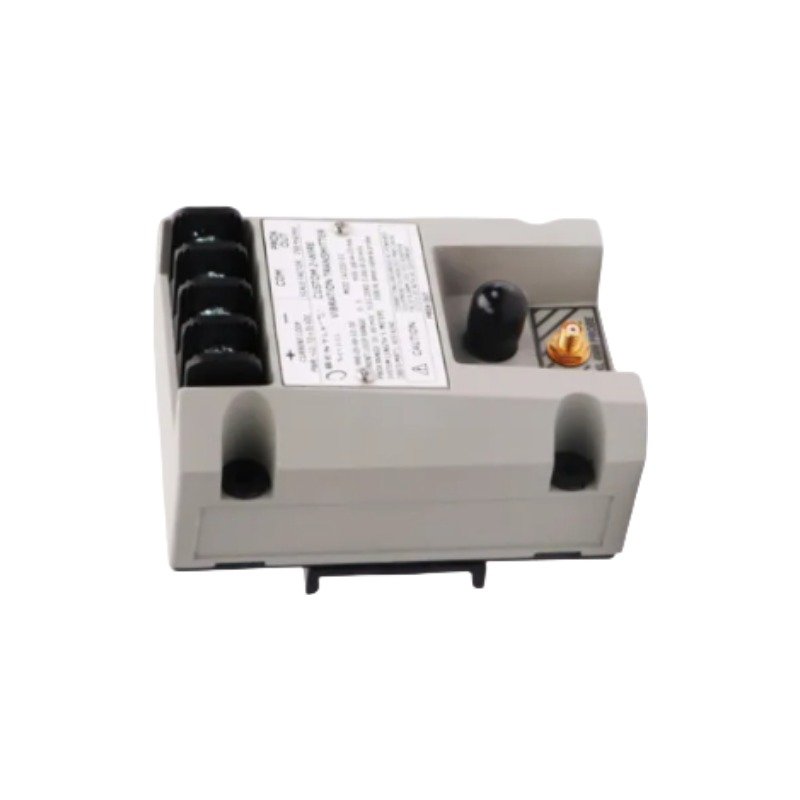

Configured for non-contacting axial position and thrust displacement measurements in machinery monitoring networks, the Bently Nevada 991-06-70-01-CN (991 Thrust Transmitter) provides direct physical/electrical execution. Specifically, the transmitter conditions high-frequency radio frequency (RF) signals from an eddy-current probe system and subsequently converts the physical gap variations into a linear 4-20 mA DC current loop. Consequently, this design executes the direct delivery of critical thrust metrics to distributed control systems (DCS) or programmable logic controllers (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 991-06-70-01-CN utilizes precise eddy-current probe scaling to monitor axial shaft movement and analyze complex rotor dynamics under varying load profiles. During commissioning, engineers perform gap voltage validation (-10 VDC targets) within the specified linear operational range, thereby verifying the exact electrical zero-point. Furthermore, the internal electronics deploy integrated cross-talk suppression circuitry; as a result, the hardware minimizes electromagnetic interference even when multiple sensor lines run through parallel wire conduits.

Frequently Asked Questions

Q: What does the “-CN” suffix indicate in this model number?

A: The “-CN” suffix indicates that the hardware carries regional certification and approvals specific to the mainland Chinese market, ensuring compliance with local industrial and safety regulations.

Q: How does the loop circuit handle reverse polarity installation errors?

A: The input circuit topology includes diode protection. Consequently, the internal components resist damage if technicians inadvertently reverse the 12 to 35 VDC power supply leads during field wiring.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Afterward, ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Always route all sensor proximity probe leads and transmitter current loop cables inside dedicated, isolated metal conduits. In addition, avoid running signal wiring parallel to high-voltage AC lines or variable frequency drive (VFD) paths.
• Mechanical Orientation: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel. For installations in environments with high humidity or chemical exposure, mount the assembly inside an enclosure rated IP54 or higher.
