Description

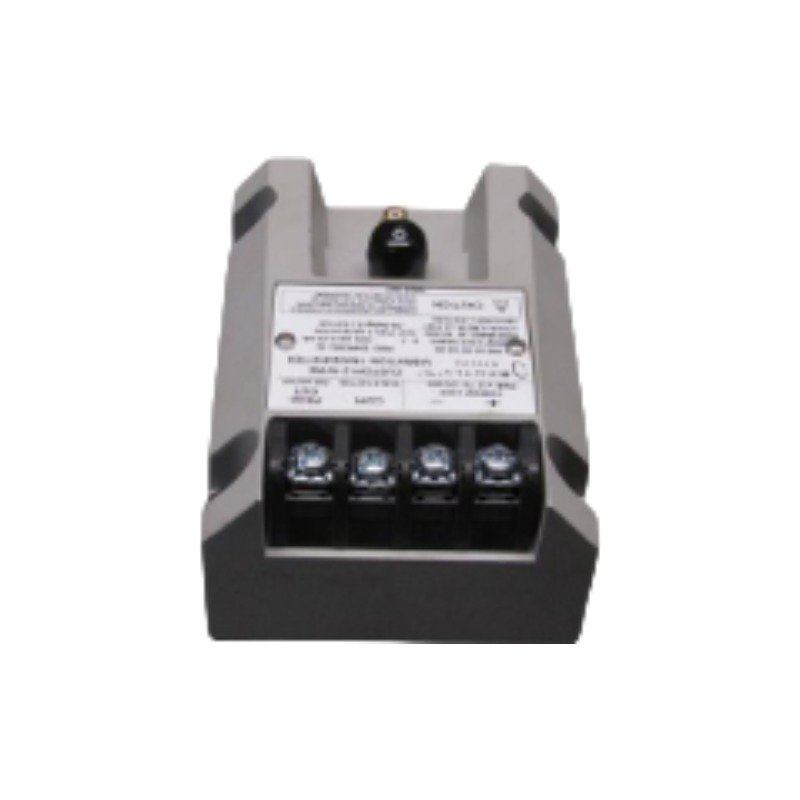

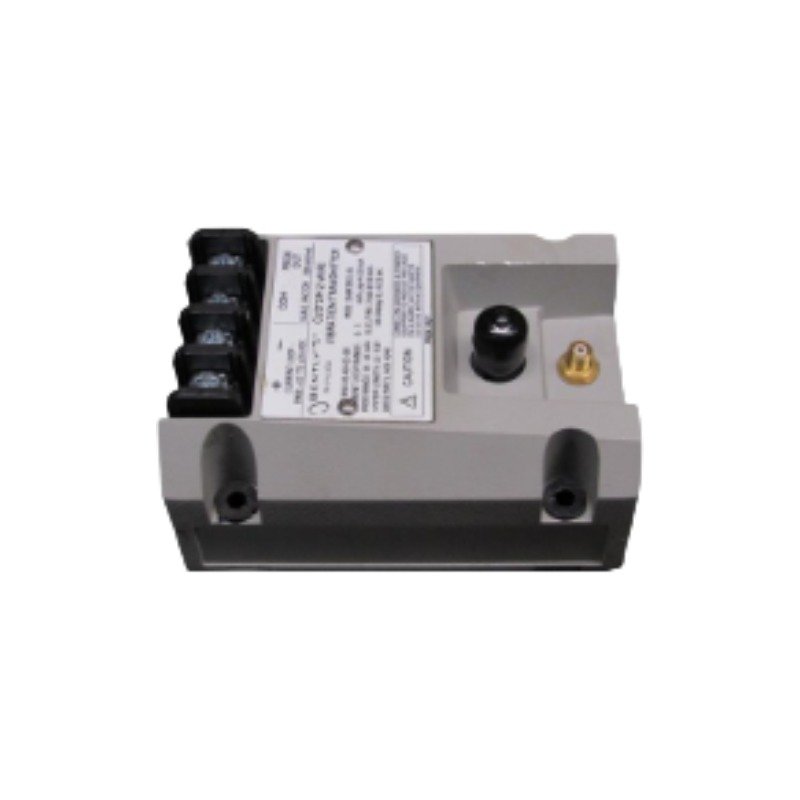

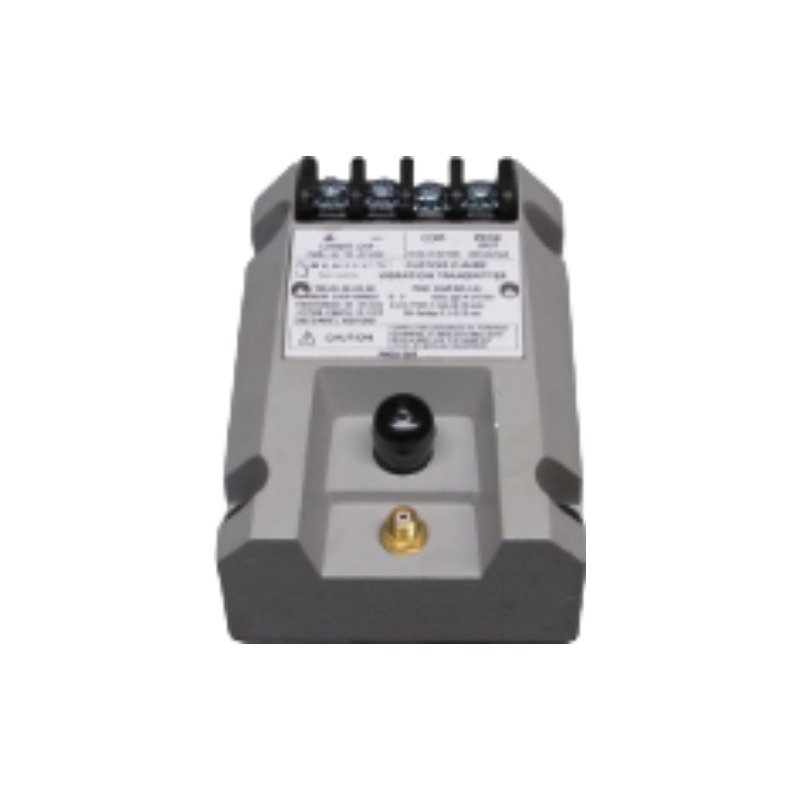

The Bently Nevada 990-05-XX, also cataloged as the 990 Proximity Transmitter, operates as a dedicated hardware component for non-contacting vibration and displacement measurements within machine monitoring networks. Specifically, the transmitter conditions high-frequency radio frequency (RF) signals from an eddy-current probe system and subsequently converts the physical gap variations into a linear 4-20 mA DC current loop. Consequently, this design executes the direct delivery of machinery metrics to distributed control systems (DCS) or programmable logic controllers (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 990-05-XX utilizes precise eddy-current probe scaling to convert physical gap fluctuations into electrical signals for the analysis of rapid rotor dynamics. During commissioning, engineers perform gap voltage validation (-10 VDC targets) within the specified linear operational range, thereby verifying the exact electrical zero-point. Furthermore, the internal electronics deploy integrated cross-talk suppression circuitry; as a result, the hardware minimizes electromagnetic interference even when multiple sensor lines run through parallel wire conduits.

Frequently Asked Questions

Q: What does the “XX” suffix indicate in the model number?

A: The “XX” suffix represents a variable option code that defines the specific target material calibration or total system length configuration required for the installation.

Q: Why does the transmitter housing include a continuous BNC connector?

A: The BNC connector provides a dynamic voltage output proportional to the unfiltered sensor signal. Therefore, technicians can connect vibration analyzers directly for diagnostics without interrupting the primary 4-20 mA control loop.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Afterward, ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Always route all sensor proximity probe leads and transmitter current loop cables inside dedicated, isolated metal conduits. In addition, avoid running signal wiring parallel to high-voltage AC lines or variable frequency drive (VFD) paths.
• Mechanical Orientation: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel. For installations in environments with high humidity or chemical exposure, mount the assembly inside an enclosure rated IP54 or higher.
