Description

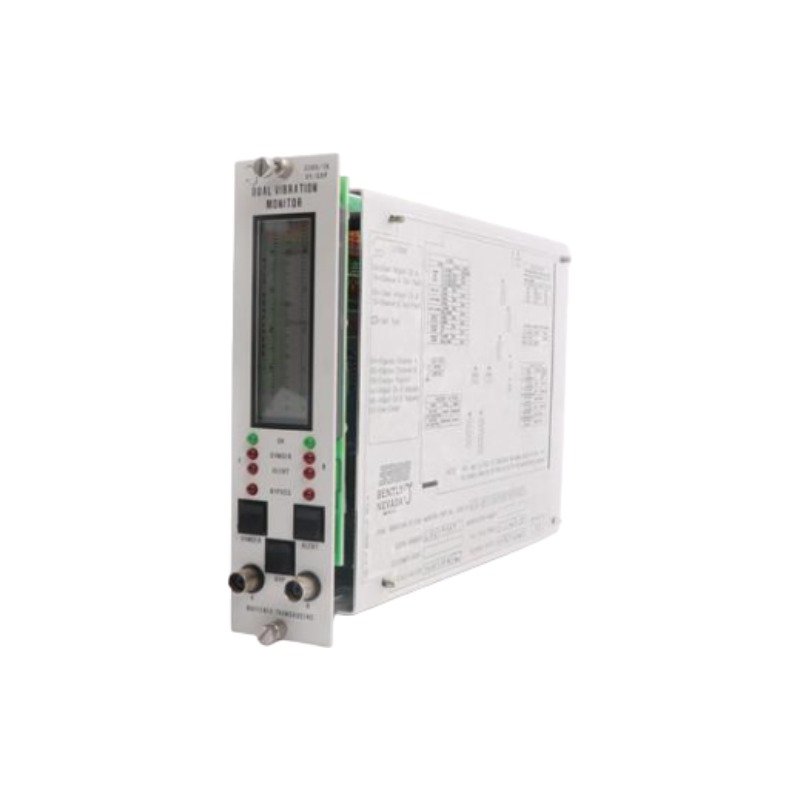

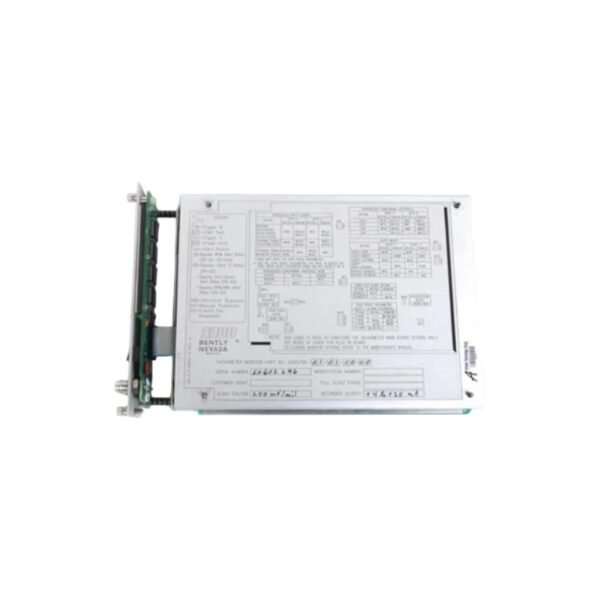

The Bently Nevada 86739-01, also cataloged as the 3500/16 Vibration Monitoring Module, operates as a dedicated hardware component for continuous monitoring of vibration levels within 3500 Series Machinery Protection System platforms. Specifically, the dual-channel electronic chassis processes real-time dynamic inputs from connected transducers to generate baseline amplitude variables. Furthermore, the internal processor translates analog sensor tracking fields directly into localized machinery protection signals, feeding digital alarm states straight to the main rack backplane structure.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This dual-channel vibration monitoring module maintains continuous signal verification by validating the exact baseline parameters required for eddy-current probe scaling configurations. The internal processor performs real-time gap voltage validation (-10 VDC targets) across both diagnostic loops to cross-check transducer operational health. Because the system tracks high-speed rotor dynamics transitions, the input channels utilize sharp internal filtering layers to guarantee cross-talk suppression between adjacent sensor busses. Consequently, this discrete isolation path prevents high-frequency carrier wave spillover from modifying the low-frequency absolute casing parameters.

Frequently Asked Questions

Q: How does the module handle hot-swap replacement procedures during active machinery operation?

A: The hardware supports live hot-swap replacement within the 3500 rack frame. However, pulling the module instantly breaks the sensor loop connection, which triggers a NOT OK fault condition and opens the assigned protection relays.

Q: What specific backplane power consumption constraints does this monitoring module introduce?

A: The module draws its operating voltage directly from the redundant 3500 power supplies through the backplane bus. Technicians must factor the typical 7.7 W consumption into the total rack power budget to prevent systemic voltage drop conditions.

Q: How does the internal logic handle a sudden sensor open-circuit fault during high vibration states?

A: The module constantly monitors the transducer bias voltage. If a wire breaks, the system drives the channel into a NOT OK status within milliseconds, thereby bypassing the alarm voting logic to prevent a false machinery trip.

Field Installation Guidelines

• Mounting Mechanics: Slide the module assembly firmly into the assigned slot of the 3500 rack chassis. Next, tighten the top and bottom captive retaining screws to secure the physical ground mating paths against ongoing plant vibrations.
• Shielding Requirements: Route the transducer coaxial lines through a dedicated instrument terminal strip. Furthermore, connect the outer braided shield to the rack system common ground point only, ensuring the field sensor tip remains completely isolated.
• Wiring Separations: Separate the low-voltage sensor input wiring runs from any high-voltage AC power lines or variable frequency drive cabling. Maintain a minimum physical distance of 300 mm to block external electromagnetic noise injection.
• Thermal Management: Verify that the open vent holes on the module faceplate remain unobstructed. Additionally, monitor enclosure temperatures to ensure the internal rack ambient atmosphere stays within the standard -30 deg C to +65 deg C range.
