Description

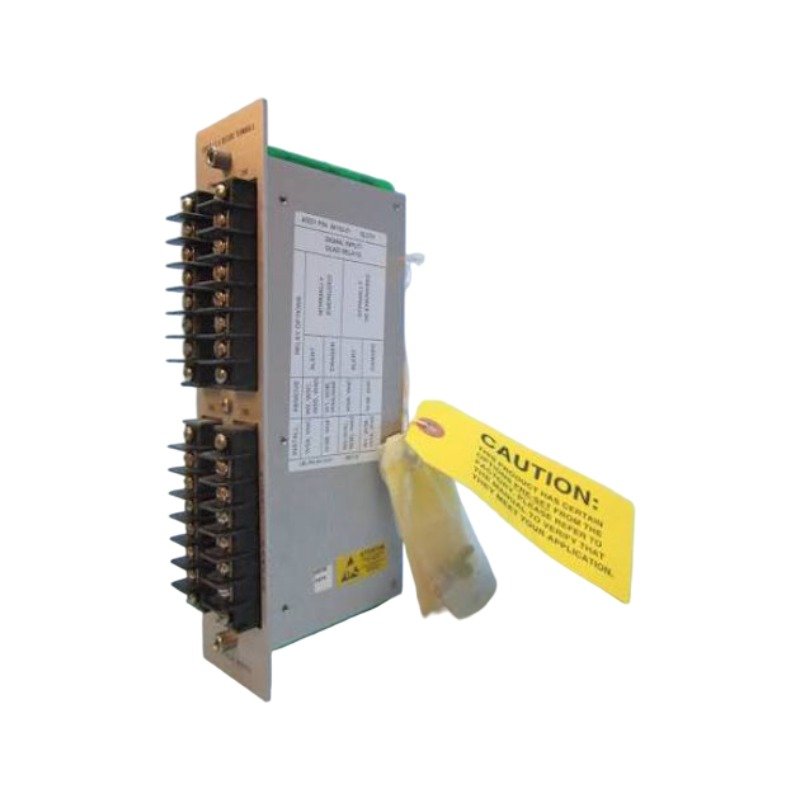

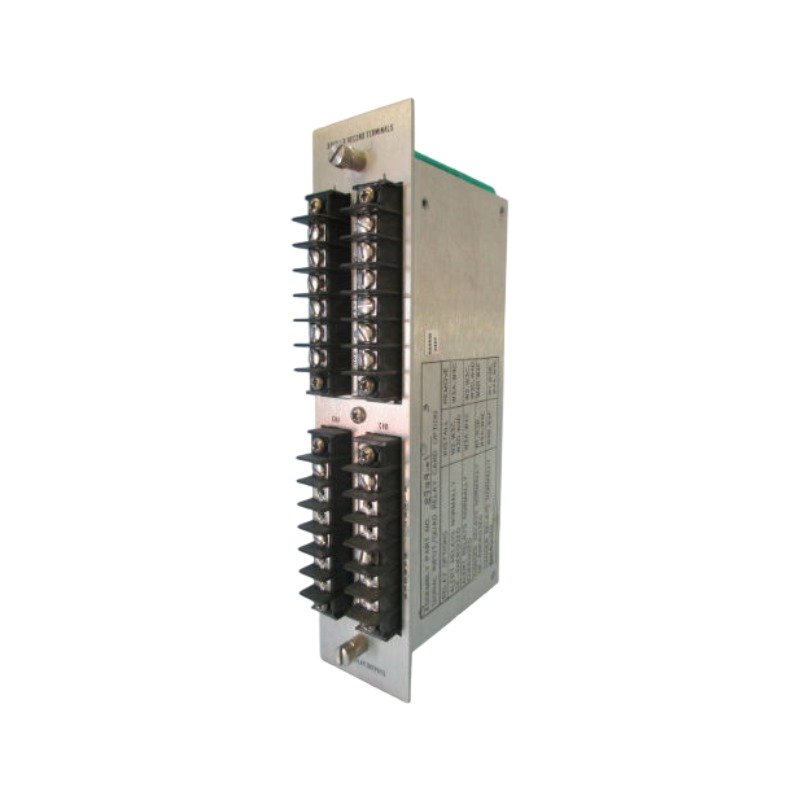

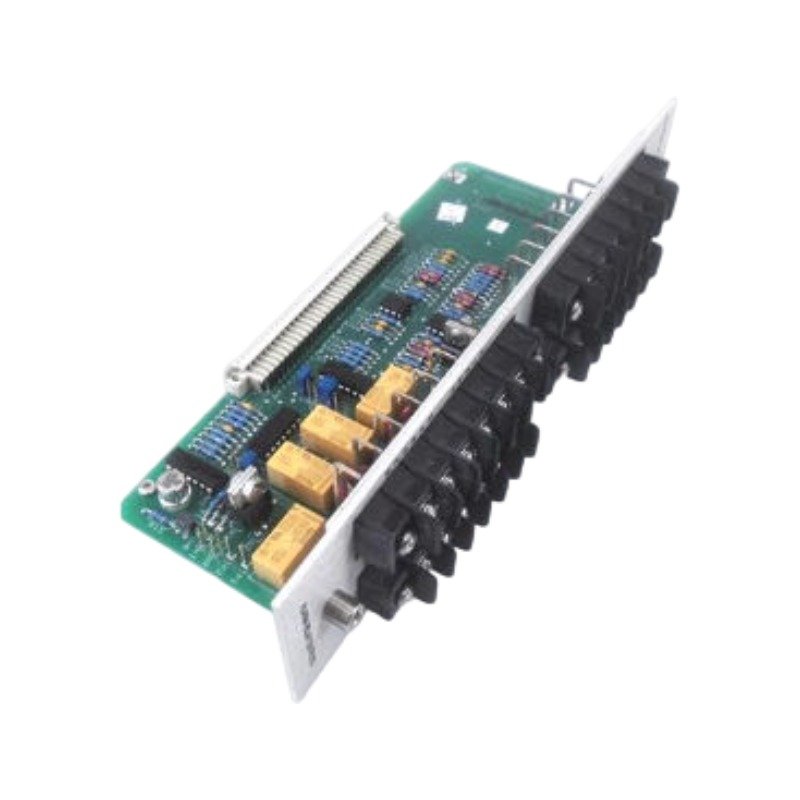

Configured for multi-channel transducer routing and automated safety relay output execution in Bently Nevada 3300 Machinery Protection System platforms, the Bently Nevada 83729-01 (also cataloged as the 83729 Transducer I/O and Record Terminal) provides direct physical/electrical execution. Specifically, the component serves as a specialized backend interface module that directly routes raw dynamic signals from vibration, position, or temperature sensors to internal tracking processors, while concurrently deploying electrical trip commands via onboard relay logic upon parameter breaches.

Hardware Specifications

Rotor Dynamics and Transducer Conditioning

To achieve highly precise rotor dynamics analysis, this module incorporates optimized input conditioning circuitry that actively handles eddy-current probe scaling. Grid signal stability relies heavily on strict gap voltage validation, targeting a nominal -10 VDC offset for standard proximity sensor networks to maintain a linear and clear measurement baseline. This precise biasing prevents signal clipping and simultaneously maximizes the dynamic range of high-frequency transient voltage inputs during rapid acceleration phases. Furthermore, integrated cross-talk suppression logic filters out high-frequency electromagnetic interference (EMI) along with adjacent channel magnetic induction. As a result, the hardware maintains sharp pulse-edge tracking and solid contact execution even when engineers mount sensors and high-current field lines in high-density structural clusters.

Frequently Asked Questions

Q: How does this specific terminal card interface with external recorders or logging devices?

A: The card features discrete, buffered recording terminal outputs that continuously mirror the raw dynamic analog signal voltage without introducing impedance loading to the primary monitoring loops.

Q: Does modifying the relay contact configuration from normally open (NO) to normally closed (NC) require special software?

A: No. Technicians execute all modifications to the contact state behaviors completely via physical, hardware-level onboard jumper blocks situated on the module surface.

Q: What is the rated execution speed of the onboard alarm relay contacts?

A: The internal switching network responds in less than 1 millisecond following a validated command from the parent monitor card, which prevents delay propagation during critical machinery trips.

Field Installation Guidelines

• Chassis Insertion: Always isolate and power down the parent 3300 chassis panel before inserting or removing the terminal card assembly. Once inserted, firmly tighten the top and bottom mounting fasteners to ensure complete electrical backplane engagement and a solid chassis ground.
• Shield Termination: Terminate the transducer cable shields exclusively at the designated monitor backplane terminal block. Conversely, leave the shield floating and safely insulated with heat-shrink tubing at the sensor junction box to actively eliminate ground loops.
• Conduit Routing: Isolate and route the input transducer wiring in dedicated, grounded metallic conduits. In addition, avoid running these low-voltage signal lines within the same tray or conduit housing high-voltage AC power lines.
