Description

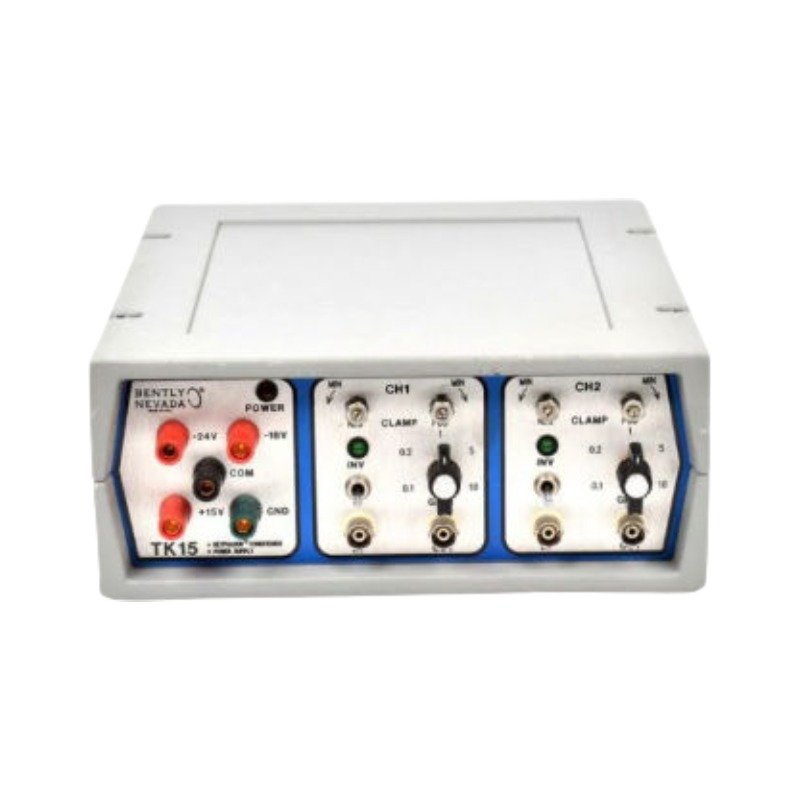

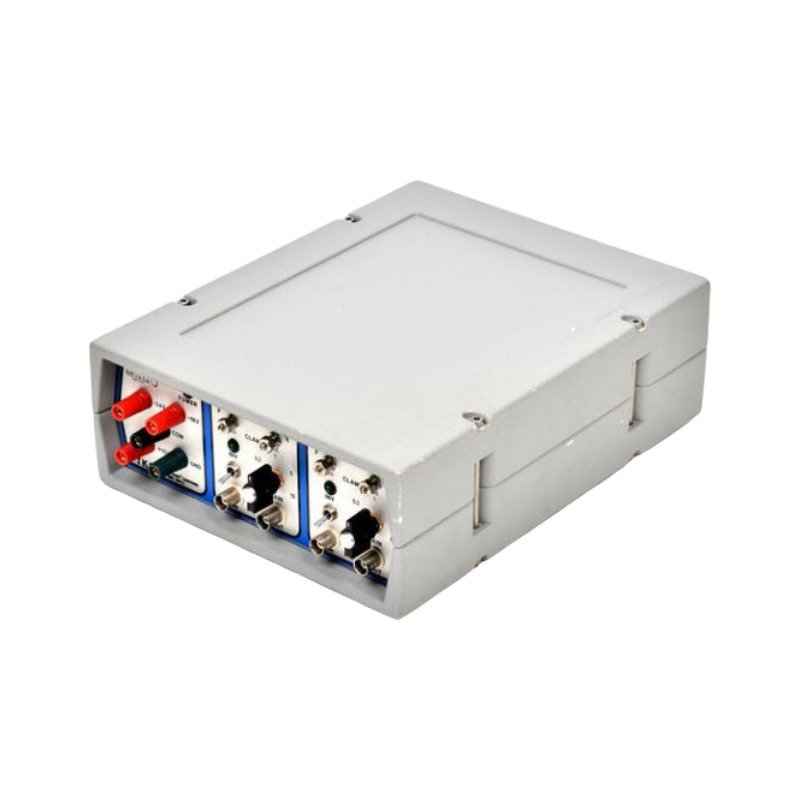

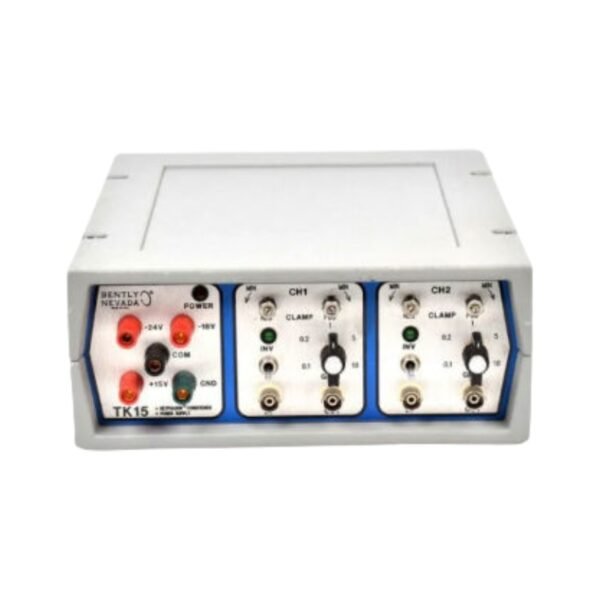

The Bently Nevada 80917-01, also cataloged as the TK15 Keyphasor Conditioner and Power Supply, operates as a dedicated hardware component for conditioning phase-reference signals and supplying transducer loop power within portable machinery diagnostic networks.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The dual-channel device conditions raw speed and phase-reference inputs derived from eddy-current proximity probes or optical pickups. During field setup, technicians perform gap voltage validation to maintain correct proximity sensor response within the linear calibration zone, typically tracking the standard -10 VDC operational midpoint. The signal-conditioning circuit actively suppresses high-frequency cross-talk between the two independent channels, preventing phase shift anomalies during high-speed rotor dynamics tracking. Furthermore, the unit outputs -18 VDC and -24 VDC supply lines to power external drivers, adjusting the dynamic voltage conversion accurately over the full frequency scale without introducing signal saturation or impedance loading.

Frequently Asked Questions

Q: What primary function does the internal circuit perform for portable instrumentation?

A: The instrument conditions raw pulse or proximity inputs into clean, squared wave pulses while simultaneously supplying specialized isolated operating voltages to the external transducers.

Q: How do field technicians select the appropriate input voltage on the 80917-01?

A: Technicians change the operational voltage range manually using a dual-position slide switch located on the rear terminal panel, shifting between the 115 VAC and 230 VAC line requirements.

Field Installation Guidelines

• Enclosure Placement: Position the portable instrument housing on a stable, flat surface adjacent to the data collection area. Ensure the rear and side cooling vent panels remain clear of obstructions to facilitate proper thermal dissipation.
• Fuse Validation: Verify that the installed fuse rating matches the local grid voltage before applying power. The unit requires a 0.5 A time-delay fuse for 115 VAC lines, whereas 230 VAC applications require a 0.25 A time-delay fuse.
• Coaxial Lead Connection: Connect the transducer outputs to the front BNC terminal interfaces. Route the coaxial interconnect lines separate from structural power distribution runs to shield the conditioning loop from external electromagnetic noise.
