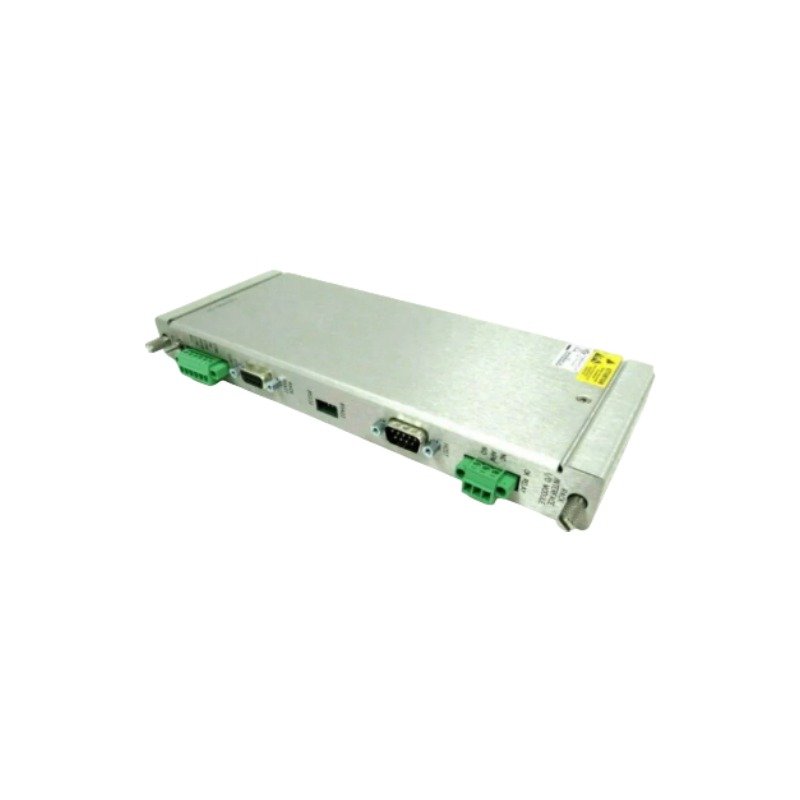

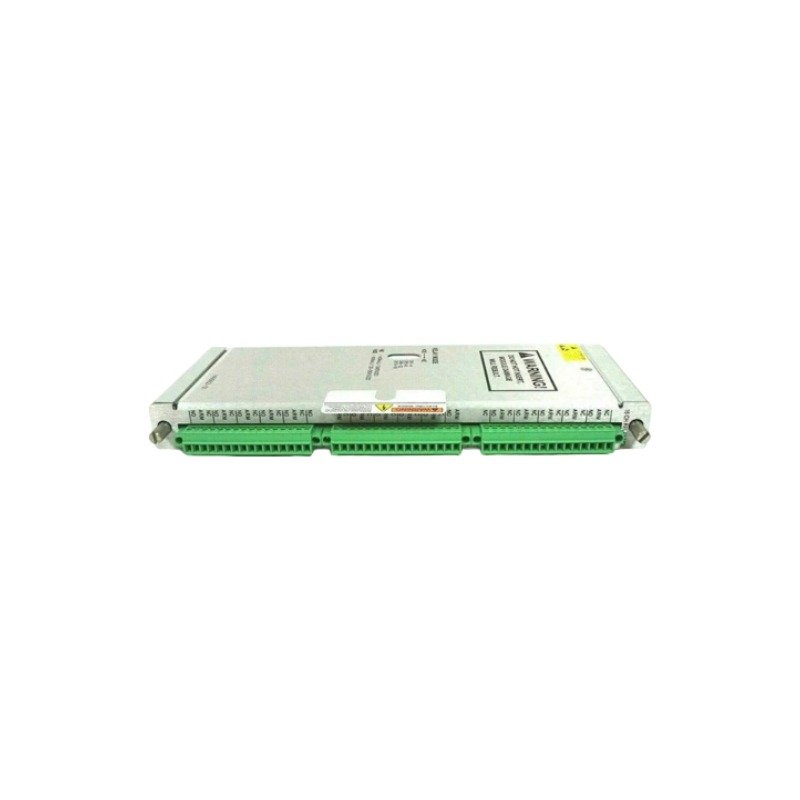

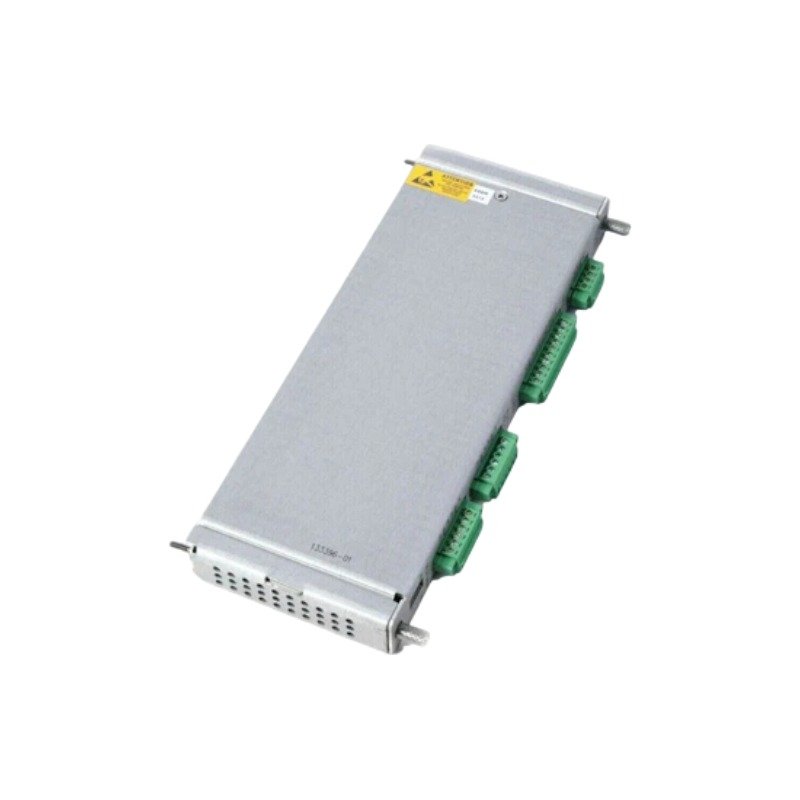

Bently Nevada 80097-01 Temperature Monitor
Bently Nevada 80097-01 multi-channel temperature monitor module. Brand New, Original Stock, Global Shipping.
Description
The Bently Nevada 80097-01 serves as the primary 80097 Temperature Monitor utilized to execute real-time vibration analysis and temperature monitoring across Modbus TCP/IP networks. The hardware processes physical inputs from up-to-spec transducer circuits, providing direct conditioning for machinery health tracking via physical interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 80097-01 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.85 kg |
| Dimensions | 200 mm x 150 mm x 80 mm |
| Operating Temp | -40 to +85 deg C |
| Power Consumption | 4.8 W maximum |
| Input Voltage | 24 V DC |
| Communication Protocol | Modbus TCP/IP |
| Input Channels | Up to 16 |
| Output Channels | Up to 8 |
| Enclosure Rating | IP65 |
Machinery Monitoring & TSI Characteristics
The hardware conditions static and dynamic field signals to determine real-time rotor dynamics and structural casing variations. To preserve path integrity across the multichannel architecture, internal diagnostic logic implements continuous gap voltage validation (-10 VDC targets) alongside automated transducer loop checking. Calibration profiles are matched to standard eddy-current probe scaling, and the processing array incorporates digital filtering to enforce robust cross-talk suppression between high-density channel links.
Frequently Asked Questions
Q: How does the 80097-01 interface react during a network drop or Modbus TCP/IP link failure?
A: The monitor relies on independent localized execution and internal data logging. Consequently, a loss of communication protocol connectivity does not halt localized alarm monitoring or data collection behaviors.
Q: Can the 24 V DC power bus source be hot-swapped while field input channels are actively acquiring data?
A: No. The unit requires stable power distribution parameters during active measurement operations to preserve data tracking continuity and prevent transient electrical issues.
Field Installation Guidelines
- Mount the enclosure vertically on a rigid framework to maintain the integrity of the IP65 environmental seal parameters.
- Route the 24 V DC input power lines inside separate industrial conduits away from high-voltage alternating current distribution lines to secure optimal cross-talk suppression.
- Terminate all external braided shields for the sensor lines at a single instrument ground node to maintain stable data logging benchmarks.
Additional information
| Weight | 0.85 kg |
|---|---|
| Dimensions | 200 × 150 × 80 mm |
