Description

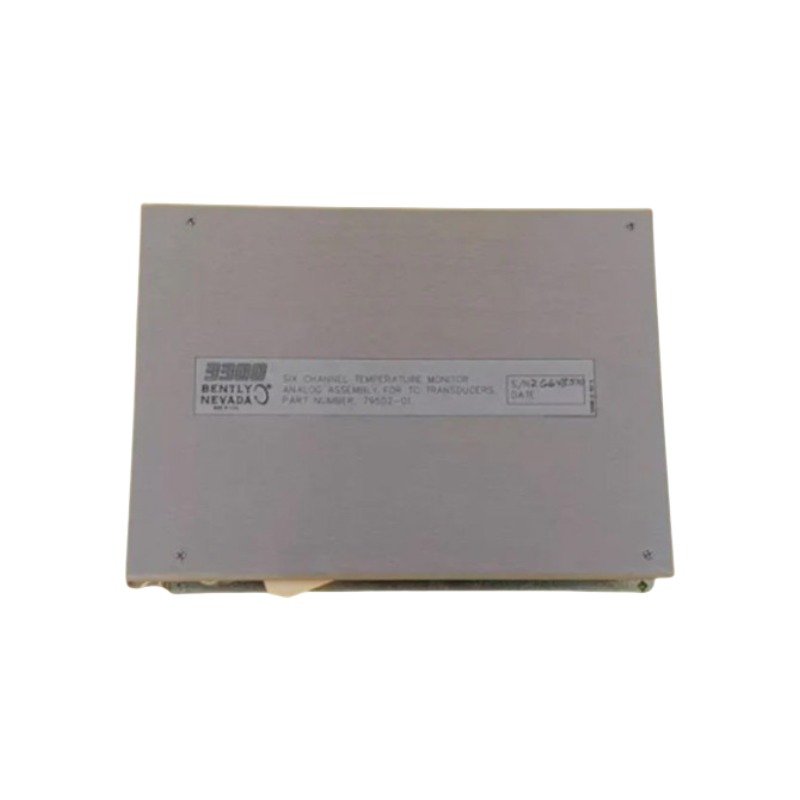

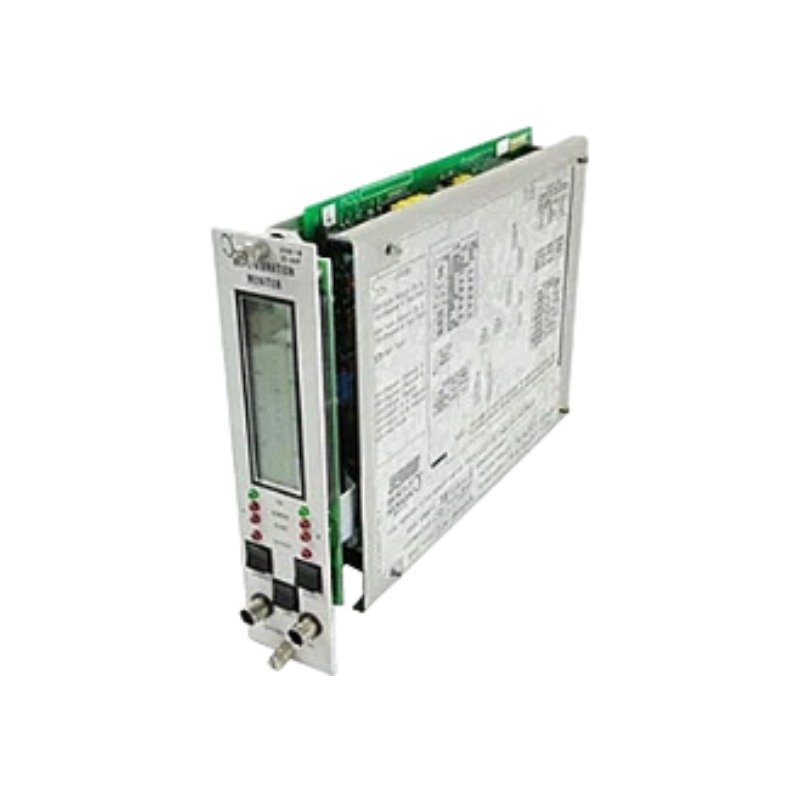

The Bently Nevada 79502-01, also cataloged as the 3300/30 Six-Channel Temperature Monitor, operates as a dedicated hardware component for processing thermocouple sensor signals within 3300 Monitoring System platforms. Specifically, the module receives inputs from up to six independent grounded or non-grounded thermocouple channels to execute real-time machine thermal monitoring. Consequently, it tracks temperature variances across critical machinery bearings, winding configurations, and casing zones to protect industrial rotating machinery from thermal overload conditions.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 79502-01 Six-Channel Temperature Monitor complements traditional eddy-current probe scaling configurations by adding crucial thermal validation variables to overall machinery protection strategies. During continuous operation, variations in thrust bearing temperatures correlate directly with shaft axial migration and gap voltage validation targets. Therefore, tracking thermal metrics allows plant engineers to verify the structural integrity of mechanical components alongside raw rotor dynamics parameters. Furthermore, the monitor isolates its internal sensor loops to ensure comprehensive cross-talk suppression, preventing high-frequency line interference from corrupting adjacent vibration and position monitoring cards within the passive system backplane.

Frequently Asked Questions

Q: Does the 79502-01 Six-Channel Temperature Monitor support the hot-swap procedure while the rack is live?

A: No. The 3300 backplane architecture requires full de-energization before inserting or removing the 79502-01 hardware module. Disconnecting the component under power can cause voltage transients that compromise the integrity of adjacent modules.

Q: What are the measurement upper limits for the supported thermocouple types on this module?

A: Type J and Type K thermocouples support tracking up to +500 deg C. Conversely, Type T and Type E configurations exhibit a maximum hardware capability limit of +250 deg C.

Field Installation Guidelines

1. First, verify that the 3300 system rack is completely isolated from all primary electrical power inputs before attempting installation.
2. Next, line up the module housing with any two adjacent open slots, noting that slots 1 and 2 remain strictly reserved for the system power supply and system monitor.
3. Subsequently, slide the module firmly back along the upper and lower card guides until the rear interface connects completely with the passive backplane.
4. Finally, secure the module by turning the top and bottom captive panel screws clockwise, and land the thermocouple field wiring shields at the central instrumentation ground bus.
