Description

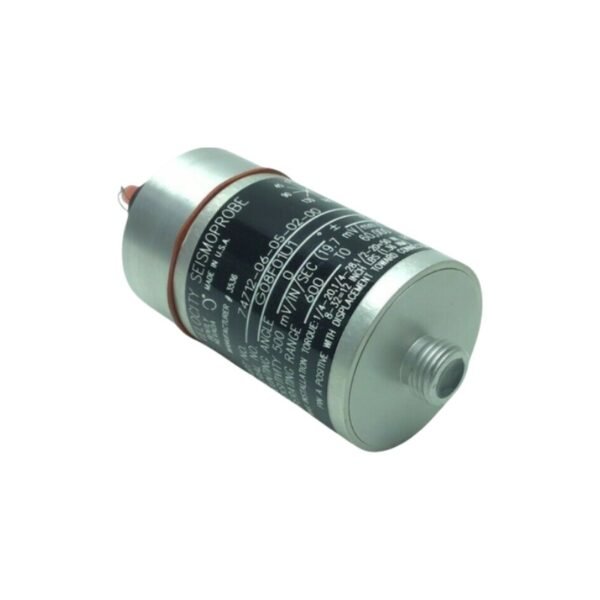

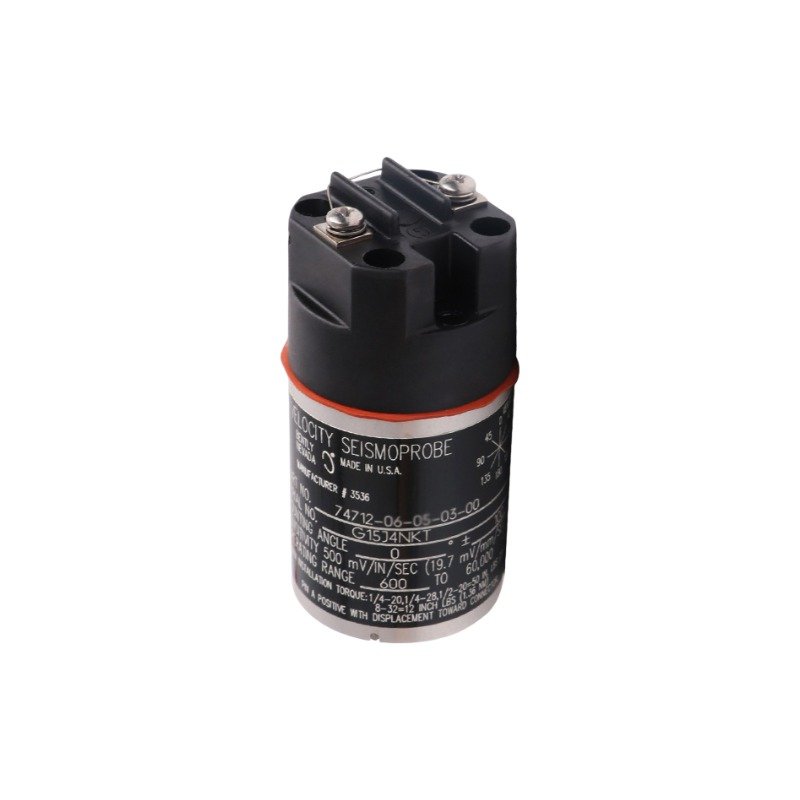

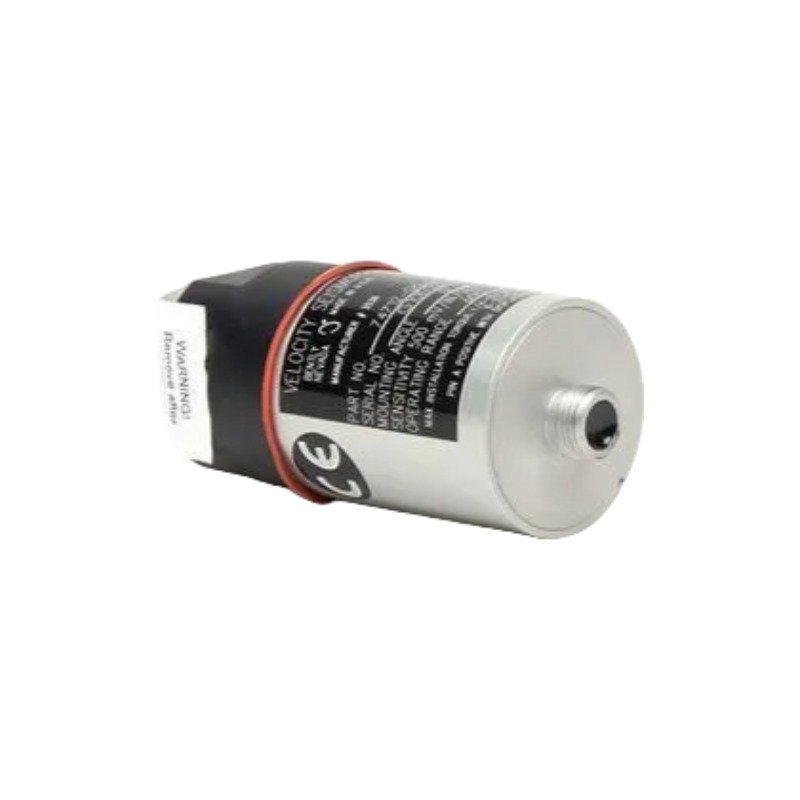

Configured for absolute casing vibration measurement on rotating machinery structures, the Bently Nevada 74712-06 (74712-06 Seismoprobe Velocity Transducer) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The 74712-06 constitutes a specific configuration of the base Seismoprobe series. The base model accommodates variable suffix codes defining architectural variations such as base mounting threads, electrical connector orientations (top or side entry), and hazardous area approval classifications. The specific -06 suffix defines the physical mounting orientation and low-frequency cutoff constraint:

• Mounting Angle Option: 0 deg +/- 100 deg orientation limit.
• Minimum Operating Frequency: 10 Hz (600 cpm).

Hardware Specifications

Rotor Dynamics and TSI Integration

The 74712-06 utilizes an internal moving-coil mechanism to generate a continuous voltage signal directly proportional to absolute structural velocity. Specifically, when integrated into Turbine Supervisory Instrumentation (TSI) topologies, the sensor tracks absolute casing vibration parameters to complement relative shaft displacement diagnostics. Additionally, while proximity systems require distinct eddy-current probe scaling and specific gap voltage validation (-10 VDC targets), this seismic sensor operates independently of target material properties. Consequently, the self-generating seismic configuration functions without external excitation power. Furthermore, proper routing into the 3500 monitoring framework relies on internal monitor cross-talk suppression to isolate the low-impedance velocity waveforms from high-frequency transient fields induced by adjacent proximity circuits.

Frequently Asked Questions

Q: Does the 74712-06 velocity transducer require an external power supply to operate?

A: No. The transducer utilizes a passive moving-coil architecture. Consequently, mechanical vibration moves the internal coil through a permanent magnetic field, generating its own voltage output loop across the two-wire interface without external power.

Q: What are the specific orientation and frequency limitations imposed by the -06 suffix?

A: The -06 designation dictates that the transducer must be installed within 0 deg +/- 100 deg of its calibrated axis. Additionally, the sensor’s accurate frequency processing range extends down to a minimum cutoff limit of 10 Hz (600 cpm).

Field Installation Guidelines

• First, verify that the structural mounting surface is machined flat and perpendicular to the axis of vibration measurement. Subsequently, torque the sensor housing to the specified thread parameters to prevent mechanical looseness.
• Second, route the two-wire signal cable inside a dedicated rigid or flexible metal conduit. Consequently, this shielding separates the low-voltage velocity signal from high-voltage motor supply runs.
• Third, terminate the cable shield only at the monitoring rack chassis ground. Otherwise, grounding both ends will introduce ground loops, distorting the absolute casing velocity data transmitted to the TSI system.
