Description

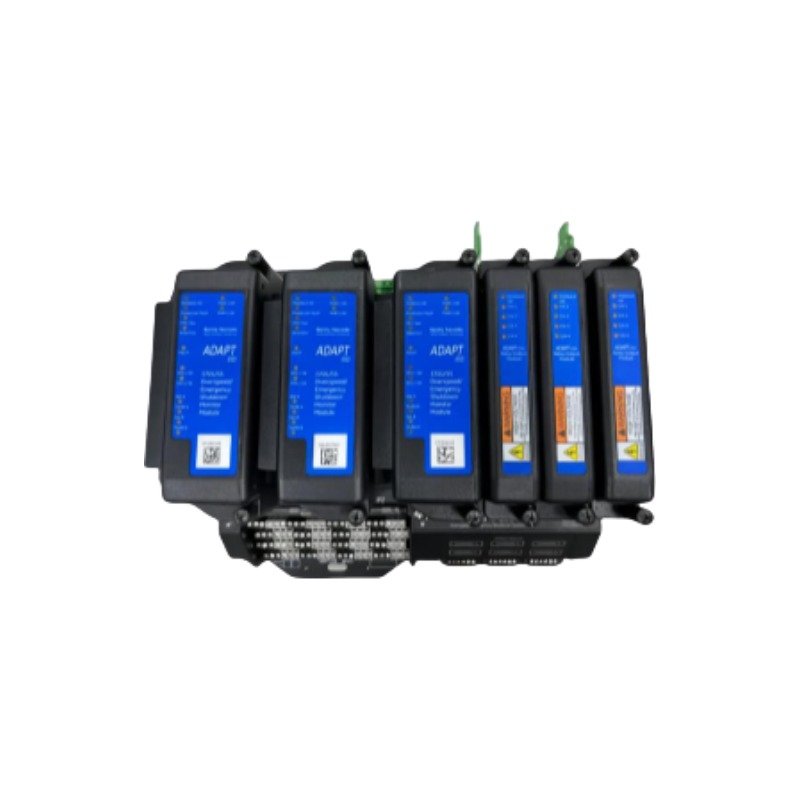

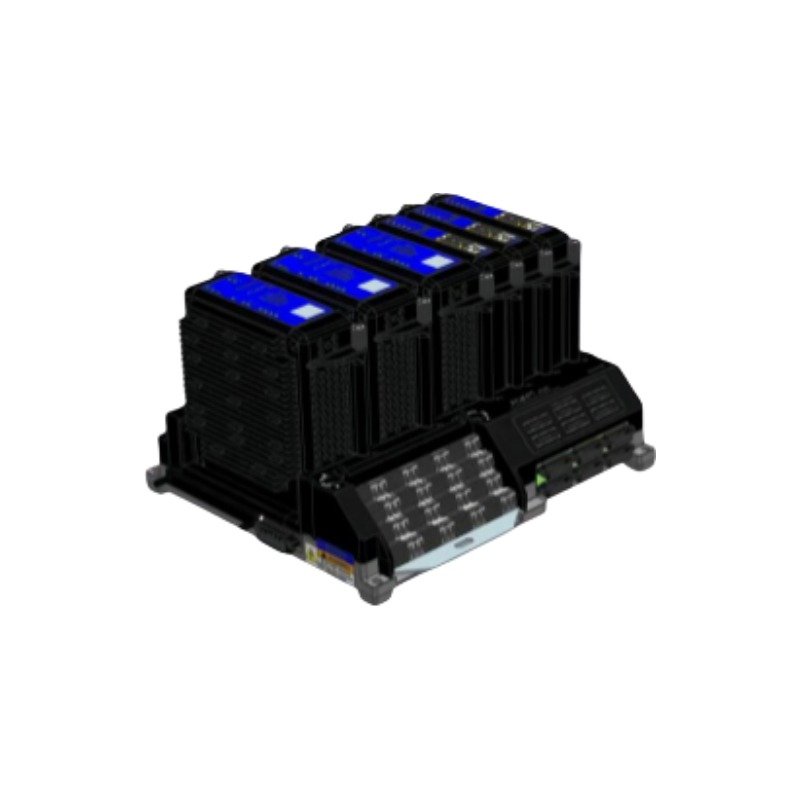

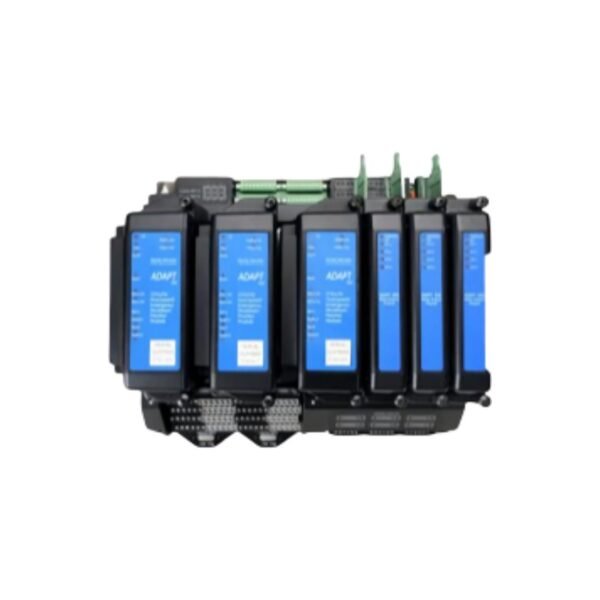

The Bently Nevada 3701/55 323174-01, also cataloged as the 3701/55 ADAPT ESD Monitor, operates as a dedicated hardware component for emergency shutdown execution and transient machinery protection within Bently Nevada ADAPT platforms. The central CPU module processes critical safety instrumentation inputs via the system backplane, and it subsequently drives exact shutdown logic execution through associated relay output hardware interfaces.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The CPU module directly interprets multi-channel transient sensor data to manage complex rotor dynamics and shaft anomalies. Concurrently, the digital processing core executes real-time configuration commands that govern eddy-current probe scaling variables and automatic gap voltage validation (-10 VDC targets). Furthermore, the internal computing architecture implements rigorous cross-talk suppression paths across the backplane bus, thereby preventing trace signal corruption from inducing inadvertent trip signals during emergency protection cycles.

Frequently Asked Questions

Q: How does the 323174-01 CPU Module handle configuration sync when technicians replace a matching 323073-01 relay card?

A: The CPU module automatically detects the hardware change via the backplane bus interface. Following detection, it uploads the stored configuration registers directly to the new module, which maintains system continuity.

Q: Can the 323174-01 processor execute shutdown logic if the input channel registers drop below the standard gap voltage validation limit?

A: No. When the input signal breaches the -10 VDC target threshold, the CPU registers a transducer fault condition. Consequently, the internal safety logic flags the specific channel as invalid rather than triggering a false mechanical trip.

Field Installation Guidelines

• Mount the CPU hardware cleanly onto the 289761-01 ADAPT ESD Terminal Base Assembly, and then tighten the integrated fasteners to prevent physical alignment shifting.
• Isolate all communication field networks from adjacent high-voltage power lines. As a result, this routing configuration maximizes cross-talk suppression values across the machinery network.
• Verify that the terminal base ground connection links directly to the institutional instrument earth node before applying system power.
