Description

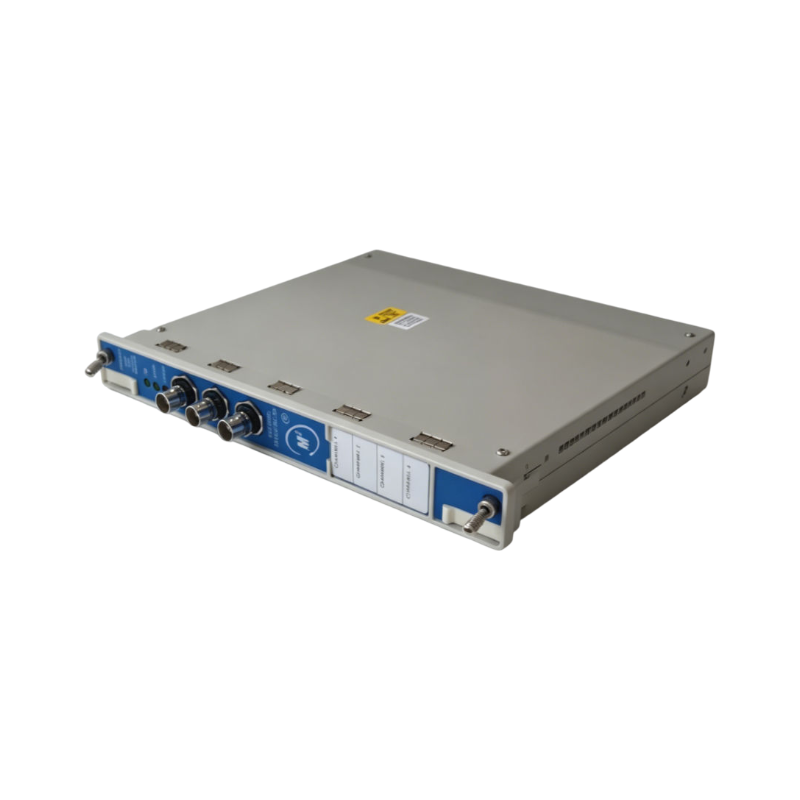

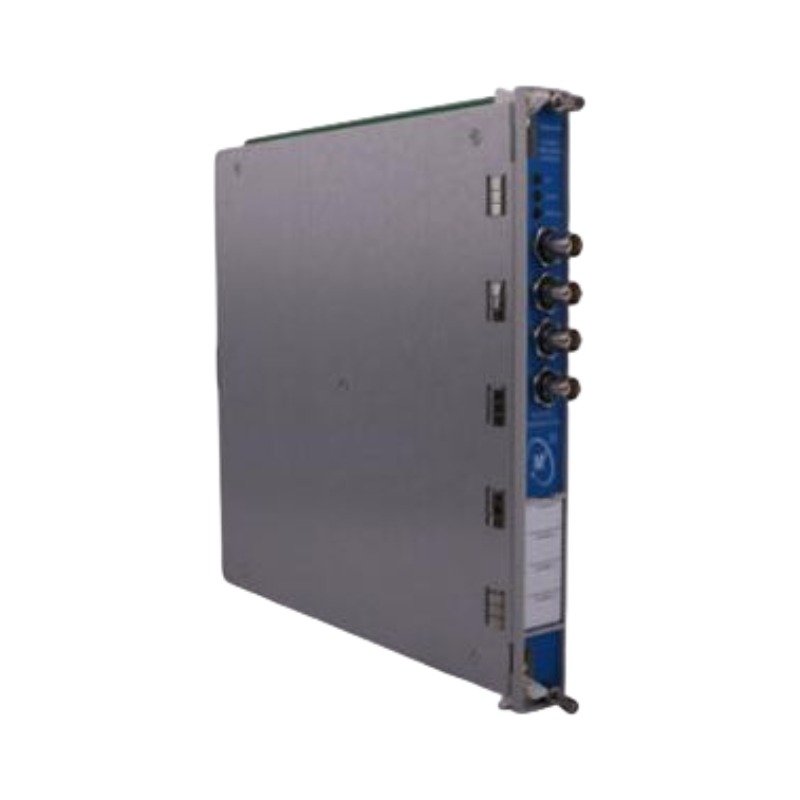

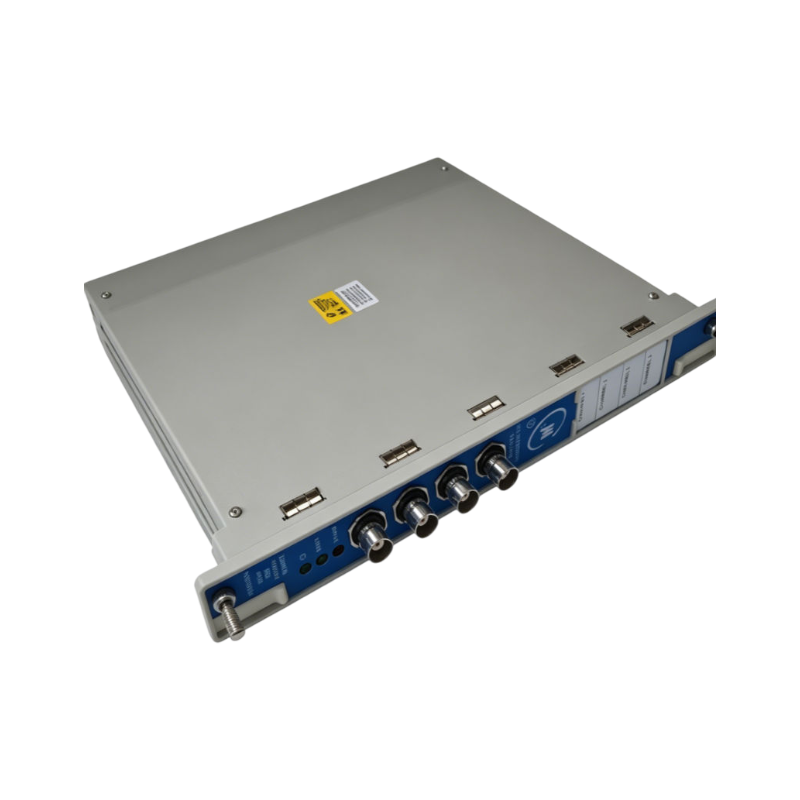

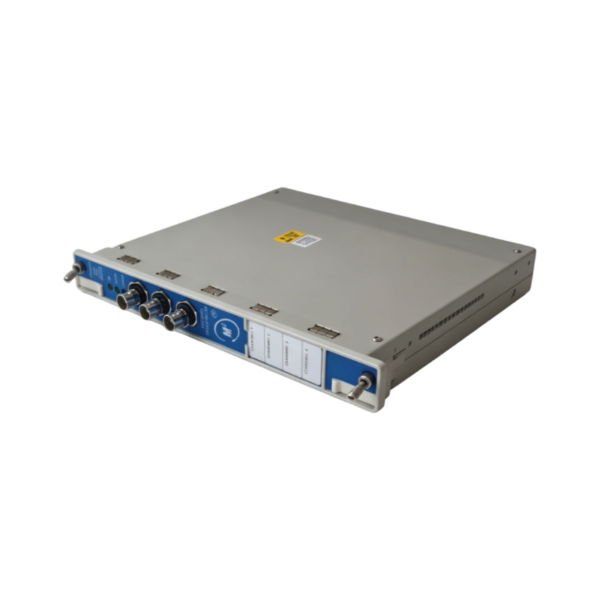

The Bently Nevada 3500/77M 140734-07, also cataloged as the 140734-07 Recip Cylinder Pressure Monitor, operates as a dedicated hardware component for reciprocating compressor cylinder pressure measurement and dynamic signal conditioning within Bently Nevada 3500 series machinery protection systems.

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3500/77M module processes input from pressure transducers to calculate critical chamber variables including discharge, suction, maximum, and minimum pressures, alongside the compression ratio. During system setup, technicians must verify the eddy-current probe scaling and signal path integrity to ensure accurate rotor dynamics and pressure cycle correlation. Engineers typically perform gap voltage validation on connected sensors to confirm the signal remains within the linear operating range. Furthermore, the module utilizes internal cross-talk suppression to isolate channels, which prevents high-frequency pressure transients from causing inaccurate alarm activations or system faults.

Frequently Asked Questions

Q: Does the 3500/77M support hot-swapping during normal operation?

A: Yes, technicians may hot-swap the module while the 3500 rack remains powered. Ensure that the module firmly engages the backplane connector to maintain continuous power delivery and signal integrity.

Q: How does the module manage transducer current limiting?

A: Each channel features an integrated current-limiting circuit that restricts output to 24.5 mA. This design protects the transducer circuitry against potential short-circuit conditions.

Q: Can I configure danger setpoints for any channel?

A: Yes, users define Alert setpoints for all active measured variables and Danger setpoints for any two active measured variables per channel via the 3500 Rack Configuration Software.

Field Installation Guidelines

• Physical Mounting: Insert the module into the designated rack slot and secure the front panel levers to establish a robust mechanical connection and chassis ground.
• Wiring: Utilize shielded instrumentation cabling for all pressure transducer connections. Ensure that the cable shields terminate at the designated grounding points on the I/O module to effectively suppress electromagnetic interference.
• Grounding: Connect the rack system to a verified instrumentation earth ground. Verify that the potential difference between the rack ground and the transducer signal ground remains within the manufacturer’s specified limits to avoid signal noise.
• Signal Path Validation: Perform a complete channel-to-channel isolation check using the configuration software before you engage the machinery protection logic. Ensure that the sensor excitation voltage matches the required +23.0 Vdc specification.
