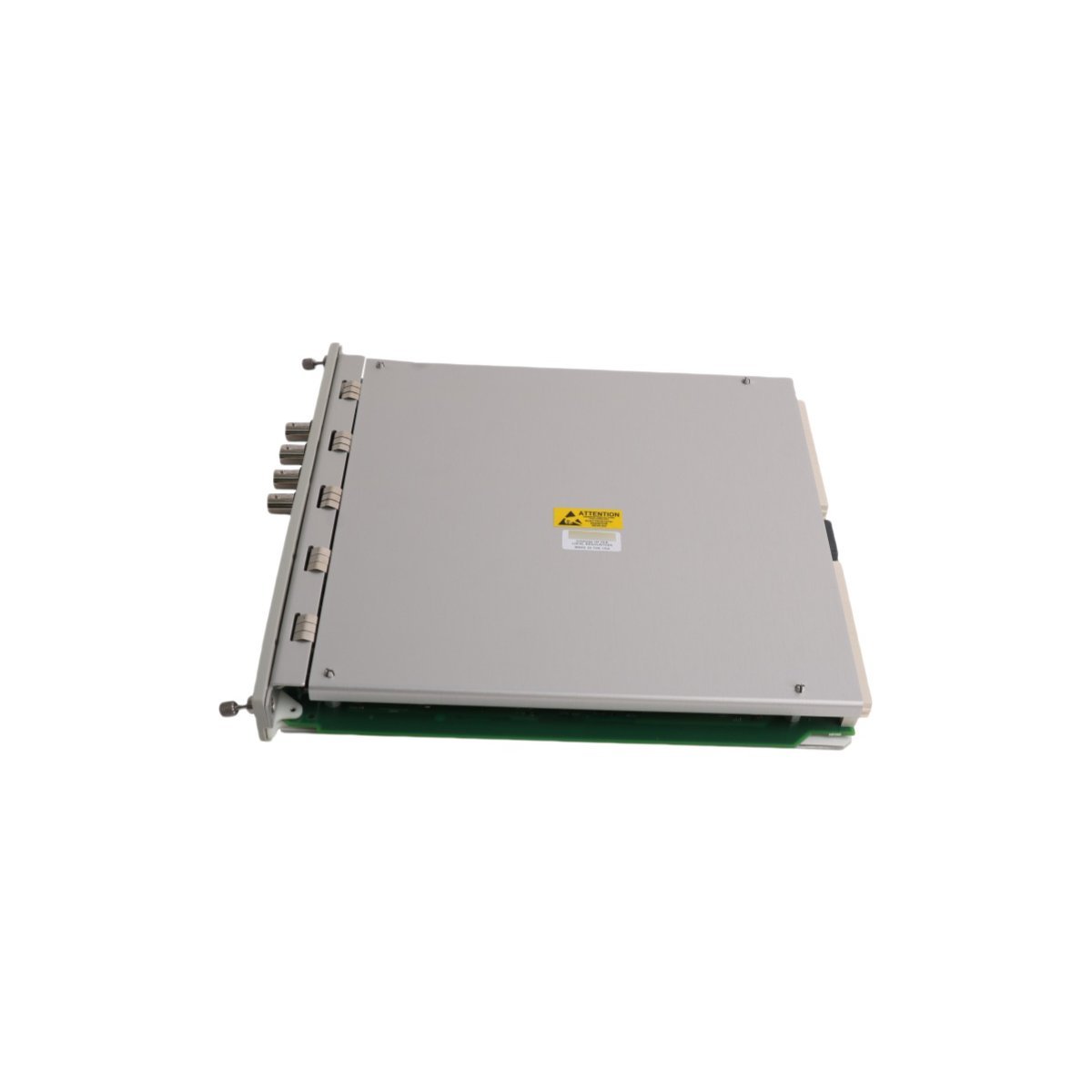

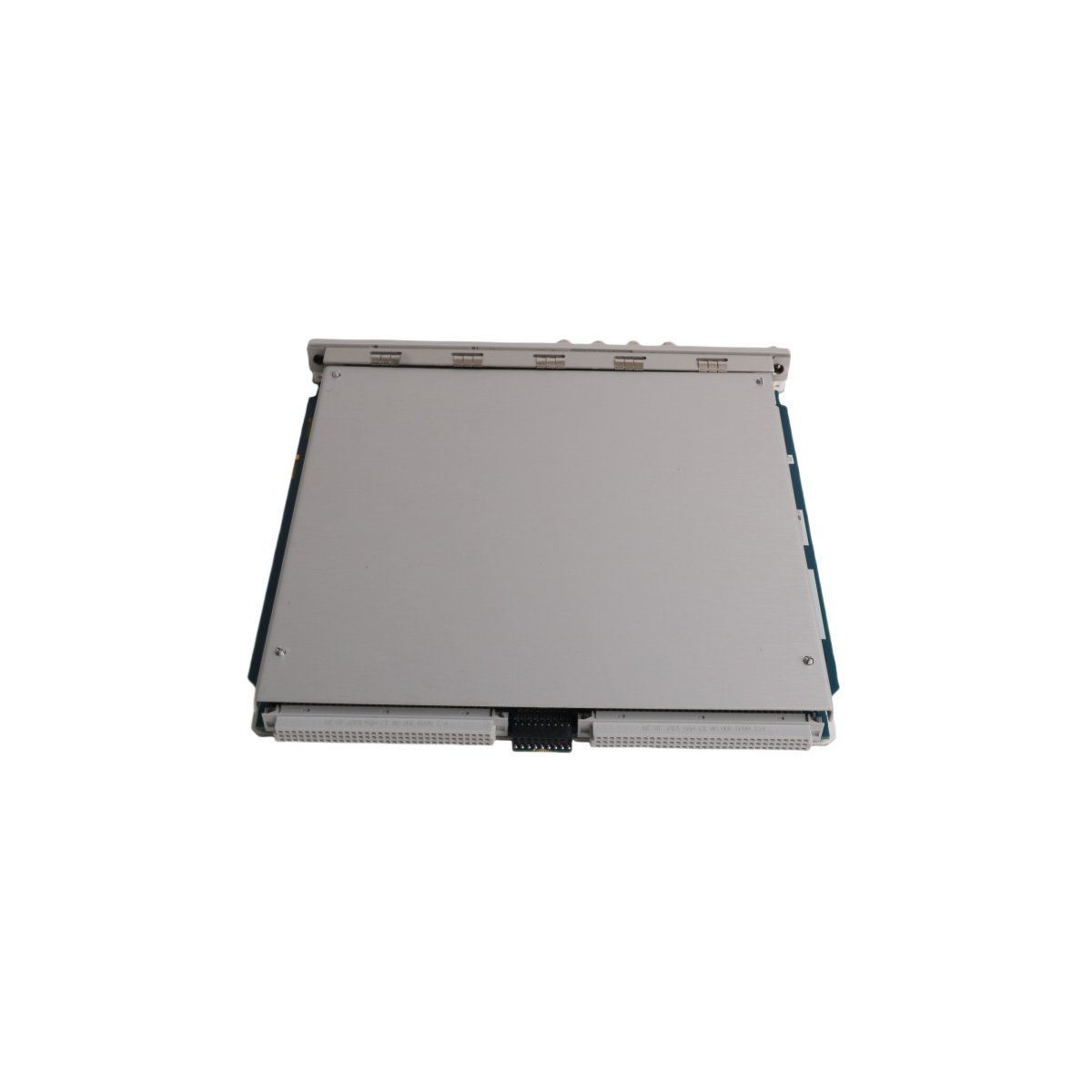

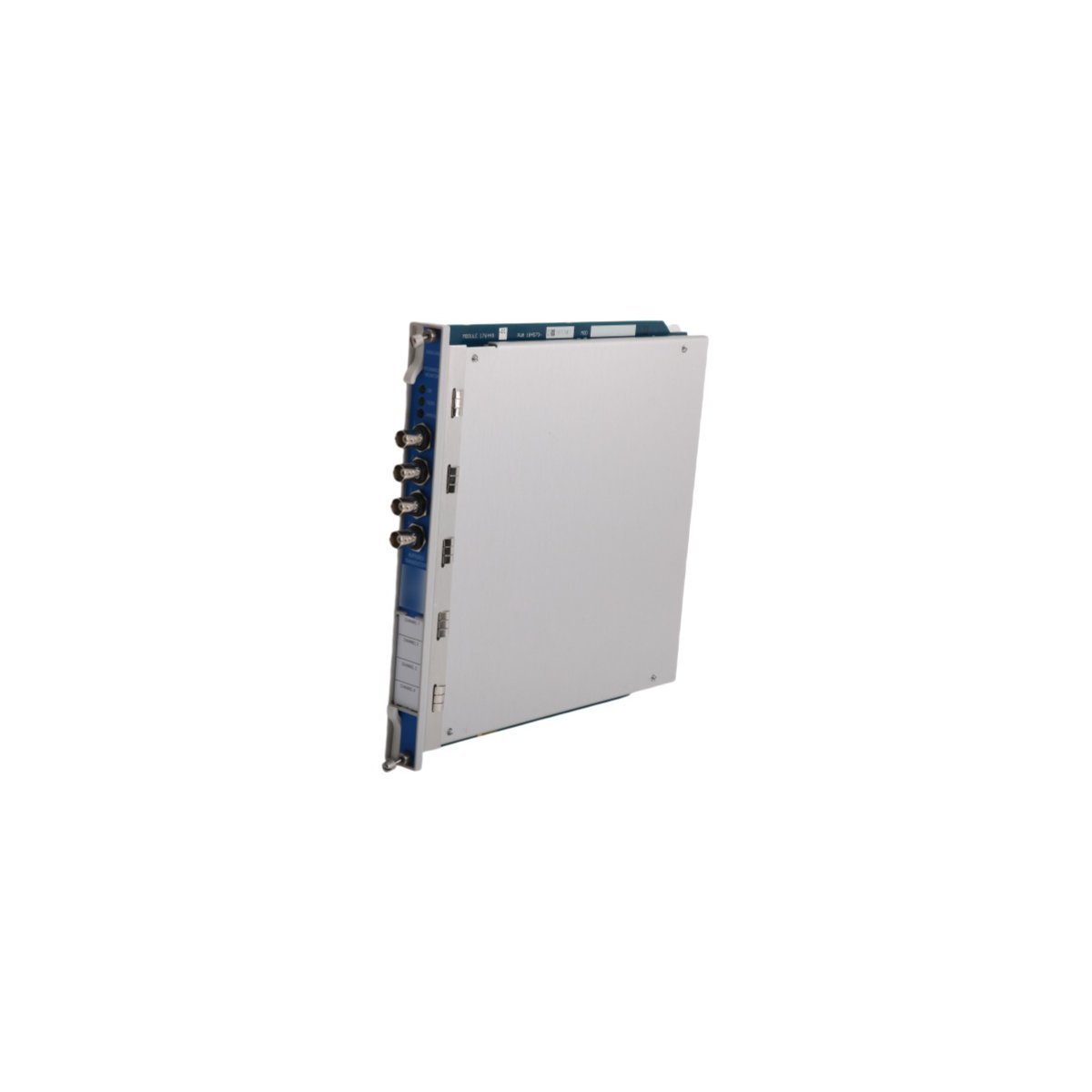

Bently Nevada 3500/77M-03-00 | 176449-07 Cylinder Pressure Monitor Module

The Bently Nevada 3500/77M-03-00, identified by the 176449-07 spare part number, is a specialized monitoring module designed specifically for reciprocating compressors. This module integrates with the 3500 series machinery protection system to provide high-resolution cylinder pressure data. By capturing pressure measurements relative to the crank angle, it allows operators to monitor internal combustion or compression cycles in real-time. This capability is essential for calculating peak pressure, discharge pressure, and suction pressure, which directly influence the mechanical health and efficiency of the compressor.

Advanced Pressure Analysis and Machinery Protection

A primary advantage of the 176449-07 module is its ability to perform high-speed digital signal processing for multi-parameter trending. It correlates cylinder pressure with the machine’s phase and position, enabling the detection of leaking valves, worn piston rings, or damaged liner components. The module supports 24-bit resolution to ensure that even subtle pressure fluctuations are identified before they escalate into mechanical failures. By using this data, the system can trigger alarms or automatic trips to protect assets from catastrophic rod loading or frame overload conditions.

Technical Specifications

The 3500/77M-03-00 is engineered for long-term stability in extreme industrial environments. Key technical parameters include:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 3500/77M
• Spare Part Number: 176449-07
• Module Type: Cylinder Pressure Monitor
• Channel Support: Up to 4 channels per module
• Input Signal: Pressure transducers (typically piezo-resistive or static)
• Standard Compliance: API 670 and ISO 10816-3 compliant
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Shock Resistance: Rated for up to 25G shock loads
• Weight: 0.84 kg
• Dimensions: 2.5 cm x 25.6 cm x 24 cm

Strategic Application in Reciprocating Assets

Reliability engineers deploy the 3500/77M-03-00 in critical sectors such as natural gas midstream, refineries, and chemical processing. Because reciprocating compressors are subject to high stresses, the module’s real-time diagnostics are vital for reducing unplanned downtime. The system effectively tracks dynamic baselines, allowing it to identify developing mechanical issues months in advance. Consequently, facilities using this module often report significant savings in maintenance costs and a marked reduction in false alarm triggers.

Robust Construction and Diagnostic Intelligence

The 176449-07 features a ruggedized military-grade build that ensures continuous operation despite the heavy vibrations of large compressors. Additionally, the unit includes comprehensive self-diagnostic routines that monitor the health of both the module and the connected transducers. If a fault is detected in the signal path, the “Module OK” indicator immediately notifies the plant staff. This ensures that the protection system remains reliable and that the machinery is never operated without active, accurate monitoring.
