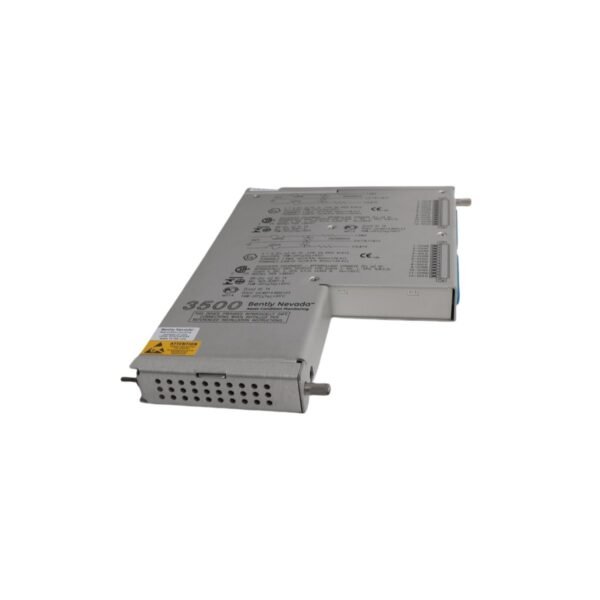

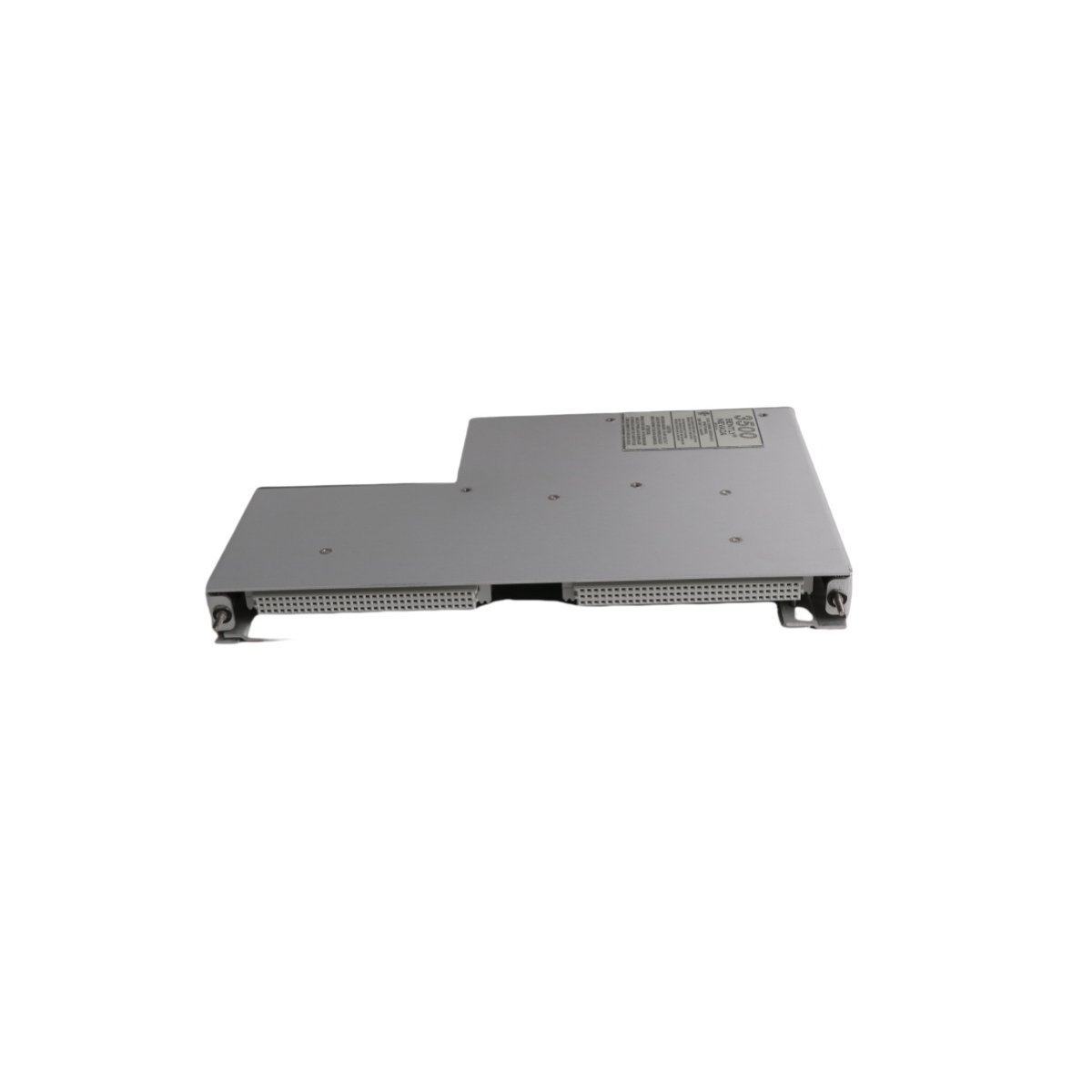

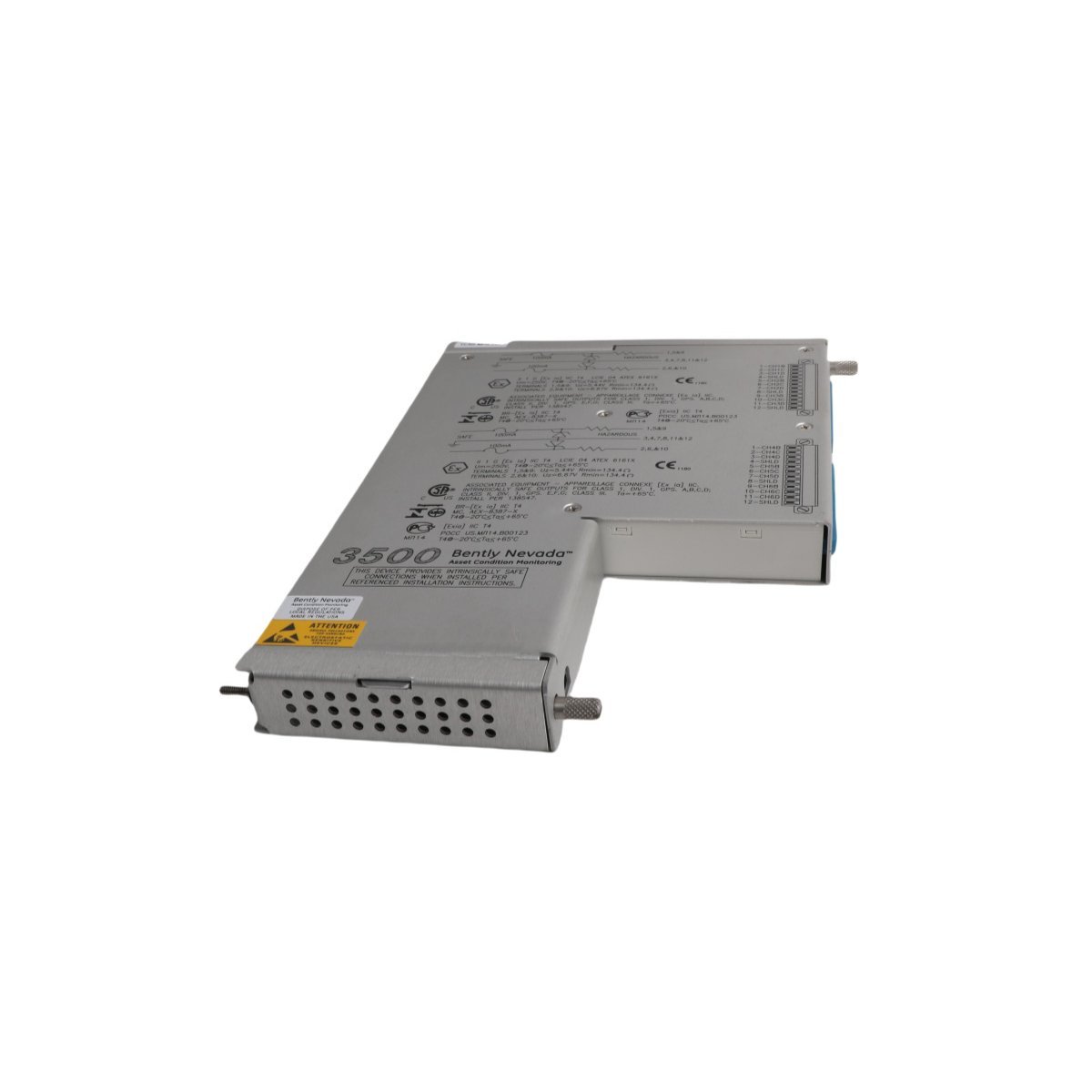

Bently Nevada 3500/62-03-00 (137110-01) Process Variable Monitor I/O Module

The Bently Nevada 3500/62-03-00, identified by part number 137110-01, is a high-performance input/output module designed for the 3500 Machinery Protection System. This specific version features internal terminations, allowing for direct field wiring connections at the rear of the rack without the need for external terminal blocks. As a Process Variable Monitor, it accepts a wide range of standard industrial signals, including 4-20 mA current loops and various voltage inputs. This versatility allows the 3500 system to monitor non-vibration parameters such as temperature, pressure, flow, and level alongside traditional vibration data. By integrating these variables into a single protection platform, operators gain a comprehensive view of machinery health, ensuring that critical assets like turbines and compressors operate within safe mechanical limits.

Advanced Monitoring and System Benefits

This I/O module serves as the primary interface for the 3500/62 monitor card, providing high-accuracy signal conditioning and noise rejection. Its design complies with API 670 standards, making it suitable for mission-critical applications in the petrochemical and power generation industries. The internal termination architecture simplifies cabinet layouts and reduces the risk of wiring errors during installation. Moreover, the module supports full redundancy when paired with a second monitor, ensuring that protection remains active even if a single component fails. This level of reliability is essential for protecting expensive rotating equipment where unplanned downtime can result in significant financial losses.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 3500/62-03-00
• Part Number: 137110-01
• Module Type: Process Variable I/O with Internal Terminations
• Input Signal Types: 4-20 mA DC, +1 to +5 Vdc, 0 to -10 Vdc
• Accuracy: ±0.5% of full-scale range
• Resolution: 12-bit A/D conversion
• Power Consumption: 5.0 Watts typical
• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Humidity: 95% non-condensing
• Mounting: Rear of 3500 rack
• Dimensions: 2.5 cm x 11.2 cm x 24.2 cm
• Weight: 0.40 kg (0.88 lbs)

Operational Applications and Reliability

Engineers specify the 137110-01 for environments that demand continuous, 24/7 monitoring of auxiliary process variables. In gas plant operations, for example, the module tracks suction and discharge pressures to prevent compressor surge. In power plants, it monitors lube oil temperatures to safeguard bearing integrity. The module’s ruggedized circuitry handles high-vibration environments and electromagnetic interference with ease. Furthermore, the 3500/62 system provides sophisticated alarm and trip logic, allowing the module to trigger automatic shutdowns if process variables exceed pre-set safety thresholds. This proactive protection layer is a cornerstone of modern predictive maintenance and industrial safety protocols.

Frequently Asked Questions

What is the advantage of the internal termination version?

The 3500/62-03-00 with internal terminations eliminates the need for external wiring blocks and mass-termination cables. This saves significant space in the control cabinet and reduces the total cost of installation labor.

Can I hot-swap this I/O module?

While the 3500 rack supports hot-swapping for many modules, you should always consult the 3500 System Manual before removing an I/O module. Removing an active I/O module will disconnect field signals and may trigger an alarm or a “Not OK” status in the associated monitor.

Is this module compatible with all 3500/62 monitors?

The 137110-01 is specifically designed to work with the 3500/62 Process Variable Monitor series. You must ensure that the firmware of the monitor card and the configuration in the 3500 Rack Configuration Software match the hardware version.

How does the 137110-01 handle signal failures?

The module features built-in diagnostics that detect open circuits or signals that fall out of the valid range (e.g., a current loop dropping below 4 mA). When a fault occurs, the monitor enters a “Not OK” state to prevent false trips and alert the operator.
