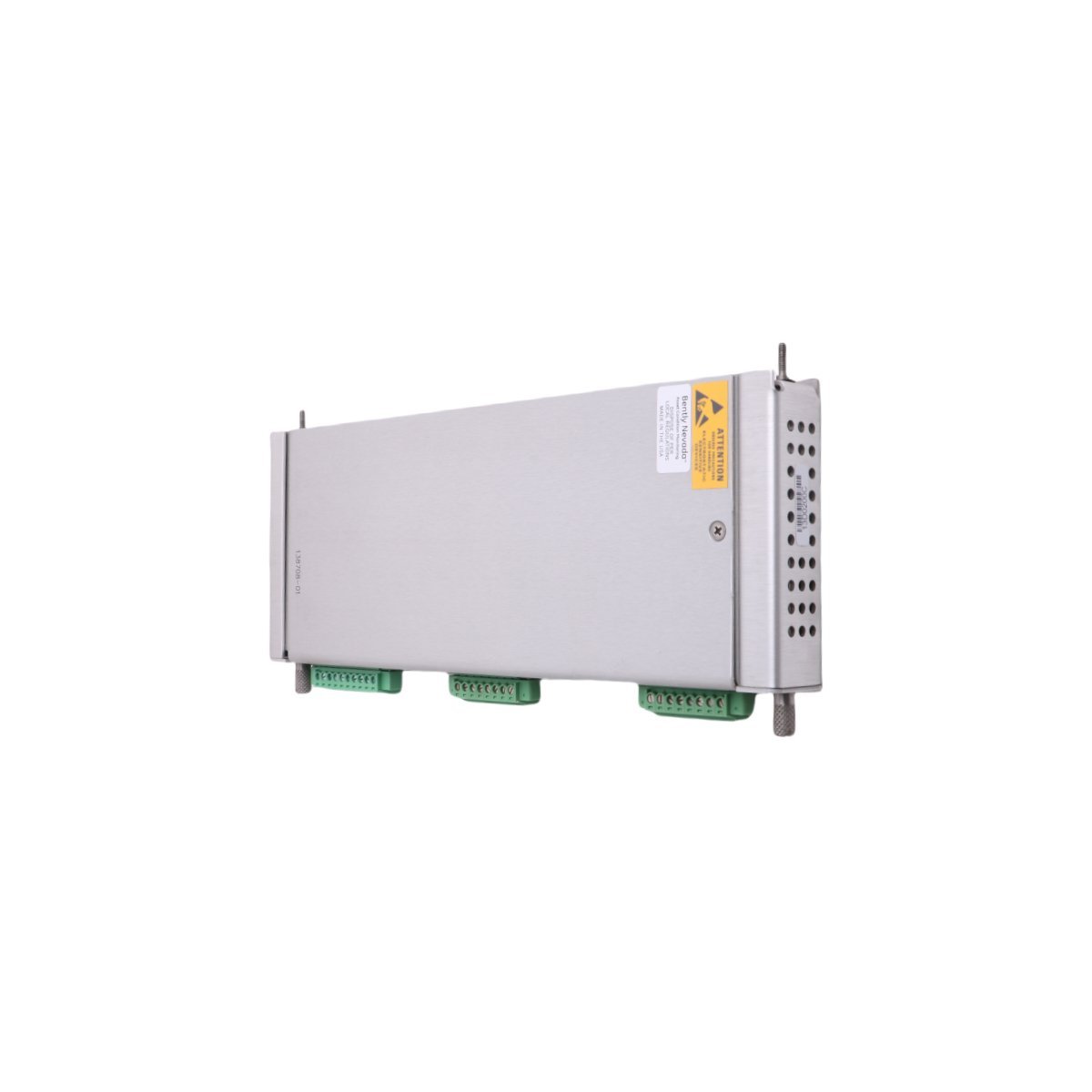

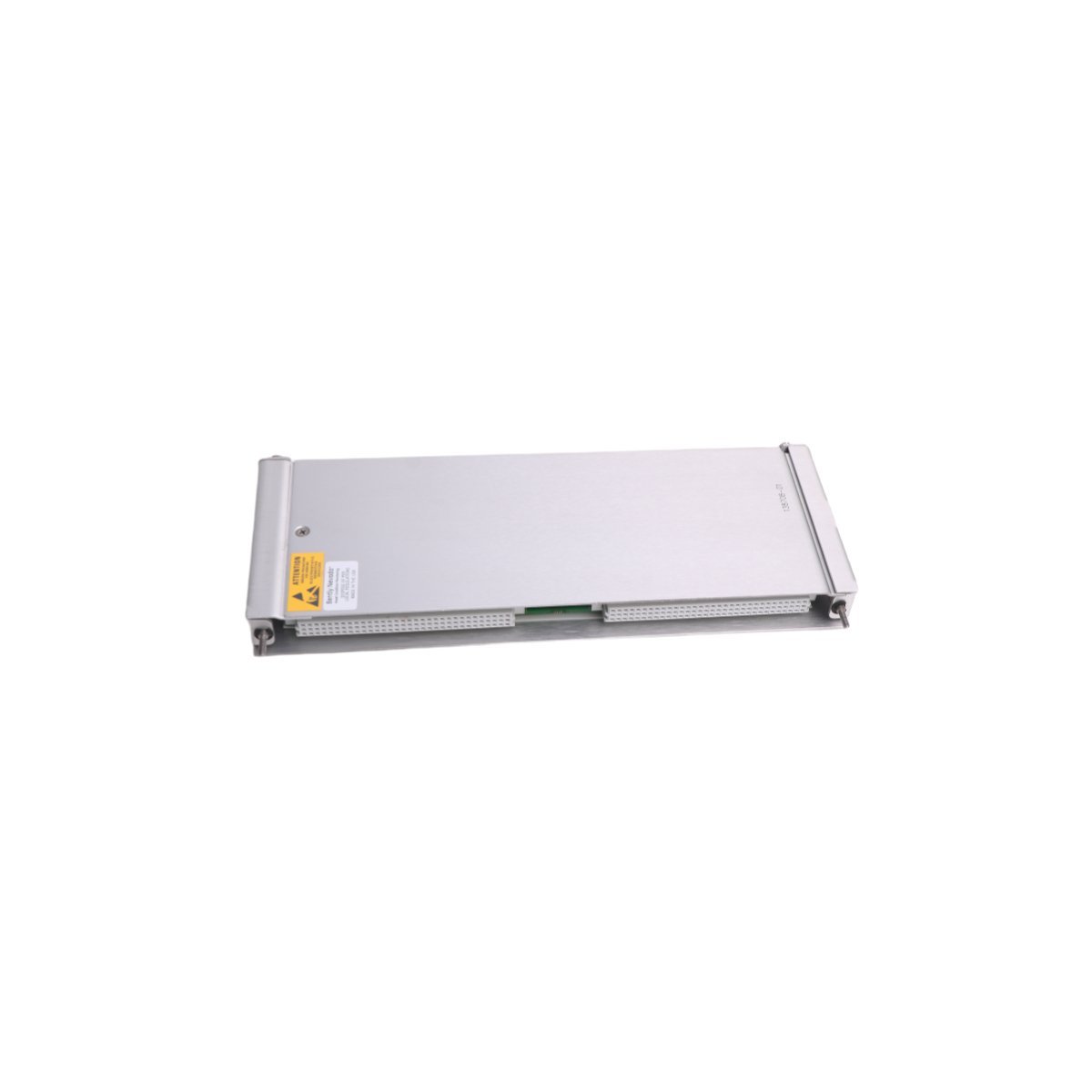

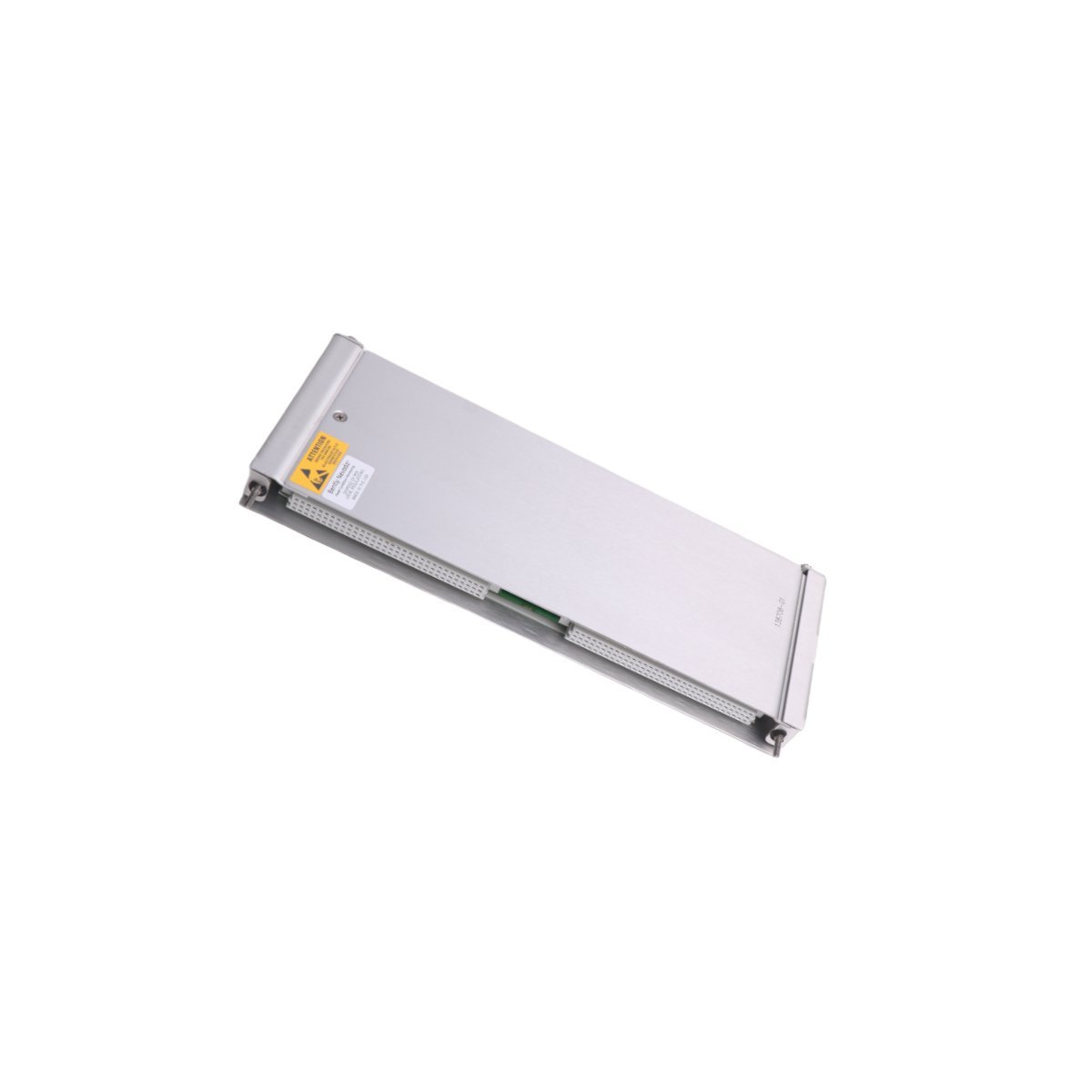

Bently Nevada 138708-01 | 3500/42M Proximity Input I/O Module

The Bently Nevada 138708-01 is a specialized Proximity Input I/O Module designed for the 3500/42M Proximitor Seismic Monitor. This component serves as the physical interface between proximity transducers and the monitoring rack. It facilitates the capture of critical mechanical data, including radial vibration, axial thrust position, and eccentricity. By providing high-fidelity signal transmission, the 138708-01 allows the 3500 system to perform real-time machinery protection for high-speed rotating assets such as steam turbines, centrifugal compressors, and industrial motors.

Precision Signal Processing and Connectivity

Equipped with internal terminations, the 138708-01 module eliminates the need for external terminal blocks, which simplifies the wiring architecture of the control cabinet. The module processes raw transducer signals and prepares them for the 3500/42M monitor’s advanced diagnostic algorithms. This setup ensures that operators receive accurate measurements even in electrically noisy environments. Because the module supports “Shaft Absolute” monitoring, it can be integrated into complex vibration analysis strategies where the relationship between the shaft and the bearing housing is critical for operational safety.

Technical Specifications

The 138708-01 is engineered to meet the following hardware standards:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 138708-01
• Module Type: Proximity Input I/O with Internal Terminations
• Compatibility: 3500/42M Proximitor Seismic Monitor
• Input Signals: Supports Proximitor sensors and acceleration inputs
• Mounting: Rear slot of the 3500 series rack
• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Dimensions: 2.5 cm x 11.2 cm x 24.2 cm
• Weight: 0.4 kg
• Construction: Industrial-grade PCB with high-density terminal connectors

Enhanced Protection and Predictive Maintenance

The primary objective of the 138708-01 is to enable early detection of mechanical anomalies. By delivering precise vibration and position data, the module helps identify issues like rotor unbalance, shaft misalignment, or bearing degradation before they lead to catastrophic failure. This capability supports a transition from reactive repairs to predictive maintenance, which significantly reduces unplanned downtime. Furthermore, the robust design ensures that the I/O module maintains signal integrity under the continuous thermal and mechanical stress typical of power generation and petrochemical facilities.

Reliable Industrial Implementation

Installation of the 138708-01 requires direct insertion into the rear of the 3500 rack, where it connects to the monitor via the high-speed backplane. The internal termination design allows for secure, vibration-resistant cable clamping, which is vital for long-term reliability. Moreover, the module’s active status in the Bently Nevada catalog ensures full support for modern TSI (Turbine Supervisory Instrumentation) requirements. By choosing the 138708-01, facility managers guarantee that their machinery protection system remains compliant with API 670 standards for vibration monitoring and asset safety.
