Description

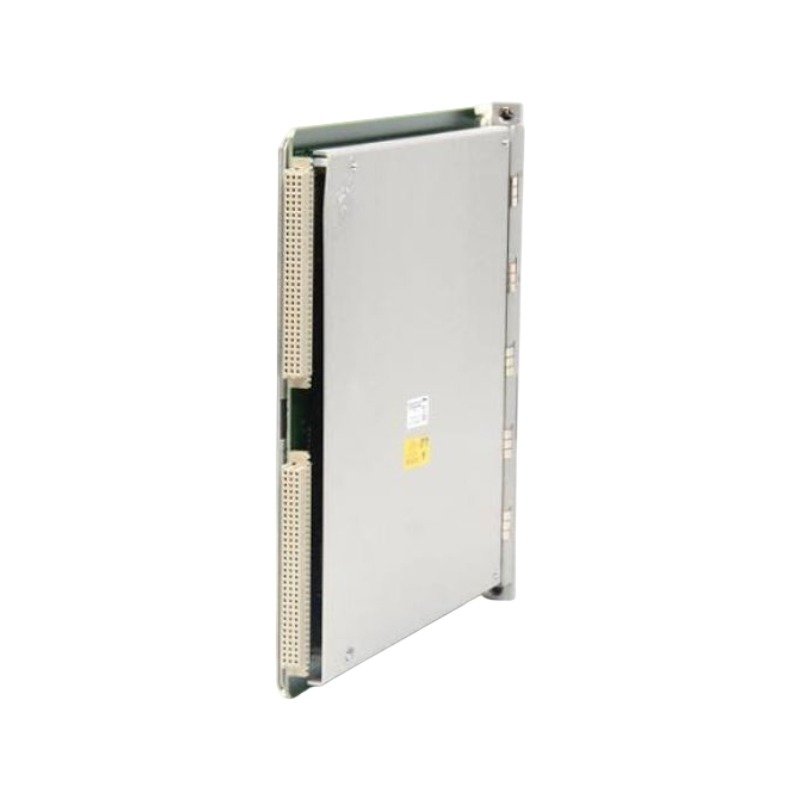

The Bently Nevada 3500/61-01-05, also cataloged as the 3500/61 Temperature Monitor, serves as the primary 3500/61 monitor module utilized to execute high-density thermal data acquisition and analog signal retransmission across Bently Nevada 3500 series machinery protection platforms. This hardware component processes input signals from temperature sensors, executes logic-based alarm setpoint comparisons, and provides conditioned recorder outputs for each of its six channels to facilitate external diagnostic analysis.

Suffix Breakdown & Model Matrix

Hardware Specifications

Bently Nevada TSI and Mechanical Monitoring Integrity

Engineers design the 3500/61-01-05 module specifically to maintain high signal integrity within turbine supervisory instrumentation (TSI) environments. Proper rotor dynamics monitoring requires the elimination of electromagnetic interference. Because sensor leads often traverse areas with high electrical noise, technicians must ensure that cable shielding terminates at the designated rack common point. Unlike standard monitors, the 3500/61-01-05 integrates six dedicated recorder outputs, allowing operators to export real-time thermal trends to external recording devices. The inclusion of internal barriers enhances safety in hazardous environments. When configuring the module, operators must validate the transducer scaling and gap voltage targets to ensure the system accurately identifies thermal anomalies. By maintaining these strict electrical thresholds, the module guarantees that the 3500 rack accurately monitors bearing health before the machine reaches critical trip states.

Frequently Asked Questions

Q: Does the 3500/61-01-05 support hot-swapping during active rack operation?

A: Yes, this module supports hot-swapping. However, operators must ensure that the replacement module matches the existing I/O module type to prevent configuration mismatches within the Rack Configuration Software.

Q: How does the 3500/61-01-05 differ from the 3500/60?

A: The 3500/61-01-05 provides dedicated recorder outputs for each of its six input channels, whereas the 3500/60 lacks these specific output capabilities. All other monitoring and configuration functionalities remain identical.

Q: How does the module maintain accuracy in Triple Modular Redundant (TMR) configurations?

A: When users install three monitor modules in adjacent slots, the system employs two distinct voting tiers. This architecture validates incoming signals to ensure precise operation while simultaneously preventing single-point failures.

Field Installation Guidelines

• Slide the monitor module firmly into the assigned rack slot, ensuring the backplane connectors align perfectly before engaging the front panel locking levers.
• Terminate all field wiring using shielded, twisted-pair cables to mitigate external noise coupling, ensuring the shield connects to the rack’s common ground.
• Program the measurement type (RTD or TC) for each of the six channels via the 3500 Rack Configuration Software, as the module requires manual definition for accurate signal linearizing.
• Connect the recorder outputs to the appropriate external instrumentation using high-quality signal cabling; verify the loop resistance to prevent signal attenuation over long cable runs.
