Description

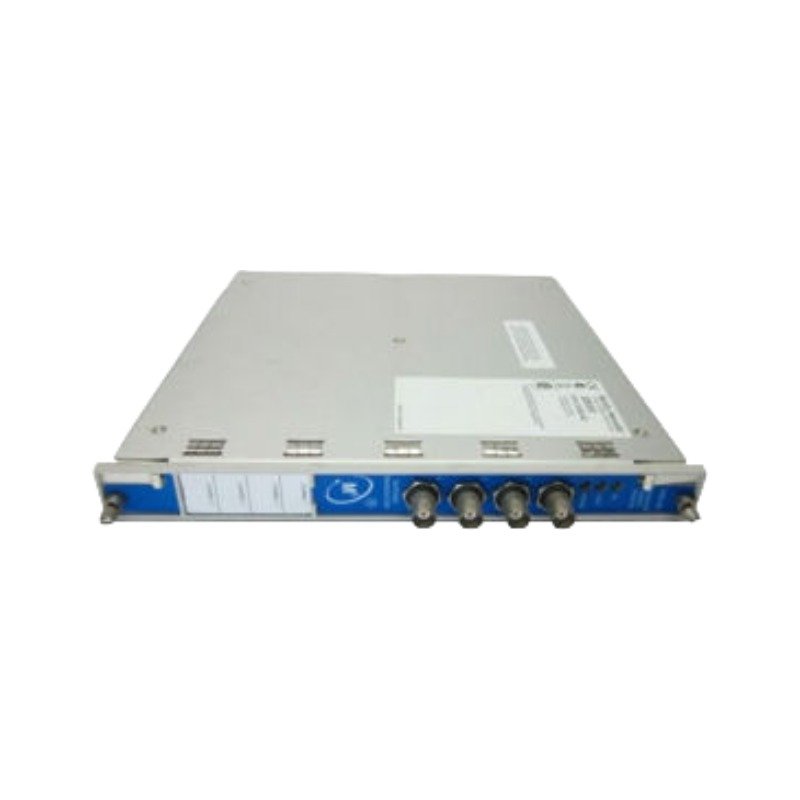

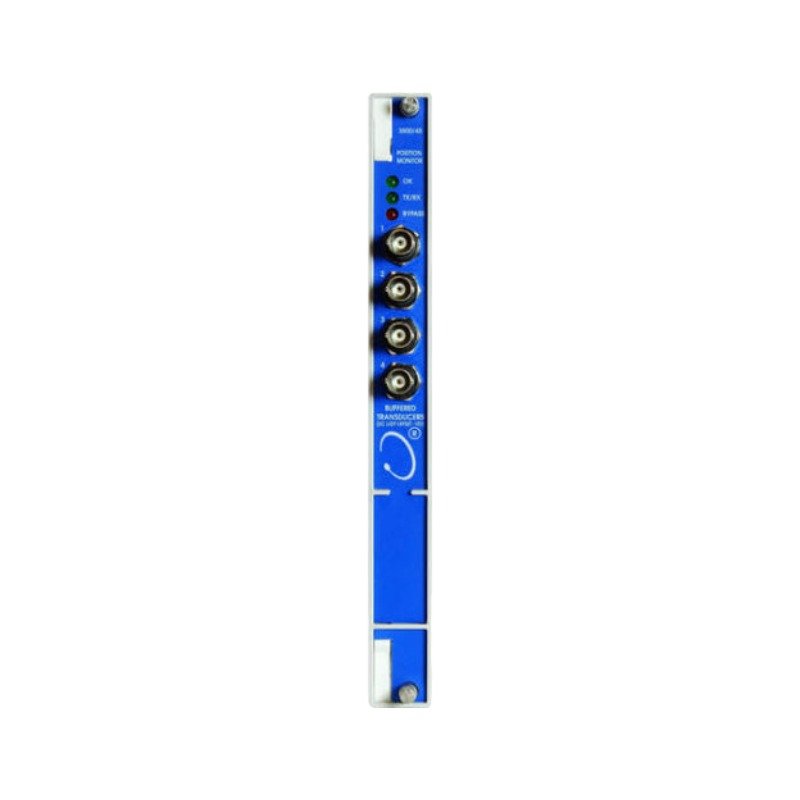

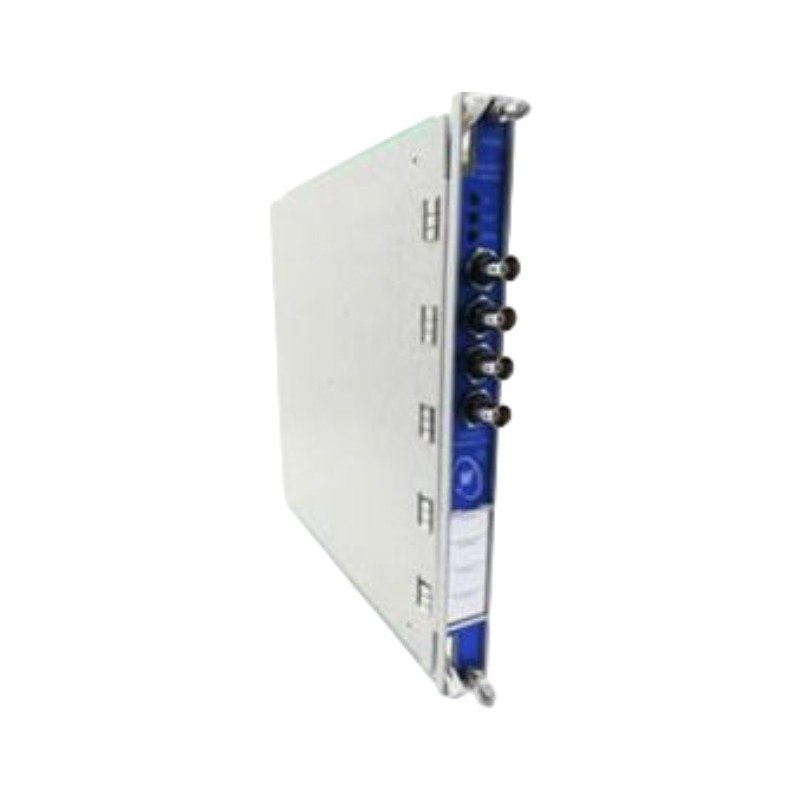

The Bently Nevada 3500/45 140072-02, also cataloged as the 3500/45 Position Monitor, operates as a dedicated hardware component for monitoring and tracking industrial machinery mechanical position and displacement within the 3500 Machinery Protection System. This module processes high-speed proximity sensor inputs to ensure machinery safety, providing reliable data for critical asset management.

Hardware Specifications

Rotor Dynamics and Probe Signal Integrity

Engineers utilize the 3500/45 140072-02 to manage eddy-current probe scaling, which guarantees precise measurements of shaft displacement and axial position. The module requires consistent gap voltage validation, where operators must target a nominal -10 VDC range to verify probe proximity and linearity. To maintain signal fidelity, the system employs active cross-talk suppression circuitry that effectively mitigates interference between adjacent channels. Consequently, the monitor translates raw proximity signals into accurate position metrics, strictly conforming to API 670 machinery protection standards for high-speed rotating equipment.

Frequently Asked Questions

Q: Does the 3500/45 140072-02 support hot-swapping within the 3500 rack?

A: Yes, technicians can hot-swap the module, meaning they can replace the unit without interrupting the operation of the host 3500 Machinery Protection System.

Q: How should maintenance personnel manage the grounding of probe input signals?

A: Personnel must ground shielded twisted-pair cabling at the monitor end, as this practice ensures optimal common-mode noise rejection and preserves the integrity of the high-frequency probe excitation signal.

Field Installation Guidelines

Technicians install the 3500/45 140072-02 module by seating the backplane connector firmly to establish robust communication with the rack interface module. During the routing process, installers must keep all eddy-current probe cables separate from high-voltage AC lines to prevent induced electromagnetic interference. Furthermore, the operator must verify that the probe gap matches the specific rotor-to-stator clearances defined in the machine train documentation. Before commissioning the machine, maintenance staff should perform a calibration check using a precision micrometer or target simulator to confirm that the output voltage aligns with the expected displacement values.
