Description

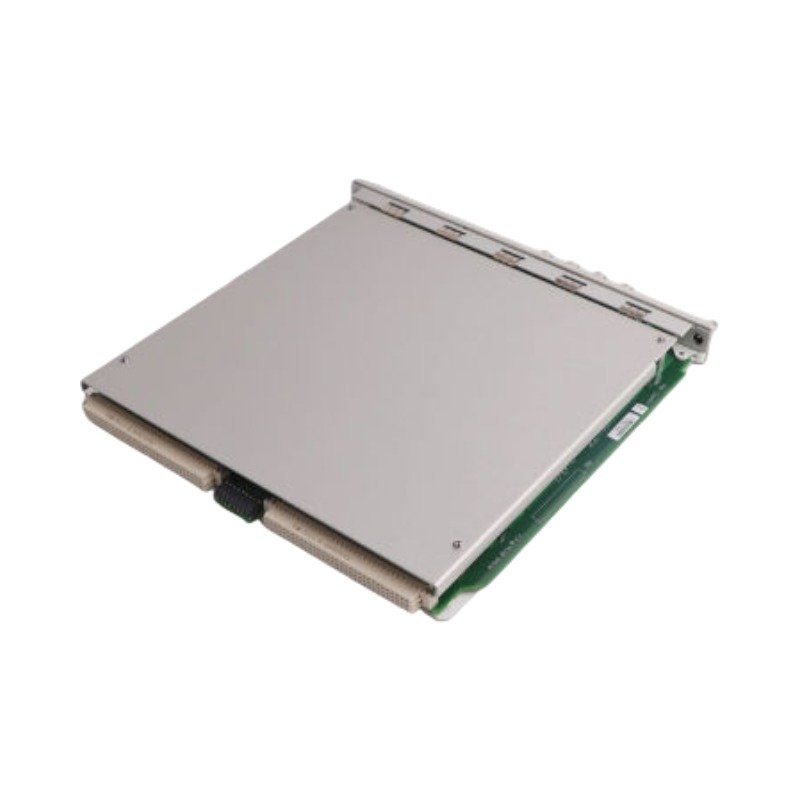

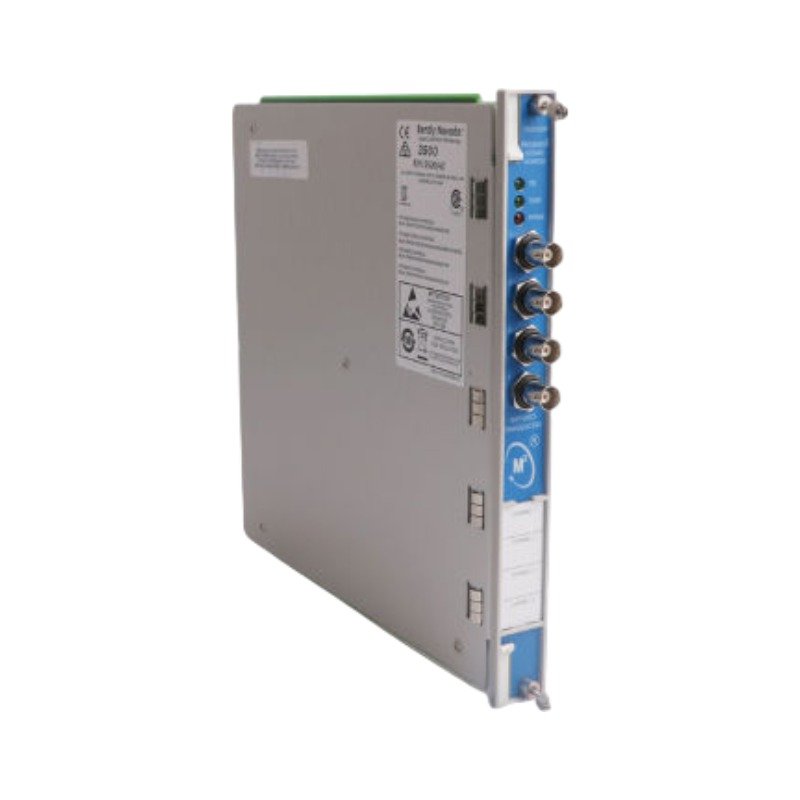

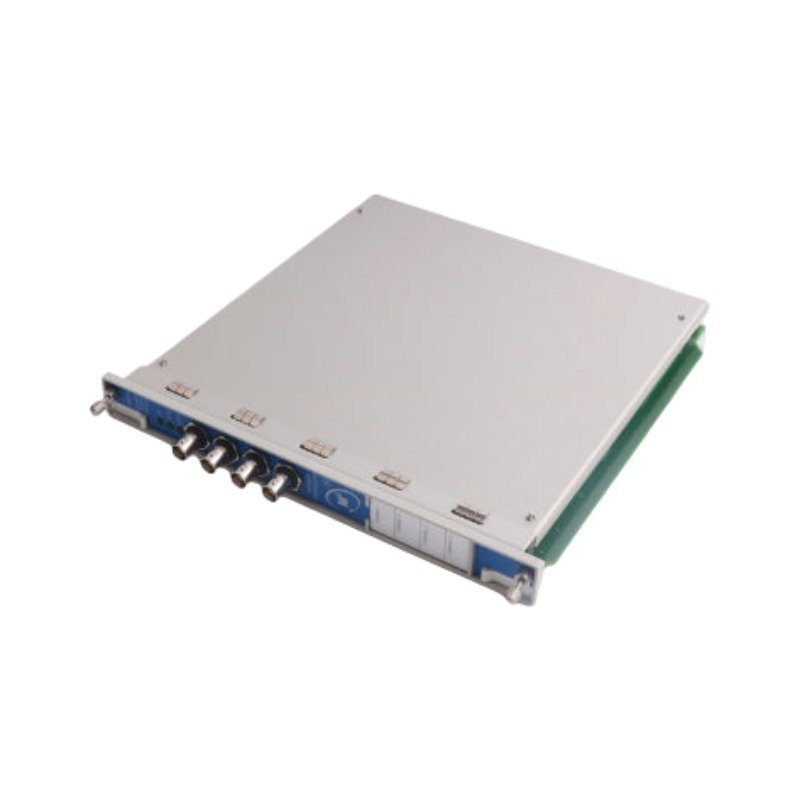

The Bently Nevada 3500/42M-01-05, also cataloged as the 3500/42M Proximitor Seismic Monitor, operates as a dedicated hardware component for continuous machinery protection and condition monitoring within 3500 System networks.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3500/42M-01-05 architecture facilitates advanced rotor dynamics analysis by processing inputs from up to four independent transducers. Technicians must perform precise eddy-current probe scaling during the configuration phase to ensure the conversion of raw voltage signals into accurate displacement units. Furthermore, the module enables critical gap voltage validation; engineers should verify that probe gaps maintain target values near -10 VDC to ensure the system operates within the linear range. By maintaining these standards, operators effectively achieve cross-talk suppression and provide robust protection for rotating machinery in hazardous environments.

Frequently Asked Questions

Q: Does the -01 suffix configuration affect field wiring?

A: Yes, the -01 designation signifies that the I/O module includes internal terminations. You must land your field wires directly onto the module terminals, eliminating the need for external terminal blocks for basic signal routing.

Q: How does the -05 approval impact installation in hazardous zones?

A: The -05 option confirms ATEX, IECEx, and CSA Class I, Zone 2 certification. You must ensure the host cabinet complies with the specific requirements for hazardous area classification to maintain the integrity of the protection system.

Field Installation Guidelines

• Mounting: Insert the module into the 3500 rack and secure the front panel screws. Verify that the module fully engages the backplane connector to maintain a stable communication path.
• Shielding: Use high-quality shielded twisted-pair cabling for all incoming transducer signals. You should terminate shields at the module’s ground point to mitigate electromagnetic noise in industrial environments.
• Thermal Management: Ensure the surrounding air temperature does not exceed the module’s rated limits. Proper cabinet ventilation is essential, as the 7.7 W power dissipation can increase internal temperatures.
• Commissioning: Prior to startup, use the Bently Nevada configuration software to verify that the channel settings (proximity, velocity, or acceleration) match your physically connected hardware.
