Description

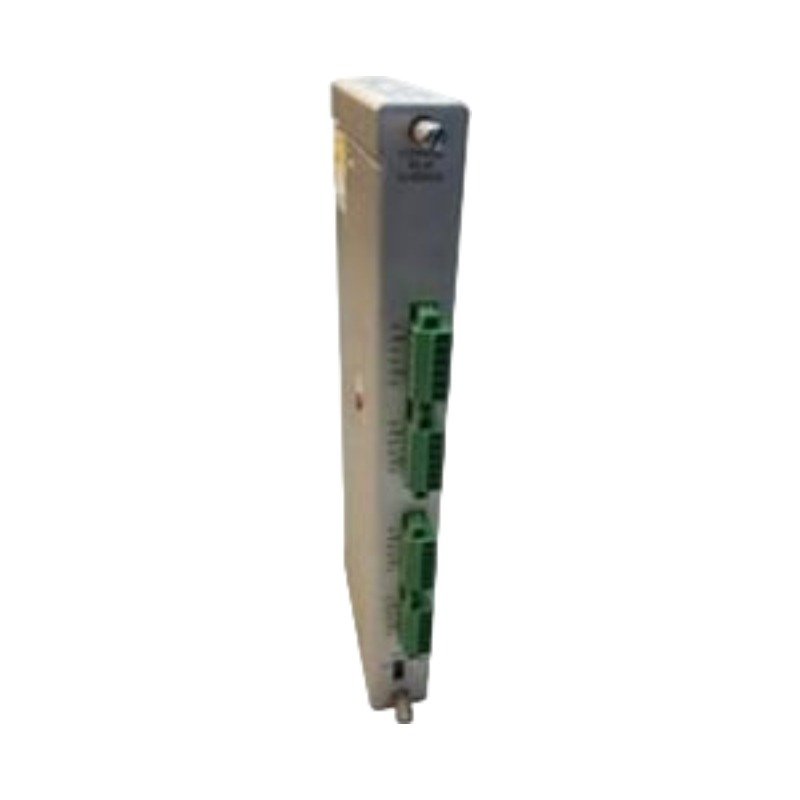

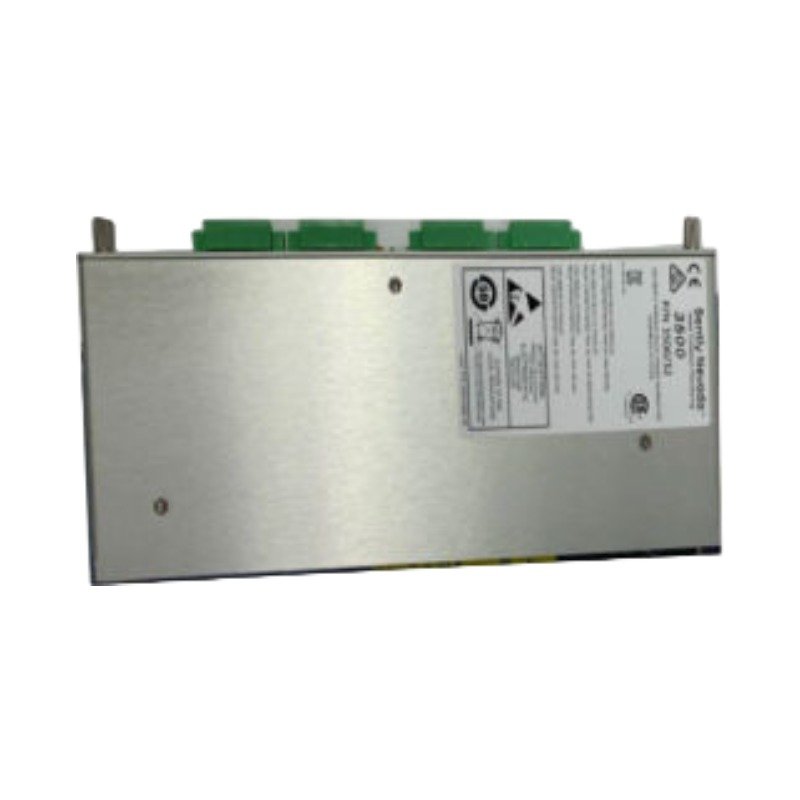

The Bently Nevada 3500/32M 125720-02, also cataloged as the 125720-02 4-Channel Relay Output Module, operates as a dedicated hardware component for emergency machine trip and alarm switching tasks within Bently Nevada 3500 Machinery Protection Systems.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This module executes automated voting logic across the backplane by translating digitized data derived from eddy-current probe scaling into physical contact closures. Consequently, the hardware triggers emergency trip relays based on specific rotor dynamics or position limits without introducing external latency. During system setup, technicians use the rack configuration interface to check alarm drive logic and map input status parameters against gap voltage validation faults. Furthermore, the embedded arc suppression circuits optimize cross-talk suppression and block electrical feedback noise from leaking into adjacent monitoring channels.

Frequently Asked Questions

Q: How do technicians change individual channel states between Normally Energized and Normally De-energized configurations?

A: The technical team handles this selection by configuring the onboard switches directly on the physical card structure. Consequently, changing these hardware links updates the base operational behavior to match specific plant fail-safe shutdown policies.

Q: Can maintenance personnel hot-swap this rear relay module while the front main controller remains fully active under power?

A: No. Technicians must disconnect the field wiring terminal blocks and power down the specific slot area prior to extraction. Removing this hardware under active load can disrupt the safety voting loops and trigger false emergency trips.

Field Installation Guidelines

• Insert the full-height module exclusively into the allocated rear slot positions located to the right of the Transient Data Interface card.
• Connect external interlock control wiring using heavy-duty 14 AWG conductors to handle the full 5 A current limit safely.
• Anchor the cable bundle to the panel structural frame using strain-relief clamps to eliminate continuous mechanical pulling forces on the terminal header.
• Verify through electrical verification that the arc suppressors match the specific inductances of the external trip solenoids before starting operations.
