Description

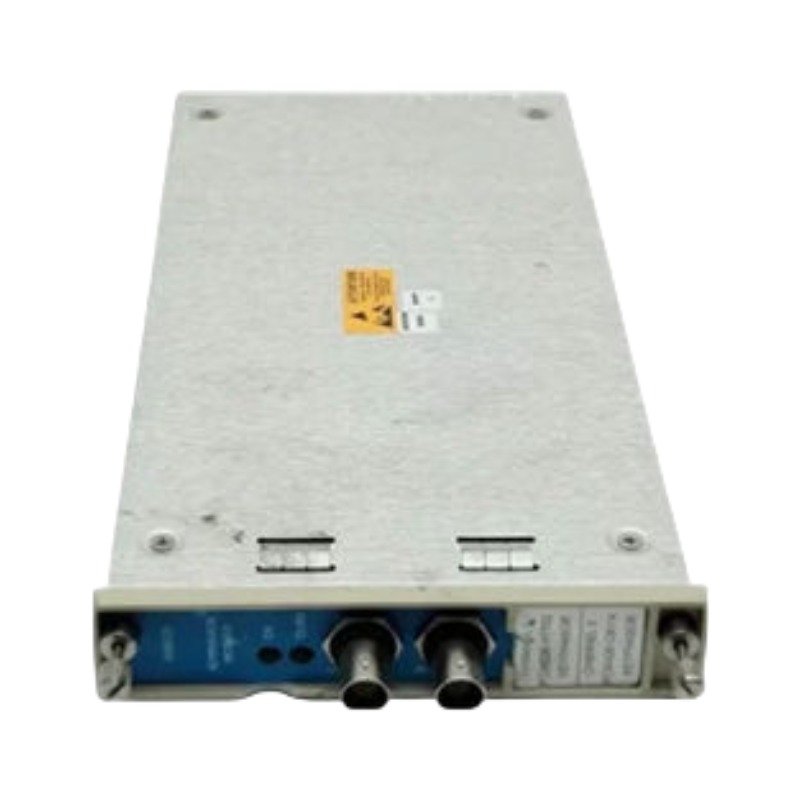

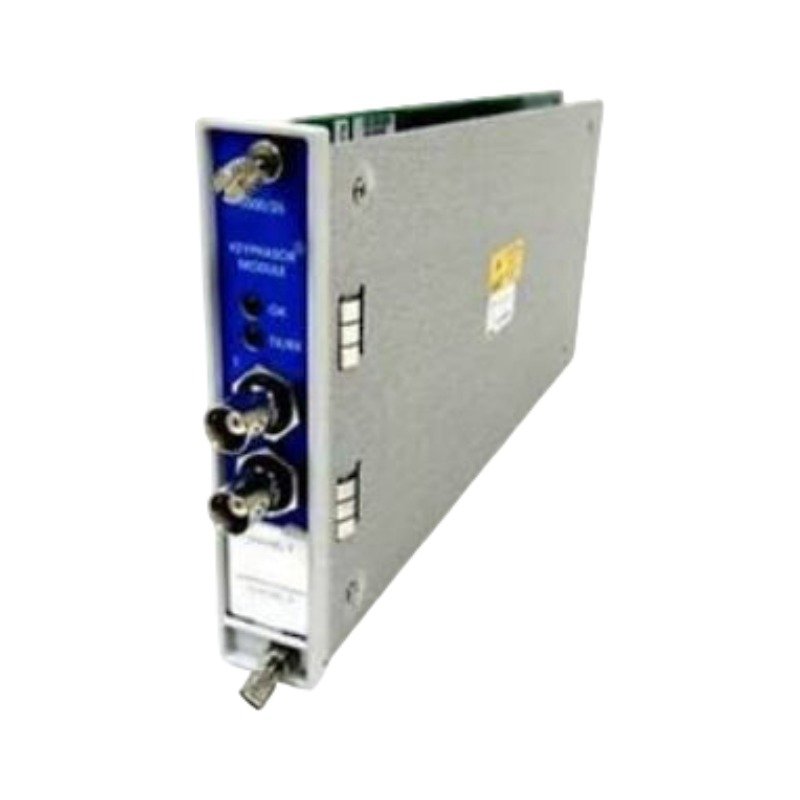

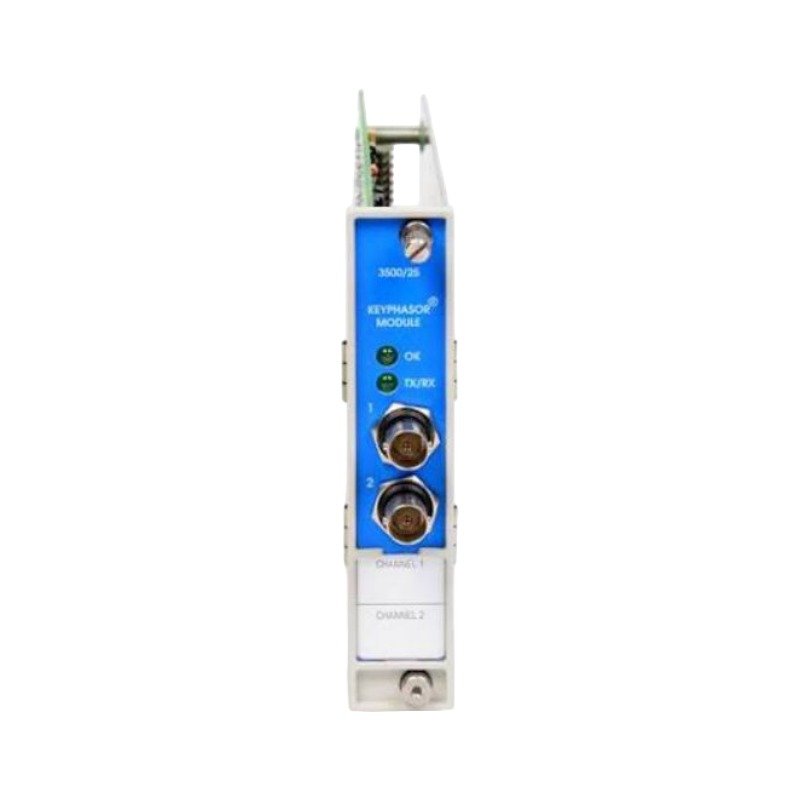

Configured for phase reference processing and rotational speed measurement in the 3500 Monitoring System, the Bently Nevada 125792-01, also cataloged as the 3500/25 Enhanced Keyphasor Module, provides direct physical/electrical execution. This half-height plug-in component conditions analog input pulses generated by proximity probes or magnetic pickups. It transforms these raw transducer waveforms into digital timing signals and routes them across the rack backplane to support synchronous data sampling, orbit analysis, and tracking vectors.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 3500/25 125792-01 applies automated eddy-current probe scaling to convert varying sensor amplitudes into sharp, square-wave reference edges. The card continuously updates gap voltage validation (-10 VDC targets) on proximity sensors to monitor field transducer health and prevent false speed indicators during high thermal drift. When complex gear teeth or notch profiles cause signal field overlap, the integrated cross-talk suppression circuitry isolates the primary event, ensuring stable tracking of multi-bearing rotor dynamics under unstable machine conditions.

Frequently Asked Questions

Q: How does the 125792-01 module distribute a single Keyphasor signal to multiple modules in the rack?

A: The module conditions the input signal internally and mirrors it directly across the 3500 system backplane bus lines. This internal distribution allows any monitoring card residing in the same chassis to access the phase reference sequence without external splitters.

Q: Can the 125792-01 run with positive voltage active sensors instead of negative voltage probes?

A: Yes. Technicians modify the internal configuration parameters within the 3500 Rack Configuration Software to shift the input thresholds from standard negative proximity voltages to positive active levels.

Field Installation Guidelines

• Shield Grounding Protocol: Land all extension cable shield drain wires solely onto the system instrumentation earth rail located inside the 3500 housing rack. Insulate the field end of the shield completely to maintain a single-point isolation boundary that excludes external current noise.
• Mechanical Retaining Torque: Install the half-height module into its allocated chassis track using the correct slot guide rail extension. Push the card home until the backplane contacts seat fully, then torque the captive front panel screws to 0.56 N-m to prevent vibrational loosening.
• Conduit Routing Constraints: Route all Keyphasor sensor cables inside dedicated, grounded metallic conduits. Keep these low-voltage signal paths a minimum of 200 mm away from heavy electrical machinery cables or high-voltage lines to avoid high-frequency induction errors.
