Description

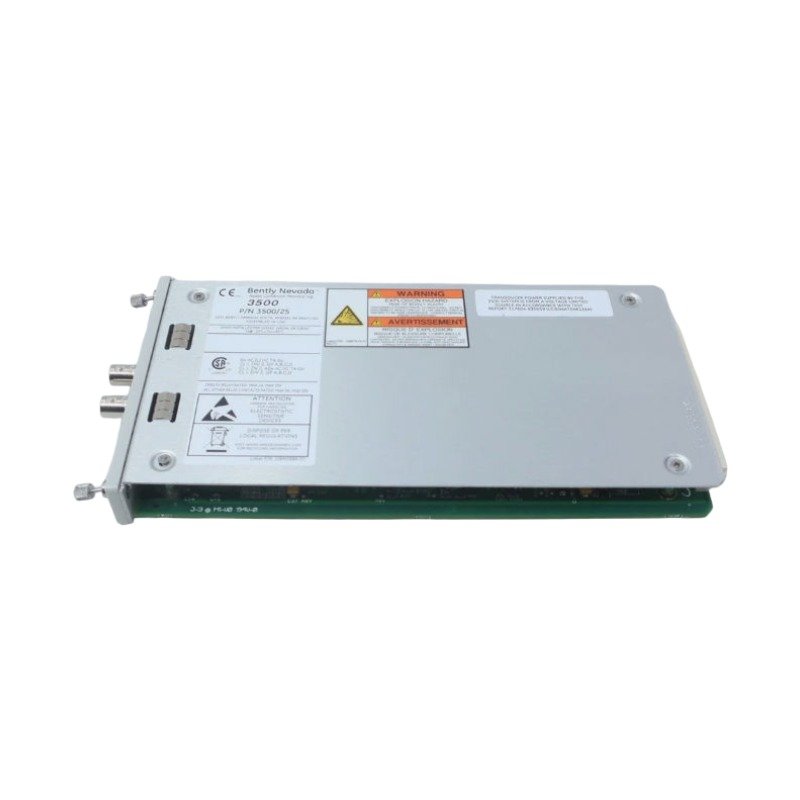

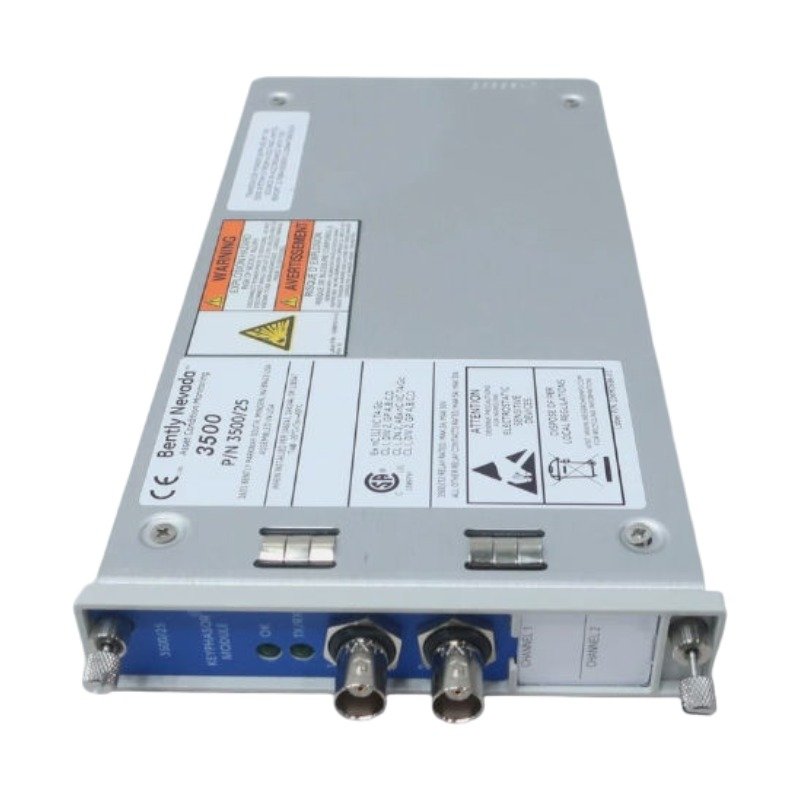

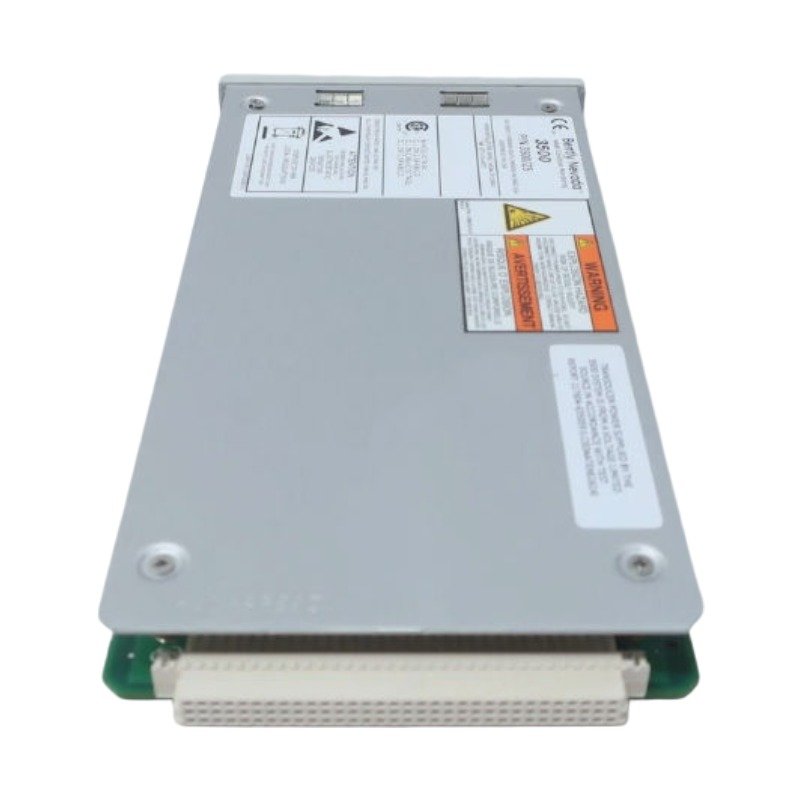

Configured for multi-channel phase and speed measurements in machinery protection systems, the Bently Nevada 149369-01 (3500/25 Enhanced Keyphasor Module) provides direct physical/electrical execution. It interfaces with proximity probes or magnetic pickups to convert raw pulses into digital phase reference signals. The hardware processes these signals synchronously to feed the internal backplane bus, allowing adjacent monitor modules to track rotational orientation and exact shaft velocities without tracking filters or phase delay.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module prioritizes absolute signal integrity across continuous eddy-current probe scaling architectures. Field technicians must execute gap voltage validation to ensure the primary sensor operates within the target range of -10 VDC (+/- 2 VDC) during steady-state operations. By implementing differential input buffers and internal analog shield lines, the module maintains cross-talk suppression between concurrent high-speed shaft pulse trains. This isolation preserves precise timing marks critical for accurate rotor dynamics calculations and synchronous vector filtering.

Frequently Asked Questions

Q: Can the 3500/25 module be swapped while the rack is powered and operating?

A: Yes. The module supports hot-swap functionality within any standard 3500 rack frame. However, field engineers must ensure the rack contains an operational redundant Keyphasor pair, or verify that associated machinery protection loops are placed in bypass to prevent accidental trip execution caused by temporary input omission.

Q: How does the module handle signal degradation across long instrument cable runs?

A: The module utilizes a programmable threshold configuration that allows engineers to adjust trigger levels manually or implement auto-threshold tracking. This feature maintains precise pulse edge detection even when attenuation or electromagnetic noise alters the incoming pulse shape.

Field Installation Guidelines

• Shield Grounding: Terminate sensor cable shields exclusively at the 3500 rack backplane chassis ground. Do not ground the shield at the sensor junction box to eliminate parasitic ground loops.
• Sensor Engagement: Maintain a minimum 5 thread engagement when fixing standard 3/8-24 or M10 proximity probes into threaded casing mounts.
• Wiring Separations: Route Keyphasor input cables through dedicated, isolated conduits. Keep sensor lines separate from heavy high-voltage AC motor lines or variable frequency drive cables to suppress transient induction.
