Description

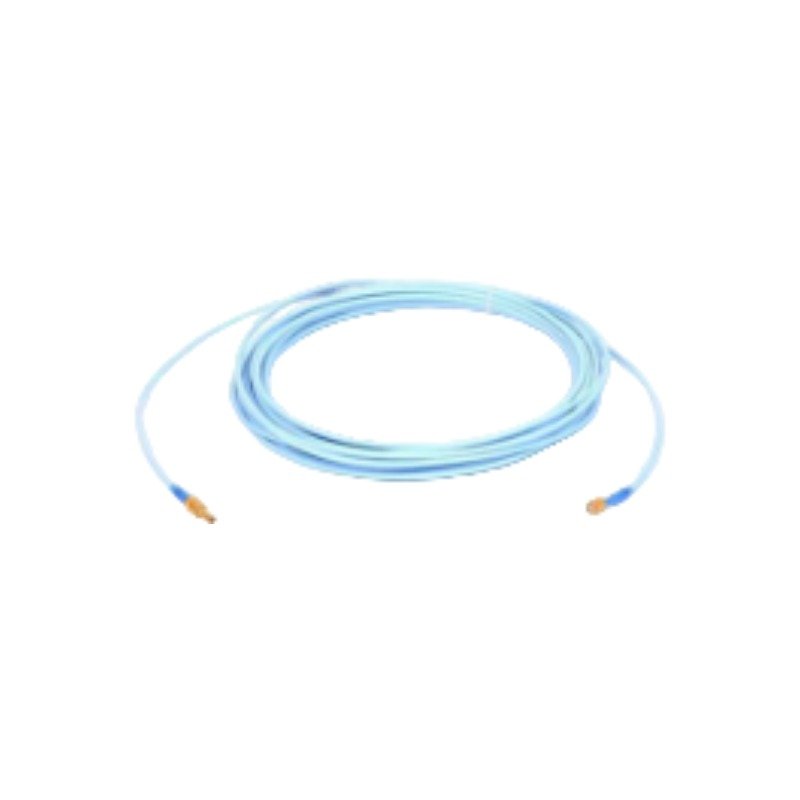

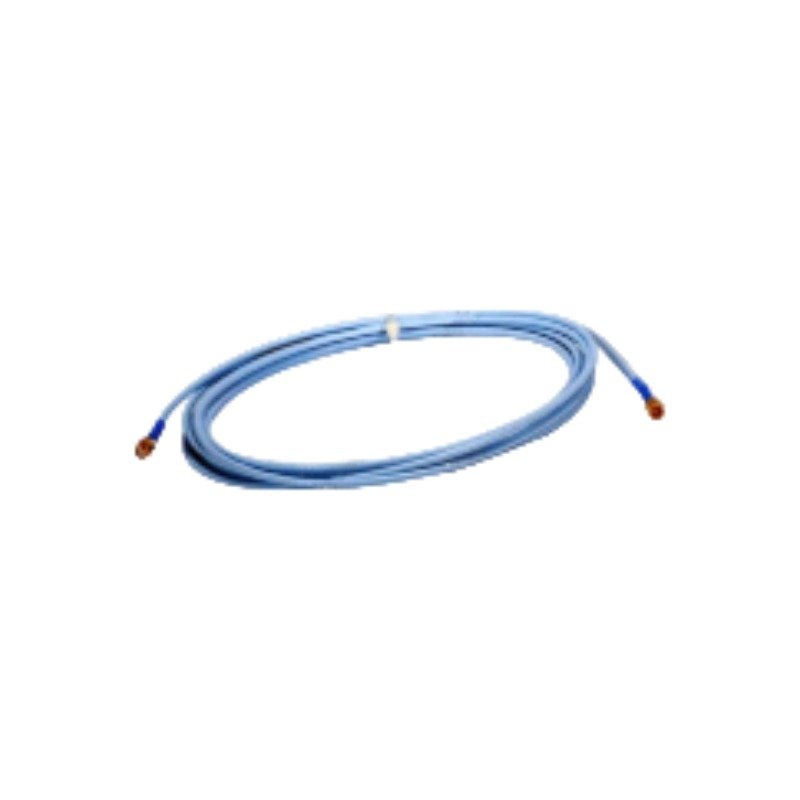

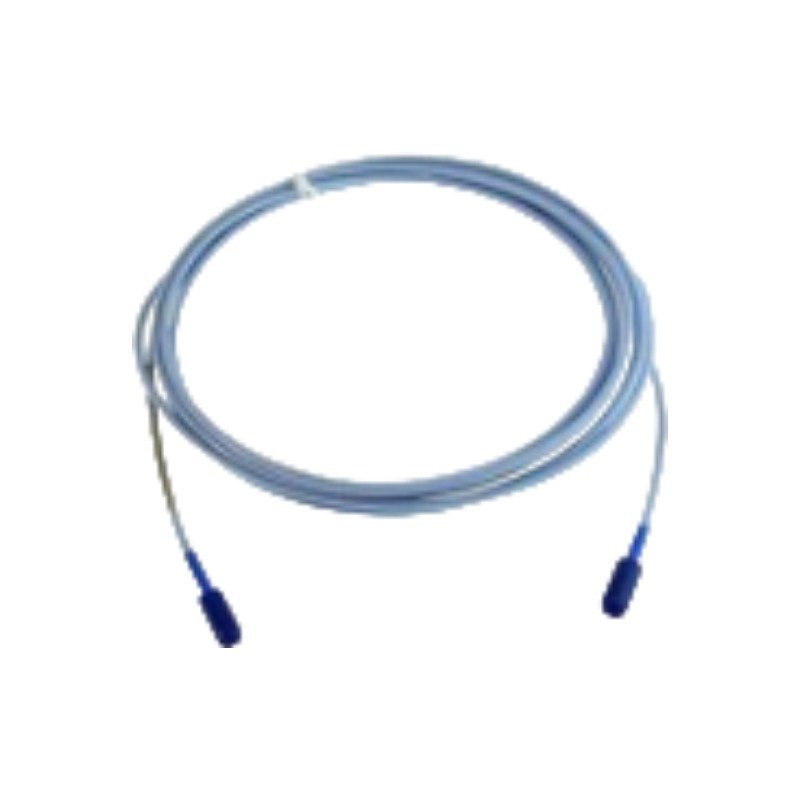

The Bently Nevada 330730-040-00-CN, also cataloged as the 330730 Extension Cable, serves as the primary 330730 Extension Cable utilized to execute high-frequency RF signal transmission across 3300 XL 11 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks. Specifically, the balanced coaxial design maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route the line through high-density conduit runs. Furthermore, the physical impedance matching provides instantaneous gap voltage validation. Consequently, the cable maintains stable targeting around -10 VDC operational centers and prevents the signal attenuation that typically degrades the standard 3.94 V/mm (100 mV/mil) scale factor required to evaluate rotor dynamics.

Frequently Asked Questions

Q: How does the -CN suffix change the active electrical execution of the 330730-040-00-CN cable assembly?

A: The -CN designation introduces regional certification compliance, yet the internal core maintains identical performance. Thus, the assembly delivers the exact same 75 ohm system impedance and high-frequency RF transmission as standard 330730 hardware.

Q: Why must field teams keep the ClickLoc coaxial interfaces free of contact lubricants?

A: Contact lubricants alter the mechanical impedance of the gold-plated junction. Therefore, introducing foreign fluids changes the internal resistance and distorts the proximity loop feedback signal.

Field Installation Guidelines

• Connector Engagement: Technicians must fully engage the connectors via the ClickLoc design interface. Finger-tighten the coupling mechanism until a physical click occurs, and avoid mechanical pliers to protect the internal 75 ohm contacts.
• Routing Radii: Always route the physical cable path with a minimum bend radius of 25.4 mm (1.0 in). Otherwise, tight bends degrade the internal coaxial shielding and cause signal reflections.
• Ground Isolation: Apply silicone tape or standard Bently Nevada connector protectors directly over the ClickLoc junction. This isolation prevents physical contact with the machine housing and stops ground loops.
