Description

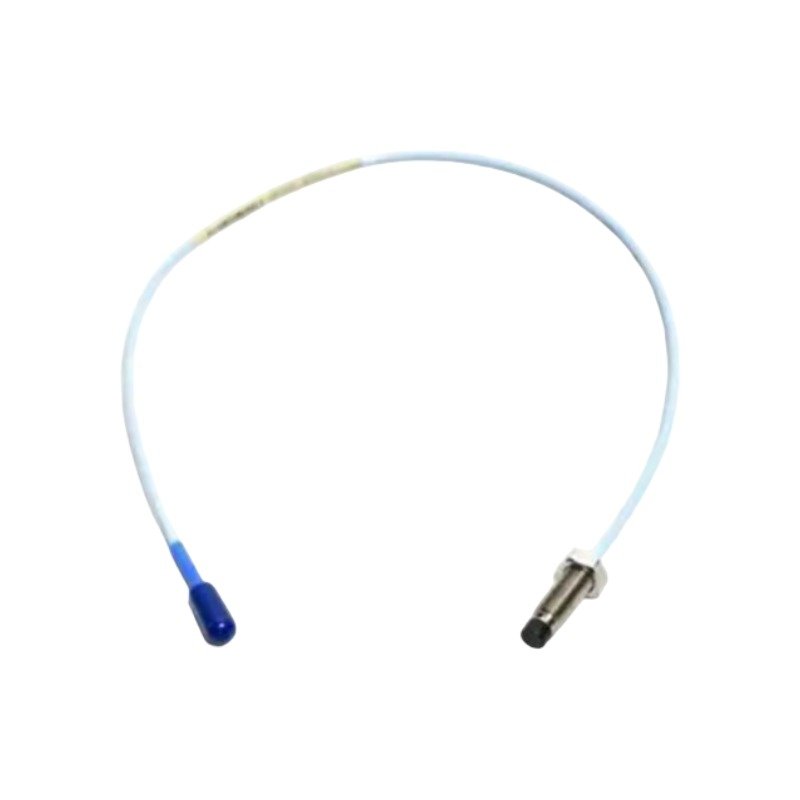

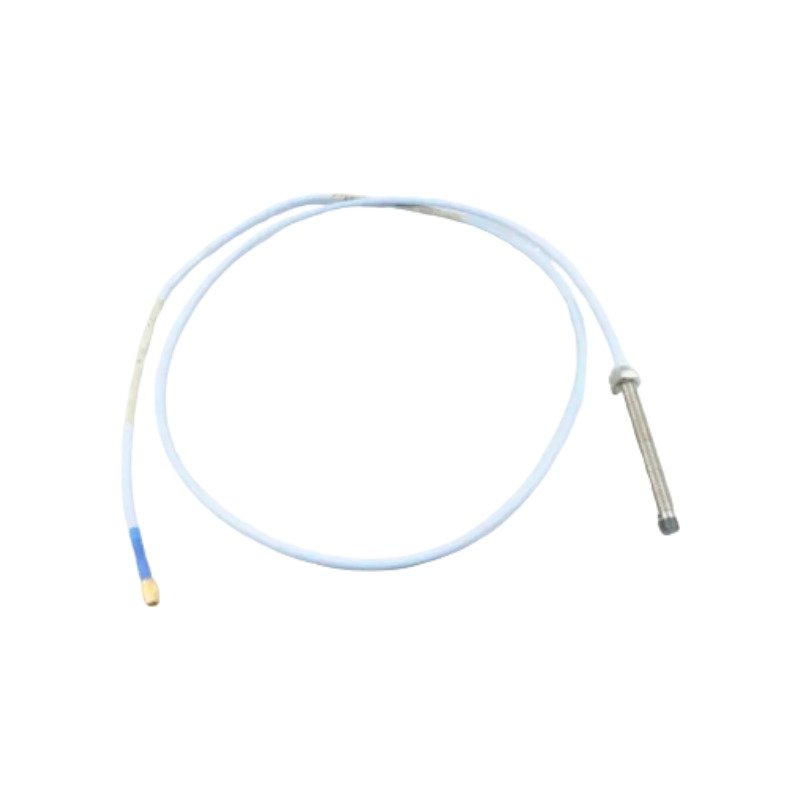

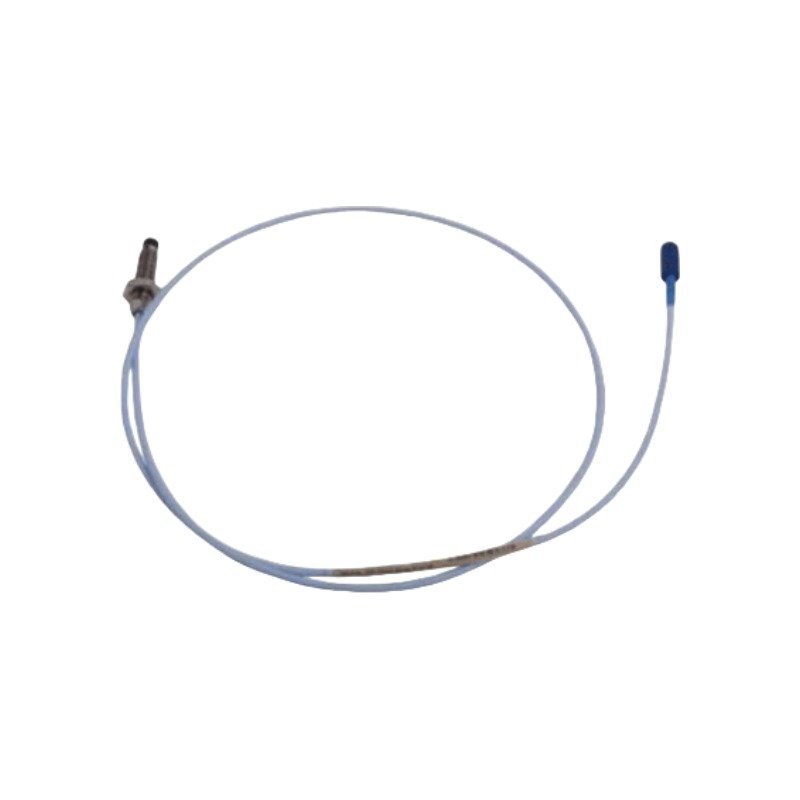

The Bently Nevada 330707-00-62-10-01-00 operates as a high-precision 330707 Proximity Sensor engineered for non-contacting displacement and vibration measurements. The 330707 model denotes a specialized smooth case geometry, typically deployed in clamp-mount installations where variable insertion depths are required.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

This smooth case proximity sensor actively manages eddy-current probe scaling because it preserves strict geometric and electromagnetic characteristics at the 11 mm probe tip. The unthreaded cylindrical body allows for infinite adjustment within a sliding sleeve or split-clamp bracket, making it ideal for custom thrust housing calibrations. The physical configuration ensures precise gap voltage validation across nominal -10 VDC targets during static calibration. Because the sensor head stabilizes the high-frequency RF field within the measurement gap, the component transmits clear rotor dynamics data, including radial vibration and axial thrust position, from large-scale industrial machinery without introducing measurement drift.

Frequently Asked Questions

Q: Does this proximity sensor support hot-swapping while the monitoring loop is live?

A: Yes. Technicians can safely disconnect the sensor from its extension cable or Proximitor while the rack is powered, provided they verify the surrounding atmosphere as non-hazardous.

Q: What physical design features do the options “00-62-10-01” specify for this probe assembly?

A: The “00” option specifies 0.0 inches of unthreaded length (standard for smooth cases), the “62” option designates a 6.2-inch total case length, and the “10” option provides a 1.0-meter total cable length. The “01” option specifies a miniature coaxial ClickLoc connector with an integrated, pre-installed connector protector.

Q: Can this 11 mm smooth case probe interface with standard 3300 XL 8 mm Proximitor sensors?

A: No. The 3300 XL 11 mm probe series requires a dedicated 3300 XL 11 mm Proximitor sensor and matching 11 mm extension cable because its scale factor is 3.94 V/mm (100 mV/mil), which differs fundamentally from the standard 8 mm tuning.

Field Installation Guidelines

• Shielding and Grounding: Insulate the coaxial ClickLoc connection using the pre-installed connector protector. Do not allow the connector shell to contact the machine housing, because contact creates parallel ground paths that corrupt the high-frequency RF signal loop.
• Routing Constraints: Route the probe lead away from heavy power cabling. Maintain a minimum clearance of 15.2 mm from surrounding structural metals to prevent counterbore side-viewing interference from altering the target calibration.
• Clamping Force Precautions: When locking the smooth case body into a compression fitting or split clamp, adhere strictly to the manufacturer’s torque limits. Excessive clamping force can deform the thin-walled cylindrical shell, pinching internal components and causing insulation failure.
