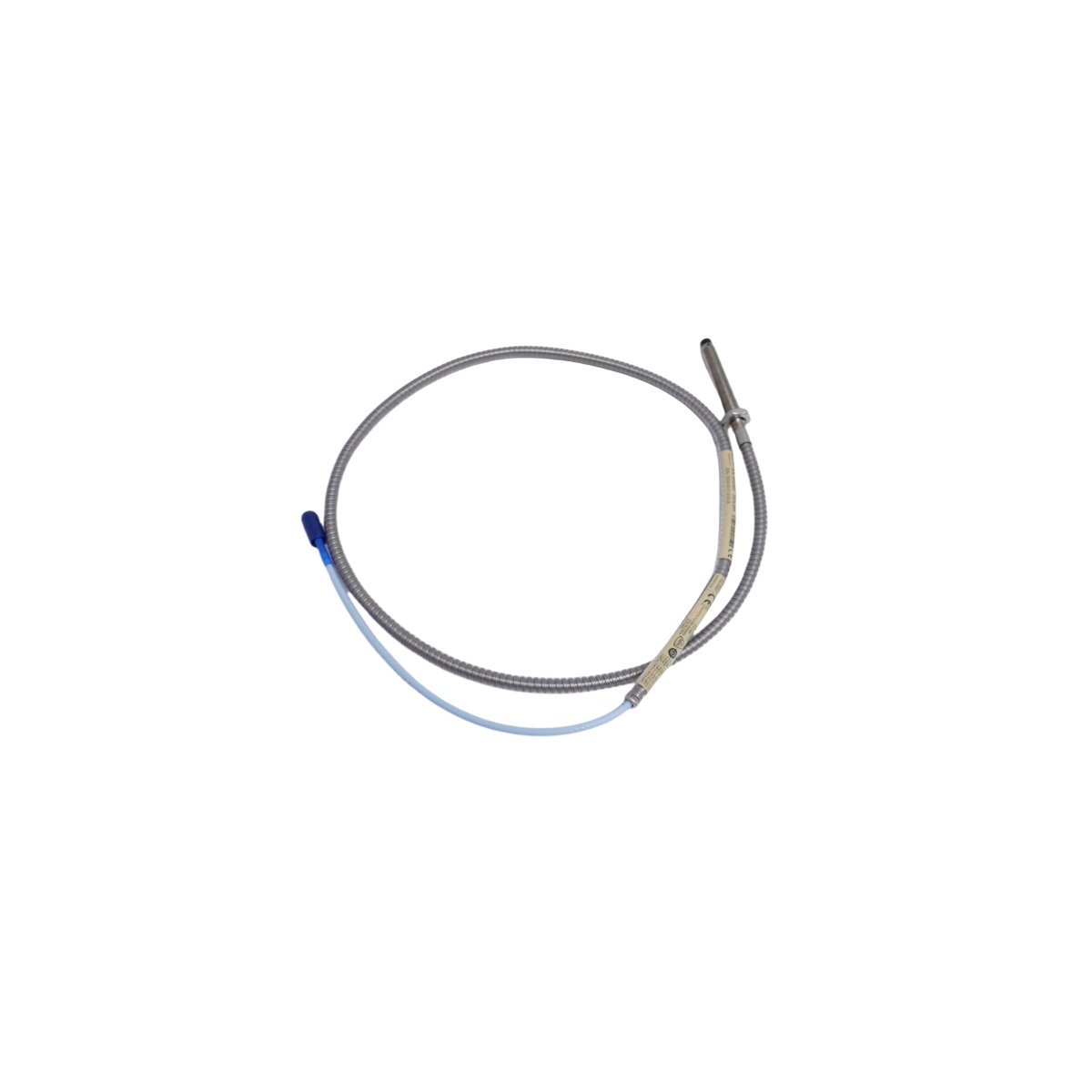

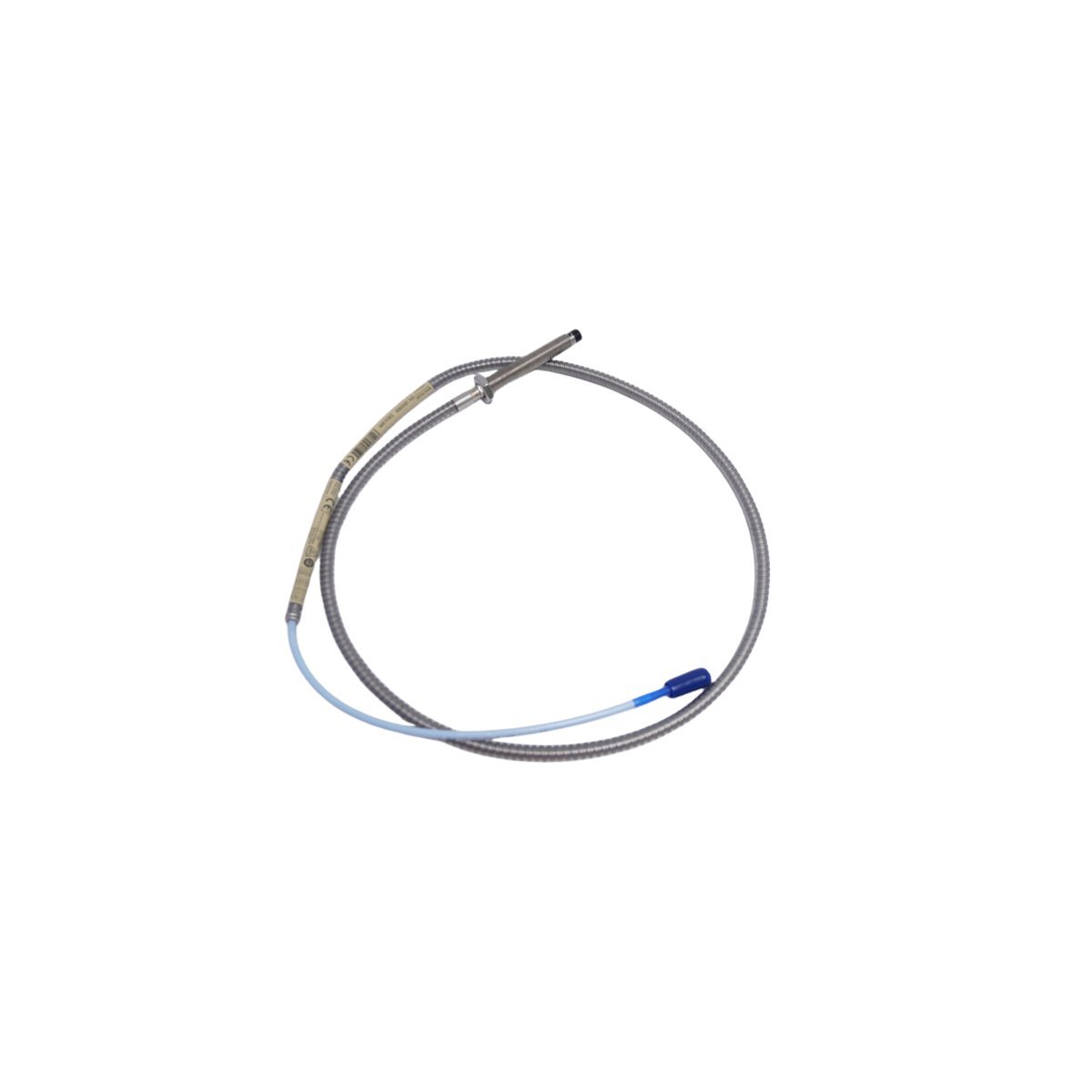

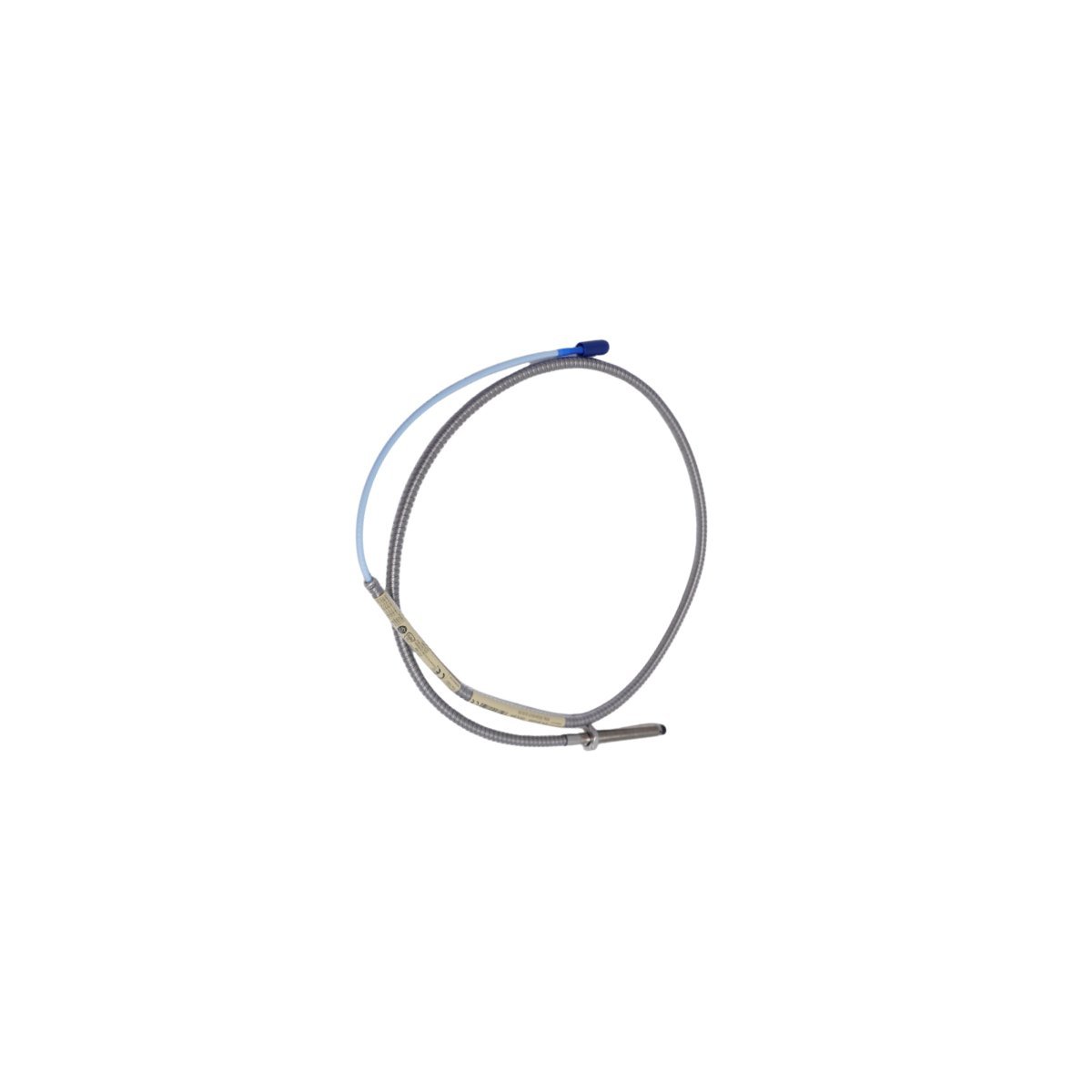

Bently Nevada 330703-000-060-10-02-CN | 3300 XL 11mm Proximity Transducer Probe

The Bently Nevada 330703-000-060-10-02-CN represents a critical sensing component within the 3300 XL 11mm Proximity Transducer System. This high-precision probe measures the physical distance between the transducer tip and a conductive target material, typically a rotating shaft. By utilizing eddy current technology, the probe provides continuous, real-time data regarding displacement and vibration. Engineers primarily deploy this system to monitor the health of heavy-duty industrial machinery, including steam turbines, centrifugal compressors, and large-scale pumps. Furthermore, this sensor allows for the early identification of mechanical irregularities such as shaft misalignment, thermal expansion, and thrust bearing wear. Consequently, the 330703-000-060-10-02-CN plays a vital role in preventing catastrophic machinery failure and optimizing operational uptime.

Engineered Durability and Signal Precision

To meet the challenges of heavy industry, Bently Nevada constructs the 330703 series with premium materials designed for long-term environmental resilience. The probe tip is engineered to withstand high-pressure environments and exposure to corrosive industrial lubricants. Additionally, the integrated cable features robust shielding to protect the sensitive transducer signals from electromagnetic interference (EMI), which is common in motor-driven plant environments. Because accuracy is paramount in vibration monitoring, the probe maintains high sensitivity and a linear output range across its specified measurement window. These design characteristics ensure that the sensor delivers consistent, repeatable data even when subjected to extreme temperatures and high-vibration mounting conditions.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330703-000-060-10-02-CN
• Product Type: Proximity Transducer Probe
• System Series: 3300 XL 11mm Series
• Unthreaded Length: 0.0 inches (000)
• Overall Case Length: 6.0 inches (060)
• Total Length: 1.0 meter (10)
• Connector Protector: Included (Option 02)
• Agency Approval: CN (China Specific / Local Certification)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F)
• Measurement Range: 4.0 mm (160 mils)
• Weight: 0.8 kg (1.76 lbs)

System Integration and Predictive Maintenance

The 330703-000-060-10-02-CN integrates seamlessly with Bently Nevada’s 3500 Machinery Protection System and Proximitor sensors to form a complete Turbine Supervisory Instrumentation (TSI) suite. This compatibility enables plant operators to implement advanced condition monitoring and trend analysis. By tracking subtle changes in shaft position and vibration profiles over time, maintenance teams can transition from reactive repairs to a more efficient predictive maintenance model. Moreover, the “CN” certification ensures that this hardware meets the specific regulatory and safety standards required for the Chinese industrial market. This proactive sensing approach ultimately reduces total maintenance costs and enhances the overall efficiency of mission-critical assets.

Frequently Asked Questions

Can I substitute this 11mm probe for a standard 8mm probe?

No, the 3300 XL 11mm system is specifically calibrated for a larger linear range than the 8mm version. Substitution will lead to incorrect voltage-to-distance scaling and will compromise the accuracy of your machinery protection system.

What is the benefit of the factory-installed connector protector?

The connector protector (Option 02) provides an extra layer of mechanical defense for the delicate coaxial connection. It prevents the ingress of oil and moisture while also shielding the connector from physical damage during installation and operation in harsh plant areas.

How does the total cable length affect calibration?

Bently Nevada systems are calibrated for specific total electrical lengths, typically 5.0 or 9.0 meters. You must ensure that the combined length of this probe lead and your extension cable matches the configuration specified on your Proximitor sensor to maintain precise measurement accuracy.

What target materials are compatible with this probe?

This probe is standardly calibrated for AISI 4140 steel. While it can detect other conductive metals, different target materials will require a recalibration of the Proximitor sensor to account for variations in conductivity and magnetic permeability.
