Description

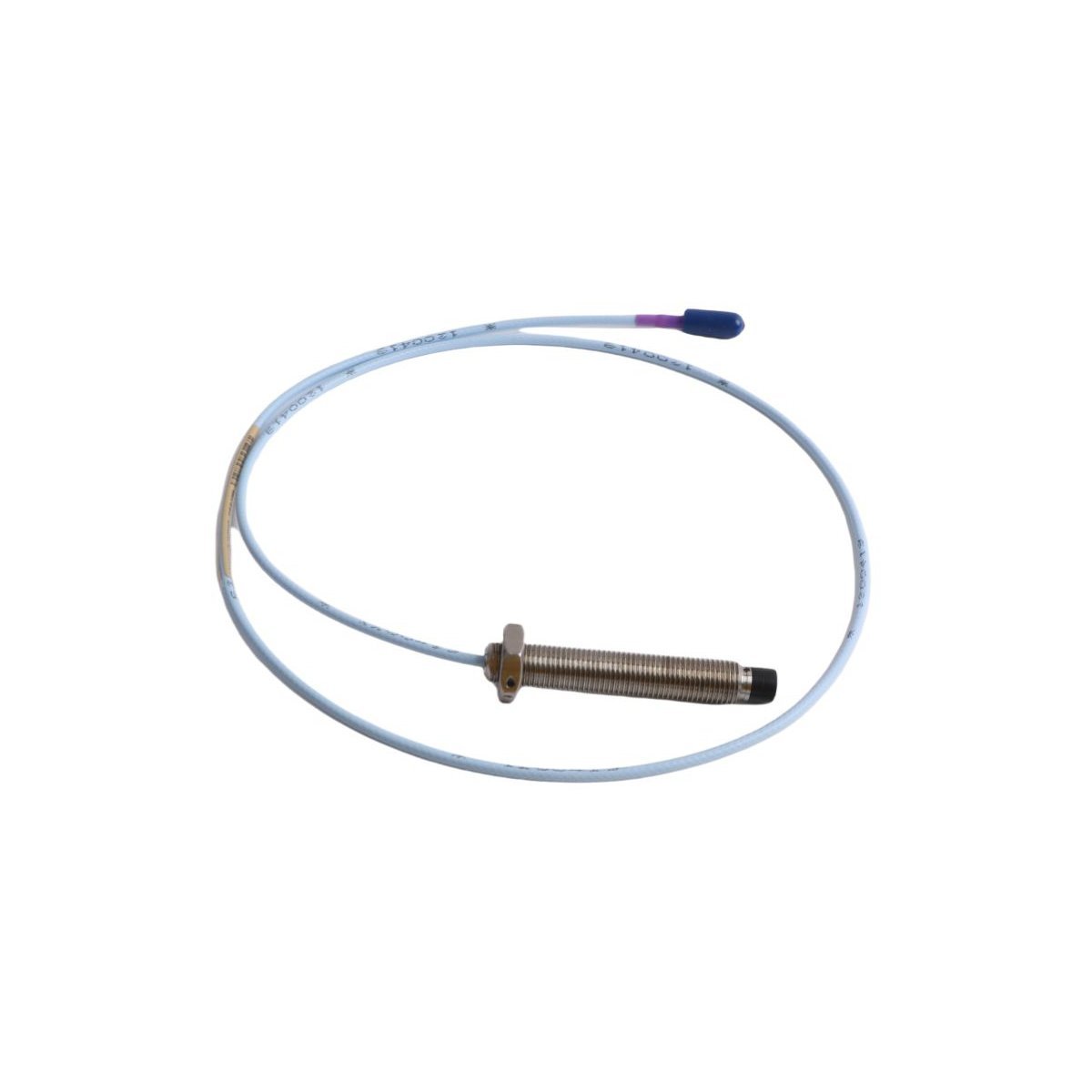

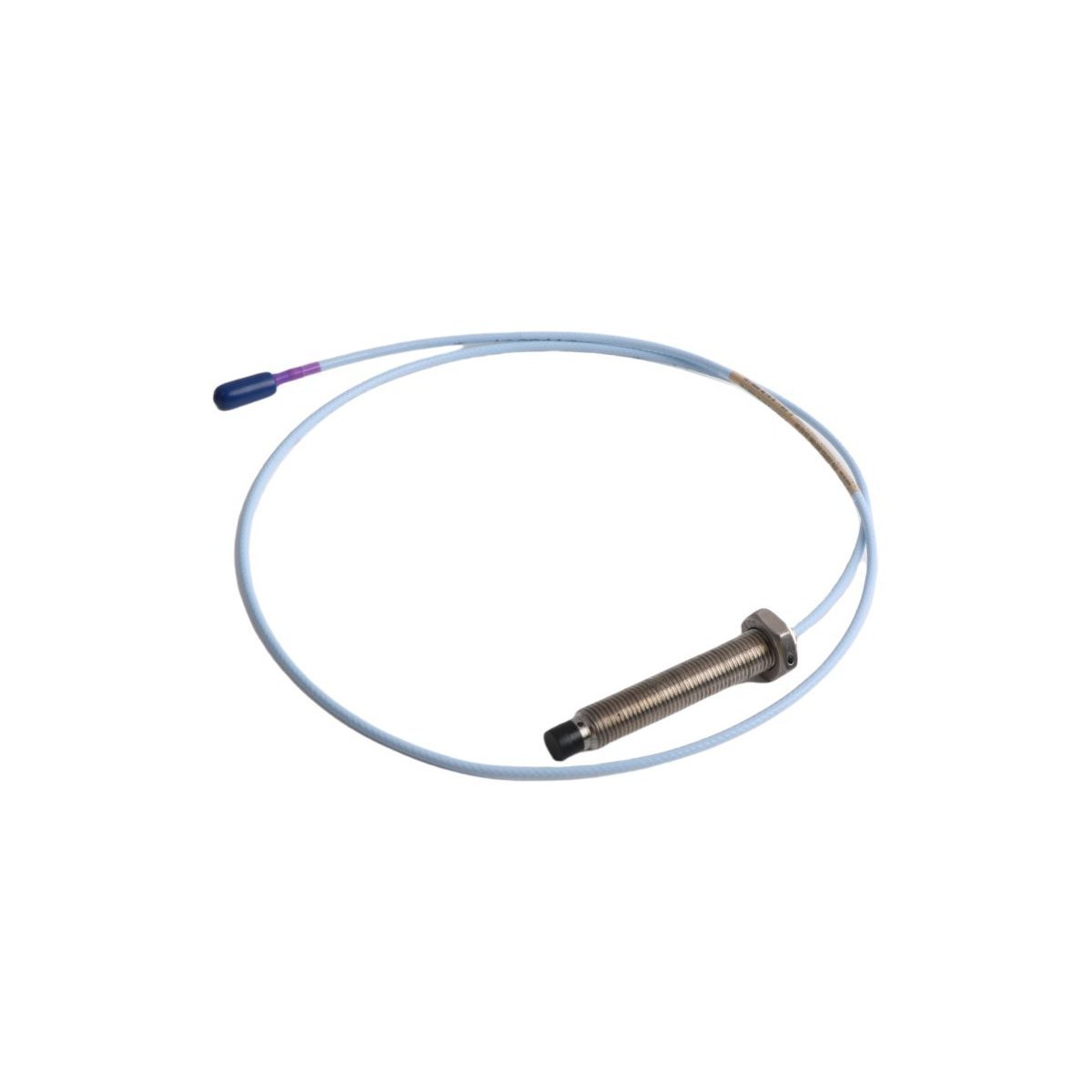

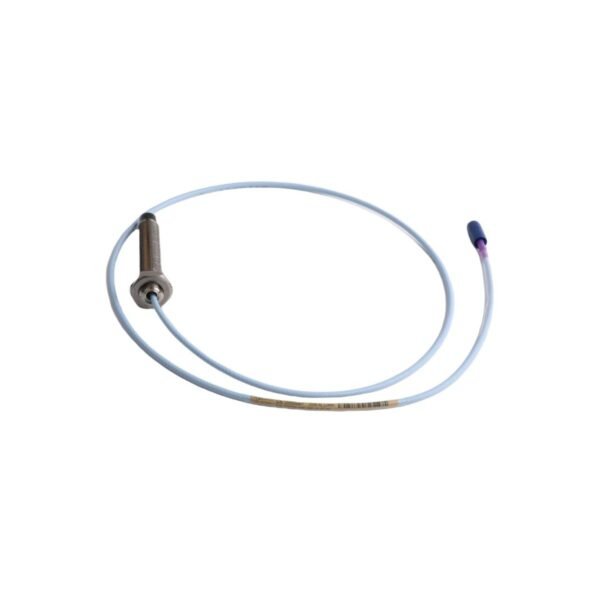

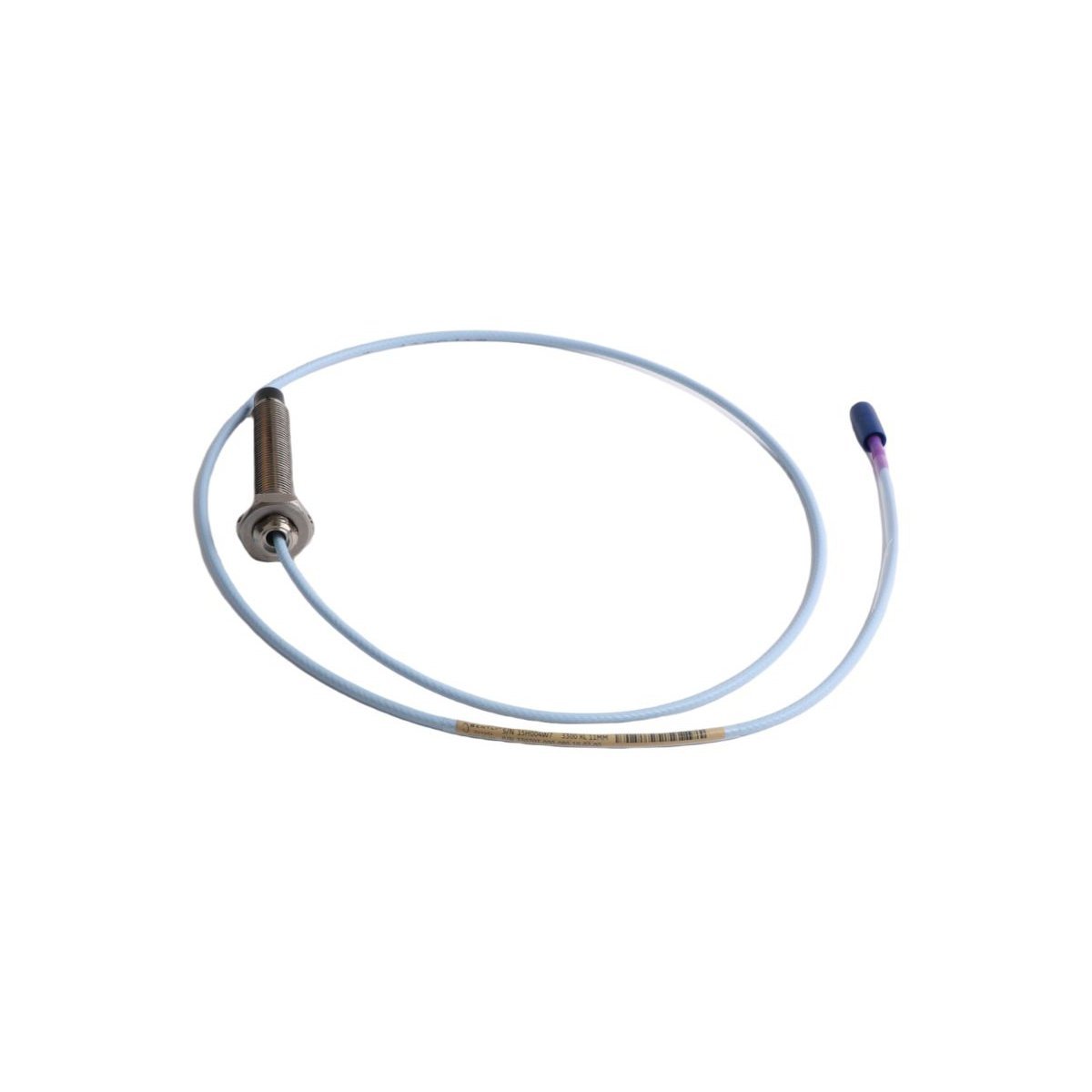

The Bently Nevada 330703-000-026-10-01-05 represents a core component within the 3300 XL 11 mm Proximity Transducer System. This sensor effectively measures displacement between a rotating shaft and the probe tip. It converts eddy current measurements into reliable voltage signals for machinery protection systems. Furthermore, this 11 mm variant offers a wider linear range compared to standard 8 mm models. Operators rely on this hardware for monitoring critical assets like large turbines and compressors. It provides essential data for radial vibration and axial position analysis.

Technical Construction and Design

This Proximitor Sensor features a specialized miniature coaxial ClickLoc connector for secure signal routing. The internal electronics reside within a rugged housing designed for high-interference industrial zones. Additionally, this configuration includes a built-in connector protector for enhanced environmental resistance. The unit supports an M14 x 1.5 thread interface to ensure stable mounting. While the probe cable spans 1.0 meter, it maintains excellent signal integrity. Moreover, the hardware design prioritizes resistance against electrostatic discharge during routine handling.

Key Technical Parameters

Operational Performance and Accuracy

One significant advantage involves the high signal-to-noise ratio during operation. This allows the sensor to capture minute vibrations at high rotational speeds. Additionally, the system remains fully compatible with Bently Nevada 3500 series monitoring racks. Maintenance teams can install these units quickly due to the plug-and-play ClickLoc design. The sensor operates consistently within a broad temperature range typical of heavy industry. Consequently, it reduces the risk of false alarms in machinery protection circuits.

Common Industrial Applications

• Monitoring radial vibration in large-scale centrifugal compressors.
• Measuring thrust position for high-pressure steam turbines.
• Providing phase reference signals for Keyphasor synchronization.
• Tracking shaft eccentricity in industrial power generators.
• Supporting condition monitoring for heavy-duty hydroelectric units.
