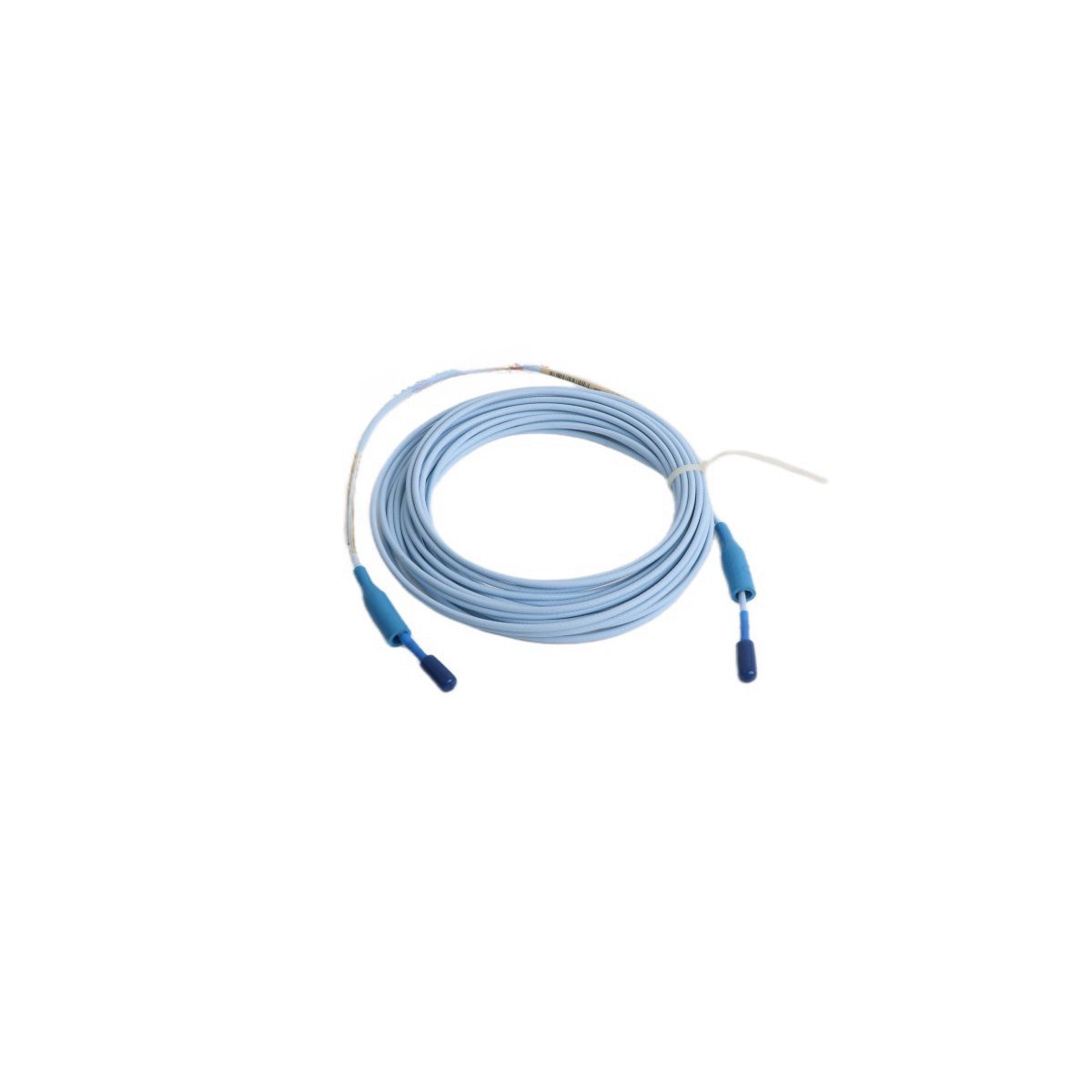

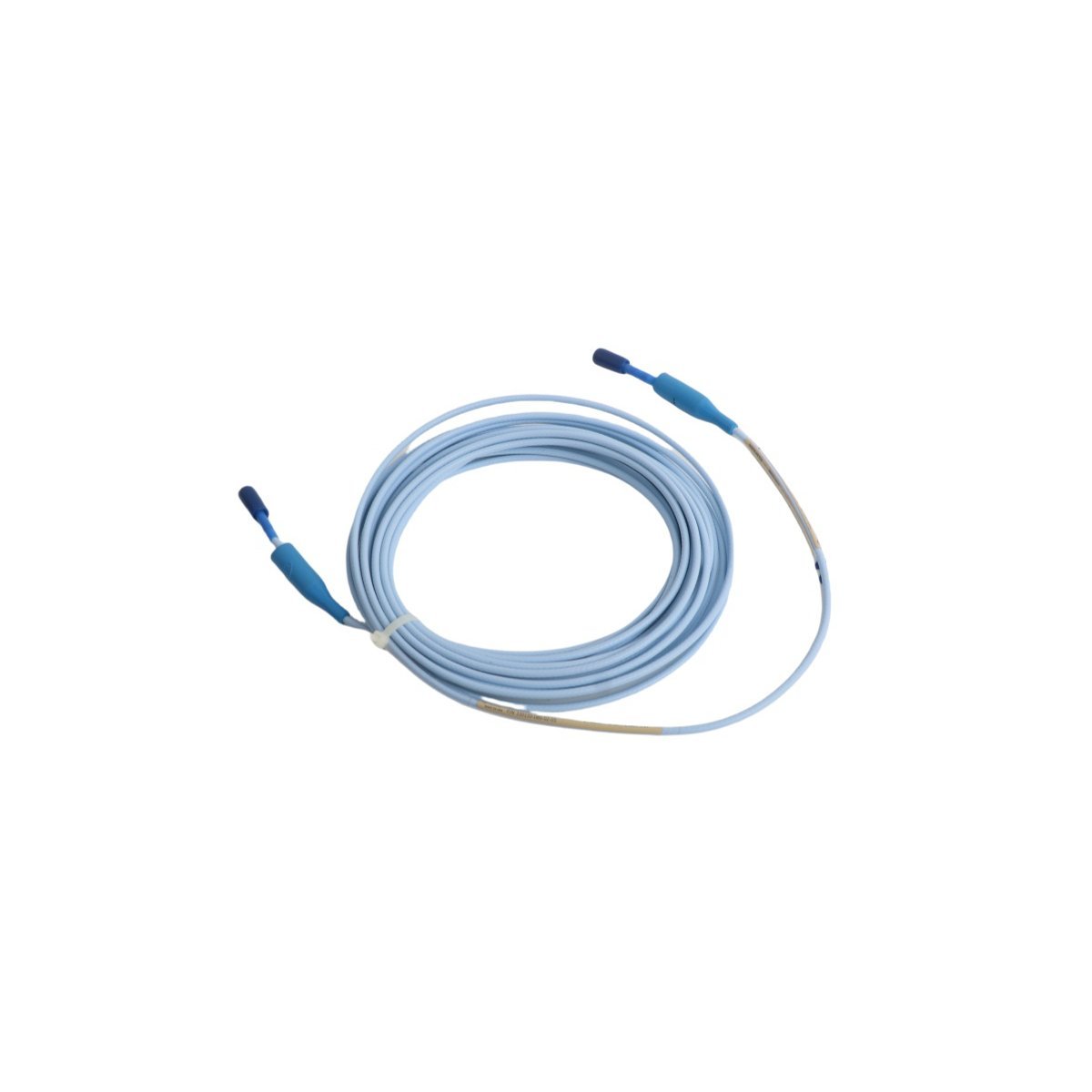

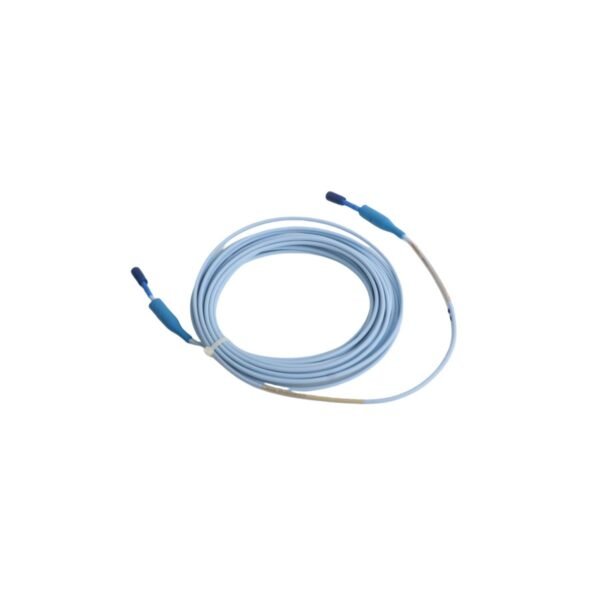

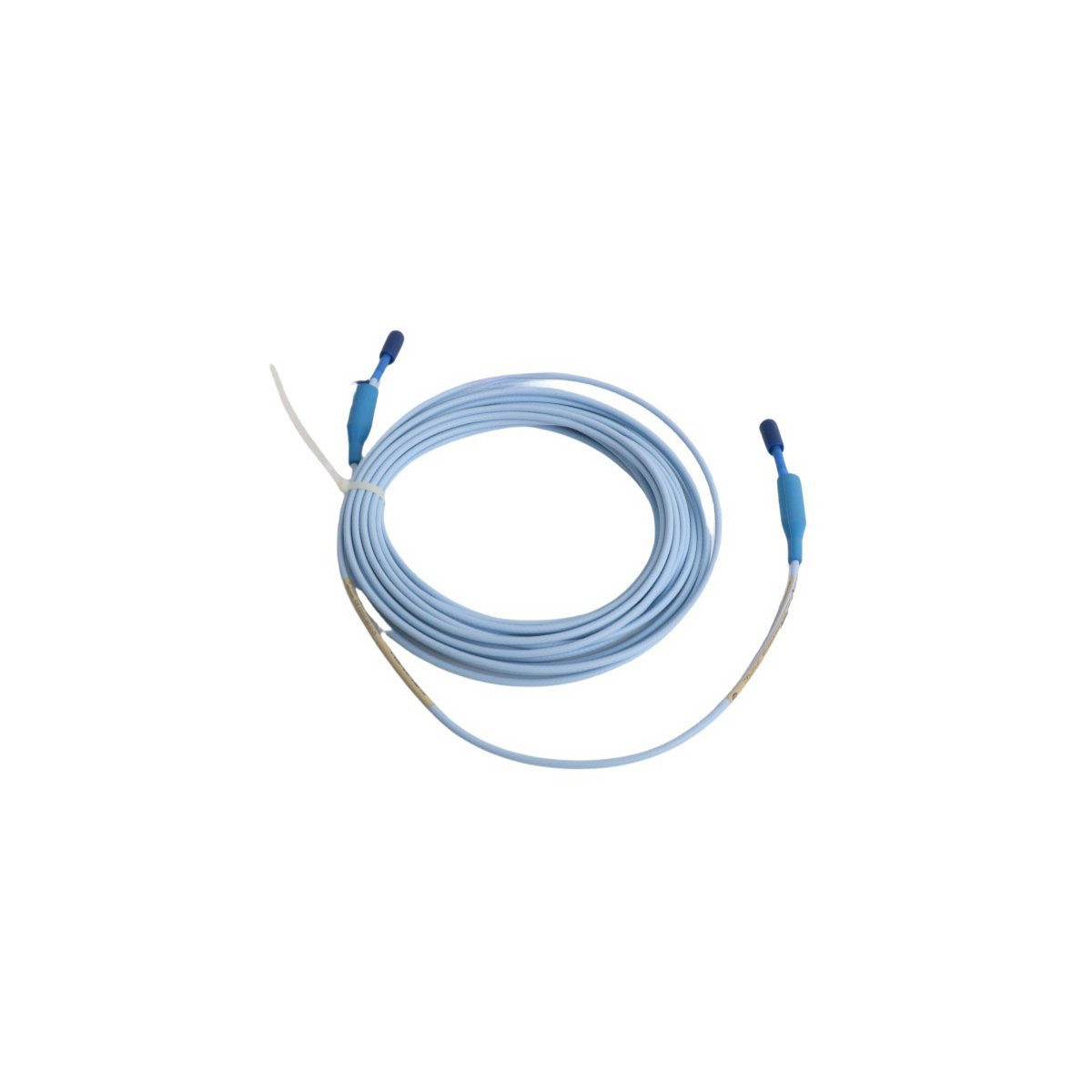

Bently Nevada 330130-080-02-05 | 3300 XL 8 mm Armored Extension Cable

The Bently Nevada 330130-080-02-05 is a high-performance extension cable specifically engineered for the 3300 XL 8 mm Proximity Transducer System. Acting as the vital communication link between the proximity probe and the Proximitor sensor, this cable facilitates the transmission of delicate eddy current signals. To ensure these signals remain undistorted, the cable utilizes an advanced coaxial architecture that effectively suppresses external electromagnetic interference. Consequently, it plays a decisive role in the precise measurement of radial vibration and axial position for high-speed rotating assets such as gas turbines, steam turbines, and industrial compressors.

Industrial Durability and Structural Integrity

To withstand the volatile conditions of industrial sites, Bently Nevada has optimized the 330130-080-02-05 for long-term stability and physical resilience. First, the cable is encased in a fluid-resistant FEP (Fluorinated Ethylene Propylene) jacket, which serves as a robust barrier against corrosive lubricants, chemical solvents, and moisture.

Furthermore, this specific configuration includes stainless steel fluid-tight armor (Option 02). This addition not only enhances the cable’s resistance to crushing and abrasion but also prevents signal interruptions caused by mechanical impact. Regarding connectivity, the patented ClickLoc connectors feature gold-plated surfaces. This treatment prevents contact oxidation and maintains a secure, low-impedance connection even under constant industrial vibration, thereby guaranteeing the continuity of monitoring data.

Core Technical Specifications

The engineering parameters of this cable fully satisfy the rigorous requirements of the API 670 international standard for machinery protection:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330130-080-02-05
• System Compatibility: 3300 XL 8 mm Proximity Transducer System
• Cable Length: 8.0 meters (Option 080)
• Protection Type: Stainless steel fluid-tight armor (Option 02)
• Agency Approval: Multiple Approvals for hazardous areas (Option 05)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F)
• Standard Compliance: API 670 and CE compliant
• Physical Weight: Approximately 0.28 kg (varies slightly by armor length)

Value in Machinery Protection Systems

As a fundamental component of the Turbine Supervisory Instrumentation (TSI) suite, the 330130-080-02-05 cable is essential for safeguarding plant safety. When integrated with a Bently Nevada 3500 series monitoring rack, it enables the early detection of mechanical anomalies such as shaft misalignment or bearing wear.

Since the 8.0-meter cable length is precisely calibrated to match the system’s electrical impedance, it ensures the transducer system maintains the required linear scale factor of $7.87\text{ V/mm}$ ($200\text{ mV/mil}$). Because of this high level of measurement precision, maintenance teams can develop scientific predictive maintenance plans. By intervening during the early stages of a fault, operators significantly reduce the risk of unplanned downtime and avoid catastrophic equipment accidents.

Reliability in Challenging Environments

Beyond its electrical performance, this extension cable excels in harsh operational settings. With an expansive operating temperature range and robust shielding, it remains stable even when deployed near high-heat zones or areas with strong electromagnetic interference (EMI). Moreover, by selecting the “05” multiple approval option, the cable is certified for safe use in hazardous areas worldwide. Despite its rugged armor, the design remains flexible enough to allow for routing through complex conduit paths without compromising the integrity of the critical monitoring signal.
