Description

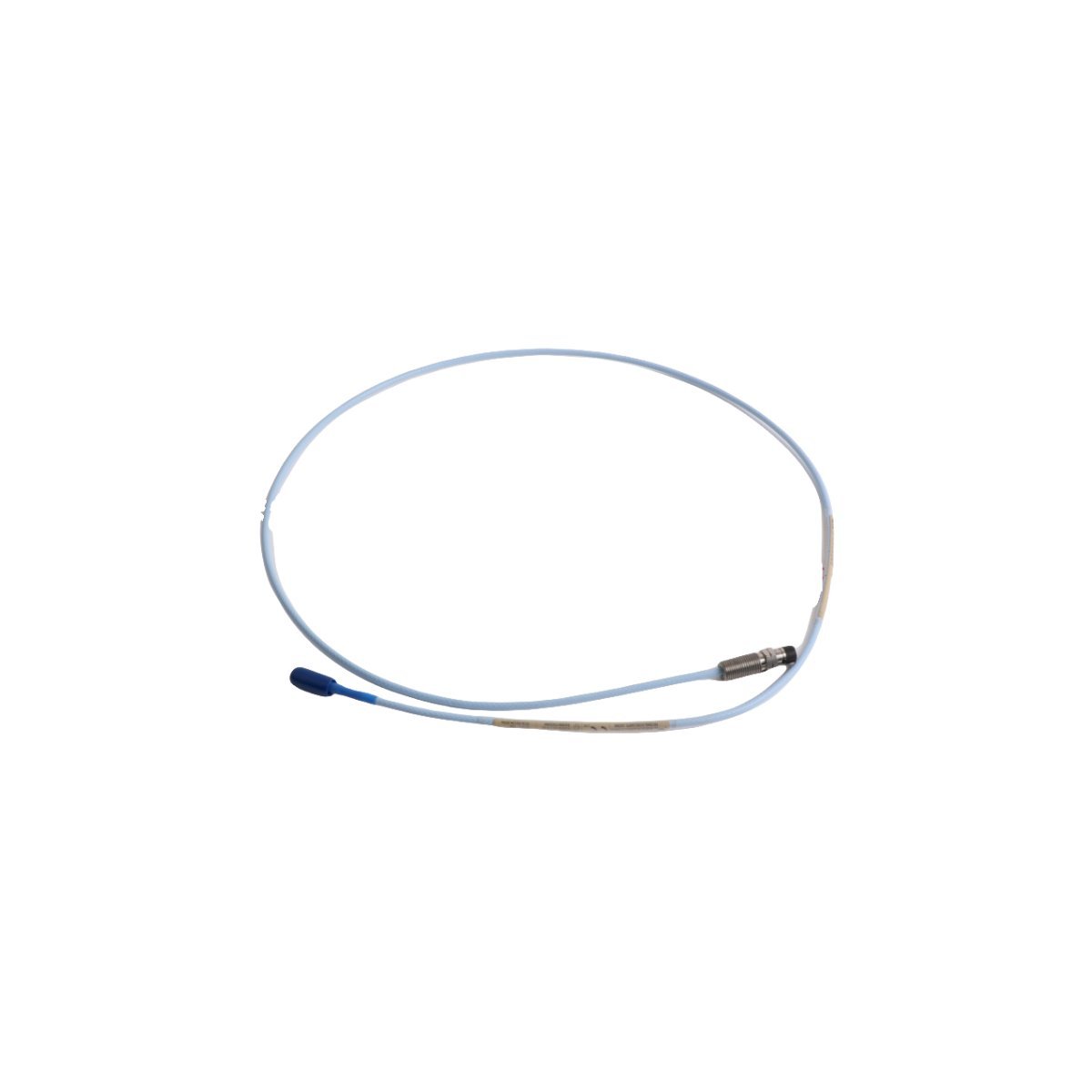

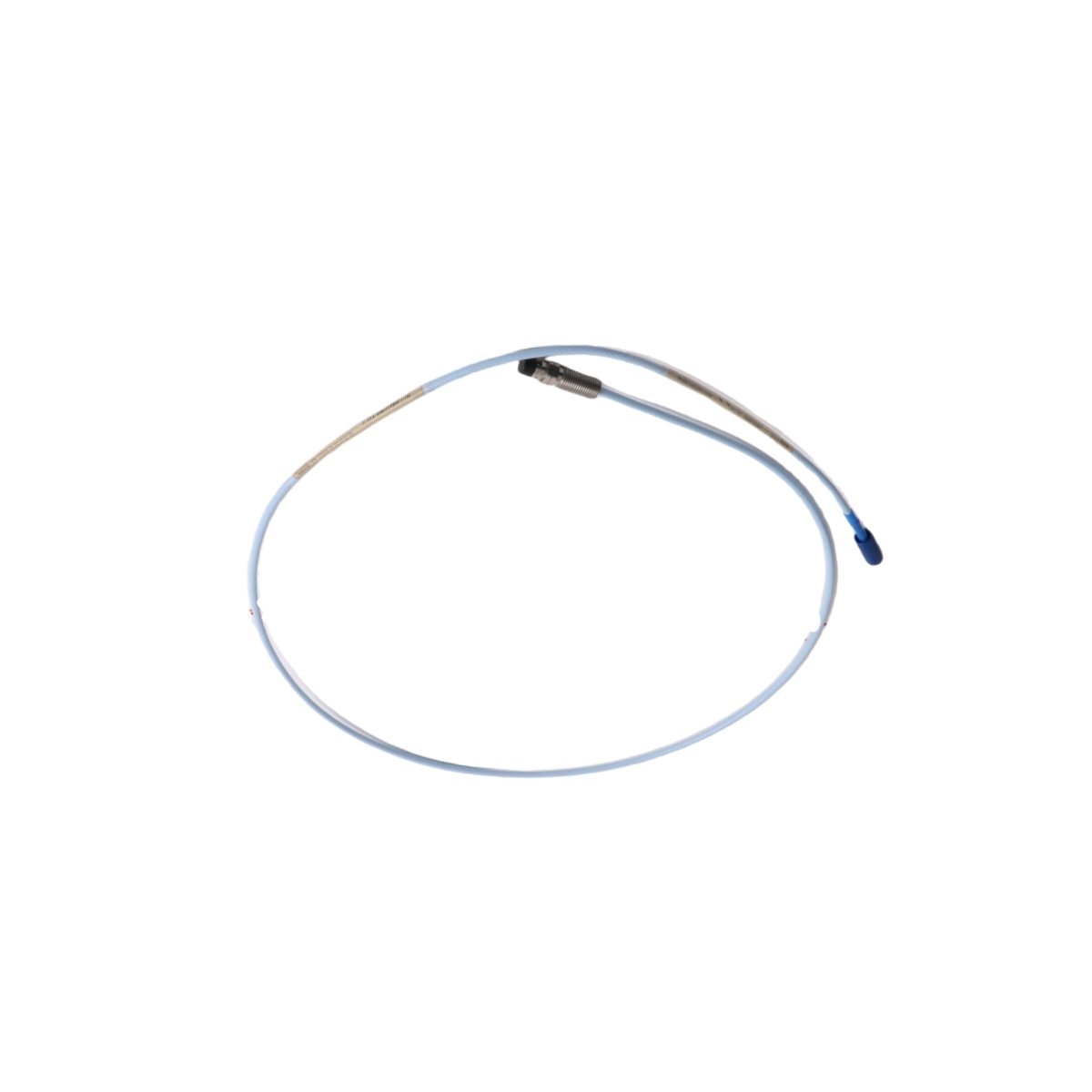

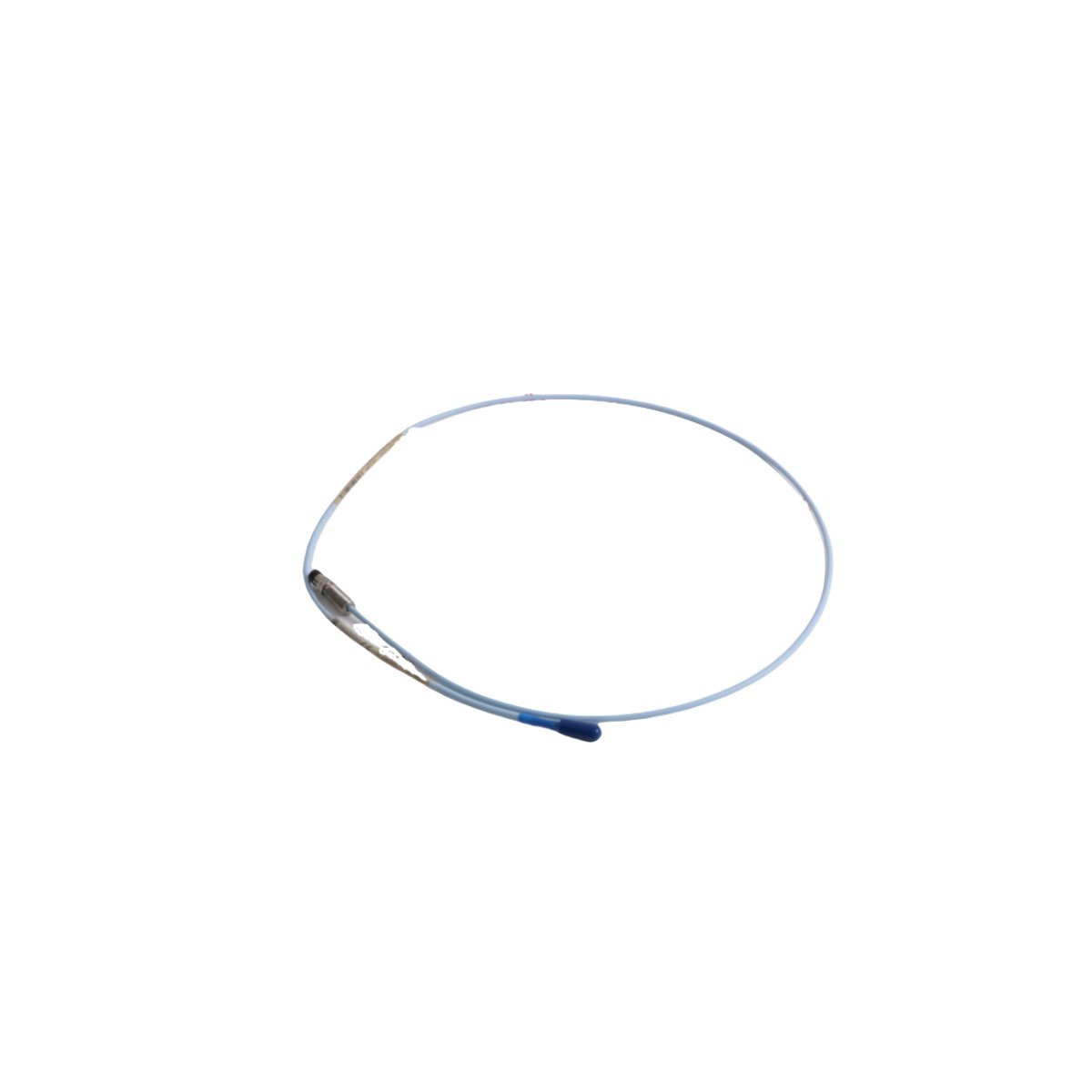

Bently Nevada 330106-05-30-10-02-05 3300 XL 8mm Proximity Transducer Probe

The Bently Nevada 330106-05-30-10-02-05 is a high-precision, non-contacting displacement sensor designed for the 3300 XL 8mm Proximity Transducer System. This specific probe assembly is engineered to measure static (position) and dynamic (vibration) distances between the probe tip and a rotating shaft. By utilizing advanced eddy current technology, the sensor provides essential data for identifying mechanical irregularities. Consequently, it is a foundational component for monitoring radial vibration, axial thrust, and speed in critical industrial rotating machinery such as turbines, gearboxes, and centrifugal pumps.

Technical Performance and Environmental Resilience

This transducer is built to sustain high-accuracy signal output despite the presence of high temperatures and corrosive lubricants. Specifically, the 330106 model features a robust construction that resists chemical degradation and mechanical fatigue. Furthermore, the probe’s electrical design ensures minimal signal drift even when exposed to significant electromagnetic interference (EMI). By doing so, it maintains a linear scale factor that allows for precise gap voltage readings. In addition, the reverse mount configuration enables installation in specialized housing where standard forward-mounting is impractical, providing greater engineering flexibility.

Key Technical Specifications

Industrial Applications and Asset Protection

The 330106-05-30-10-02-05 is widely implemented across the power generation and petrochemical sectors to protect high-value assets. For instance, it is frequently used in Turbine Supervisory Instrumentation (TSI) to monitor shaft eccentricity and bearing clearance. As a result, maintenance teams can implement predictive strategies that address imbalance or misalignment before they lead to catastrophic failure. Moreover, because this probe integrates directly with the 3500 series monitoring system, it facilitates real-time diagnostics and automated machinery trips. Therefore, investing in genuine Bently Nevada hardware ensures compliance with API 670 standards for machinery protection.

FAQ

What is the benefit of the ClickLoc connector on this probe?

The ClickLoc connector features a unique locking mechanism that prevents the coaxial connection from loosening due to machine vibration. Furthermore, the gold-plated surfaces minimize electrical resistance. Consequently, you receive a cleaner signal with less noise compared to standard threaded connectors.

Can this probe be used in high-pressure environments?

While the probe tip is constructed from high-strength polyphenylene sulfide (PPS), it is generally intended for atmospheric or low-pressure splash zones. However, if your application involves high-pressure vessels, you may need a specialized pressure seal or a thermowell-style mounting. Accordingly, always verify your specific casing pressure before installation.

How do I determine if the 1.0-meter length is correct for my system?

Bently Nevada 3300 XL systems are typically calibrated for 5.0 or 9.0 meters of total electrical length. As a result, this 1.0-meter probe must be paired with an 8.0-meter extension cable for a 9-meter system, or a 4.0-meter cable for a 5-meter system. In addition, using the wrong total length will cause the calibration to shift, resulting in inaccurate measurement data.

Is the reverse mount design compatible with standard brackets?

The reverse mount design requires a specific mounting block or housing that allows the probe to be secured from the rear. Specifically, this is common in internal bearing housings where space is limited. Therefore, it is essential to confirm that your bracketry supports the 3/8-24 UNF reverse thread pattern.
