Description

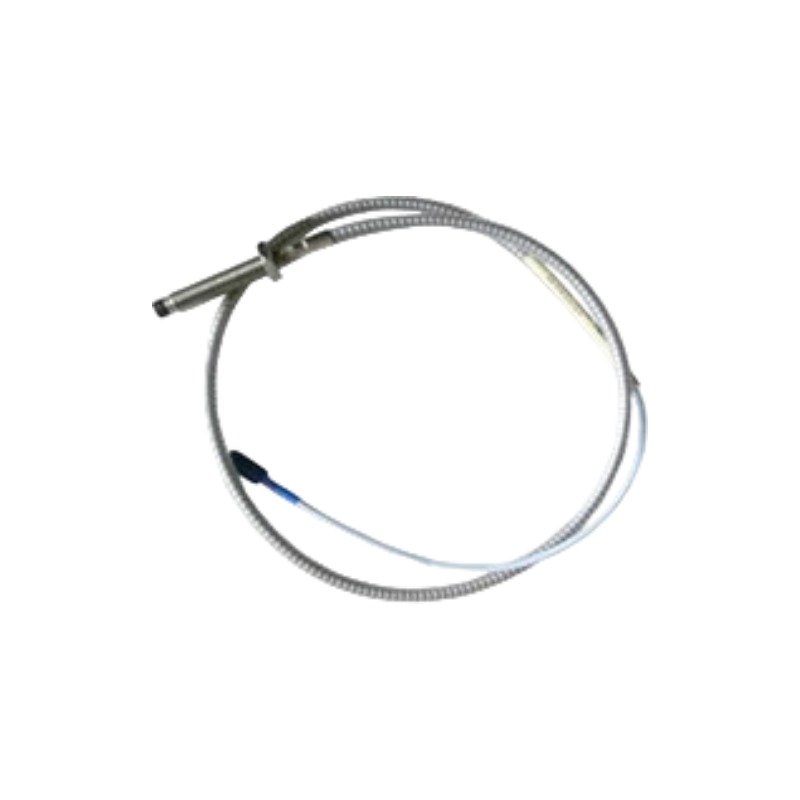

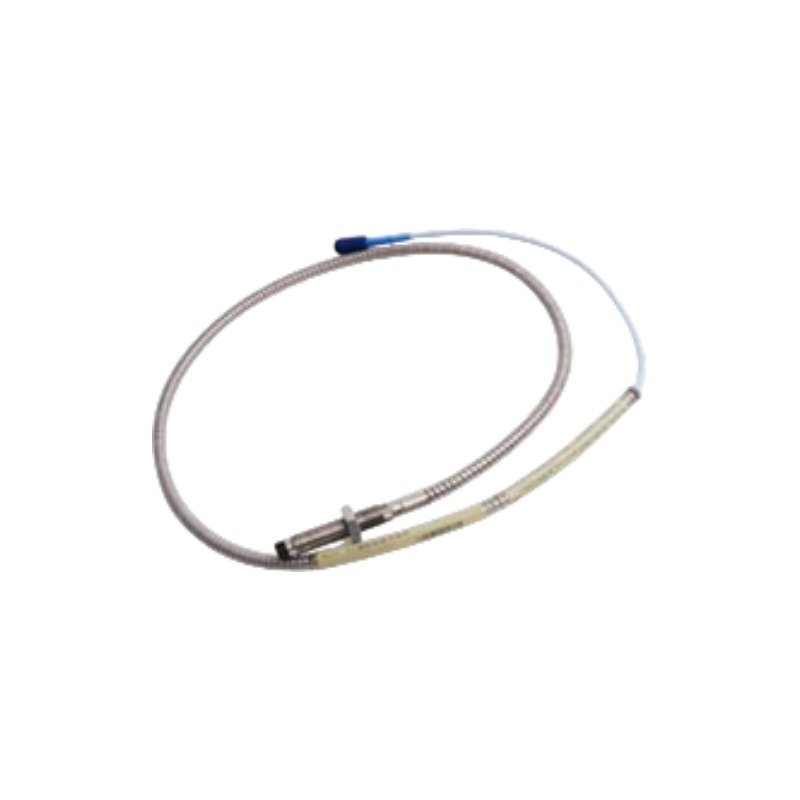

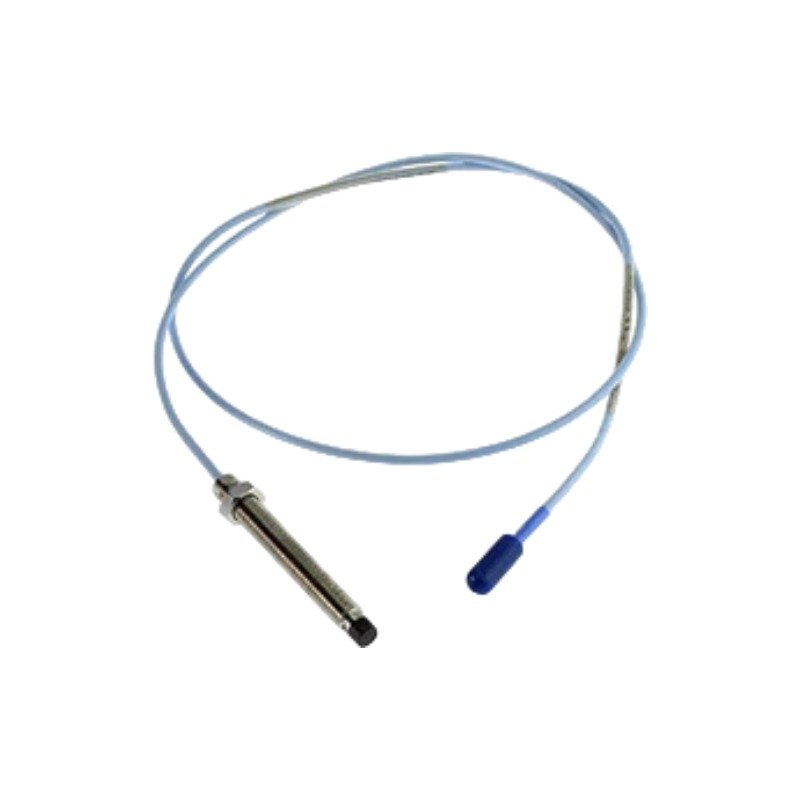

Configured for precision non-contact vibration and position measurements in industrial machinery protection systems, the Bently Nevada 330104-00-09-10-02-00 (330104 3300 XL 8 mm Proximity Probe) provides direct physical/electrical execution. Specifically, the hardware utilizes eddy-current technology to track dynamic shaft vibration and static position parameters concurrently on fluid-film bearing machinery. Consequently, it feeds real-time distance-proportional voltage signals back to system monitors, enabling automated trip loops and comprehensive structural health tracking across critical mechanical components.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 330104-00-09-10-02-00 proximity probe relies on standardized eddy-current probe scaling to ensure linear voltage output across its measuring window. During operational setup, field technicians verify the target gap voltage validation, adjusting the physical position to match the factory -10 VDC baseline for standard AISI 4140 steel targets. This alignment allows the transducer system to monitor severe rotor dynamics without clipping or signal saturation. Furthermore, the ClickLoc connector assembly maintains gold-plated contact interfaces that promote effective cross-talk suppression between tightly packed sensor lines, successfully rejecting electromagnetic interference within the host monitoring platform.

Frequently Asked Questions

Q: Can technicians perform a hot-swap operation on the 330104-00-09-10-02-00 probe connection while the system is energized?

A: Yes. Disconnecting the miniature coaxial ClickLoc connector from its extension cable does not interrupt global rack power or damage the passive transducer system components. However, the specific monitor slot associated with the probe channel will enter a fault state and bypass active protection loops until re-connection.

Q: What are the torque limits and locking characteristics of the ClickLoc coaxial connector?

A: The ClickLoc connector requires only finger-tight torque during final assembly. Technicians must rotate the collar until it emits a distinct mechanical click, which engages a specialized locking mechanism that prevents vibration-induced loosening.

Field Installation Guidelines

1. First, secure the unthreaded portion and thread the M10 x 1 probe body into the bracket housing, taking precautions not to twist or bind the integral 1.0-meter coaxial cable.
2. Next, observe the minimum allowable cable bend radius of 25.4 mm (1.0 inch) when routing the flexible lead wire away from sharp metal edge hazards.
3. Subsequently, hand-tighten the miniature coaxial ClickLoc interface to the extension cable until the locking rings click, keeping the connection entirely isolated from structural frame contact.
4. Finally, use a calibrated voltmeter to confirm that the static gap voltage validation aligns with the necessary -10 VDC target before tightening the primary jam nuts to their final torque values.
