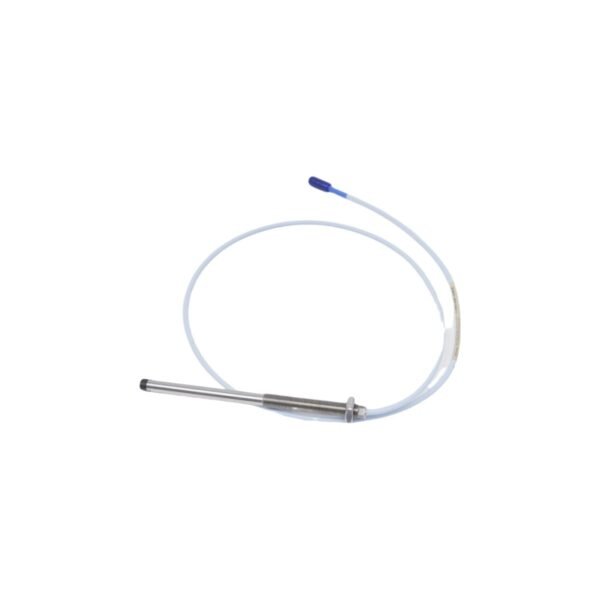

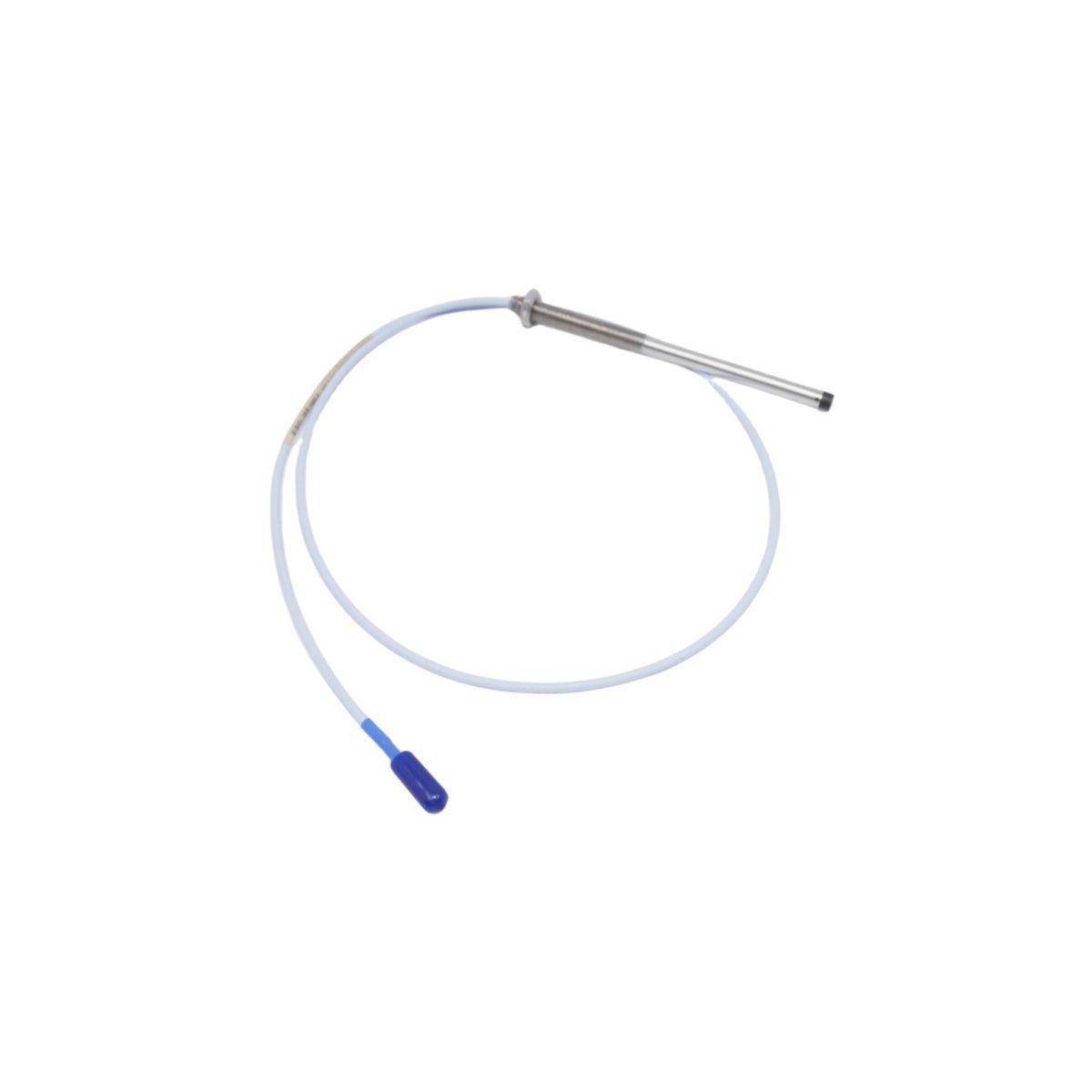

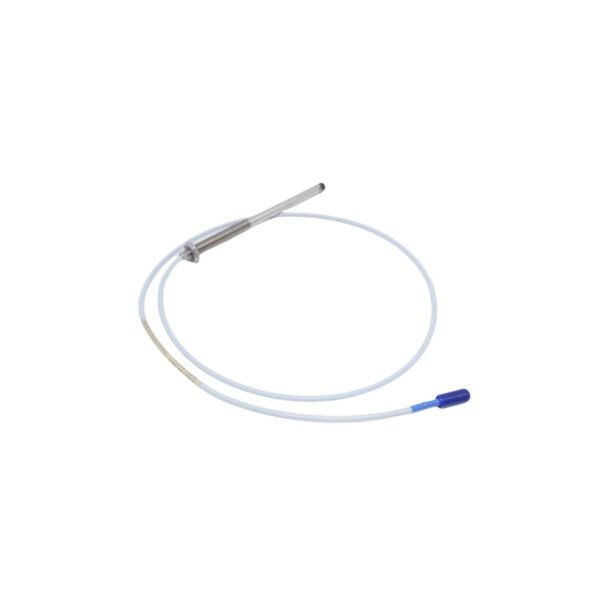

Bently Nevada 330103-08-15-10-02-00 3300 XL 8mm Proximity Transducer Probe

The Bently Nevada 330103-08-15-10-02-00 is a high-performance eddy current sensor designed for the 3300 XL 8mm Proximity Transducer System. This probe serves as the primary sensing element for non-contacting displacement and vibration measurements in critical rotating machinery. By detecting the gap between the probe tip and a conductive target, such as a machine shaft, it provides essential data for radial vibration, axial position, and speed monitoring. Engineered to meet the stringent requirements of API 670, this transducer ensures high-resolution signal output and long-term stability in demanding industrial environments.

Technical Configuration and Environmental Durability

This specific model is configured with a 3/8-24 UNF threaded body, facilitating precise mechanical gapping and secure installation. Specifically, the 330103-08-15-10-02-00 features a 0.8-inch unthreaded length and a 1.5-inch total case length, allowing for versatile mounting in various bearing housing geometries. Furthermore, the probe tip is constructed from high-grade polyphenylene sulfide (PPS), providing a hermetic seal against moisture and chemical contaminants. In addition, the 1.0-meter integrated cable is fitted with a gold-plated ClickLoc connector, which ensures a vibration-resistant electrical path to the Proximitor sensor. Consequently, the system maintains high signal integrity even when exposed to high temperatures and pervasive lubricating oils.

Technical Specification Matrix

Industrial Application and Asset Lifecycle Management

The 330103-08-15-10-02-00 is a foundational component of Turbine Supervisory Instrumentation (TSI). As a result, it is widely deployed across power plants, refineries, and petrochemical facilities to monitor steam turbines, gas turbines, and large centrifugal compressors. Moreover, the probe’s design supports seamless integration with Bently Nevada 3500 series monitoring racks, enabling advanced predictive maintenance and real-time diagnostics. Therefore, by utilizing this proximity probe, plant operators can detect mechanical issues such as shaft misalignment or bearing wear at an early stage. Ultimately, this proactive monitoring reduces the risk of catastrophic asset failure and optimizes the efficiency of rotating equipment.

FAQ

What is the purpose of the gold-plated ClickLoc connector?

The ClickLoc connector is designed to provide a secure, low-resistance connection that resists the effects of industrial vibration. Furthermore, the gold plating prevents oxidation of the contacts over time. Accordingly, this ensures a clean, reliable signal transmission between the probe and the extension cable.

How does the unthreaded length affect the installation?

The 0.8-inch unthreaded portion of the case allows the probe to be inserted through brackets or housings where threading is not required for the entire length. Consequently, it provides a smoother installation process for specific mounting configurations. In addition, it allows for more flexible gap adjustments during the commissioning phase.

Can this probe be used in hazardous locations?

Yes, the 3300 XL 8mm probes carry multiple international approvals for use in explosive atmospheres. Specifically, when used with a certified Proximitor and safety barriers, they meet ATEX and IECEx standards for intrinsic safety. Therefore, they are suitable for use in Class I, Division 1 environments typical of the oil and gas industry.

What is the significance of the 1.0-meter cable length?

This 1.0-meter lead is the standard “probe-only” length. However, for the system to function correctly, it must be paired with an extension cable to reach a total electrical length of 5.0 or 9.0 meters. As a result, you must ensure the Proximitor sensor is calibrated for the specific total length of the combined cable assembly.
