Description

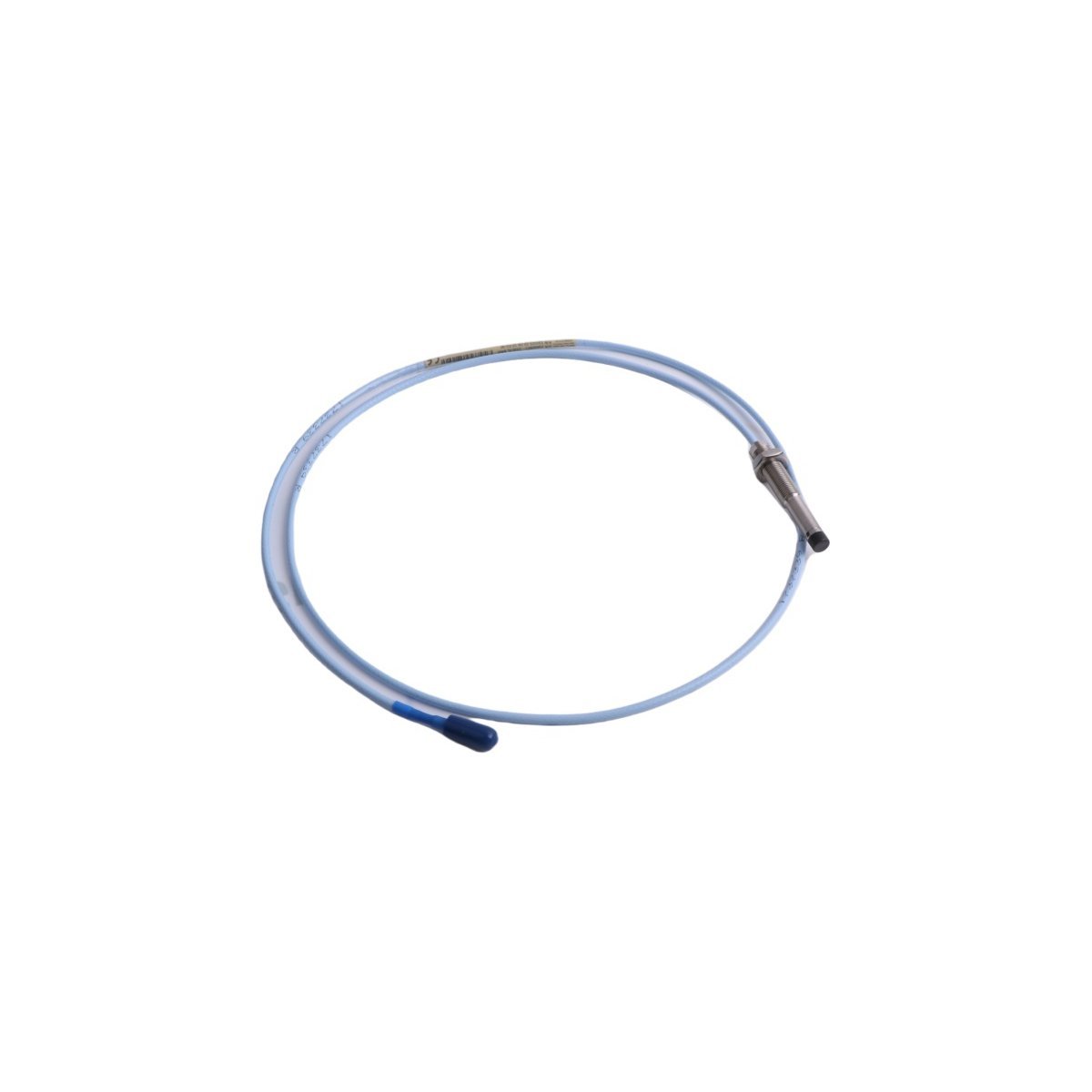

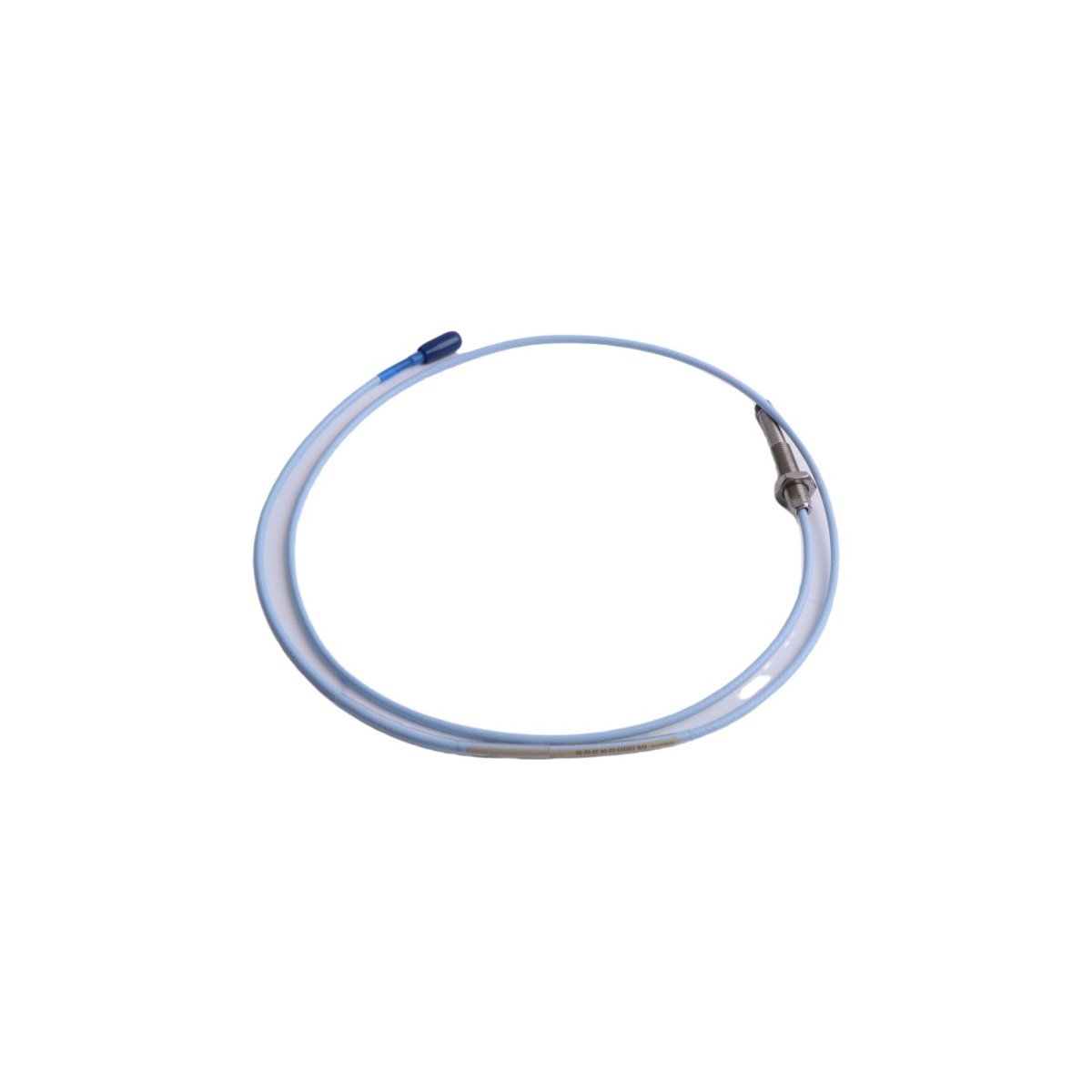

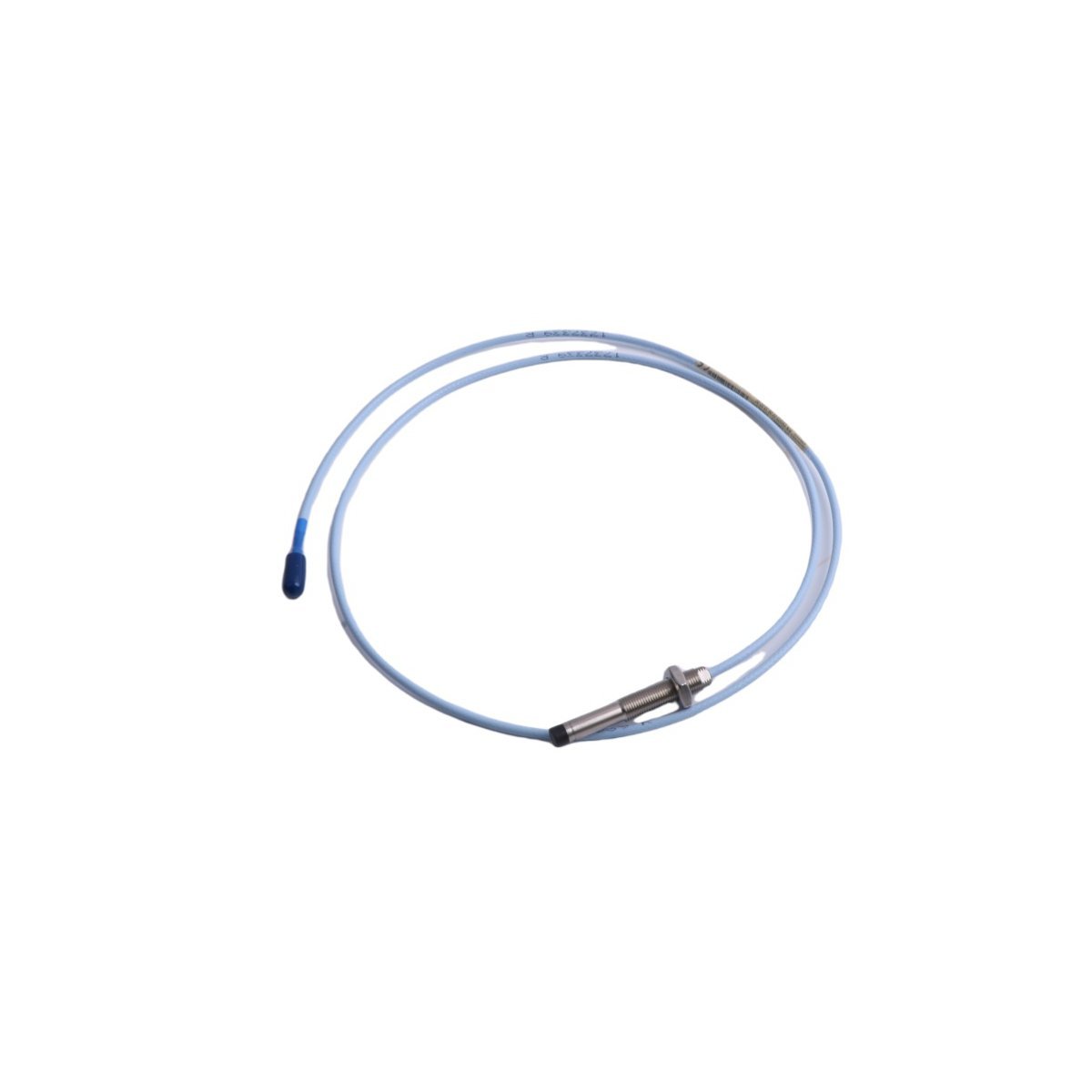

The Bently Nevada 330103-02-10-05-01-05 serves as a high-precision eddy current sensor for machinery protection. This 8 mm proximity probe measures radial vibration and axial position on rotating shafts. It operates without physical contact to ensure long-term reliability. Furthermore, the sensor provides essential data to the 3500 Monitoring System. This information allows engineers to detect rotor instability and bearing wear early. Consequently, plant operators can prevent catastrophic machine failure and optimize maintenance cycles.

Material Integrity and Environmental Durability

The probe features a polyphenylene sulfide (PPS) tip for superior chemical resistance. Additionally, the stainless steel body protects internal coils from harsh industrial fluids. This construction maintains signal accuracy at temperatures ranging from -51°C to +177°C. The FEP-insulated cable resists oil and moisture penetration effectively. Because of these design choices, the sensor thrives in refineries and power generation plants. It remains stable under high-pressure conditions and intense mechanical stress.

Integration and Compliance

This specific model follows the API 670 standard for vibration monitoring systems. It integrates seamlessly with 3300 XL extension cables and Proximitor sensors. The Click-Loc connector ensures a secure electrical bond despite high-frequency vibration. Furthermore, the reverse mount configuration simplifies installation in restrictive bearing housings. Modern facilities use this technology to support digital twin initiatives and IoT tracking. This probe provides the high-fidelity signal required for sophisticated machinery diagnostic software.

Technical Configuration Details

• Model Series: 3300 XL 8 mm Proximity Transducer
• Thread Type: M10 x 1 metric thread (reverse mount)
• Unthreaded Length: 20 mm (Option 02)
• Overall Case Length: 100 mm (Option 10)
• Total Cable Length: 0.5 meter / 1.6 feet (Option 05)
• Connector Option: Miniature coaxial Click-Loc connector (Option 01)
• Agency Approval: ATEX, IECEx, and CSA hazardous area ratings (Option 05)
• Weight: 0.14 kg
• Country of Origin: USA
