Description

The Bently Nevada 330103-00-03-10-02-CN provides high-accuracy displacement measurements for industrial rotating assets. This eddy current sensor tracks radial vibration and axial position without touching the shaft. Consequently, it delivers real-time data to help operators identify mechanical imbalances or bearing wear. This early detection capability allows facilities to implement effective predictive maintenance programs. The sensor acts as a critical component in ensuring the safety of high-value equipment.

Hardware Architecture and Engineering

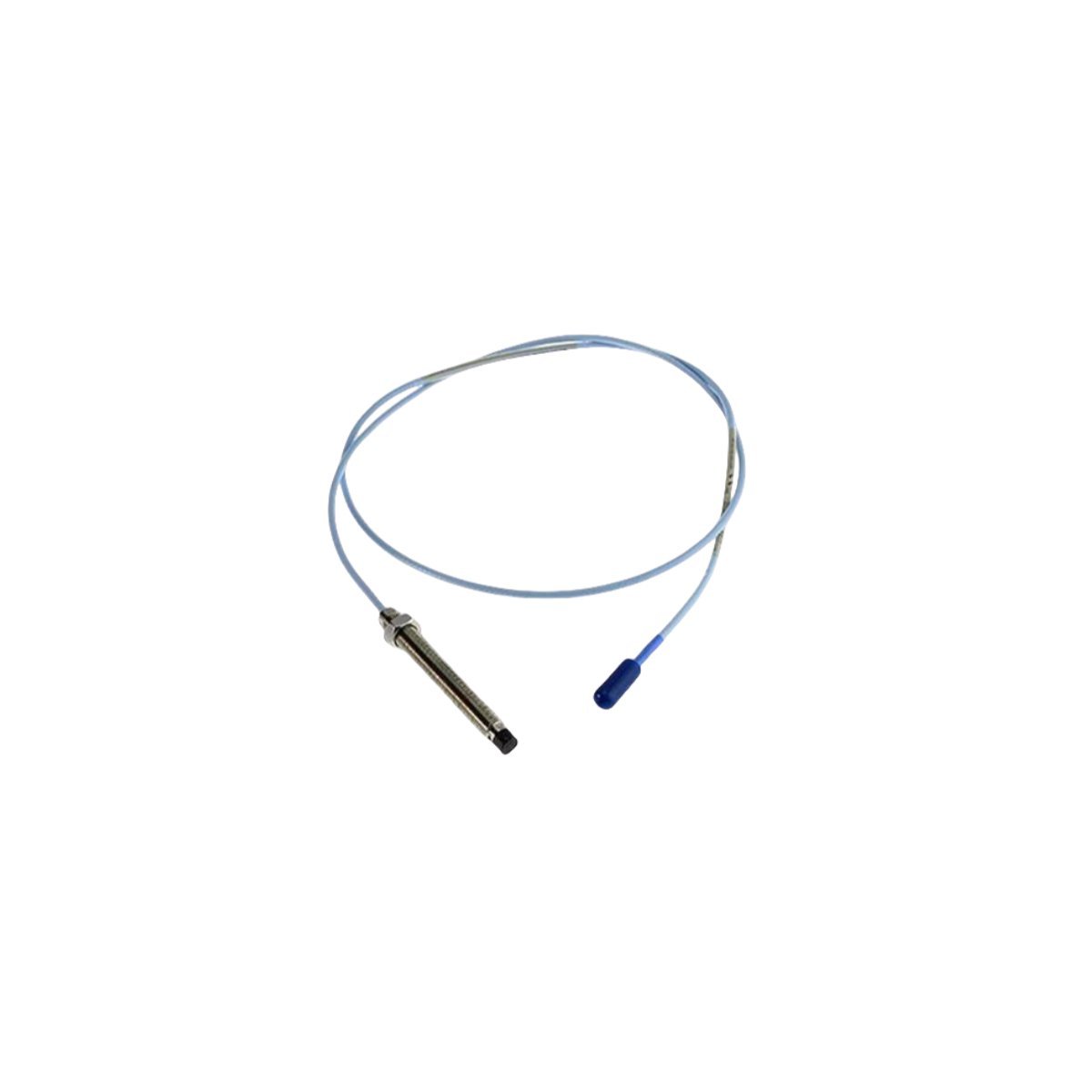

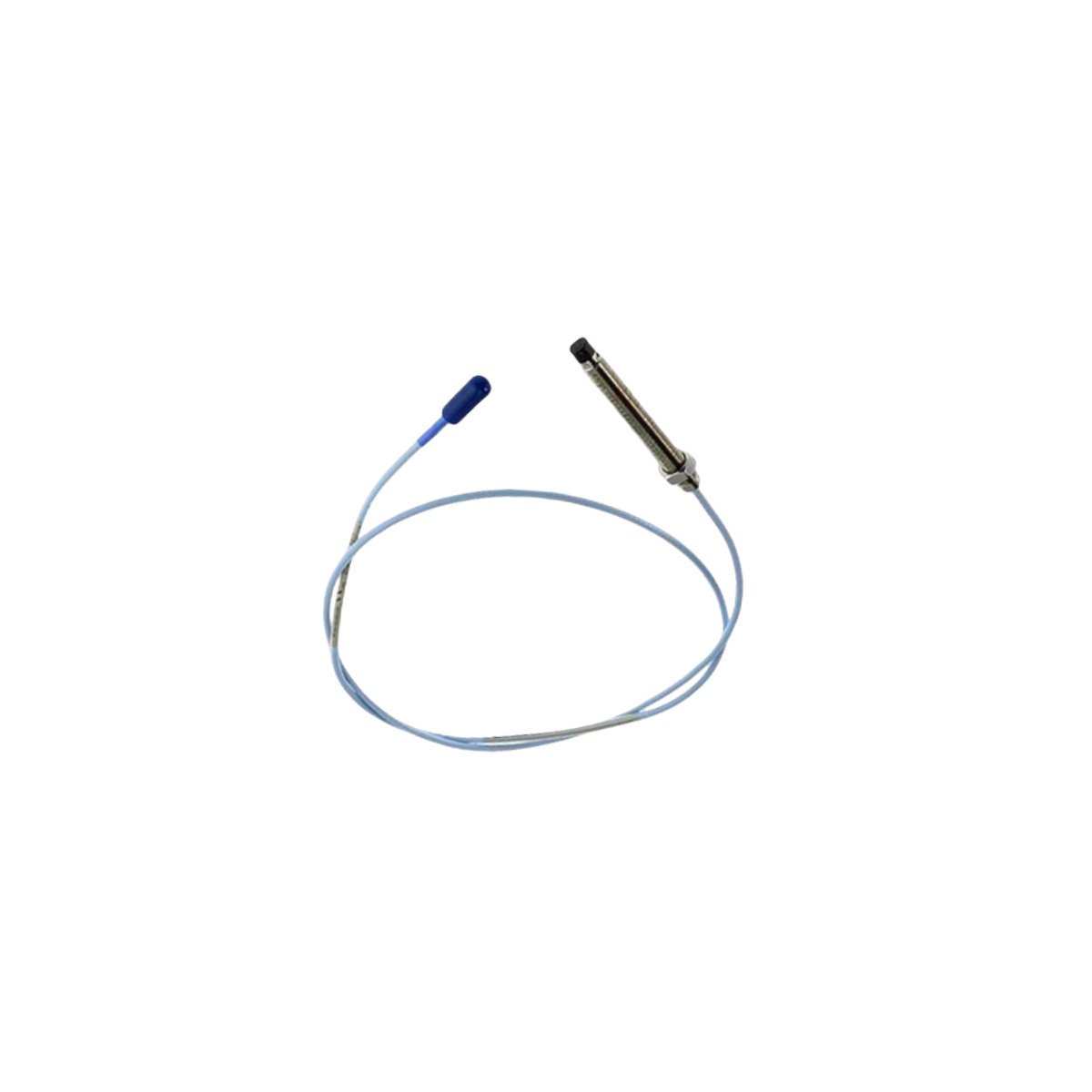

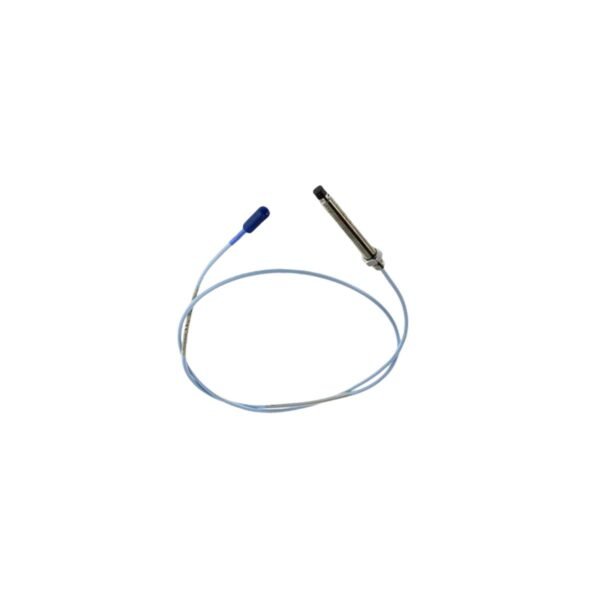

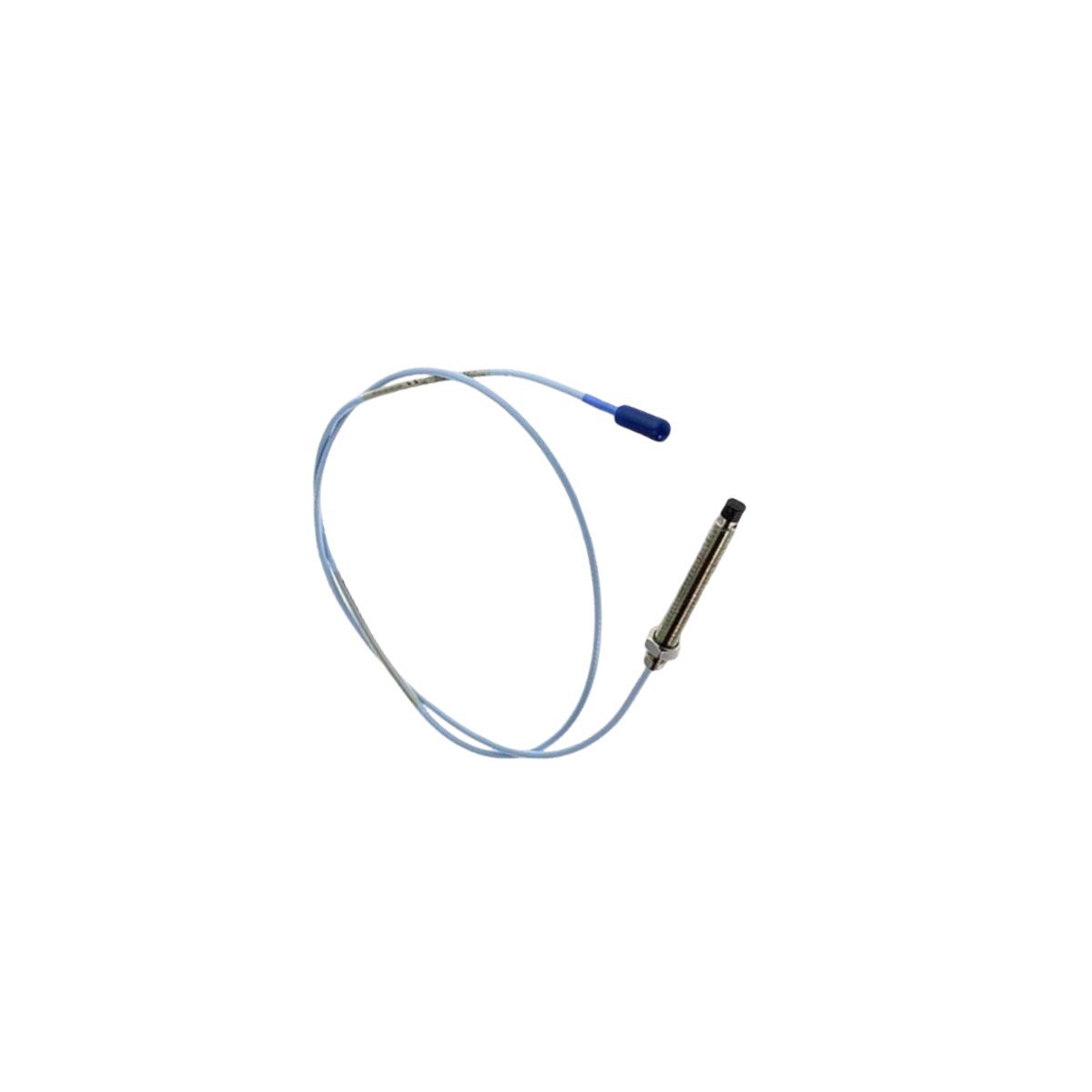

This 8mm proximity probe features a 3/8-24 UNF threaded housing for standard industrial installation. The specific configuration includes a zero-inch unthreaded length and a 0.3-inch total case length. Furthermore, the 1.0-meter integrated cable features a miniature coaxial ClickLoc connector for secure signal routing. The probe tip uses high-performance polyphenylene sulfide (PPS) to withstand high-pressure environments. These materials ensure consistent electrical performance despite rapid temperature fluctuations.

Primary Machinery Applications

Maintenance engineers deploy this 8mm sensor on a wide variety of mid-sized rotating machinery. It excels in monitoring high-speed steam turbines, centrifugal compressors, and industrial gearboxes. Moreover, the sensor integrates perfectly with Bently Nevada 3500 series machinery protection racks. The compact 0.3-inch case design allows for installation in tight mechanical clearances. This makes it ideal for assets with restricted internal mounting space.

System Reliability and Safety Standards

The 3300 XL 8mm system offers industry-leading resolution for machinery health diagnostics. Its design allows for straightforward calibration with standard 3300 XL Proximitor sensors. Because the unit follows strict global manufacturing protocols, it ensures repeatable results across different facilities. Reliable monitoring with this probe significantly decreases the risk of catastrophic asset failure. This stability helps plant managers protect their production schedules and personnel.

Core Technical Specifications

Key Performance Benefits

• Non-contact sensing technology eliminates mechanical wear and extends the service life.
• Gold-plated connectors maintain signal integrity by preventing atmospheric corrosion.
• 1.0-meter cable length offers a compact footprint for local junction box connections.
• Advanced thermal compensation maintains measurement accuracy during intense machine heat.
• Shielded cable construction effectively blocks electromagnetic interference from nearby motors.
