Description

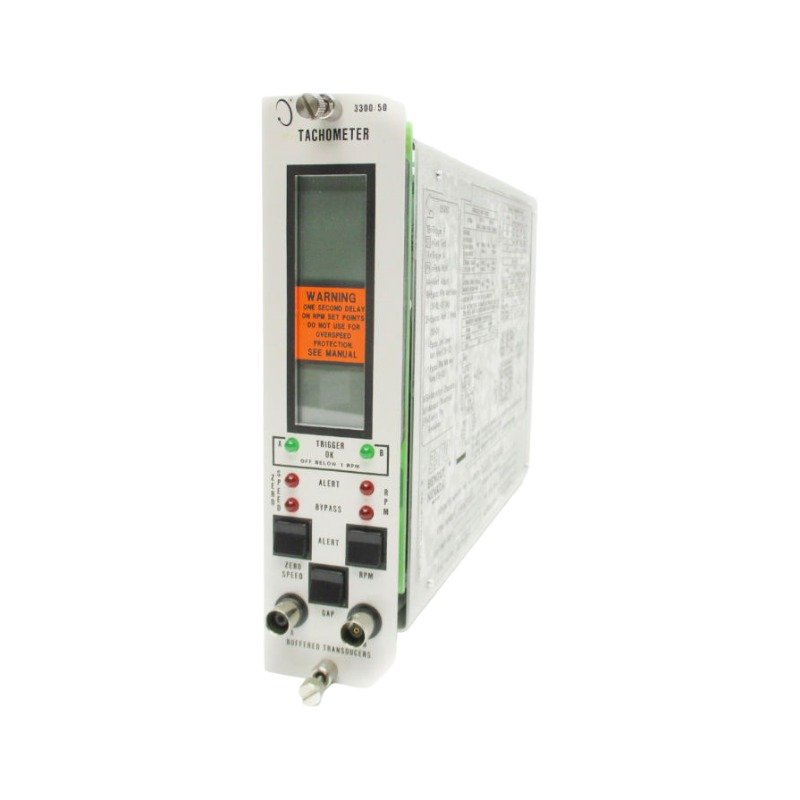

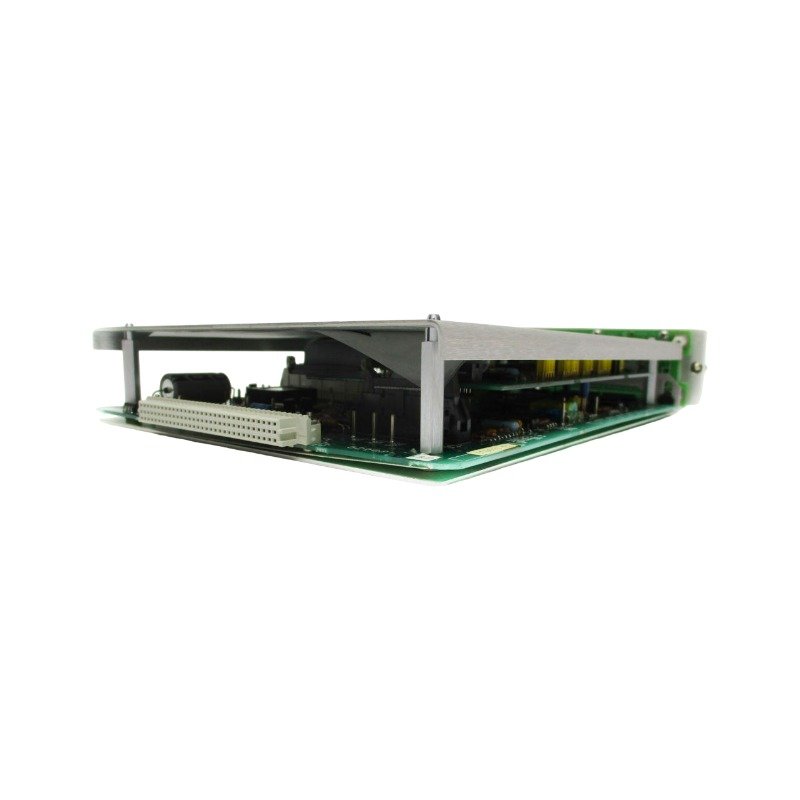

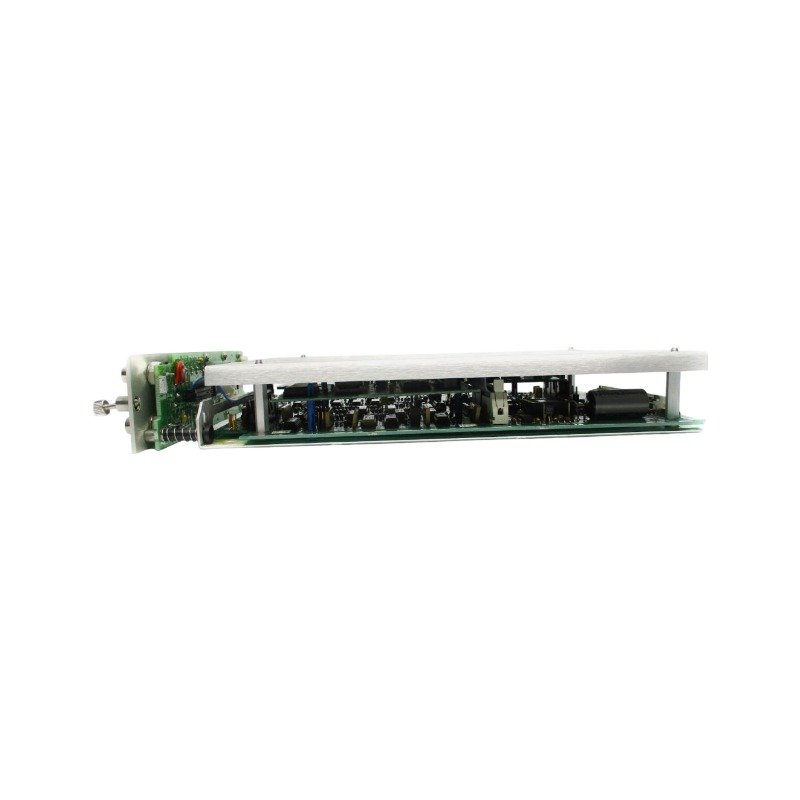

Configured for continuous shaft rotative speed measurement and overspeed alarming in Bently Nevada 3300 Monitoring System platforms, the Bently Nevada 3300/50-02-01-00-00 (3300/50 Tachometer Monitor) provides direct physical/electrical execution. Specifically, the module conditions pulse signals from proximity probes or magnetic pickups to determine precise angular velocity, and it subsequently triggers alarm relays when pre-set thresholds breach.

Hardware Specifications

Rotor Dynamics and Transducer Conditioning

To achieve highly precise rotor dynamics analysis, this module incorporates optimized input conditioning circuitry that actively handles eddy-current probe scaling. Consequently, the internal threshold triggering demands strict gap voltage validation, targeting a nominal -10 VDC offset for standard 8 mm Proximitor sensor networks. This precise biasing prevents signal clipping and simultaneously maximizes the dynamic range of transient voltage inputs during rapid acceleration phases. Furthermore, integrated cross-talk suppression logic filters out high-frequency electromagnetic interference (EMI) along with adjacent channel magnetic interference. As a result, the hardware maintains precise pulse-edge detection even when engineers mount sensors in high-density structural clusters.

Frequently Asked Questions

Q: Does this monitor supply power to a standard 8 mm Proximitor sensor directly?

A: Yes. The module delivers a stable, regulated -24 VDC transducer power output that directly energizes connected proximity sensor networks.

Q: How much physical separation can engineers maintain between the transducer and the monitor?

A: Technicians can run field wiring up to a maximum length of 305 meters (1000 feet). However, installers must utilize approved shielded, twisted-pair cabling to actively prevent signal degradation across long distances.

Q: Do operators need to replace physical components when modifying the full-scale RPM configuration?

A: No. Users execute all field configurations for full-scale ranges and alarm setpoints internally via physical jumper blocks and the front panel maintenance interface.

Field Installation Guidelines

• Chassis Insertion: Always isolate and power down the 3300 rack before inserting or removing the monitor module. Once inserted, firmly tighten the top and bottom captive screws to ensure complete backplane engagement and a solid chassis ground.
• Shield Termination: Terminate the transducer cable shields exclusively at the monitor backplane terminal block. Conversely, leave the shield floating and safely insulated with heat-shrink tubing at the sensor junction box to actively eliminate ground loops.
• Conduit Routing: Isolate and route the input transducer wiring in dedicated, grounded metallic conduits. In addition, avoid running these low-voltage signal lines within the same tray or conduit housing high-voltage AC power lines.
