Description

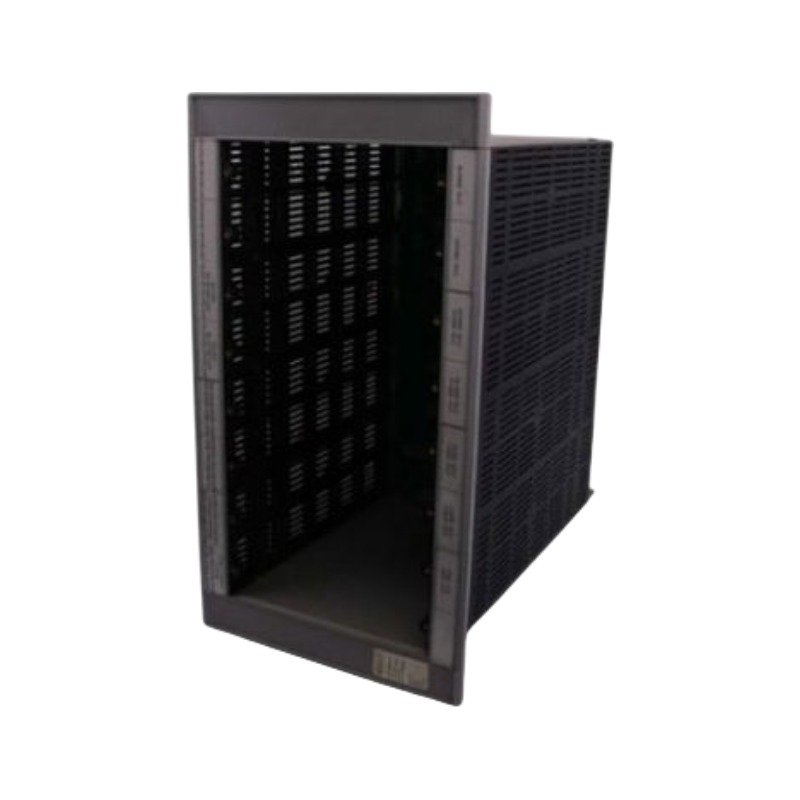

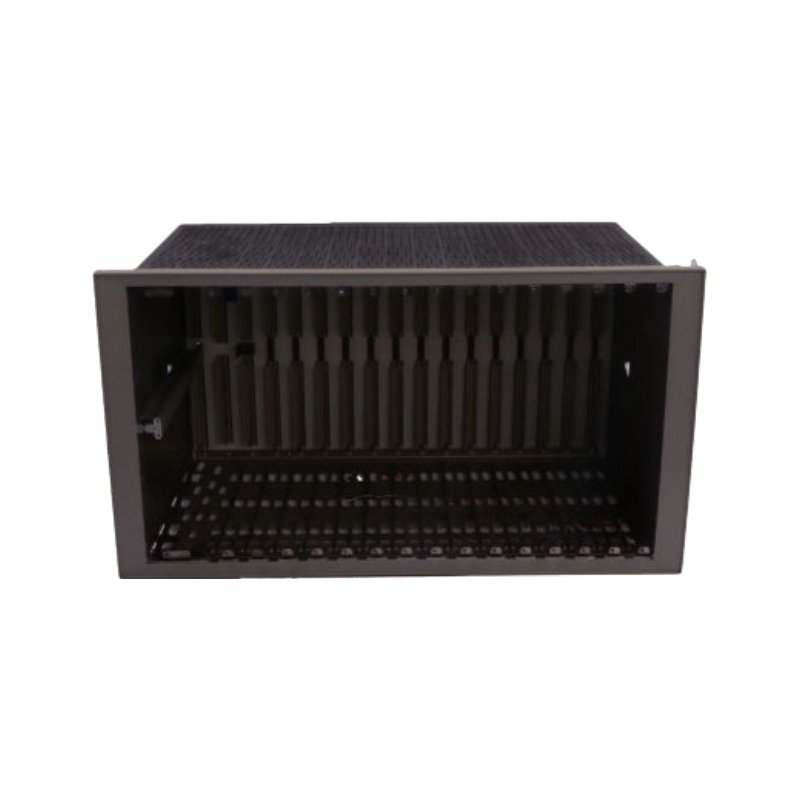

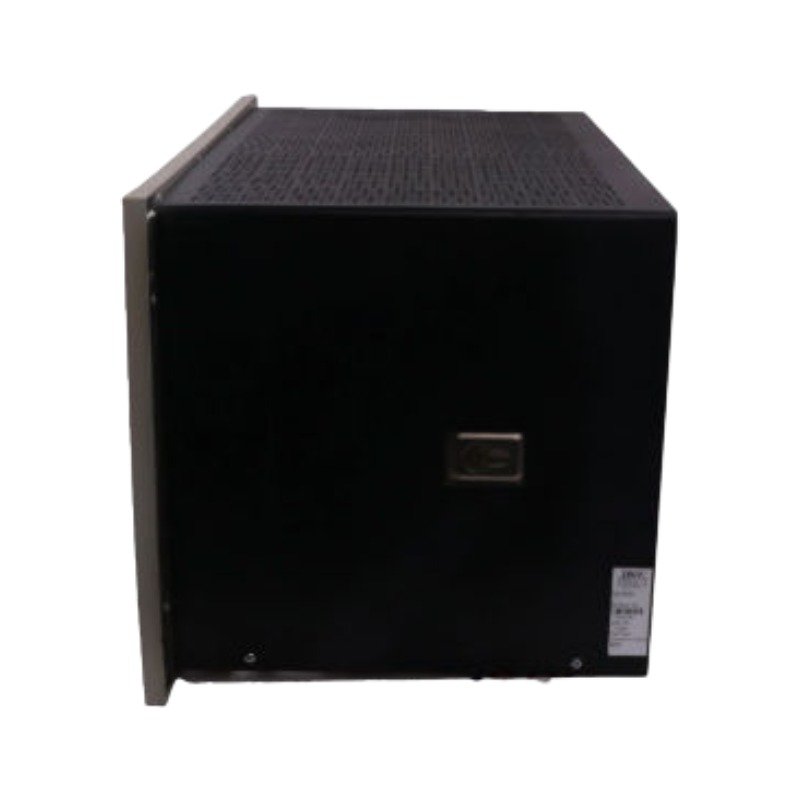

Configured for high-density machinery monitoring in industrial control environments, the Bently Nevada 3300/05-23-00-00 (3300/05 8-Slot Rack Chassis) provides direct physical housing and electrical distribution execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Rotor Dynamics Cross-Talk Suppression

To guarantee precise tracking of complex rotor dynamics, the injection-molded chassis utilizes a specialized anti-static, conductive polymer composite. This design intentionally dissipates electrostatic discharges and minimizes high-frequency electromagnetic leakage across adjacent monitoring slots. Consequently, the structural shielding suppresses cross-talk between high-density measurement channels, preventing noise from corrupting delicate eddy-current probe scaling configurations. By enforcing a stable electrical environment, the backplane infrastructure permits uncompromised gap voltage validation down to critical -10 VDC targets across all active vibration loops.

Frequently Asked Questions

Q: How does the 3300/05-23-00-00 distribute power across the backplane to installed vibration cards?

A: The chassis features an integrated backplane assembly that completely eliminates internal rack wiring. The dedicated Power Supply module installed in position 1 accepts external power and regulates the voltage, which the backplane then buses directly to the adjacent system monitor and individual measurement cards.

Q: Can an operator install standard 3300 modules into this rack without matching components?

A: Yes, the architecture enforces complete mechanical and electrical interchangeability. The rack design permits the insertion of any standard 3300 series monitor into slots 3 through 8, establishing direct alignment with corresponding rear-mounted signal input and relay modules without manual bench calibration.

Field Installation Guidelines

Technicians must mount the 3300/05-23-00-00 chassis into a standard 19-inch EIA instrument rack or panel cutout using four #10-32 mounting screws. During the physical placement process, field personnel must allow a minimum clearance of 101.6 mm behind the rear of the rack to facilitate proper removal and wiring access for the Signal Input/Relay modules. Secure the chassis firmly to the mounting surface, ensuring that the conductive frame makes positive structural contact with the enclosure ground. To prevent localized heat buildup and maintain engineered thermal ventilation paths, cover all unpopulated monitor positions with official blank panel kits before energizing the system.
