Description

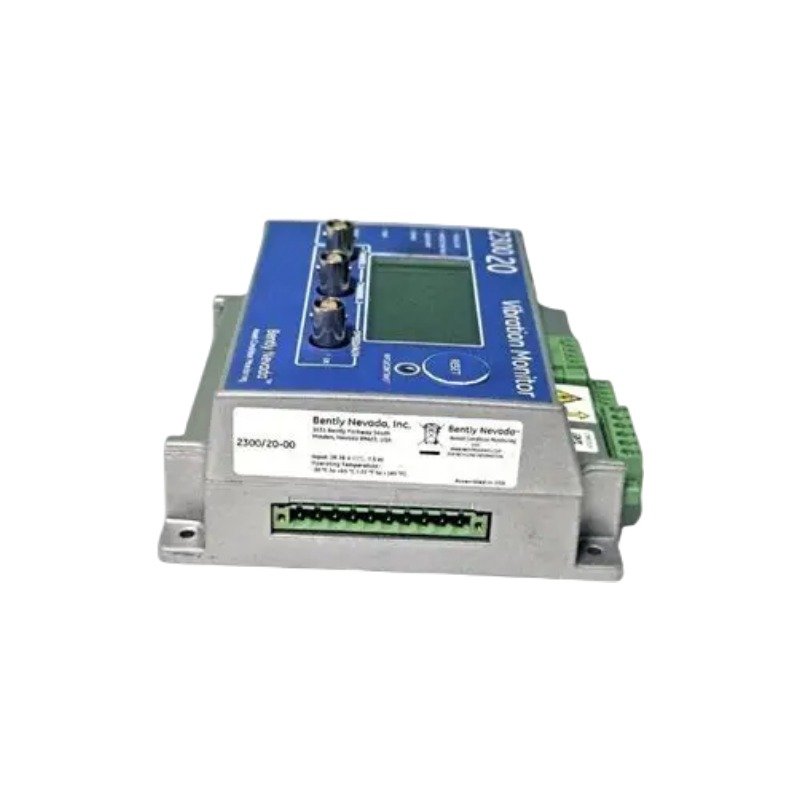

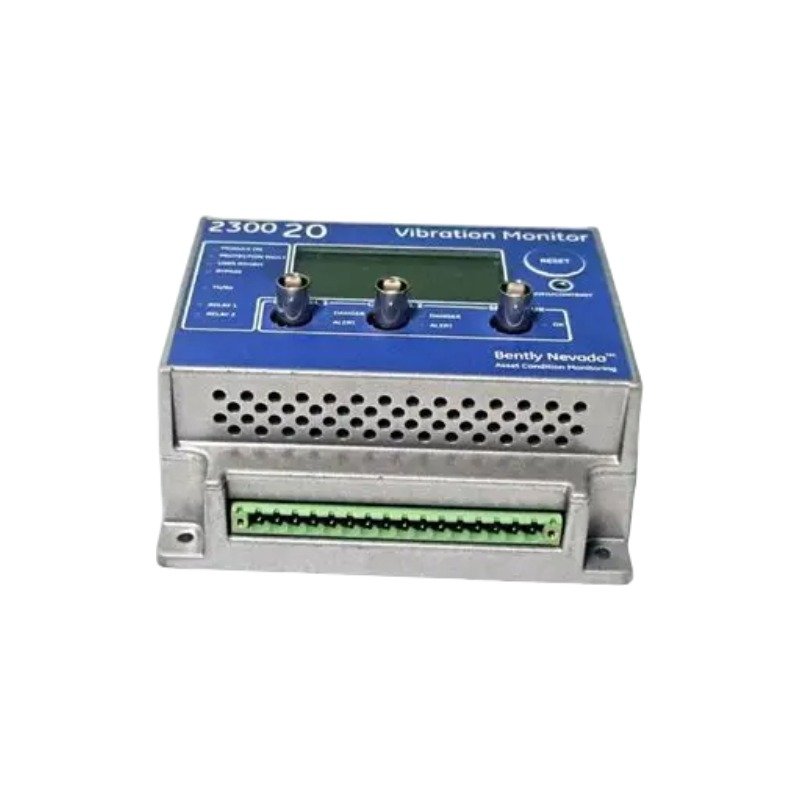

The Bently Nevada 2300/20-00, also cataloged as the 2300/20 Vibration Monitor, operates as a dedicated hardware component for continuous condition monitoring and machinery protection tasks within 2300 Series platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 2300/20-00 conditions raw input from proximity and seismic sensors to evaluate machinery health parameters. Specifically, when proximity sensors are selected, the module interfaces with the hardware loop to perform gap voltage validation (-10 VDC targets), establishing the correct physical sensor alignment within the linear window. Additionally, field engineers must execute proper eddy-current probe scaling during system configuration to match the electrical response curve to the specific shaft metallurgy. Consequently, these settings allow the internal processor to correctly calculate absolute or relative vibration metrics. Furthermore, the high-speed processing path tracks rapid changes in rotor dynamics, while internal filtering circuits ensure cross-talk suppression between the adjacent dynamic input lines and the speed channel.

Frequently Asked Questions

Q: How are the analog outputs of the 2300/20-00 configured for external system integration?

A: The monitor provides configurable 4-20 mA outputs equipped with an internal loop supply. Consequently, these circuits drive raw vibration metrics straight into an external DCS or PLC analog input card without requiring an independent loop power supply.

Q: Can the dynamic channels on the 2300/20-00 process both proximity and seismic inputs simultaneously?

A: Yes. The 2 dynamic input channels can be independently configured via software to interface with either proximity sensors or seismic velocity transducers depending on the target monitoring criteria.

Field Installation Guidelines

• First, mount the IP65 rated enclosure onto the physical machine structure or bulkhead using standard fasteners, ensuring compliance with the specified layout constraints.
• Second, route all dynamic sensor lines and the dedicated speed input cable through separate shielded paths. Subsequently, terminate the drain wires at the designated ground rails to maintain electrical isolation.
• Third, execute the device configuration utility via the 10/100 Base-T Ethernet interface. Consequently, this enables verification of channel limits, alarm setpoints, and sensor scaling coefficients before returning the machinery to active operation.
