Description

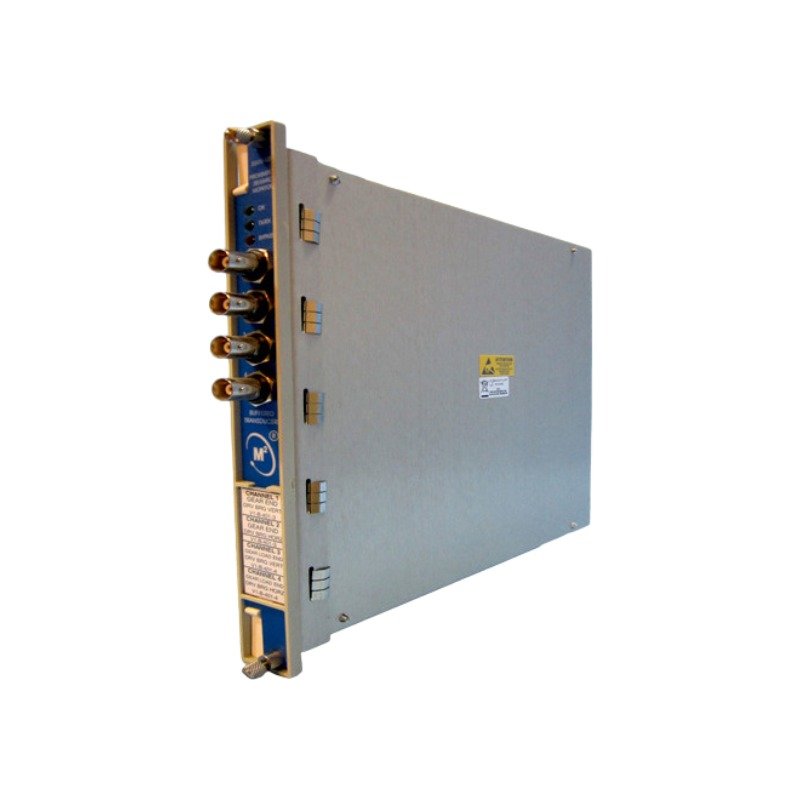

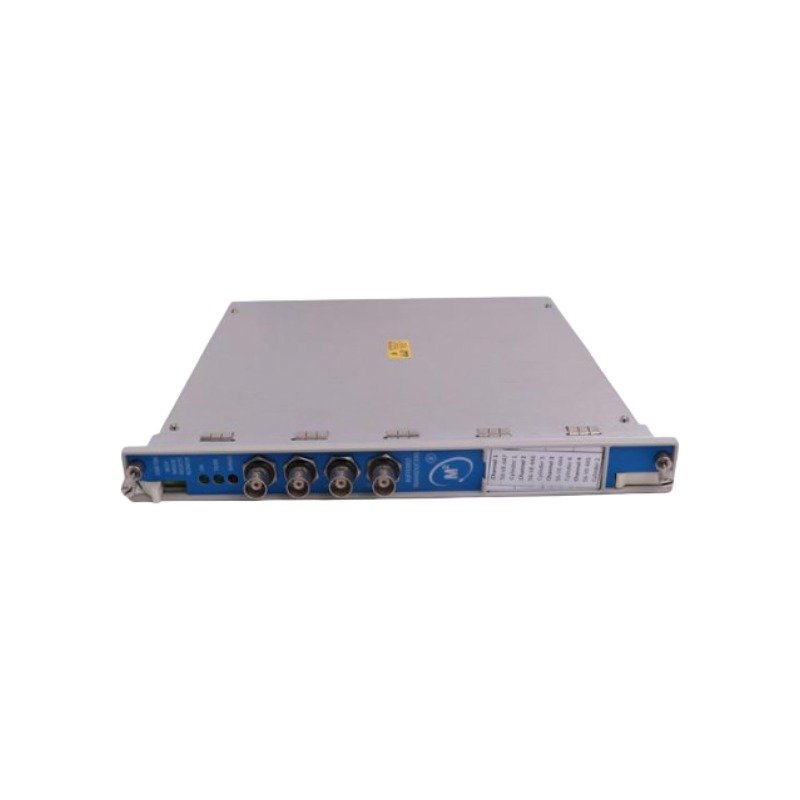

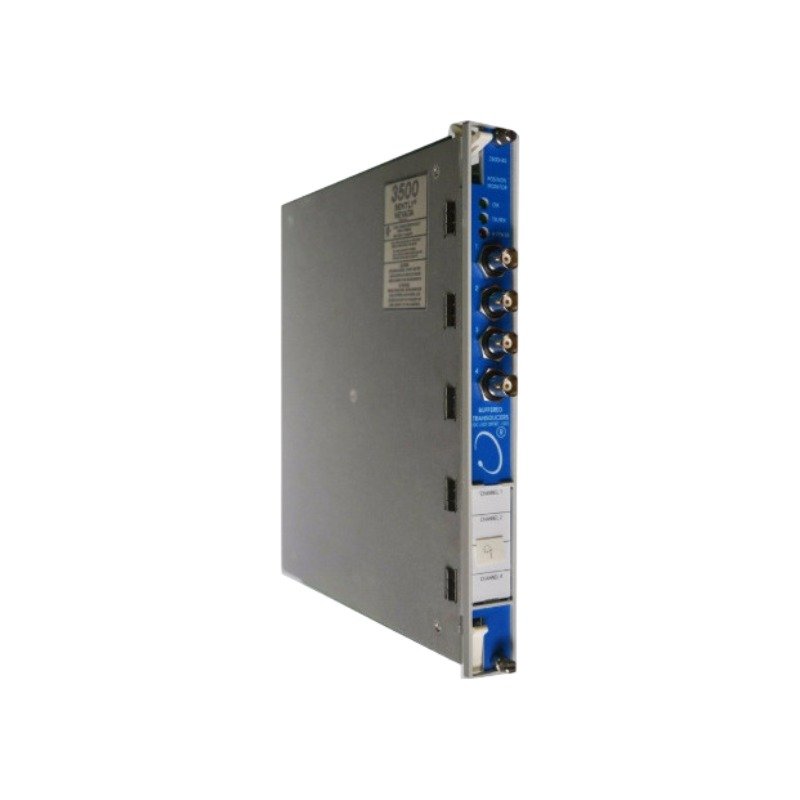

The Bently Nevada 176449-09, also cataloged as the 3500/70M Reciprocating Impulse Velocity Monitor, operates as a dedicated hardware component for continuous crankshaft, crosshead, and crankcase vibration tracking within 3500 Machinery Protection System platforms. The module captures and processes incoming high-speed analog signals from seismic and velocity transducers to drive automated protective alarm limits for heavy reciprocating machinery.

Hardware Specifications

Transducer Interface & Mechanical Monitoring Characteristics

This four-channel processor provides specialized tracking algorithms designed to maintain correct eddy-current probe scaling and seismic velocity coefficient conversion. The hardware processes dynamic raw waveforms, applying internal filters to achieve real-time gap voltage validation (-10 VDC targets) on accompanying proximity indicators. Structural separation within the internal processing core provides active cross-talk suppression between close-coupled sensor lines, preventing electrical signal bleeding from distorting the transient shock data used to map complex rotor dynamics and rod drop profiles.

Frequently Asked Questions

Q: How does the 3500/70M execute simultaneous function analysis across its four input paths?

A: The firmware locks channel processing into two independent pairs (Channels 1/2 and Channels 3/4). Each pair can execute a different monitoring discipline, allowing the rack to evaluate impulse acceleration on one pair while mapping low-frequency reciprocating velocity on the other.

Q: What operational output adjustments occur if a short-circuit registers on the recorder loop terminals?

A: The hardware architecture features short-circuit protected loop outputs. A direct short across external recorder wires drops the isolated current channel without causing systemic backplane drops or interrupting the execution of the main mechanical trip protection loops.

Field Installation Guidelines

1. Guide the front monitor card into its designated slot in the 3500 rack chassis until the multi-pin backplane connection engages completely.
2. Fix the corresponding rear I/O terminal block or internal barrier module explicitly behind the slot position to establish field wiring landing pads.
3. Terminate individual sensor shields cleanly at the system chassis ground bus while ensuring the field housing connector ends remain completely ungrounded to eliminate potential ground loop drifting.
4. Separate the physical field runs of low-voltage accelerometer signal cables from heavy power distribution conduits to reduce EMI interference on transient impact data paths.
