Description

The Bently Nevada 176449-03 operates as a dedicated hardware component for continuous four-channel vibration processing and machinery protection algorithms within 3500/42M Proximitor Seismic Monitor platforms. The unit processes dynamic physical inputs directly from proximity probes, velocity transducers, and accelerometers to perform real-time machine health tracking and hardware-level safety shutdown triggers.

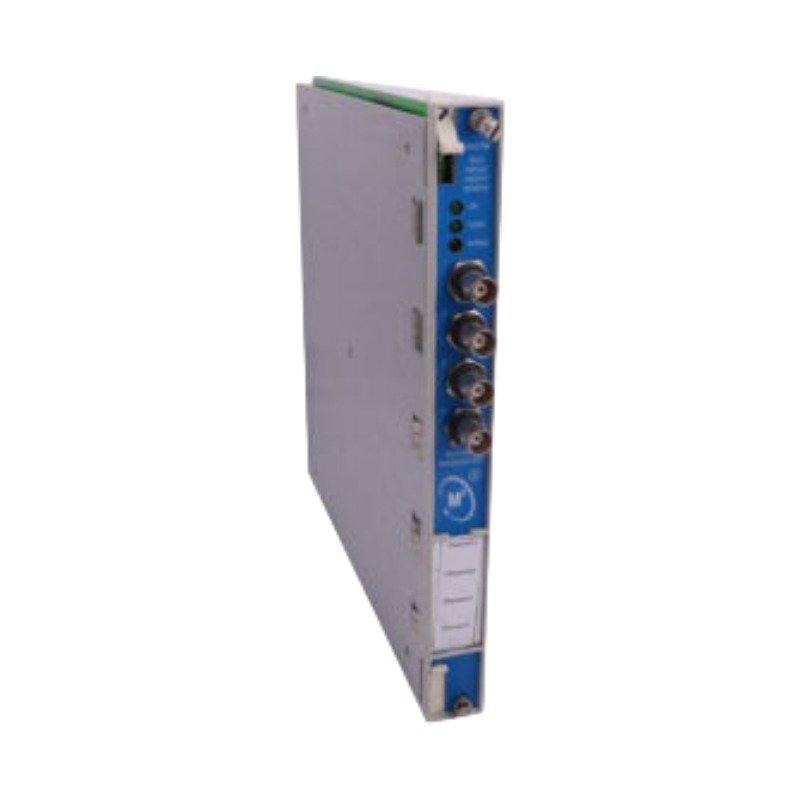

Bently Nevada 176449-03 Module Profile. Source: Quick Time Engineering Inc

Hardware Specifications

Gap Voltage Validation and Cross-Talk Suppression in Rotor Dynamics

The 176449-03 monitor operates as an active processing component that evaluates continuous high-frequency analog signals to map real-time rotor dynamics. Consequently, the internal processing loops perform eddy-current probe scaling to translate raw voltage entries into physical engineering units. To verify structural system linearity, field technicians execute gap voltage validation against -10 VDC targets during static setup phases. Furthermore, integrated cross-talk suppression paths isolate adjacent transducer circuits within multi-conductor field runs. Therefore, the module preserves signal purity under high-density physical topologies, transferring clean displacement or velocity values directly into the rack backplane infrastructure.

Frequently Asked Questions

Q: How does the system manage backplane current loading when executing hot-swap routines? A: The hardware incorporates internal sequence switches that restrict inrush currents during insertion. Consequently, you can pull or insert the module while the chassis remains powered without dropping the voltage profile of adjacent modules.

Q: What specific switching delay does the module exhibit during redundancy validation? A: When deployed in a Triple Modular Redundant (TMR) rack framework, the hardware communicates channel statuses simultaneously. The internal logic transitions to backup values within 200 milliseconds following a primary hardware fault detection.

Q: Which parameters must match to maintain firmware flash compatibility during field swaps? A: The firmware revision stored on the module EEPROM must align with the current version running on the 3500/22M Transient Data Interface. If a discrepancy exists, the module generates a configuration mismatch state until updated via software.

Field Installation Guidelines

• Chassis Attachment: Insert the module along the designated backplane guide slots. Secure the unit by rotating the top and bottom front-panel captive screws clockwise to a final holding torque of 0.6 N m.
• Shield Continuity: Terminate all coaxial probe extension shielding points at the dedicated monitor common terminal. Do not connect the field side shield to localized structure components to avoid inducing ground loop errors.
• Separation Rules: Route transducer signal conductors through isolated low-voltage conduits. Maintain a spatial separation of at least 300 mm from three-phase industrial motor circuits or alternating current switchgear.
