Description

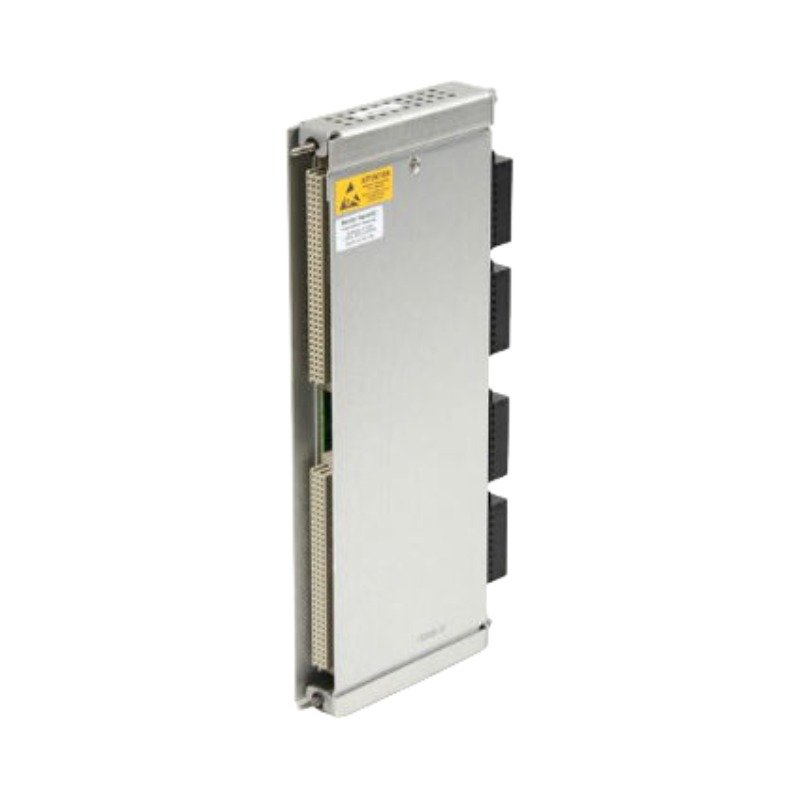

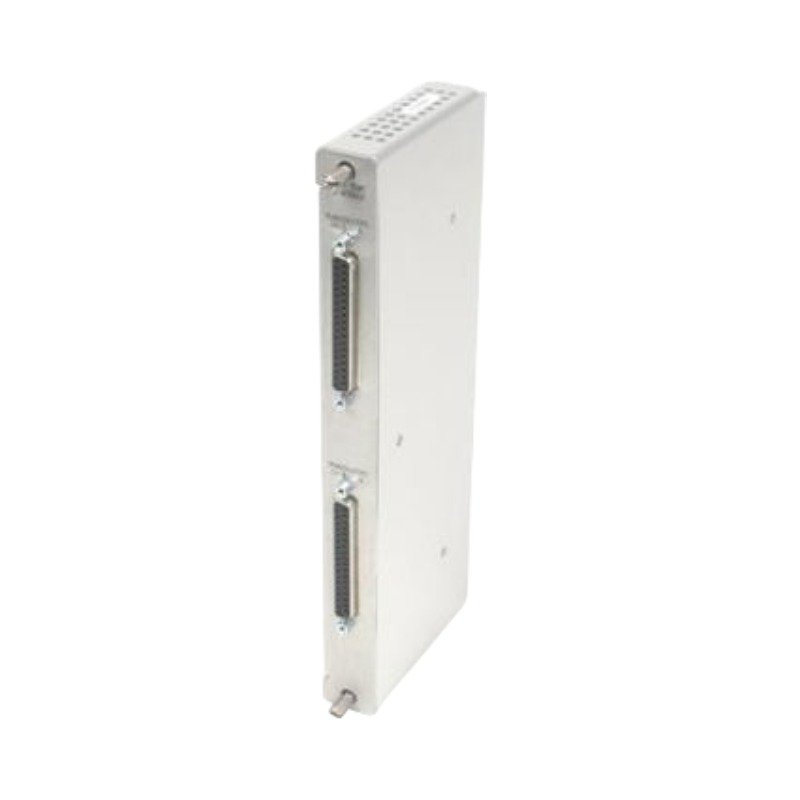

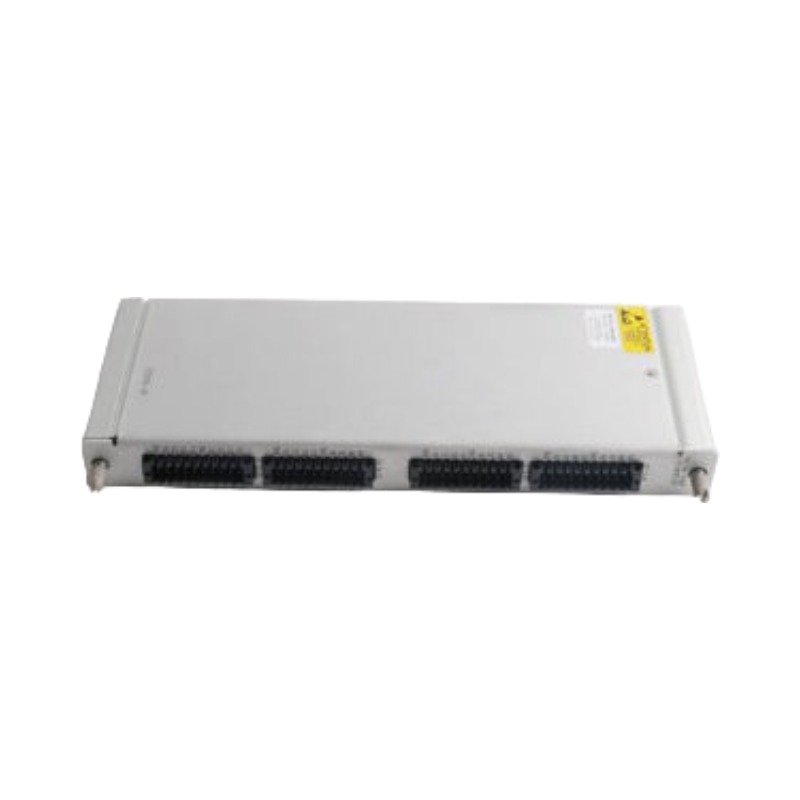

Configured for high-density physical signal routing within the 3500 Machinery Protection System, the Bently Nevada 172103-01 (172103-01 Internal Termination Block) provides direct physical/electrical execution. Specifically, this hardware passes raw sensor signals from field transducers directly to the 3500/42M Proximitor Seismic Monitor module backplane. Furthermore, it operates as a secure electrical interface that maintains galvanic connection paths without altering critical signal characteristics. Consequently, the block translates physical field wiring terminations into structured, low-noise input paths suitable for dynamic machinery protection algorithms.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

The termination block features specialized terminal pathways designed to handle delicate signals from eddy-current probe systems, allowing precise vibration and speed tracking across volatile acceleration profiles. During commissioning and normal loop diagnostics, technicians utilize the terminal test headers to perform gap voltage validation (-10 VDC targets) without disconnecting field conductors. This setup ensures that the proximity sensors remain perfectly aligned within their linear calibration zones. Additionally, the structural physical layout optimizes shielding pathways to secure cross-talk suppression between adjacent high-frequency sensor loops. As a result, exact transducer scaling is maintained across the interface, preventing erroneous trips while transmitting rapid variations in rotor dynamics.

Frequently Asked Questions

Q: Can installation personnel hot-swap the 172103-01 internal termination block while the 3500 rack is powered?

A: No. Removing the termination block while the rack has power applied will disconnect active transducer loops. Therefore, technicians must power down the associated monitor or ensure the machine is offline to prevent false emergency machinery shutdown commands.

Q: Does this termination block contain active signal filtering components?

A: No. The unit functions entirely as a passive terminal routing matrix. Consequently, it relies completely on the 3500/42M monitor’s internal circuitry to handle advanced filtering, digital processing, and fault logic routines.

Field Installation Guidelines

Technicians must utilize twisted, shielded instrumentation pairs for all field connections to isolate the signal loop from electromagnetic interference. In addition, installer personnel must strip transducer wires to the specified length and torque the Euro-style screws to exactly 0.56 N-m (5 in-lb) to prevent loose mechanical contacts or sheared wire strands. Ensure that you terminate the transducer cable shields only at the designated chassis ground positions on the block, keeping them isolated from machine framework. Finally, maintain separation between these low-voltage transducer circuits and high-voltage power lines inside the enclosure paneling.
