Description

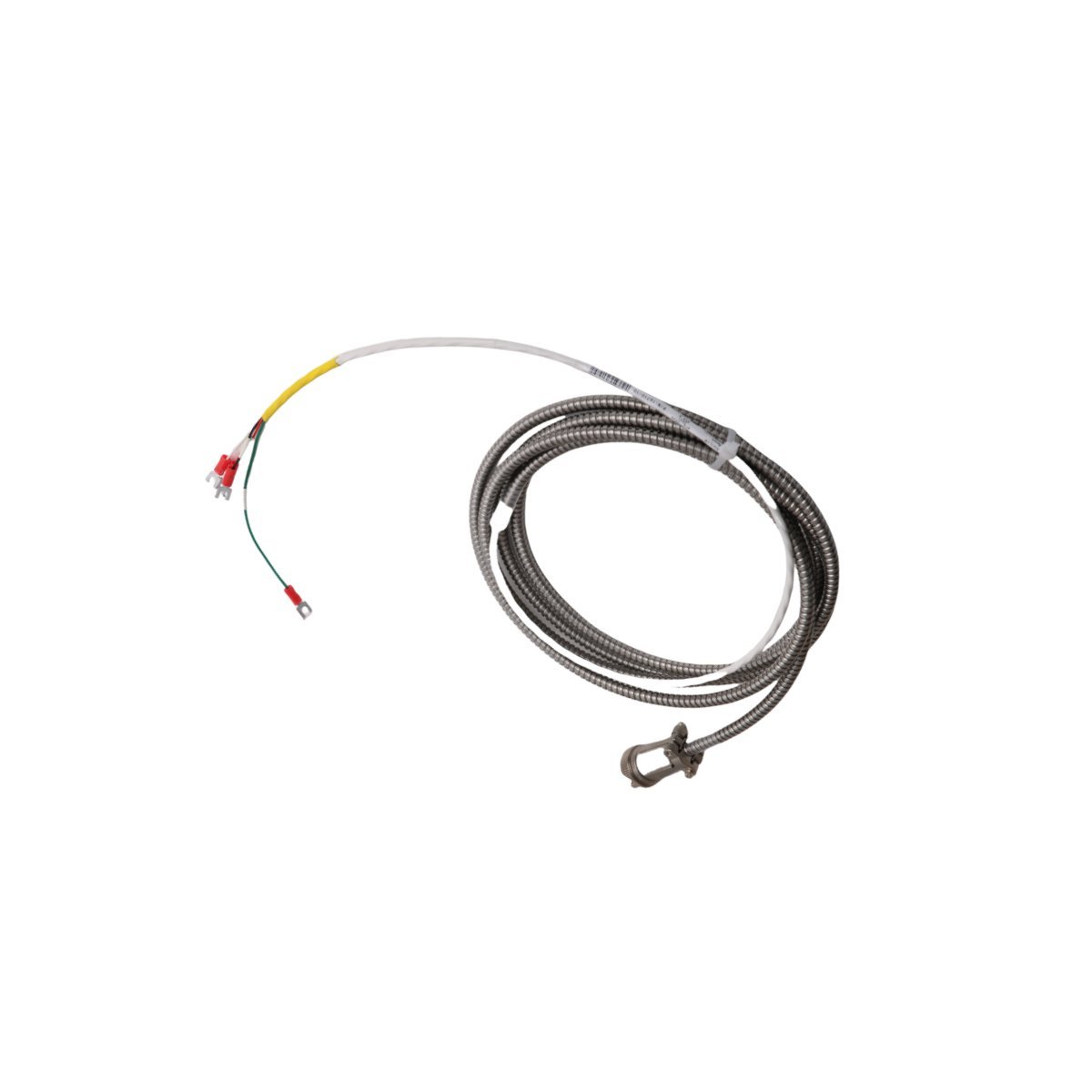

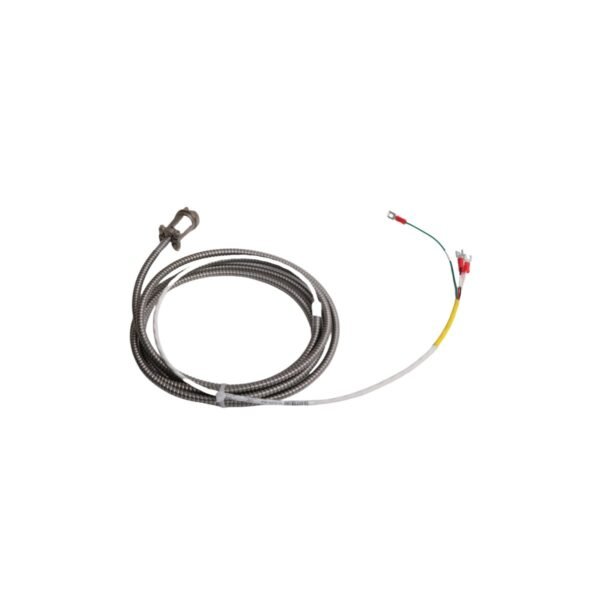

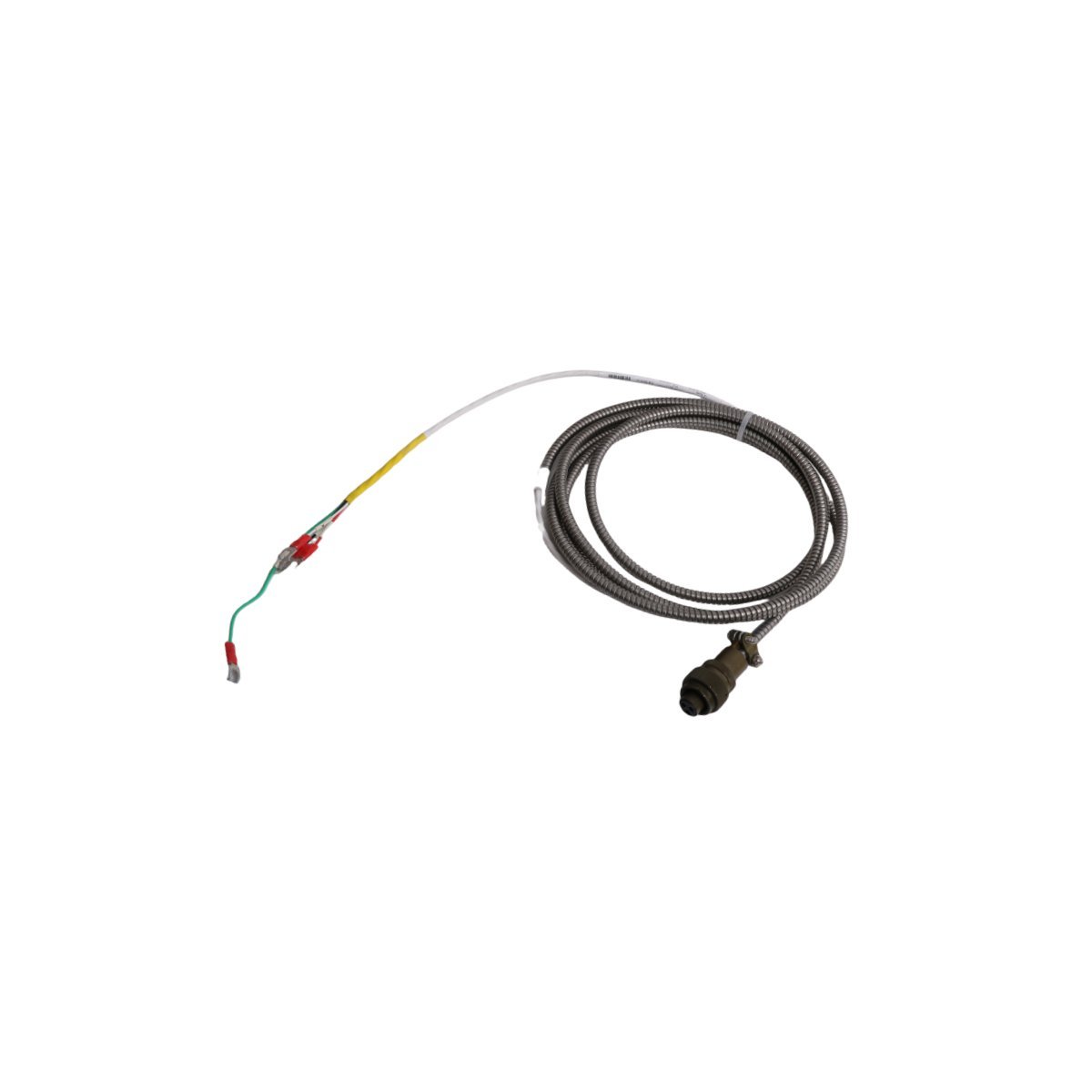

Bently Nevada 16710-10 Interconnect Cable for 3300 Series Accelerometers

The Bently Nevada 16710-10 is a specialized interconnect cable engineered to facilitate the transmission of high-frequency vibration signals from accelerometers to monitoring systems. This cable is a vital link in the 3300 series transducer architecture, ensuring that raw acceleration data is delivered with high fidelity and minimal noise interference. By maintaining signal integrity, this component allows for the precise tracking of machine health in high-speed rotating assets. As a result, it supports the early identification of complex mechanical issues such as gear mesh problems, cavitation, and structural resonances.

Technical Construction and Reliability

Designed for industrial durability, the 16710-10 features a shielded twisted-pair configuration that effectively rejects electromagnetic interference (EMI) and radio frequency interference (RFI). Furthermore, the cable is jacketed in high-quality materials that resist the corrosive effects of moisture, oils, and industrial chemicals. In addition, the precision-engineered connectors provide a low-impedance path, which is critical for the accurate measurement of peak-to-peak vibration levels. Consequently, the cable maintains stable performance even when routed through the electrically noisy environments typical of power generation and chemical processing facilities.

Product Specifications

Strategic Maintenance and Operational Value

Integrating the 16710-10 cable into your machinery protection system enables a more proactive approach to asset management. Specifically, the reliable data stream provided by this interconnect allows monitoring racks to perform advanced diagnostics and set automated trip thresholds. Therefore, operators can prevent secondary damage to shafts and bearings by intervening at the first sign of an anomaly. Moreover, the standardized design ensures rapid installation and replacement, significantly reducing maintenance lead times during scheduled plant outages or emergency repairs.

FAQ

What is the significance of the “-10” suffix in the part number?

The suffix directly refers to the physical length of the cable assembly. Specifically, this model represents a 10-foot long interconnect. Consequently, if your installation requires a different reach, you must specify the corresponding length code to ensure proper routing without excessive slack or tension.

How does shielding benefit the accelerometer signal?

Vibration signals from accelerometers are often low-voltage and susceptible to external noise. Therefore, the internal shielding in the 16710-10 acts as a barrier against electrical interference from nearby motors or power lines. By doing so, it ensures that the monitoring system receives an accurate representation of the actual machine vibration rather than ambient electronic noise.

Can this cable be used with non-Bently Nevada sensors?

While the cable uses standard industrial connector patterns, it is optimized for the electrical impedance and pin configurations of Bently Nevada 3300 series transducers. However, always consult the technical wiring diagram of your sensor before cross-connecting brands. In particular, using an incompatible cable could lead to signal clipping or loss of the bias voltage required for sensor operation.

Does this cable require special protection in outdoor environments?

Although the cable is ruggedly constructed, it is best practice to route it through protective conduit when exposed to direct sunlight or extreme mechanical abrasion. Nevertheless, the standard jacket provides sufficient protection for most indoor industrial environments and protected outdoor machine decks.
