Description

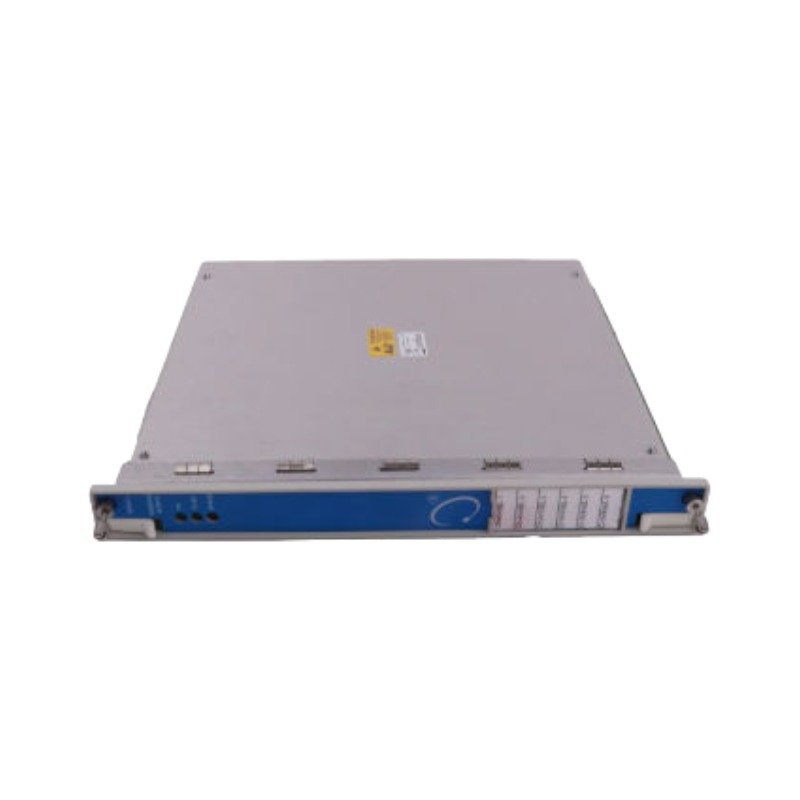

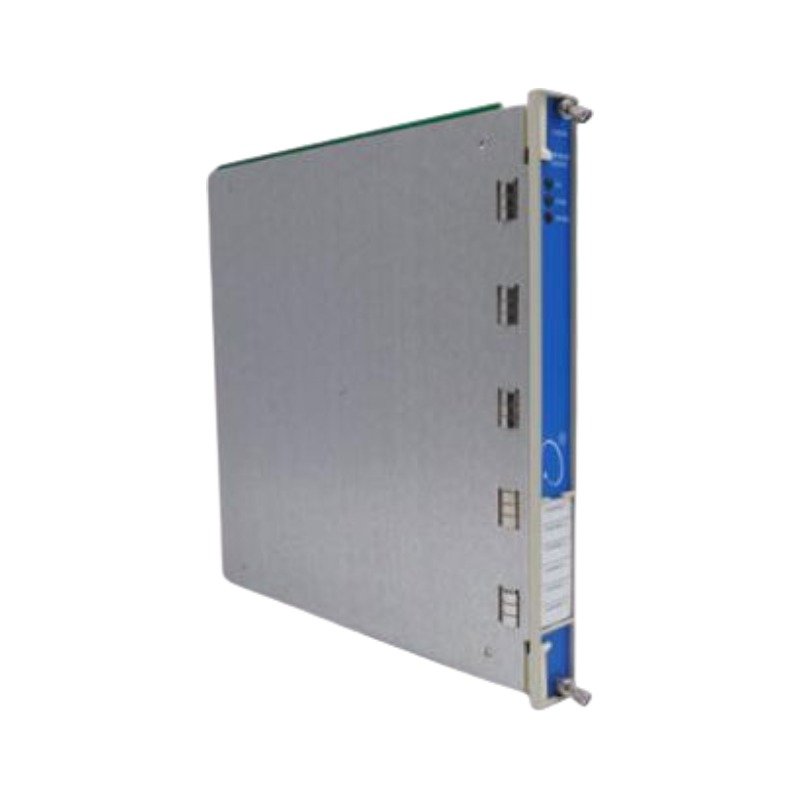

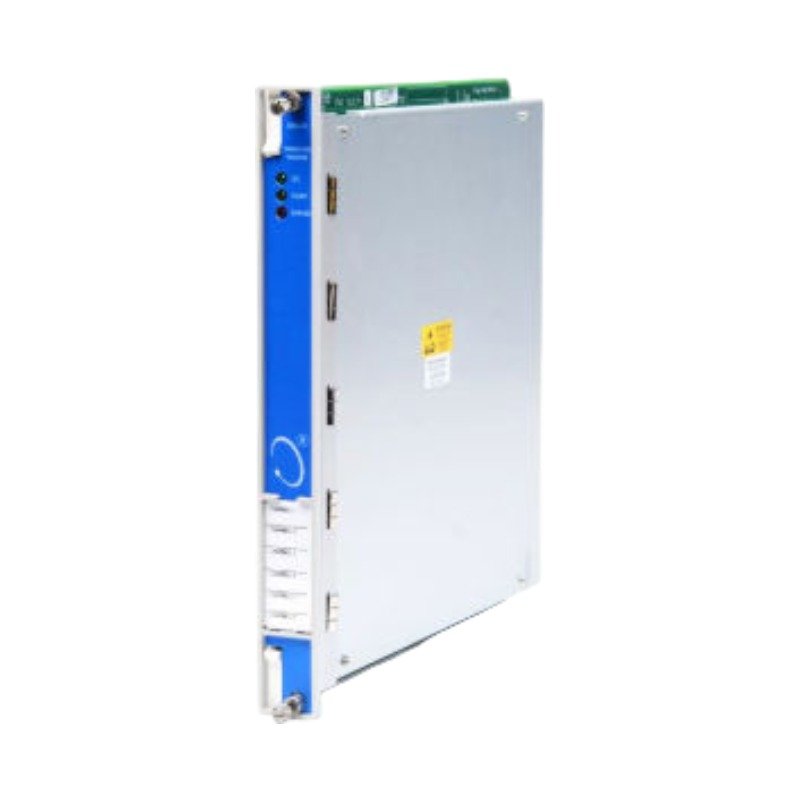

Configured for high-bandwidth static, dynamic, and transient data acquisition in Bently Nevada Orbit 60 Protection and Condition Monitoring Systems, the Bently Nevada 163179-02 (163179 Transient Data Interface Module) provides direct physical/electrical execution. Specifically, the module serves as the primary system interface card that bridges internal backplane sensor data with external digital networks, processing high-frequency waveforms continuously and streaming raw diagnostic datasets to host software platforms without disrupting primary machinery protection loops.

Hardware Specifications

Rotor Dynamics and Transducer Conditioning

To support advanced machinery diagnostics and multi-channel rotor dynamics tracking, this interface card integrates optimized data aggregation pathways that actively handle digital eddy-current probe scaling. The onboard communications matrix continuously validates gap voltage limits across the entire backplane, maintaining accuracy down to standard -10 VDC targets for concurrent vibration analysis. This high-capacity data processing network tracks complex startup, coast-down, and steady-state vector trends without packet loss during rapid mechanical acceleration phases. Furthermore, multi-layer physical shielding and digital line filtering provide integrated cross-talk suppression by isolating sensitive serial data streams from high-frequency electromagnetic interference (EMI). As a result, the hardware maintains pristine phase-amplitude tracking and complete waveform fidelity even when engineers operate the monitoring system near high-density electrical noise vectors.

Frequently Asked Questions

Q: Does this interface module handle primary machinery emergency trip execution directly?

A: No. The transient data interface manages communication, data buffering, and diagnostic streaming. Dedicated relay modules and processing cards within the Orbit 60 system handle safety voting logic and trip outputs.

Q: Can this module function in a hot-swap environment if a replacement is required during operation?

A: Yes. The hardware supports live hot-swapping under full system power. Replacing this module does not interrupt the continuous background protective functions executed by adjacent slot cards.

Q: How do the dual Ethernet ports operate under standard field networking conditions?

A: The module configuration utilizes these ports in a fully redundant, fault-tolerant network topology, which guarantees uninterrupted diagnostic data transfers to System 1 software even if a primary cable link fails.

Field Installation Guidelines

• Chassis Alignment: Align the module card edges precisely with the predefined chassis slot tracks. Firmly slide the unit inward until the front faceplate locks completely flush against the enclosure frame, then tighten all captive retention screws to establish a robust electrical ground connection to the chassis.
• Shield Termination: Terminate all external network communication line shields exclusively at the designated panel grounding bar. Conversely, ensure that individual transducer shields pass directly through to their respective input modules, keeping field-side connections floating inside their local junction boxes to eliminate ground loops.
• Conduit and Network Separation: Route high-speed Ethernet and copper fiber interface lines inside dedicated, grounded metallic conduits. In addition, avoid running these high-bandwidth communication lines within the same cable tray or conduit housing high-voltage AC motor control circuits.
