Description

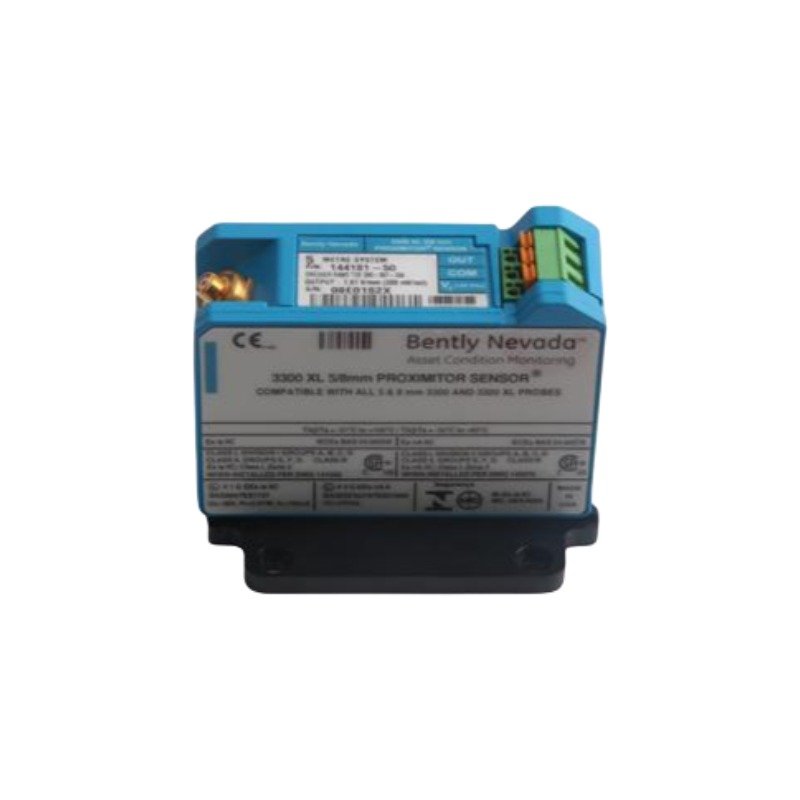

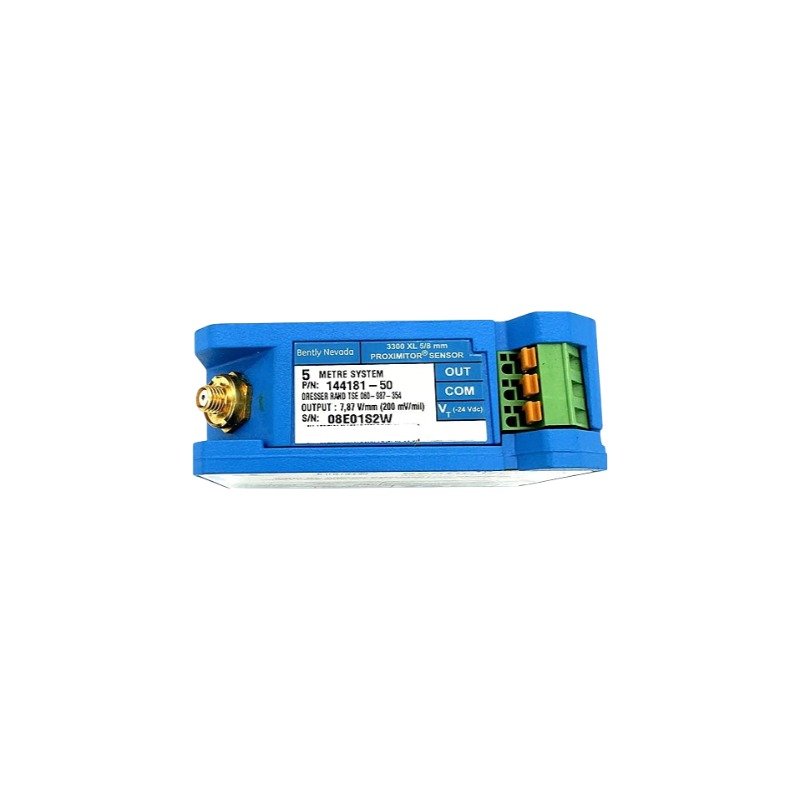

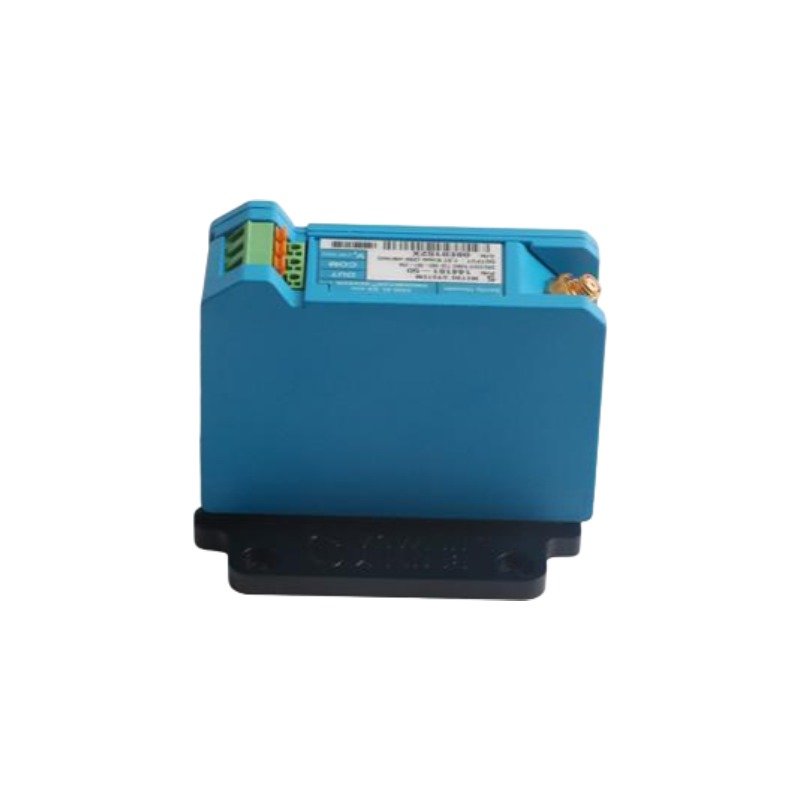

The Bently Nevada 144181-50, also cataloged as the 144181-50 Proximity Sensor, operates as a dedicated hardware component for precise distance measurement within 3300 XL monitoring systems.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The Bently Nevada 144181-50 executes distance measurement by utilizing high-frequency eddy-current probe scaling. Specifically, the integrated sensor tip generates an electromagnetic field that senses changes in the gap distance between the target shaft and the sensor probe face. Additionally, field engineers must perform gap voltage validation during installation to align the physical physical zero-point with the electrical span. Therefore, adjusting the mechanical mounting depth of the probe allows the engineer to establish the standard target gap voltage (nominally -10 VDC for standard 3300 XL systems) prior to verifying the active 4-20 mA DC signal path. Consequently, proper calibration prevents signal saturation and preserves optimal linearity during dynamic rotor dynamics monitoring.

Frequently Asked Questions

Q: Does the 144181-50 module require external excitation voltage?

A: Yes. The operator must provide a constant 24 VDC external power supply to the unit. Consequently, the internal circuitry regulates this incoming voltage to drive the high-frequency probe signal and generate the proportional 4-20 mA output.

Q: How does the cable length of 5 meters affect the calibration of the sensor?

A: The sensor electronics are calibrated specifically for the integrated 5-meter physical cable length. Therefore, cutting or splicing this cable alters the system electrical impedance, which will corrupt the calibration accuracy and disrupt measurement linearity.

Q: What action should the operator take if the output signal remains saturated at the upper or lower limits?

A: The operator must first check the mechanical physical gap between the probe tip and the target. Subsequently, the operator should measure the gap voltage using a digital multimeter to confirm that the transducer sits within its linear calibration band.

Field Installation Guidelines

• First, mount the probe rigidly into the bracket assembly. Subsequently, slowly thread the probe toward the target surface while monitoring the gap voltage using a multimeter to avoid physical damage to the probe tip.
• Second, secure all cable connections using standard terminal connectors. Then, route the 5-meter integrated cable through dedicated metal conduit to insulate the signal against electromagnetic interference and high-voltage motor lines.
• Third, establish a single-point shield ground connection at the receiver end. Otherwise, loop currents created by multi-point grounding will degrade the accuracy of the 4-20 mA output signal.
• Finally, ensure that the ambient temperature around the sensor tip remains within the limits of -40 deg C to 260 deg C. Consequently, this thermal management prevents premature component failure and thermal drift errors during operation.
