Description

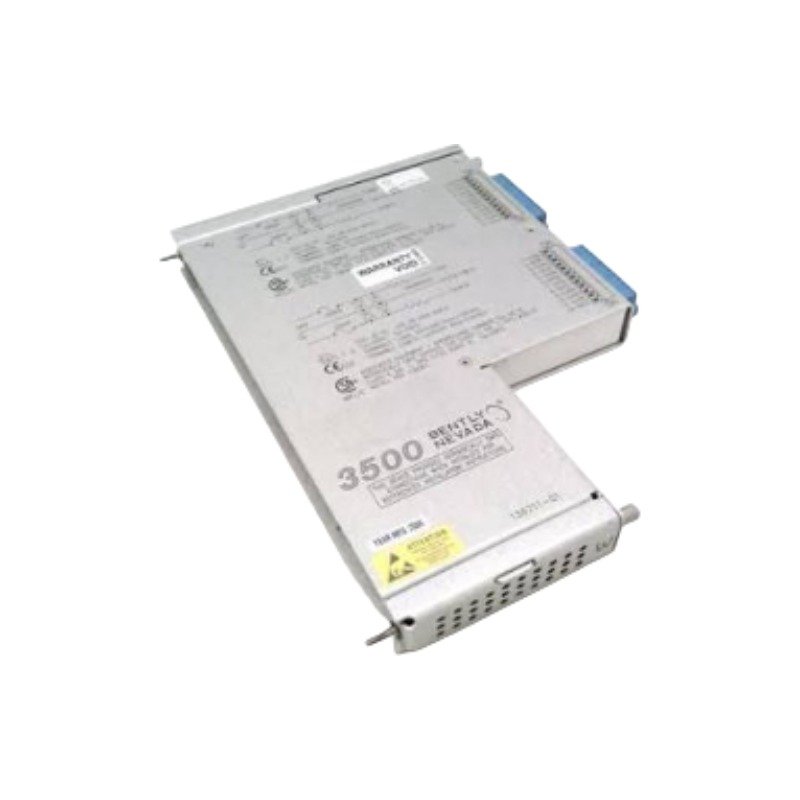

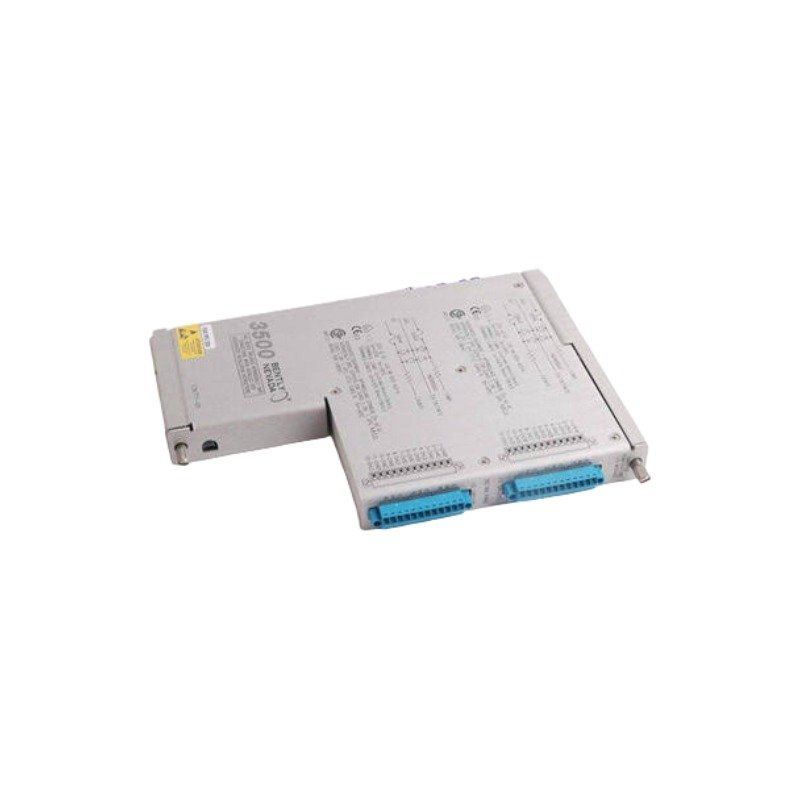

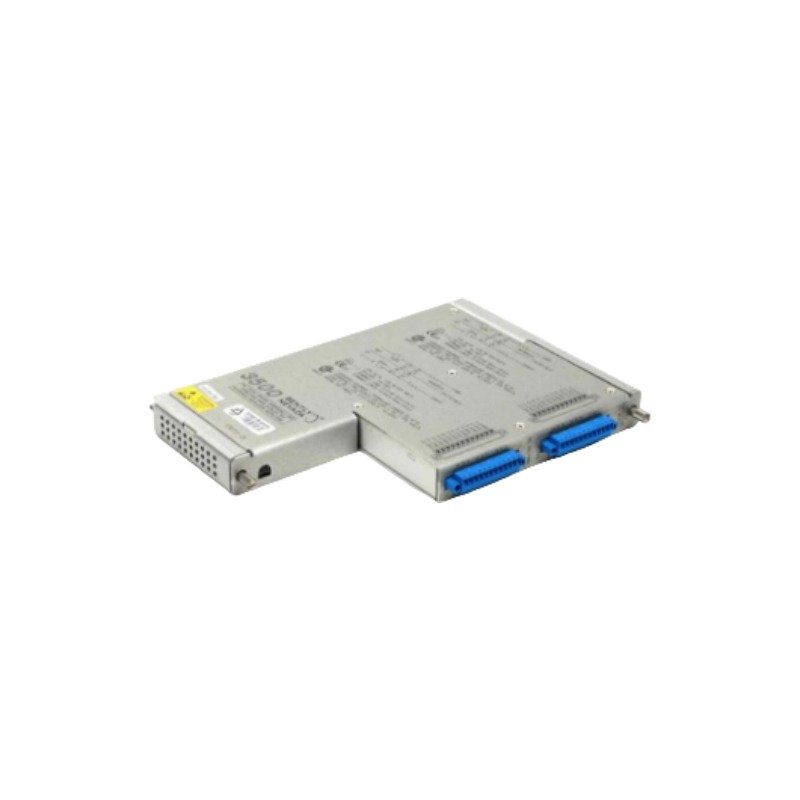

The Bently Nevada 136751-01 serves as the primary 136751-01 Dual Velocity Monitor Module utilized to execute dynamic vibration processing across Bently Nevada 3500 Machinery Protection System platforms. The hardware interface accepts input signals from two separate vibration sensors mounted on the rotating machine casing, converting mechanical velocity metrics into two independent analog voltage outputs to facilitate real-time structural health diagnostics.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module processes dual-channel mechanical velocity variables to analyze complex rotor dynamics and transient structural movement. The internal signal processing core utilizes dedicated eddy-current probe scaling baselines and gap voltage validation (-10 VDC targets) routines where configuration profiles integrate proximity metrics. Furthermore, the physical circuitry implements layout boundaries to maximize cross-talk suppression between the adjacent channels, preventing high-frequency noise from corrupting the low-level 10 mV/in/sec voltage monitoring loop.

Frequently Asked Questions

Q: Does the 136751-01 module support live hot-swap replacement inside an active 3500 chassis frame?

A: Yes, the module supports hot-swap operations within an energized 3500 rack. However, removing the I/O interface will break the sensor connection loops, which immediately causes the corresponding monitor to report a transducer fault state and bypass active trip logic.

Q: How does an out-of-range sensor input condition affect the analog voltage outputs of the 136751-01 module?

A: When the input signal violates the integrated gap voltage validation limits or detects an open circuit, the internal diagnostics clamp the analog voltage outputs to a predetermined fault rail to inform the processing sub-system of the sensor failure state.

Field Installation Guidelines

• Align the 136751-01 module with the designated chassis slot guides on the rear of the 3500 rack and press firmly until the backplane connectors seat completely.
• Route all field velocity transducer cabling through dedicated, grounded metallic conduits to maintain cross-talk suppression and isolate the signal lines from power distribution tracks.
• Terminate the overall cable shield drain wires at the single-point instrument ground bar within the enclosure, ensuring the sensor-side shield remains ungrounded to prevent ground loops.
