Description

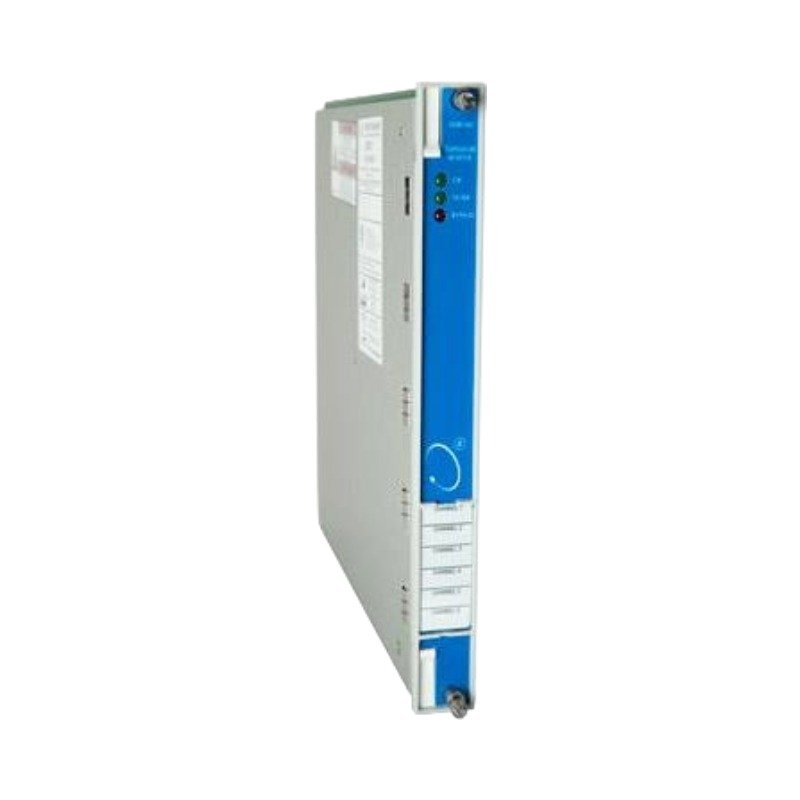

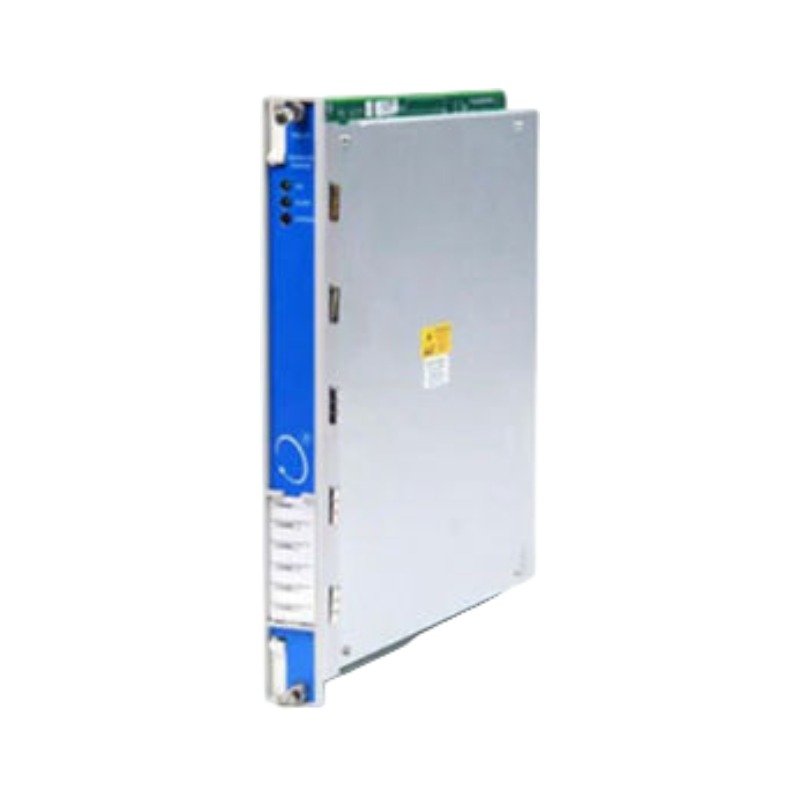

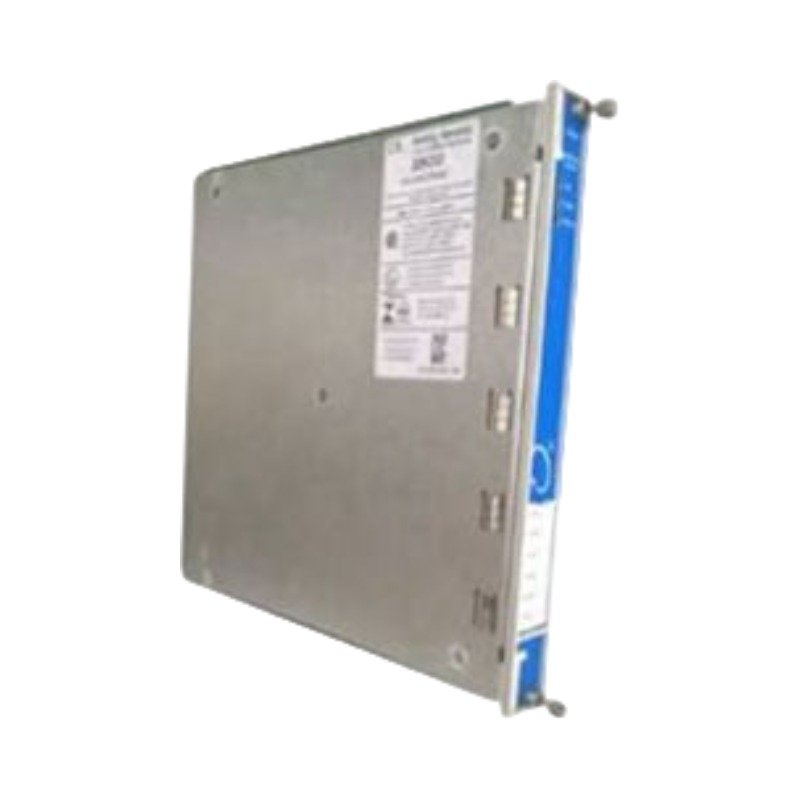

The Bently Nevada 133811-01, also cataloged as the 3500/60 Temperature Monitor Module, operates as a dedicated hardware component for continuous multi-channel temperature tracking and transducer signal conditioning within 3500 Series Machinery Protection System networks. The module processes raw input signals directly from thermal sensors to provide real-time data acquisition and precise comparison against user-defined machinery protection thresholds.

Hardware Specifications

Gap Voltage Validation and Cross-Talk Suppression in Machinery Protection

When integrated into the 3500 backplane network alongside proximity and radial vibration systems, the machinery monitoring infrastructure utilizes specific electrical validations to maintain signal integrity. For standard eddy-current probe scaling, engineers execute gap voltage validation against -10 VDC targets to confirm correct physical positioning relative to the rotor dynamics profile. The architecture minimizes electromagnetic interference via onboard cross-talk suppression circuitry, preventing channel-to-channel signal leakage when routing multiple high-impedance thermal transducer cables adjacent to high-frequency dynamic vibration lines within the same rack structure.

Frequently Asked Questions

Q: Does the module support hot-swap replacement while the rack remains powered?

A: Yes, you can replace the module without removing power from the 3500 rack system. However, removing the module under power causes a temporary configuration fault and disrupts monitoring for the affected 6 channels until the replacement module initializes completely.

Q: How does the module handle fault conditions or open sensor circuits?

A: The circuit detects open or shorted RTD and thermocouple inputs automatically. If a transducer failure occurs, the channel goes into a “Not OK” status, driving the internal diagnostic relay to indicate an instrumentation error without triggering false machinery danger trips.

Q: What are the voting options when configuring this hardware in a redundant architecture?

A: In Triple Modular Redundant (TMR) configurations, you must group three modules adjacently. The backplane voting logic executes 2oo3 (two-out-of-three) hardware voting on the alarm statuses, preventing single-point sensor or component failures from executing an incorrect shutdown sequence.

Field Installation Guidelines

• Chassis Insertion: Slide the module firmly into the designated slot along the plastic guide rails of the 3500 rack. Tighten the two captive screws on the front panel to a torque of 0.6 N m to maintain proper backplane connections and frame grounding.
• Shield Grounding: Terminate the shield wires of all RTD and thermocouple cables at the designated instrumentation ground bus bar. Do not ground the cable shield at both ends to prevent creating electrical ground loops that introduce measurement noise.
• Wiring Separations: Route all sensor field wiring through dedicated low-voltage cable trays. Maintain a minimum separation distance of 300 mm from high-voltage AC power lines and variable frequency drive cables to ensure stable readings.
