Description

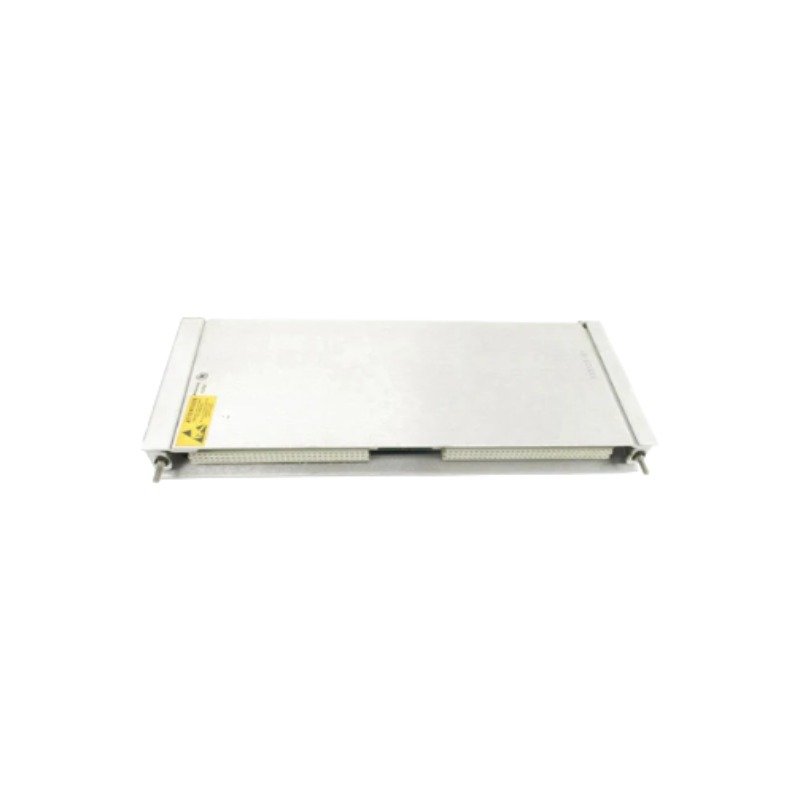

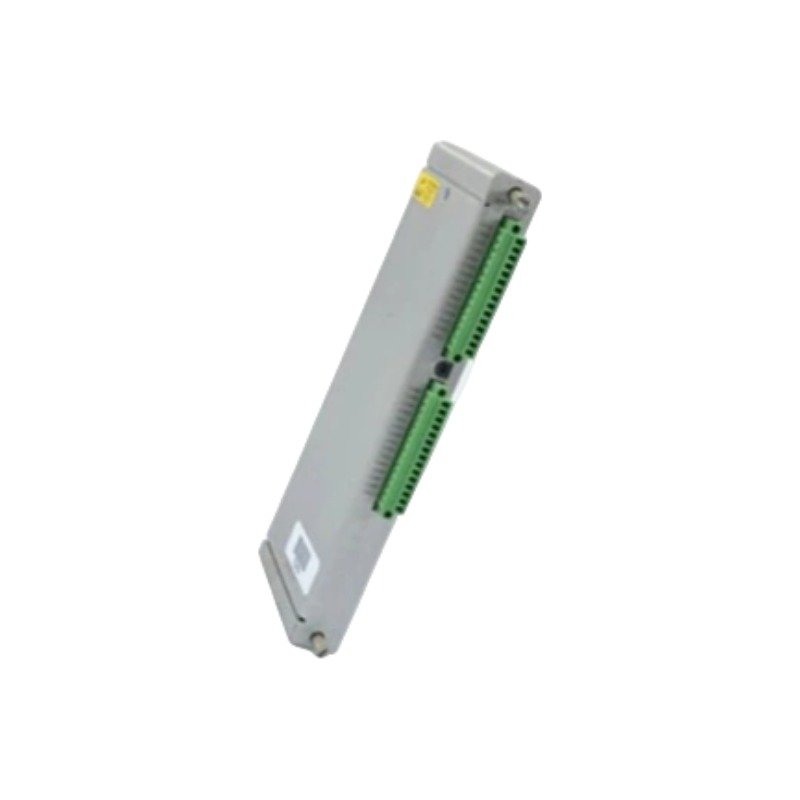

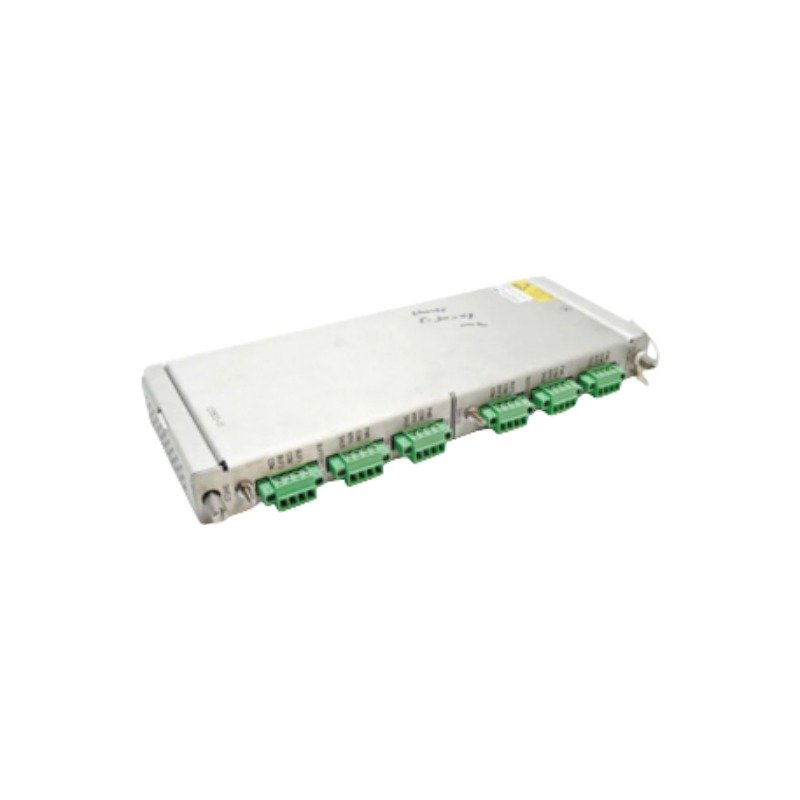

The Bently Nevada 128329-01, also cataloged as the 128329-01 Proximitor Seismic I/O Module, operates as a dedicated hardware component for direct physical connection between field transducers and the processing backplane within Bently Nevada 3500 Machinery Protection System platforms. The high-density termination circuit accepts dynamic voltage signals from non-contact proximity probes and seismic casing transducers, and it subsequently routes these processed data streams to the rack monitors to execute shutdown trip algorithms.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The I/O module handles non-contact proximity variables and casing parameters to manage complex rotor dynamics and shaft vibration phenomena. Internal trace links utilize distinct eddy-current probe scaling baselines to transform electromagnetic field variations into linear mechanical metrics. Furthermore, high-speed filtering matrices manage the gap voltage validation paths (-10 VDC targets), while integrated cross-talk suppression filters isolate high-density channels to eliminate adjacent loop interference during high-velocity machine cycles.

Frequently Asked Questions

Q: Can the 128329-01 module undergo hot-swapping procedures while the host 3500 machinery protection system is powered?

A: Yes, the module supports hot-swap operations within a powered 3500 chassis. However, removing the I/O interface breaks the transducer physical loops, which causes the matching monitoring module to execute a channel bypass state or initiate a transducer fault alarm.

Q: How does the 128329-01 internal framework isolate proximity signals from seismic sensor data on shared channels?

A: The channel circuitry splits the input feed into separate frequency-selective paths. This layout processes static DC levels for gap voltage validation and isolates dynamic AC variations for high-resolution casing vibration assessment.

Field Installation Guidelines

• Slide the 128329-01 card into the rear slot of the 3500 chassis directly behind the corresponding monitor module, then secure the chassis thumbscrews to ensure full backplane connection.
• Route coaxial transducer lines through isolated conduits to enforce proper cross-talk suppression standards and protect low-voltage high-frequency signals from power line noise.
• Connect field wiring shields to the designated instrument ground terminals on the 3500 rack frame, and ensure the outer transducer casing floats to prevent circulating ground currents.
