Description

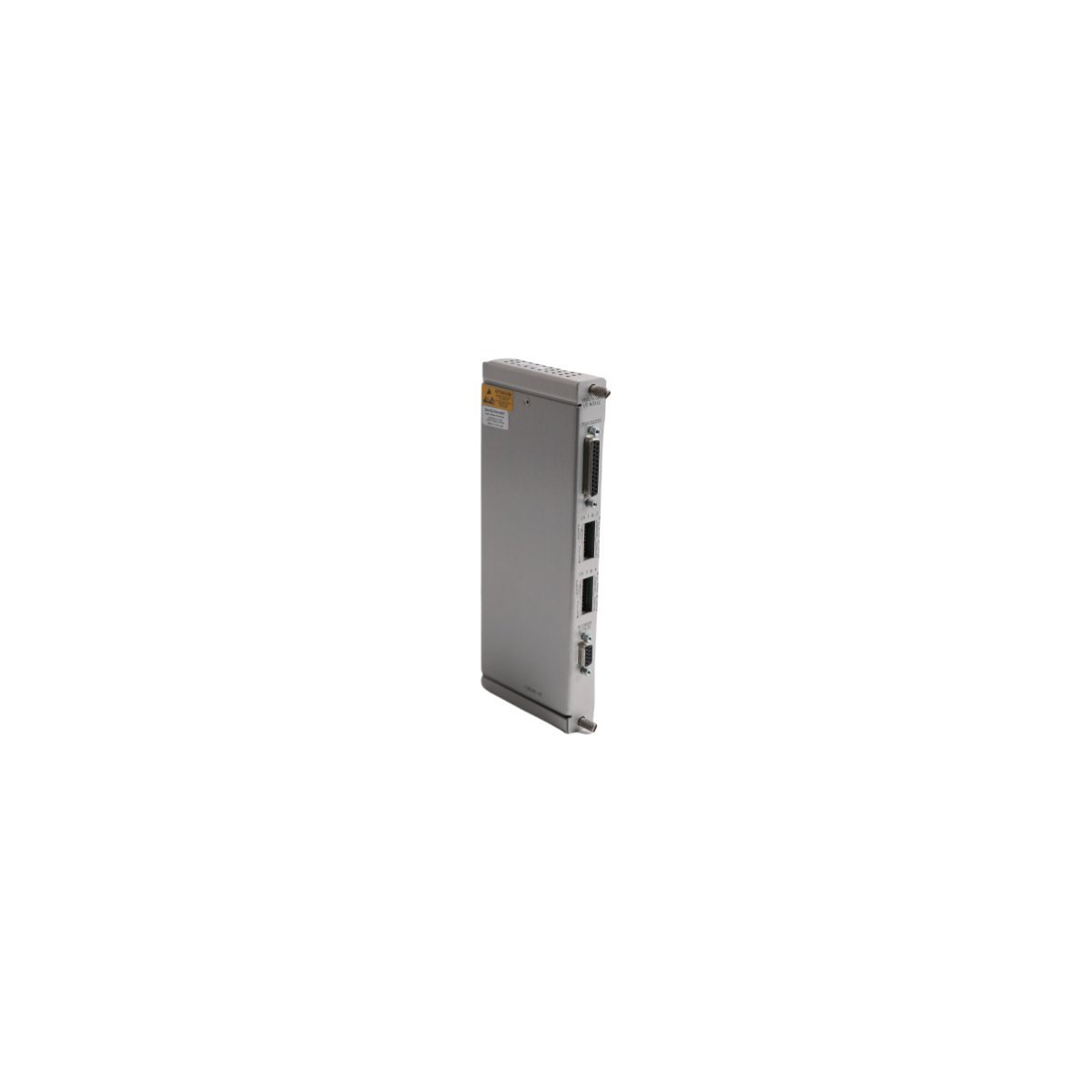

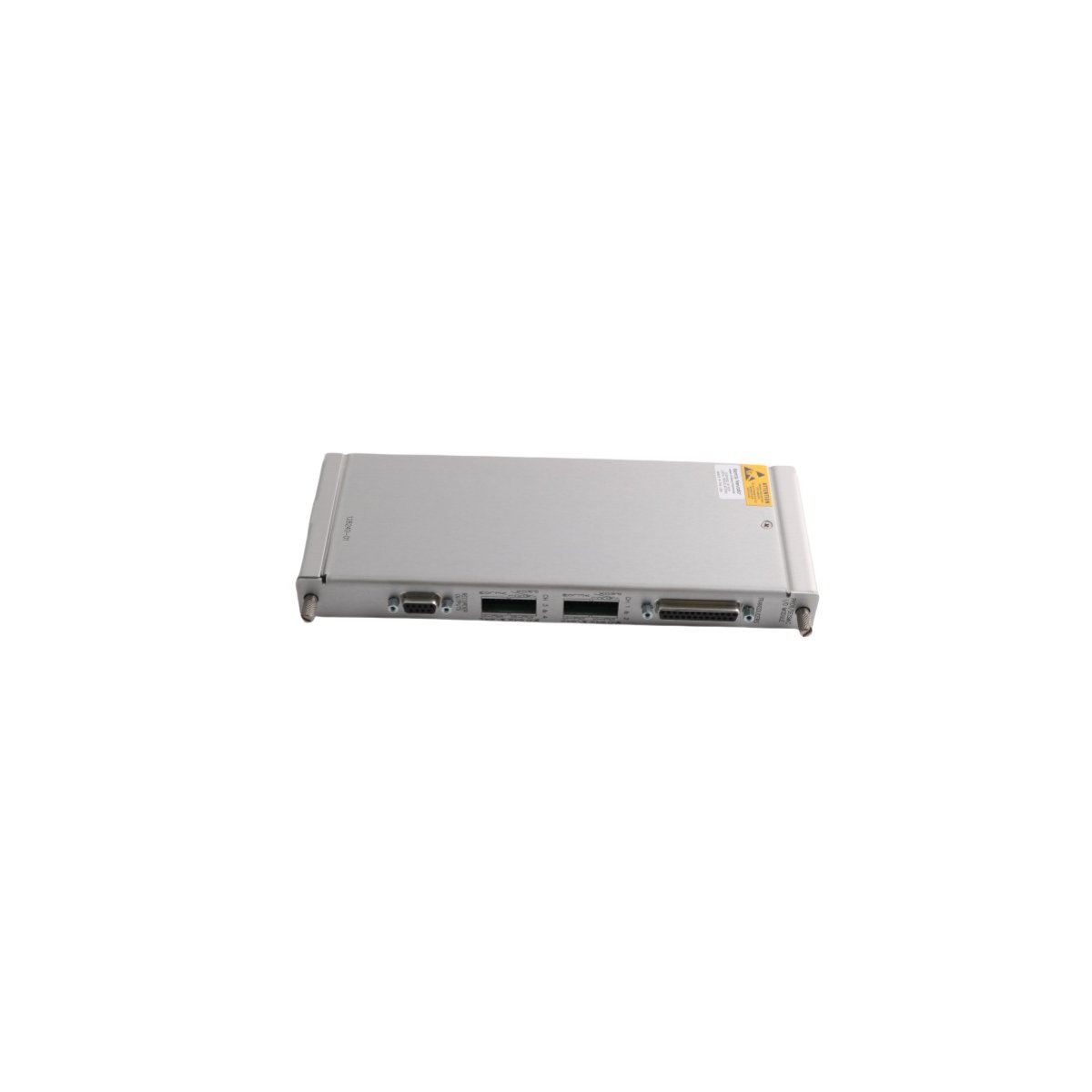

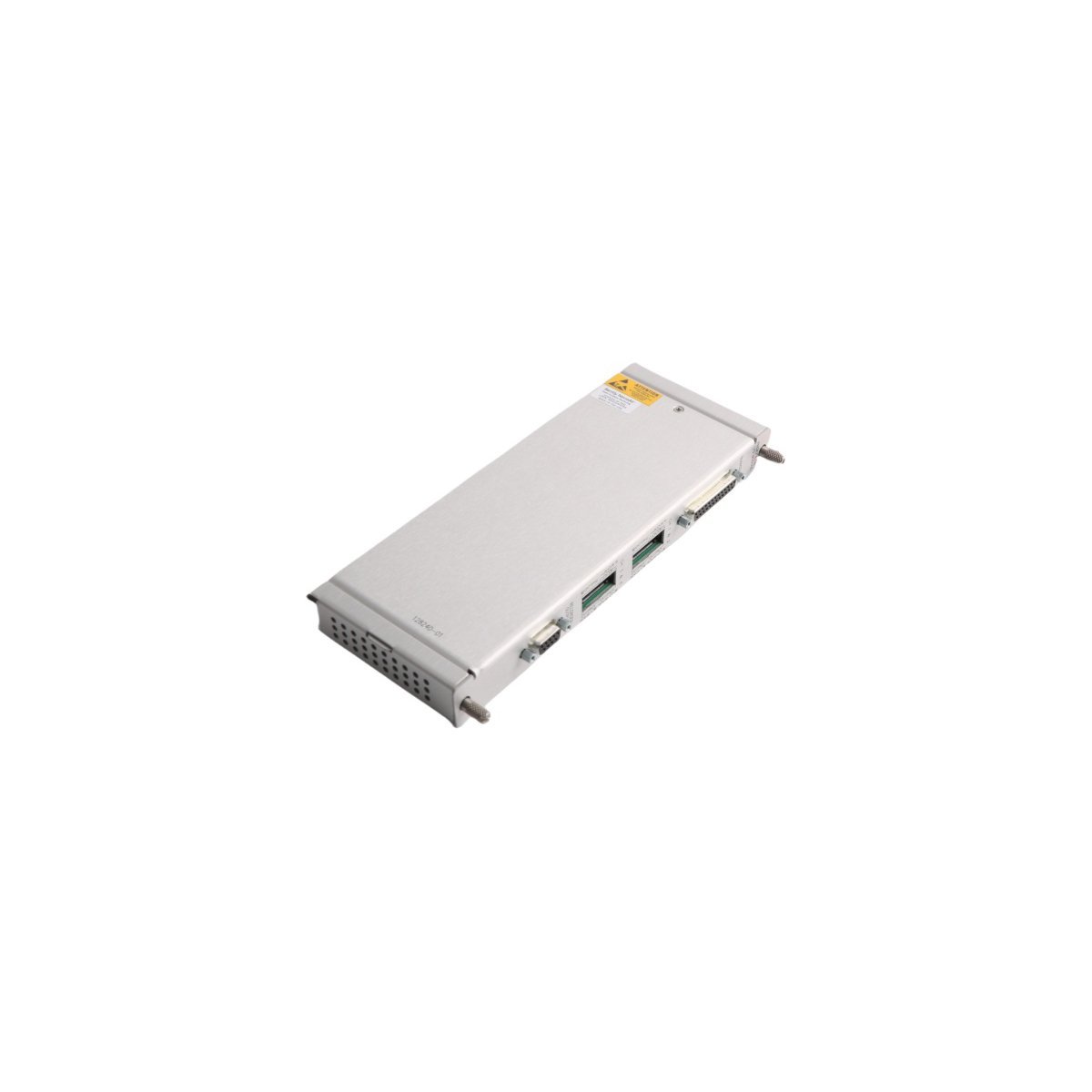

The Bently Nevada 128240-01 serves as a high-performance input/output interface for the 3500/42M Proximitor Seismic Monitor. This module resides in the rear of the 3500 rack system. It facilitates the essential connection between industrial transducers and the monitoring machinery. It specifically supports external termination applications. This design streamlines field wiring while maintaining signal integrity for critical vibration data.

Technical Specifications

Key Functional Capabilities

This I/O module processes signals from various vibration sensors and proximity probes. It bridges the gap between field hardware and the 3500 digital backplane. The 128240-01 version utilizes external termination blocks. This allows technicians to manage wiring outside the main rack enclosure. It improves access during maintenance and reduces downtime.

The module supports diverse measurement types including radial vibration and axial thrust. It also handles eccentricity and velocity measurements. High-quality electrical components ensure low-noise signal transmission. This accuracy is vital for Turbine Supervisory Instrumentation (TSI) applications.

Operational Applications

This hardware is standard in heavy industrial sectors like oil and gas. Power generation facilities rely on it for steam turbine protection. It monitors large rotating equipment for early signs of mechanical failure. Manufacturing plants use it to prevent catastrophic shaft or bearing damage.

The 128240-01 withstands the electromagnetic interference found in industrial environments. It provides stable data even near high-voltage machinery. Its rugged construction ensures long-term service in continuous monitoring setups.
