Description

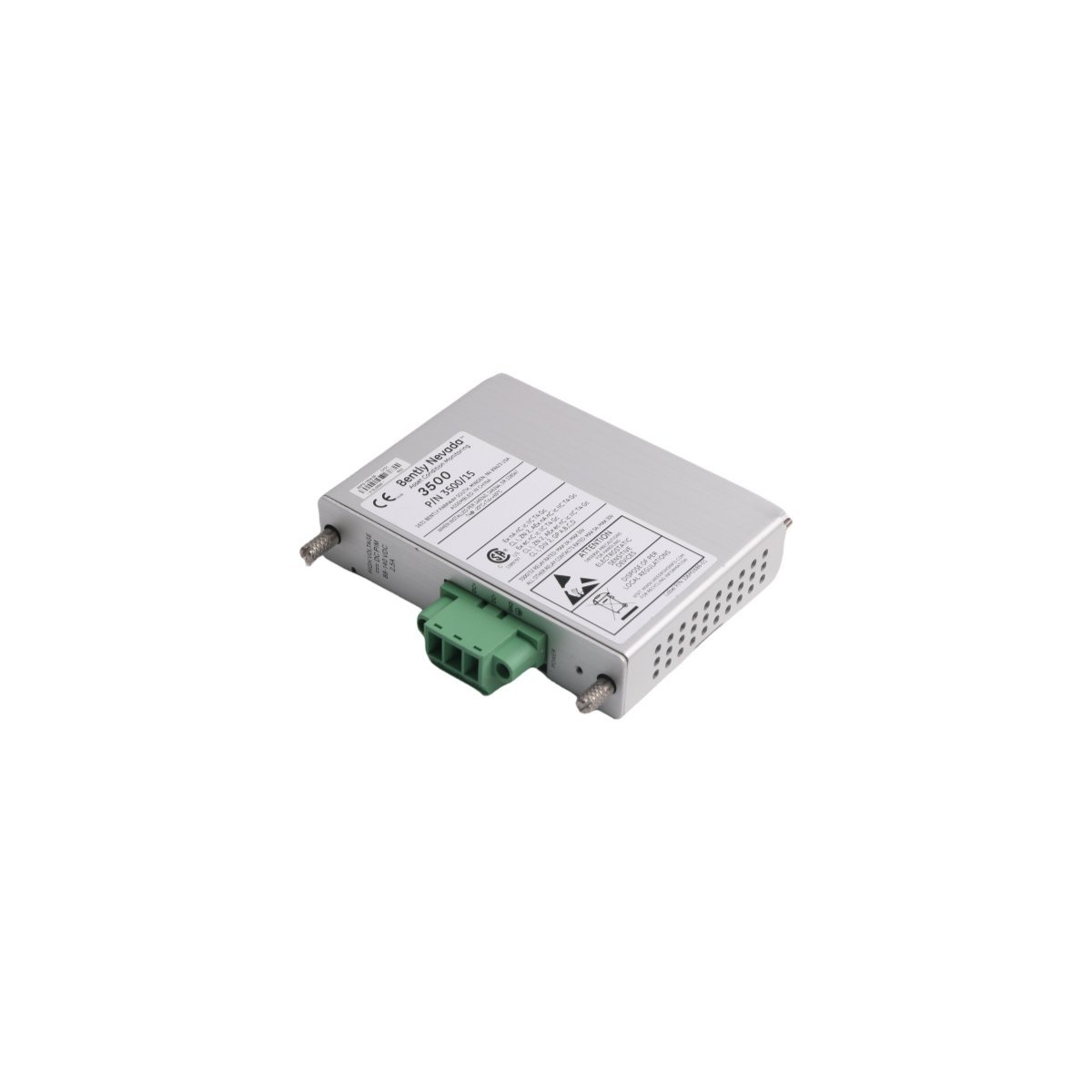

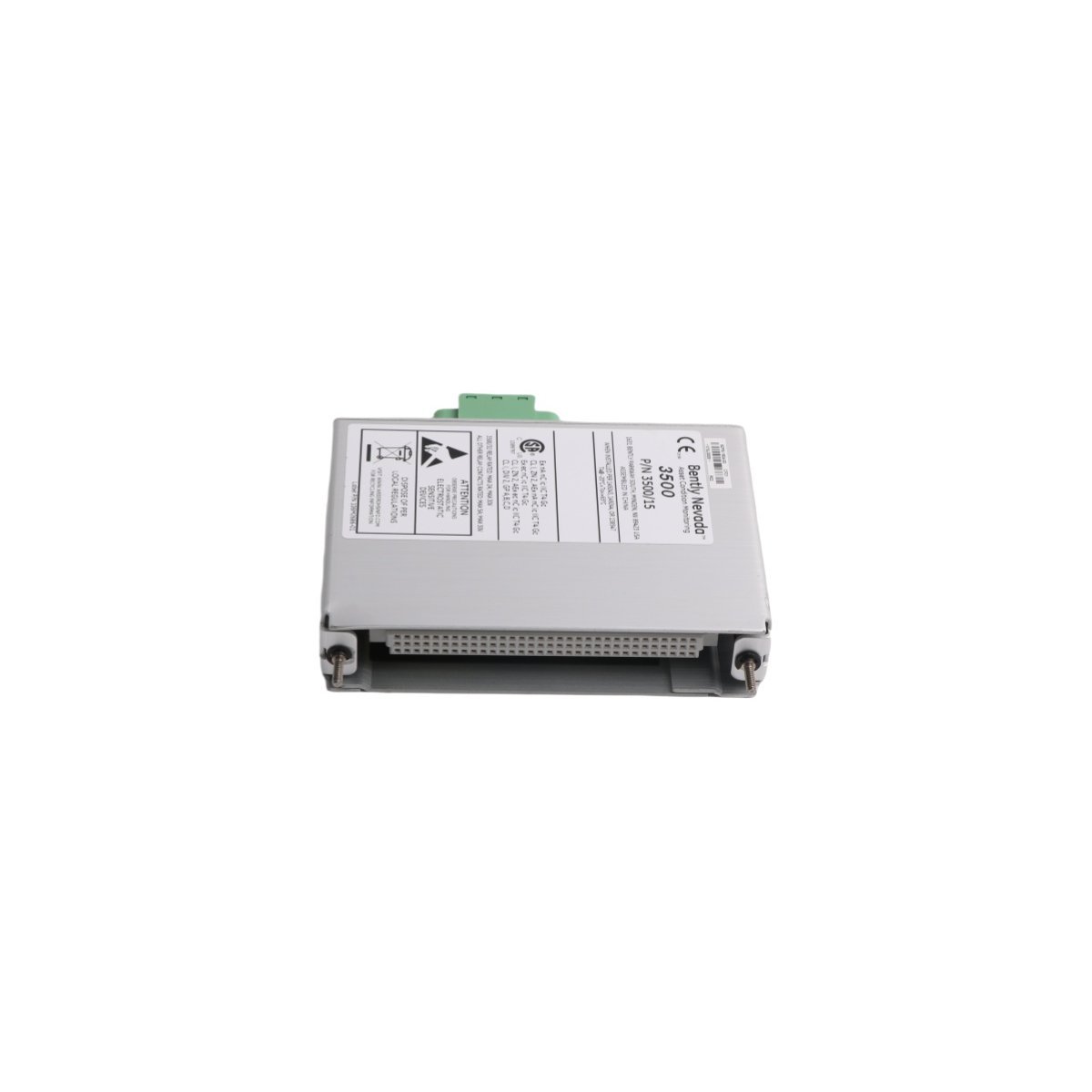

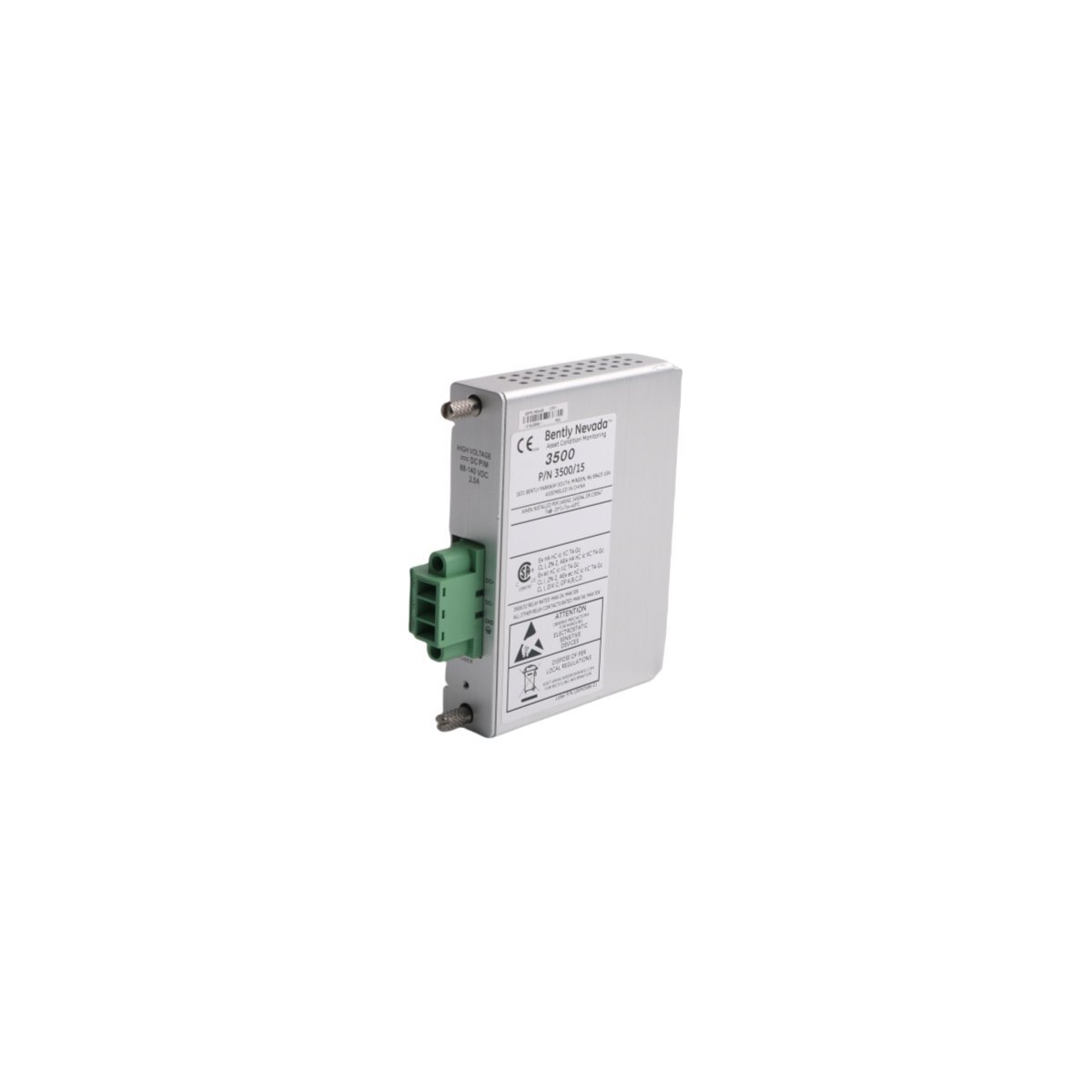

Bently Nevada 115M7750-01 High Voltage DC Power Input Module (PIM)

The Bently Nevada 115M7750-01 is a specialized High Voltage DC Power Input Module (PIM) designed for the 3500 Series Machinery Protection System. This module serves as the primary interface for connecting the system rack to a high-voltage direct current power source. By providing essential power conditioning and surge protection, the 115M7750-01 ensures that the sensitive monitoring electronics within the rack receive a stable and clean electrical supply, which is critical for the continuous oversight of high-value rotating assets.

Power Distribution and Electrical Protection

The 115M7750-01 is engineered to handle the rigorous demands of power generation and heavy industrial utilities. Specifically, it accepts high-voltage DC inputs and distributes filtered power to the system’s backplane. Furthermore, the module incorporates advanced fusing and internal safety mechanisms to protect the 3500 rack against input voltage transients and overcurrent conditions. As a result, the module maintains the operational integrity of the entire vibration monitoring system, preventing downtime caused by localized electrical fluctuations or external power surges.

Technical Specification Matrix

System Redundancy and Reliability

In mission-critical monitoring scenarios, the 115M7750-01 is often deployed in a redundant configuration. Moreover, when two modules are installed in the same 3500 rack, they provide a fail-safe power solution where one module can take over the full load if the primary source or module fails. In addition, the lightweight aluminum construction and industrial-grade components ensure superior thermal dissipation, which extends the lifespan of the module in high-temperature environments. Therefore, this Power Input Module is a vital asset for facilities requiring a highly available and resilient machinery protection platform.

FAQ

Can the 115M7750-01 be used with AC power sources?

No, this module is strictly designed for high-voltage DC inputs (88-140 Vdc). Specifically, if your facility uses AC power, you must select the corresponding Bently Nevada AC Power Input Module. Accordingly, attempting to connect an AC source to this DC PIM will cause permanent damage to the module.

Is this module compatible with all 3500 racks?

The 115M7750-01 is compatible with standard 3500/05 racks. Furthermore, it is typically matched with the 115M7749 series High Voltage DC Power Supplies. As a result, you should always verify the voltage rating of your power supply module to ensure it matches the input requirements of this PIM.

What is the benefit of the high-voltage DC version over low-voltage?

High-voltage DC power systems are common in utilities and substations where battery backup banks provide emergency power. Consequently, the 115M7750-01 allows the machinery protection system to run directly off these station batteries, increasing system reliability during a total plant power loss.

Does the module require periodic calibration?

The Power Input Module does not require calibration as it is a power distribution component. Ultimately, regular maintenance should focus on verifying secure terminal connections and checking for any signs of thermal stress on the wiring.
