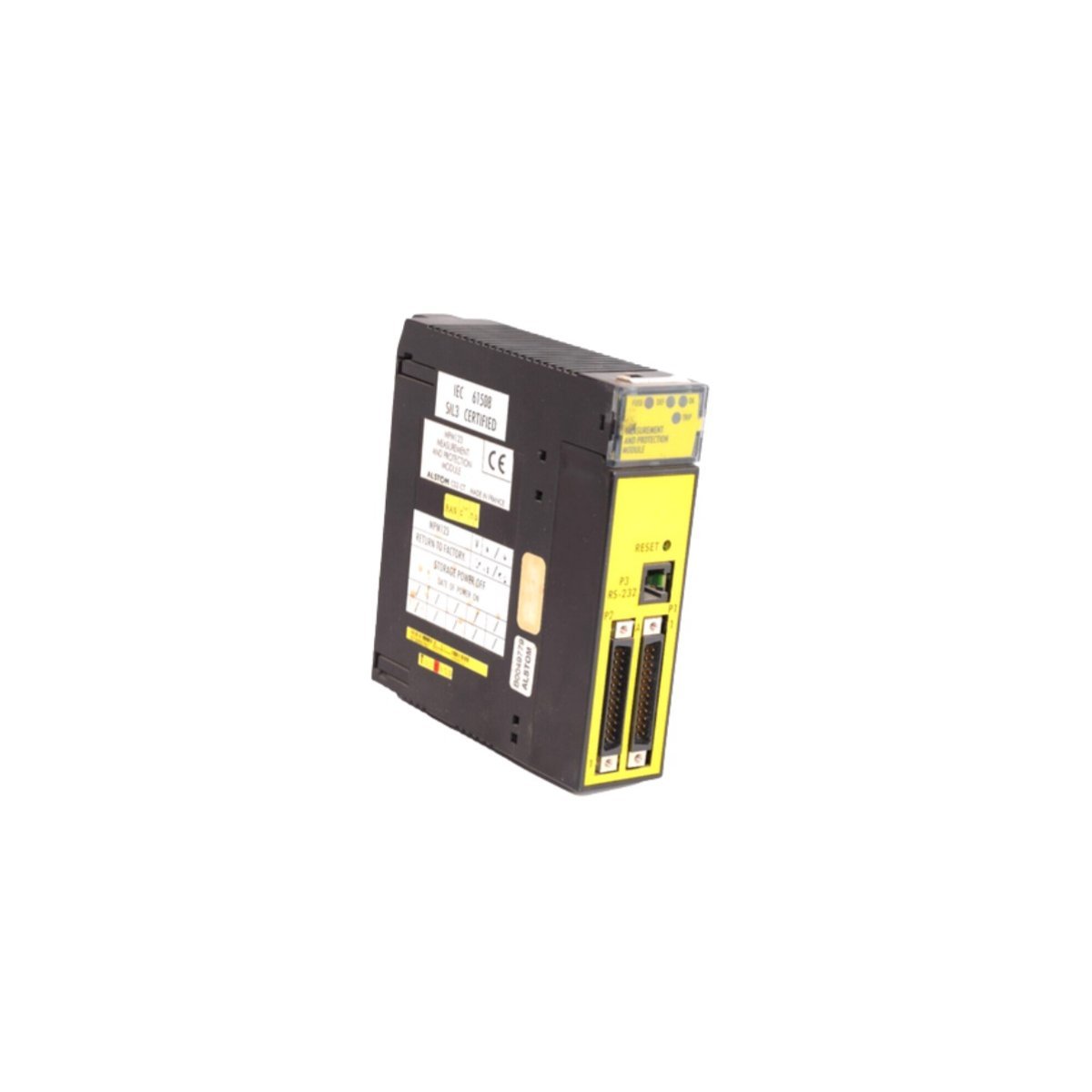

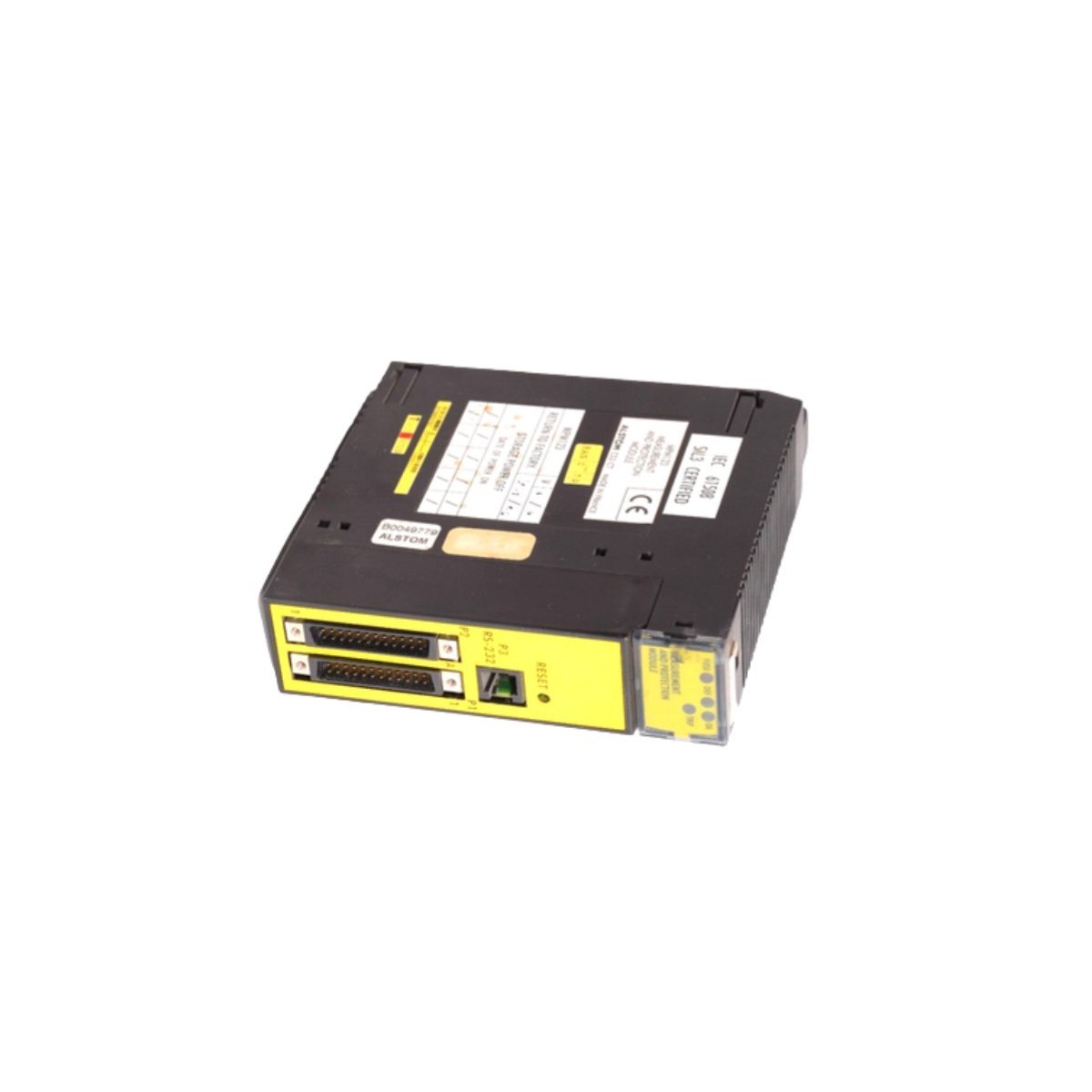

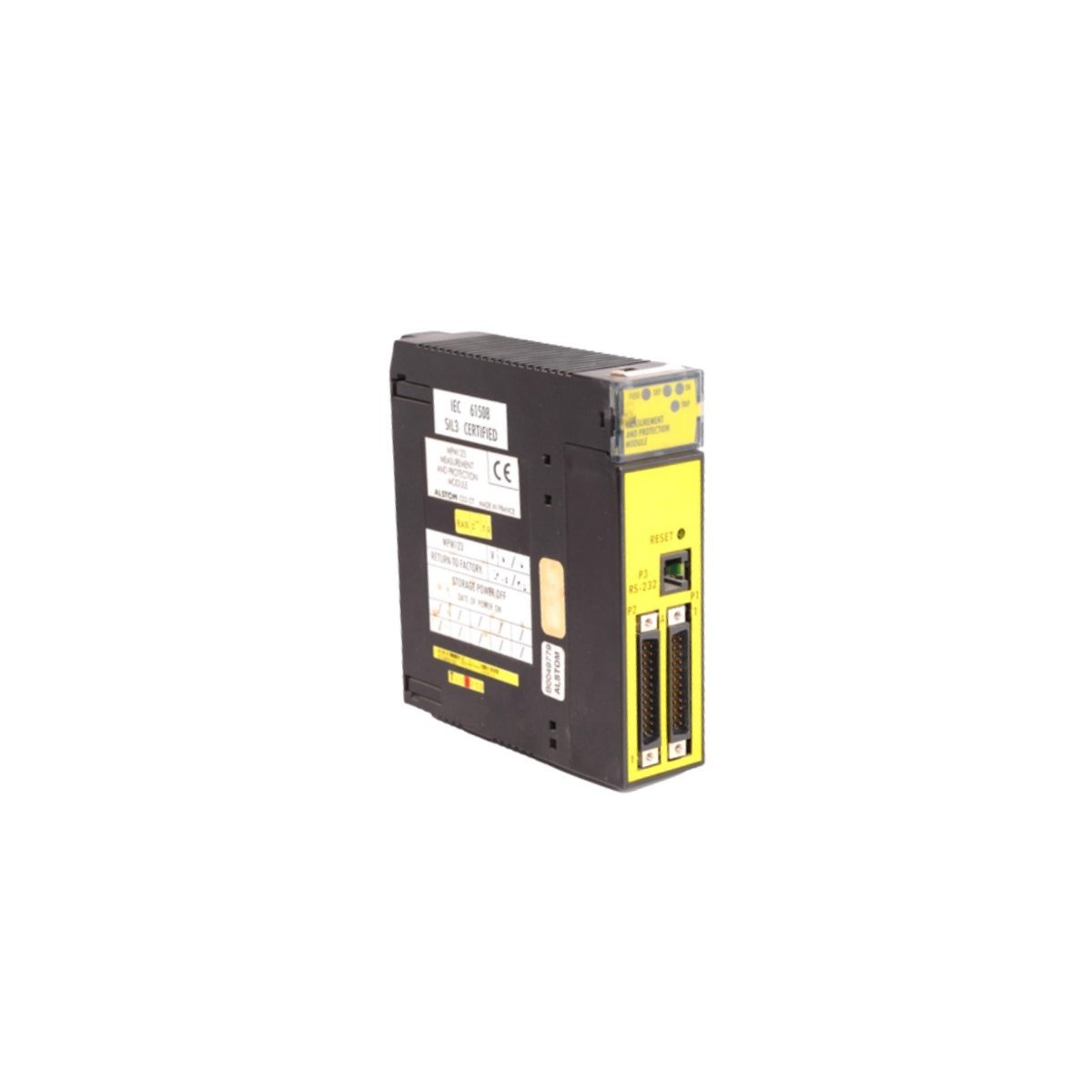

Alstom MPM123 Multi-Axis Motion and Protection Module

The MPM123 is a specialized core control module engineered for high-precision digital motion regulation and electrical protection across four independent axes in automated industrial systems.

Technical Operational Overview

The MPM123 serves as a centralized processing hub for complex motion control and system protection within the Alstom automation ecosystem. This module excels at executing high-speed real-time algorithms, including trajectory planning, linear/circular interpolation, and comprehensive PID loop management for position, velocity, and current. By utilizing a high-performance DSP or FPGA architecture, the module ensures that motor responses remain smooth and accurate even under fluctuating load conditions.

Furthermore, the module enhances system integrity through integrated measurement and protection circuits. It effectively monitors for overvoltage, overcurrent, and short-circuit conditions, initiating rapid-shutdown protocols to prevent hardware damage. Because the MPM123 includes optically isolated digital I/O, it maintains high signal immunity against electromagnetic interference (EMI) commonly found in heavy industrial environments. Transitioning from basic motor drivers to this core control module allows for a fully closed-loop architecture via onboard encoder feedback interfaces, significantly increasing the precision of automated production lines.

Key Technical Characteristics

• Four-Axis Coordination: Manages up to four axes simultaneously to streamline multi-motor synchronization and complex motion sequences.
• Precision Closed-Loop Control: Features dedicated encoder interfaces that support real-time feedback for exact position and speed regulation.
• Ruggedized Protection Suite: Safeguards connected equipment with hardware-based monitoring for thermal overload, short circuits, and voltage spikes.
• Advanced EMI Shielding: Utilizes a robust metal enclosure and isolated I/O to suppress noise and ensure reliable communication with host PLCs.
• Flexible Power Integration: Operates on a standard +24V DC input, facilitating easy integration into existing industrial control cabinets.
• Extended Thermal Range: Reliable performance across a broad temperature spectrum from -20°C to +70°C, suitable for unconditioned plant environments.

Product Specifications

Industrial Applications

The MPM123 is specifically designed for high-duty cycle applications, including:

• CNC Machining: Providing the high-speed interpolation required for precision milling and cutting tools.
• Automated Packaging: Coordinating multi-belt synchronization and high-speed sorting mechanisms.
• Energy Management: Serving as a protection and measurement interface within power distribution control systems.
