Description

Brief Product Description

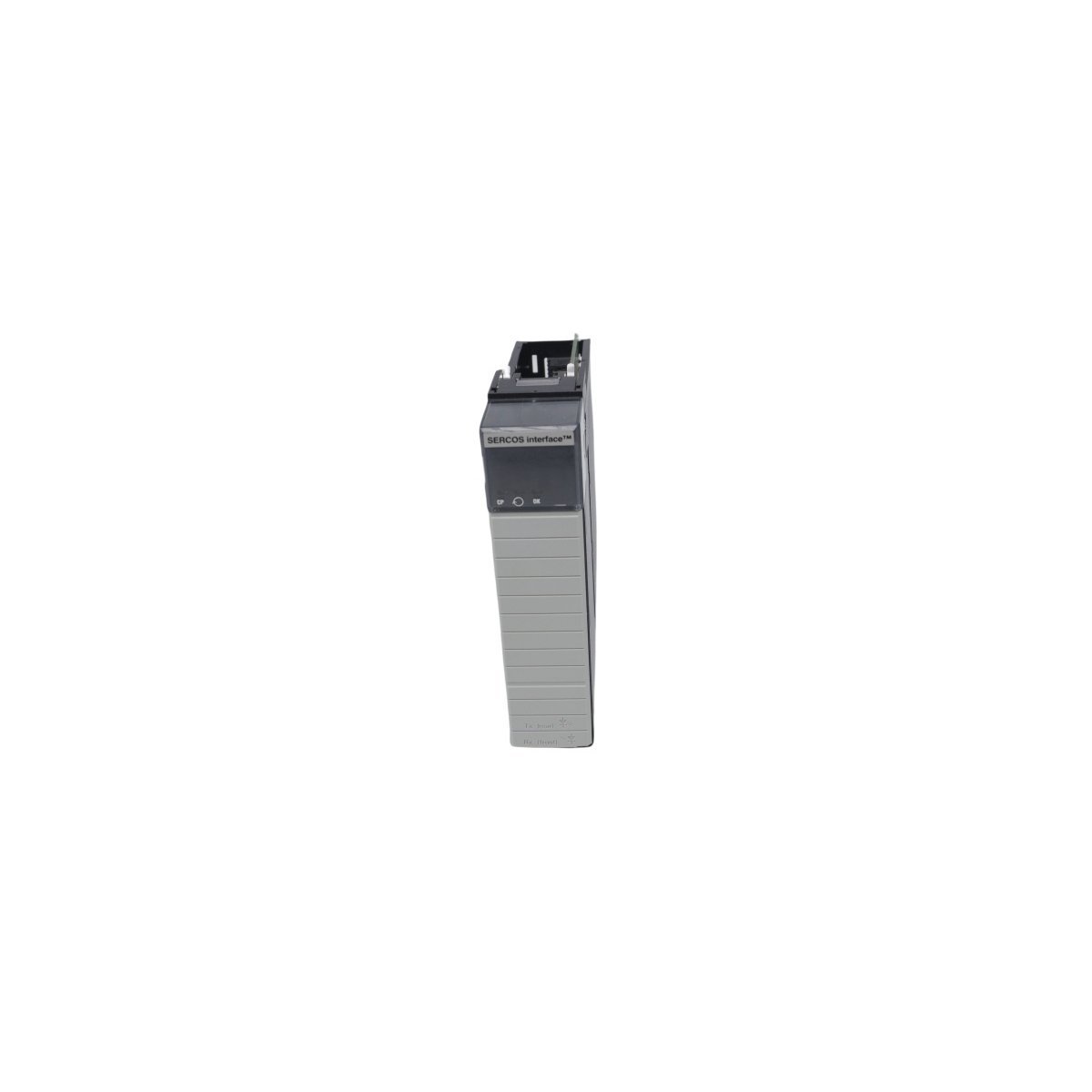

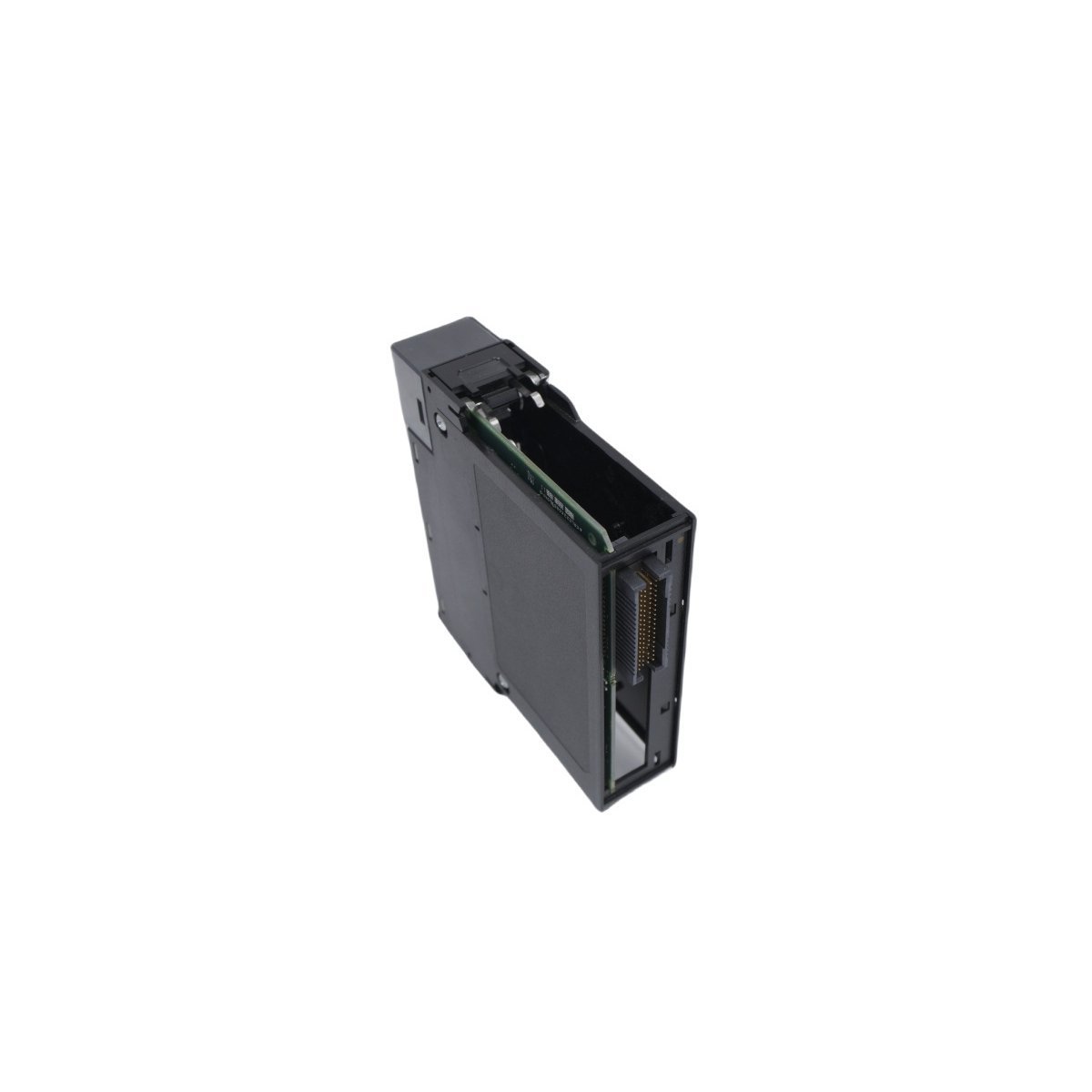

The Allen-Bradley 1756-M03SE is a high-performance SERCOS interface module for the ControlLogix platform, facilitating synchronized fiber-optic communication for up to three motion axes. It bridges the gap between Logix controllers and Kinetix servo drives to deliver precise position, velocity, and torque regulation.

High-Speed Synchronized Motion Control

The Allen-Bradley 1756-M03SE serves as a critical communication link within the ControlLogix ecosystem, specifically engineered to manage multi-axis motion through the SERCOS (Serial Real-time Communication System) protocol. This module enables a ControlLogix processor to execute complex motion profiles by transmitting digital commands to up to three servo axes simultaneously. By utilizing a digital interface, the module supports versatile operating modes including torque, velocity, and highly accurate position control. This functionality makes it a cornerstone for applications requiring synchronized movement, such as robotic assembly, high-speed labeling, and CNC machining.

Fiber-Optic Communication and Noise Immunity

One of the most significant technical features of the 1756-M03SE is its reliance on fiber-optic technology for data transmission. Unlike traditional copper-based analog systems, this fiber-optic link provides absolute immunity to electromagnetic interference (EMI) and radio frequency interference (RFI), which are common in heavy industrial environments. Furthermore, this digital approach drastically simplifies hardware installation; a single fiber cable replaces dozens of discrete wires typically required for drive feedback and command signals. The module supports selectable data rates of 4 Mbps or 8 Mbps, achieving cycle times as fast as 0.5 ms to ensure ultra-responsive drive updates and minimal loop latency.

Seamless Integration and Hardware Reliability

Rockwell Automation designed the 1756-M03SE for effortless integration into any standard 1756 ControlLogix chassis. It maintains full compatibility with the Kinetix 2000, 6000, 7000, and Ultra3000 servo families, allowing for a unified motion control architecture. The module operates efficiently with a low current draw of 760 mA from the 5.1V backplane, ensuring it stays within the power budgets of most rack configurations. Additionally, the 1756-M03SE complies with international IEC 61491 standards, verifying its suitability for global motion applications. Its wide operating temperature range of 0°C to 60°C ensures consistent performance even in demanding factory floor conditions.

Key Technical Characteristics

• Three-Axis Capacity: Manages up to 3 independent or coordinated motion axes per module.
• Fiber-Optic Interface: Eliminates electrical noise and simplifies wiring via digital optical links.
• High-Speed Data Rates: Selectable 4 Mbps or 8 Mbps communication for real-time responsiveness.
• Multi-Drive Compatibility: Syncs seamlessly with Kinetix and Ultra3000 series servo drives.
• Comprehensive Control Modes: Supports full digital torque, velocity, and position loop regulation.
• Global Standards Compliance: Meets IEC 61491 requirements for open-loop and closed-loop motion.

Technical Specifications
