Description

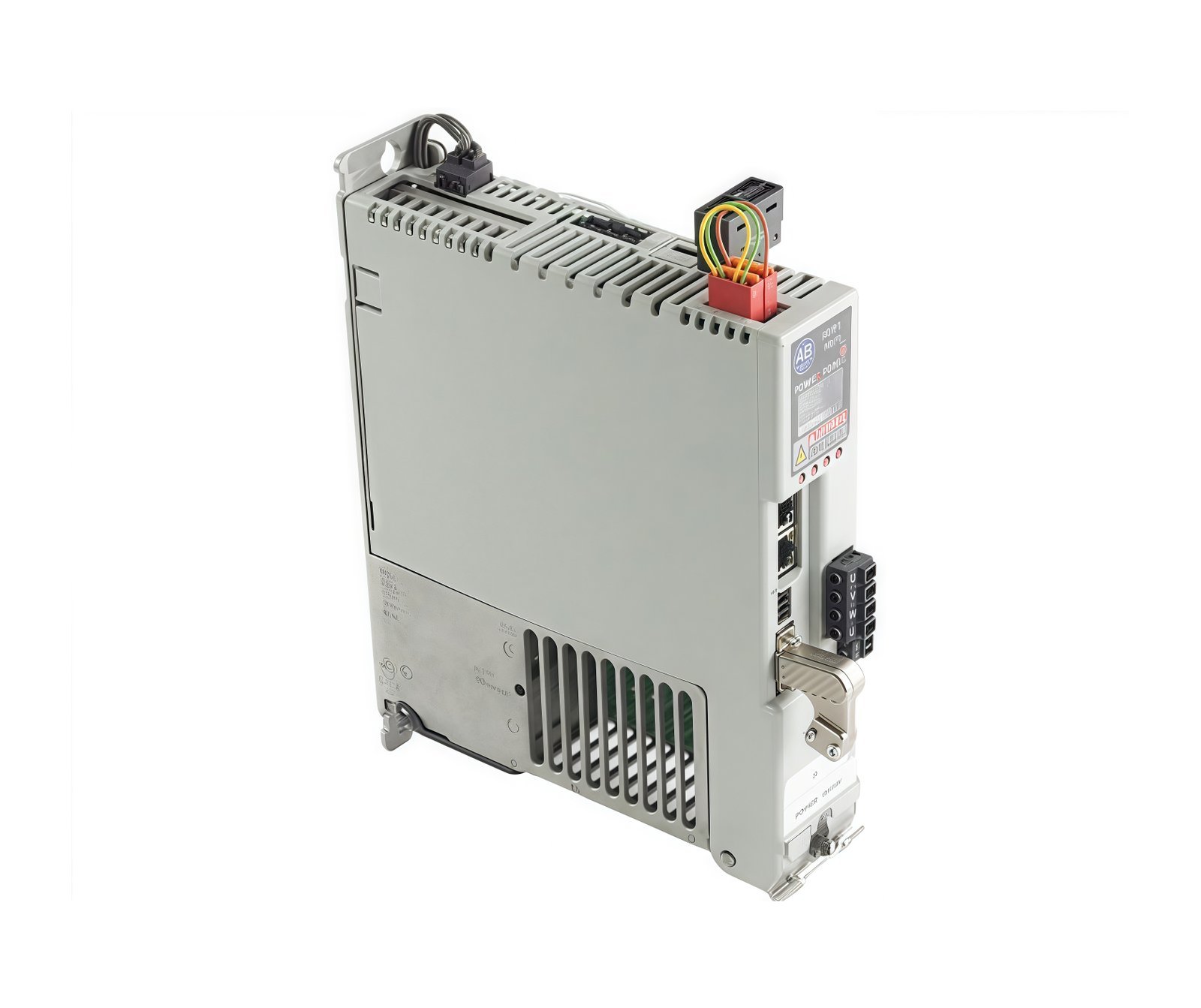

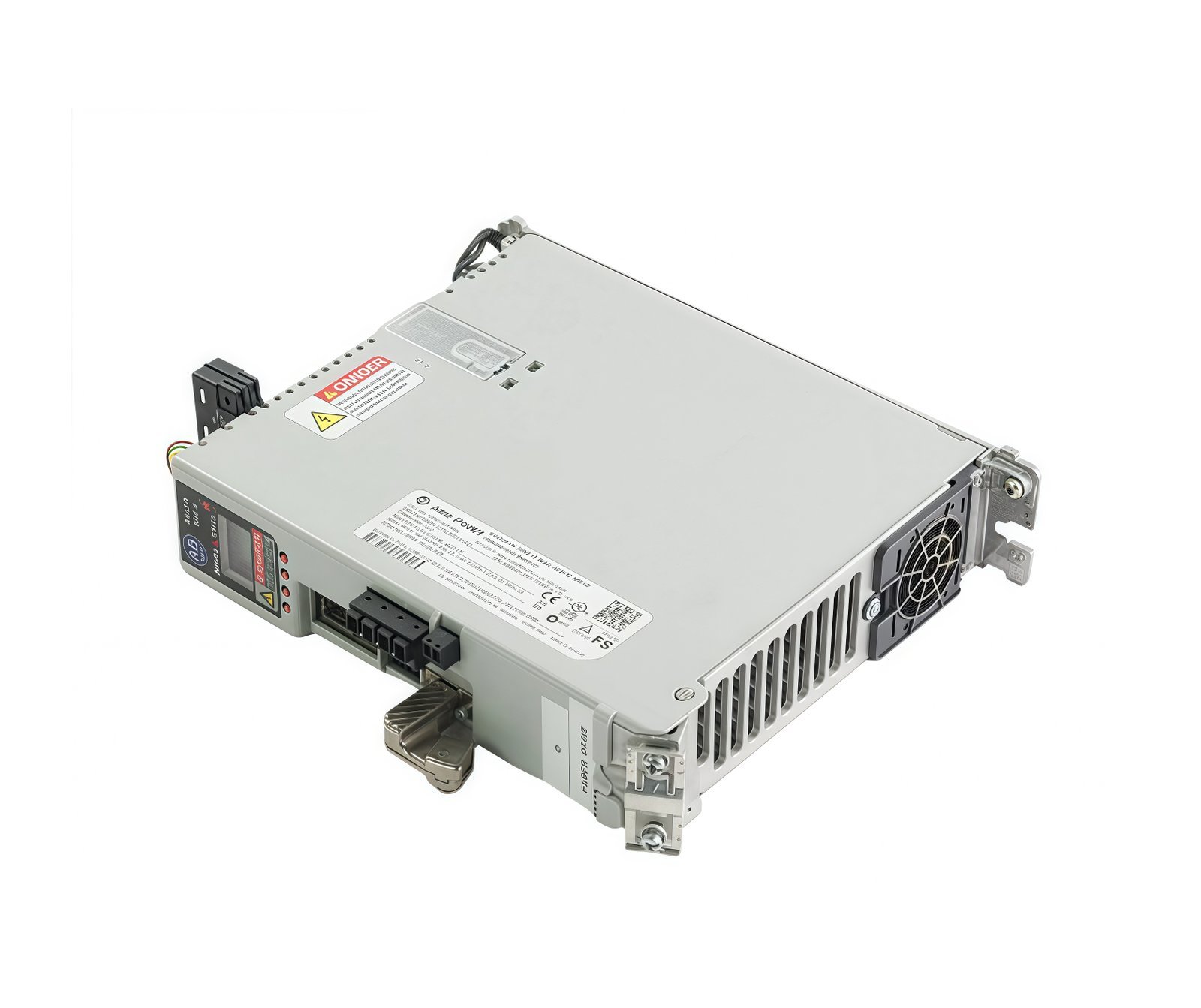

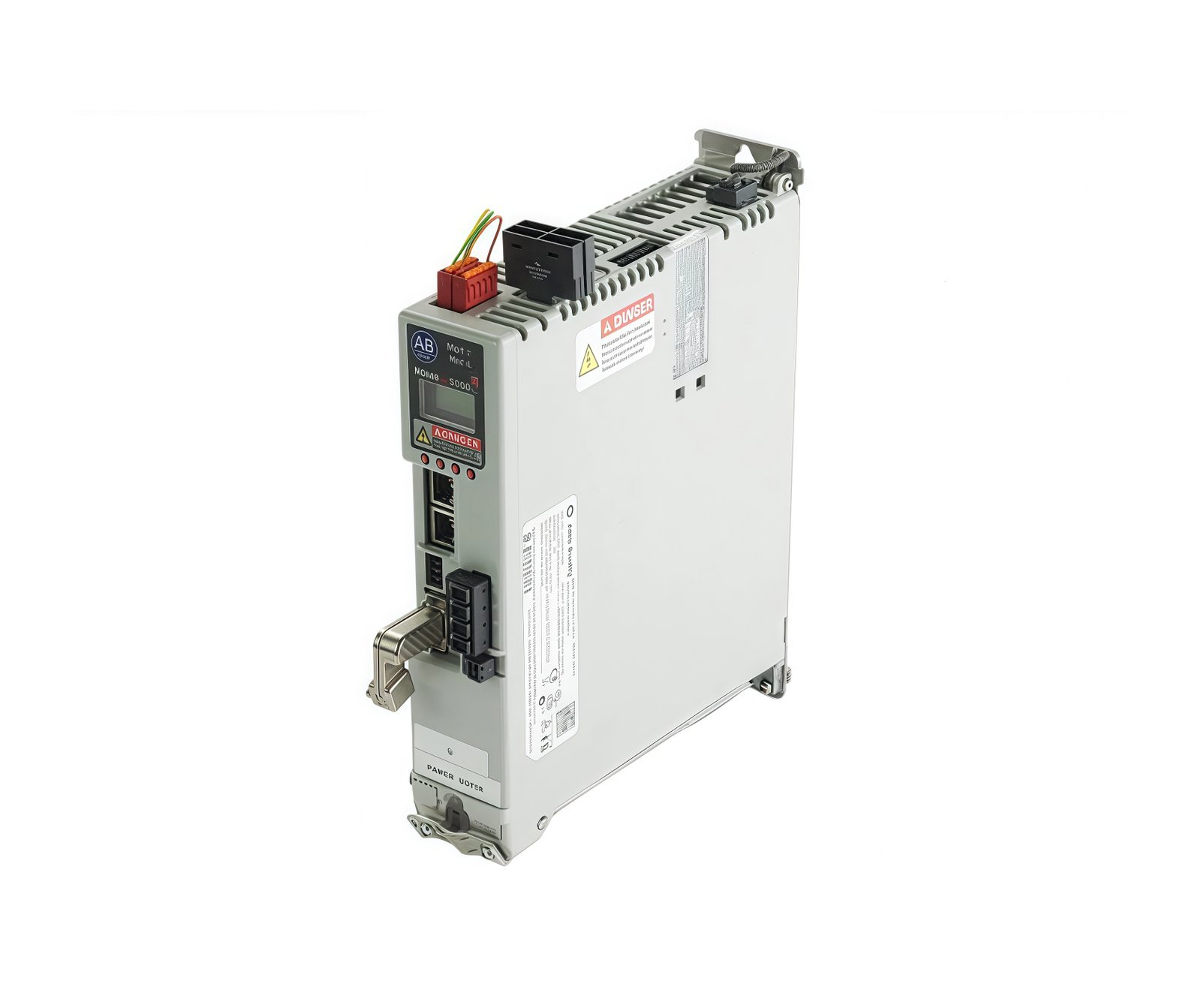

The Allen Bradley 2198-H015-ERS, also cataloged as the 2198-H015 Servo Drive, operates as a dedicated hardware component for closed-loop motion regulation and torque control within Kinetix 5500 platforms.

Hardware Specifications

Deterministic Network & Motion Loop Control

The Allen Bradley 2198-H015-ERS servo drive incorporates high-speed motion loops operating with a 1000 Hz current loop bandwidth and a 300 Hz velocity loop bandwidth at a 4 kHz PWM switching frequency. Dual Ethernet ports maintain backplane bus communication velocity and real-time execution across EtherNet/IP deterministic networks, supporting both linear and Device Level Ring (DLR) topologies. Strict firmware flash compatibility ensures zero-latency synchronization between the drive position loops and Logix PAC motion controllers. High I/O density scaling allows integrated safety signals and digital encoder feedback processing on a single physical bus connection.

Frequently Asked Questions

Q: How does the drive maintain network deterministic response during high-speed positioning?

A: CIP Motion protocols over EtherNet/IP coordinate drive loop updates with the master controller, eliminating timing jitter and ensuring time-synchronized position, velocity, and current commands.

Q: What power wiring guidelines apply to the three-phase AC power input?

A: Power input connections require shielded cable installations with line reactors or isolation transformers where power quality or line unbalance exceeds recommended limits, ensuring protection against voltage transients up to the 200 kA short-circuit rating limit.

Field Installation Guidelines

• Cabinet Spacing and Thermal Management: Mount the unit vertically on a flat, grounded backplate in a cabinet providing adequate airflow. Maintain clear ventilation paths above and below the chassis to support fan-assisted heat dissipation from internal IGBT modules.
• Grounding and Shielding Protocols: Ground the drive chassis directly to the main cabinet ground bus using a short, low-impedance grounding strap. High-frequency motor power cables and digital encoder feedback lines must utilize 360-degree shield clamp terminations at the drive frame.
• Terminal Wiring and Torque Limits: Terminate AC input, DC bus, and motor phase wiring using crimped ferrules or approved lug connectors. Adhere strictly to terminal block torque ratings to prevent terminal stress and high-resistance electrical connections under continuous 5.0 A load output.
