Description

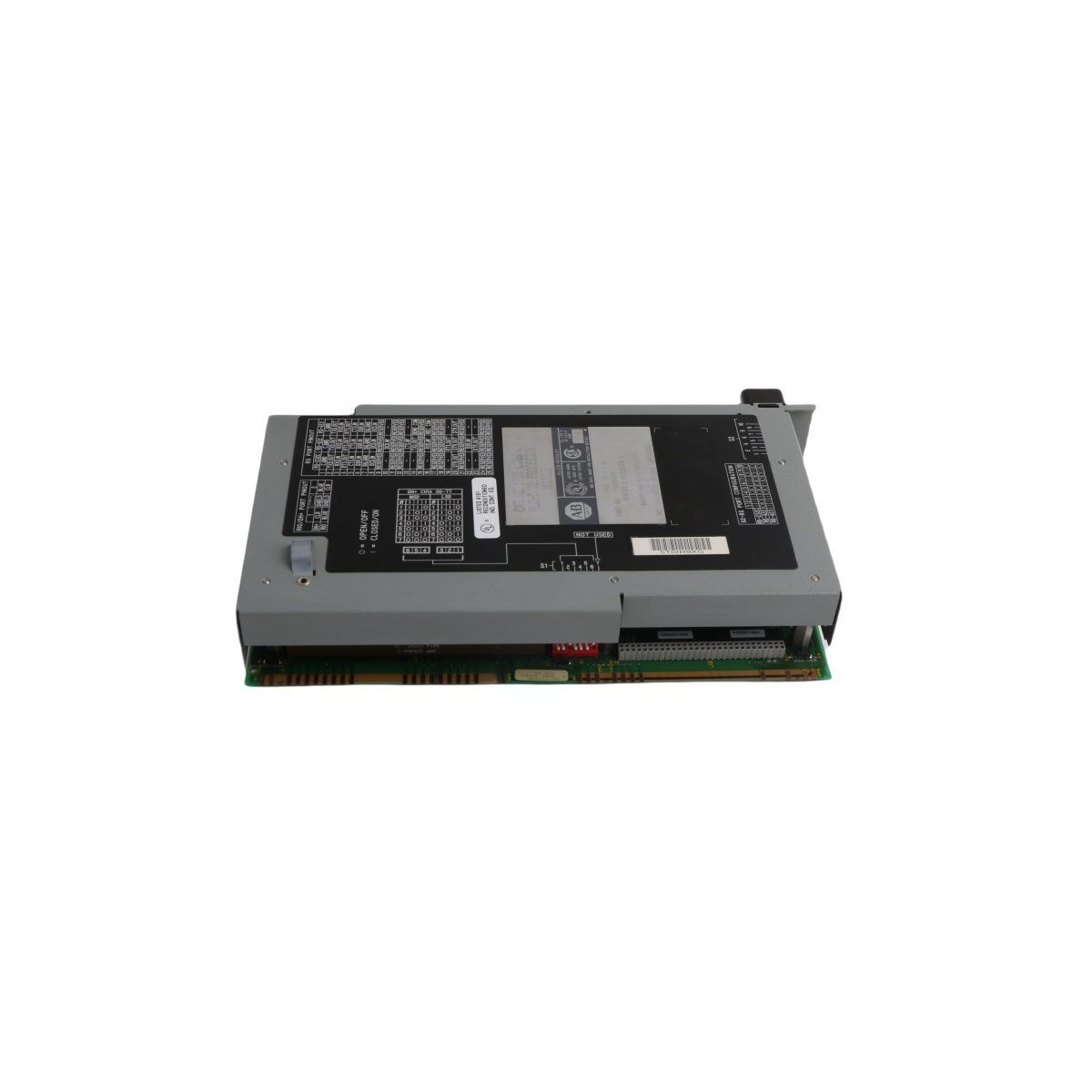

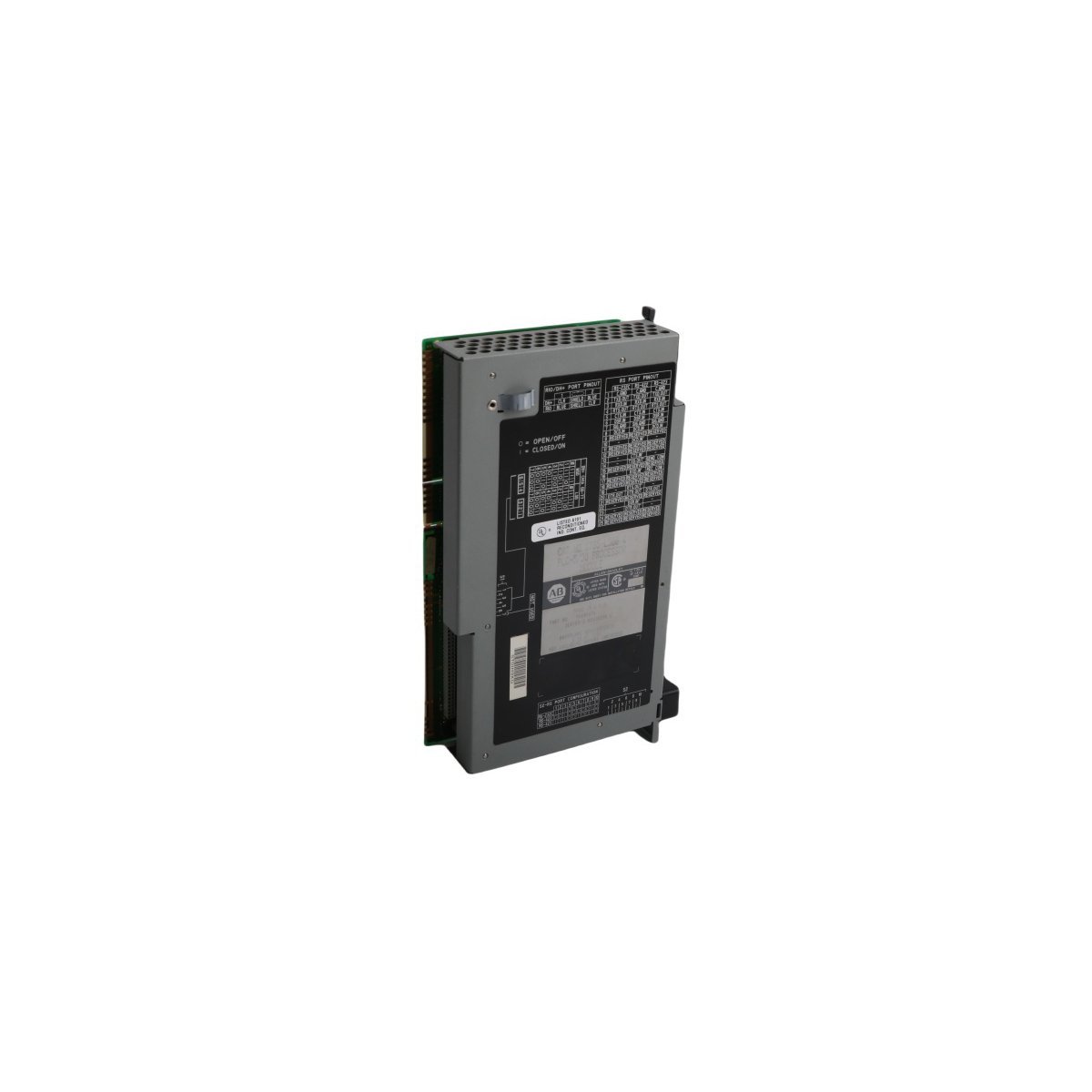

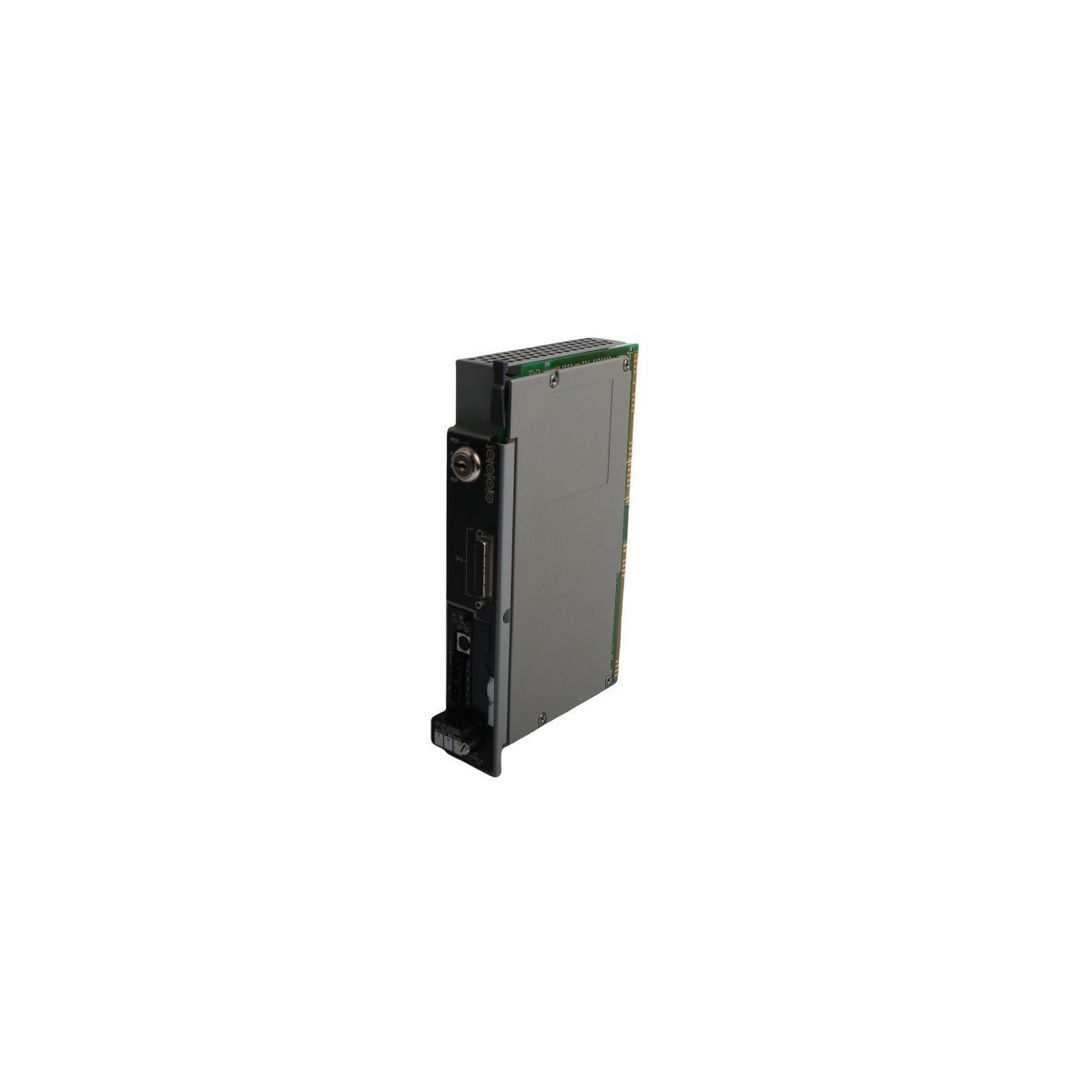

The Allen-Bradley 1785-L30B serves as a central processing unit within the classic PLC-5 architecture. This controller features 32K words of SRAM memory for user programs and data storage. It manages up to 1024 total I/O points across various industrial configurations. Furthermore, the 1785-L30B supports complex control tasks through advanced instruction sets. This unit effectively handles both discrete and analog signals in demanding factory environments. Its high-performance backplane interface ensures rapid execution of ladder logic routines.

Communication and Networking

Connectivity remains a primary strength of the 1785-L30B processor. The module includes two dedicated DH+ or Remote I/O ports for flexible networking. Additionally, a multi-protocol serial port supports RS-232, RS-422A, and RS-423 standards. This allows for seamless integration with human-machine interfaces and diagnostic tools. The controller also manages up to 28 remote I/O racks for distributed plant floor control. Consequently, users can expand their system architecture without sacrificing performance.

System Security and Hardware Features

Hardware reliability is maintained through several integrated monitoring tools. A three-position front keyswitch controls the operating modes: Run, Program, and Remote. Meanwhile, the built-in lithium battery protects memory integrity during external power loss. The BATT LED provides immediate visual alerts regarding the health of this backup system. Furthermore, the PROC and FORCE indicators offer real-time status updates for the processor and I/O states. These features ensure long-term stability and simplified maintenance for automation professionals.

Technical Specifications

Operational Environment

This module operates within standard industrial temperature ranges from 0 to 60°C. Its robust mechanical frame fits into any 1771 universal I/O chassis. Additionally, the unit complies with major global standards including CE and UL certifications. Although discontinued by the manufacturer, it remains a vital component for legacy system maintenance. Proper handling of the electrostatic-sensitive components ensures the longevity of the hardware.
