Description

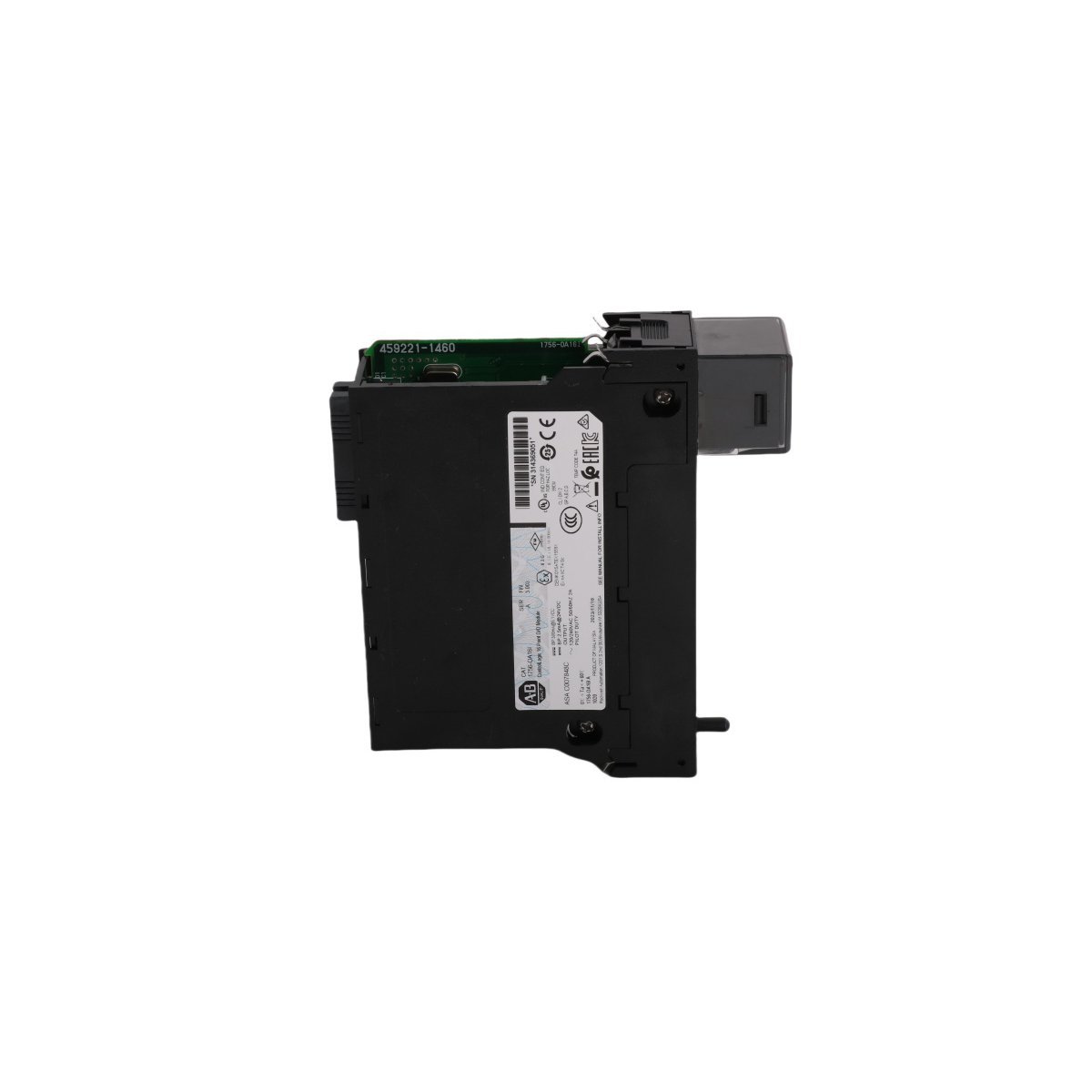

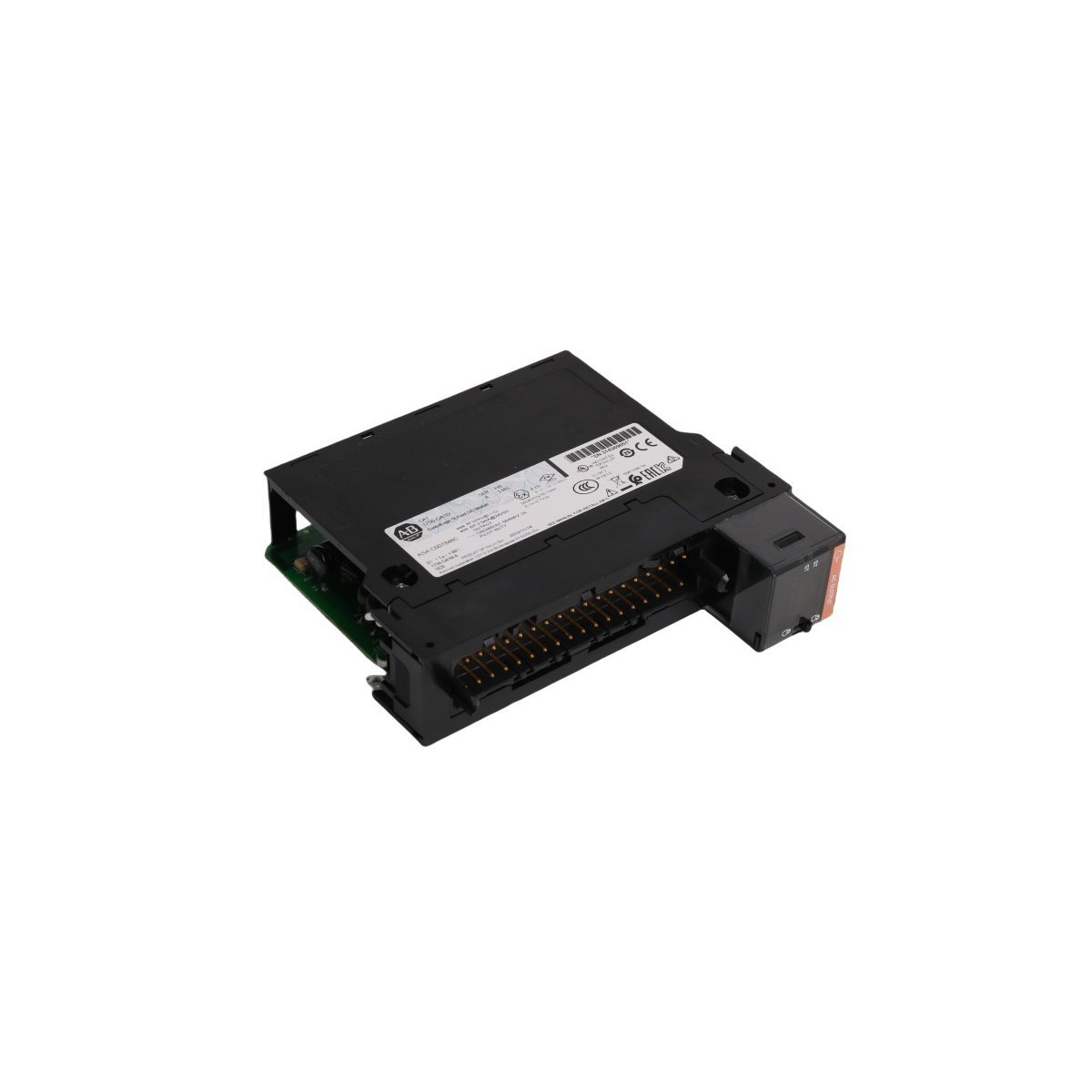

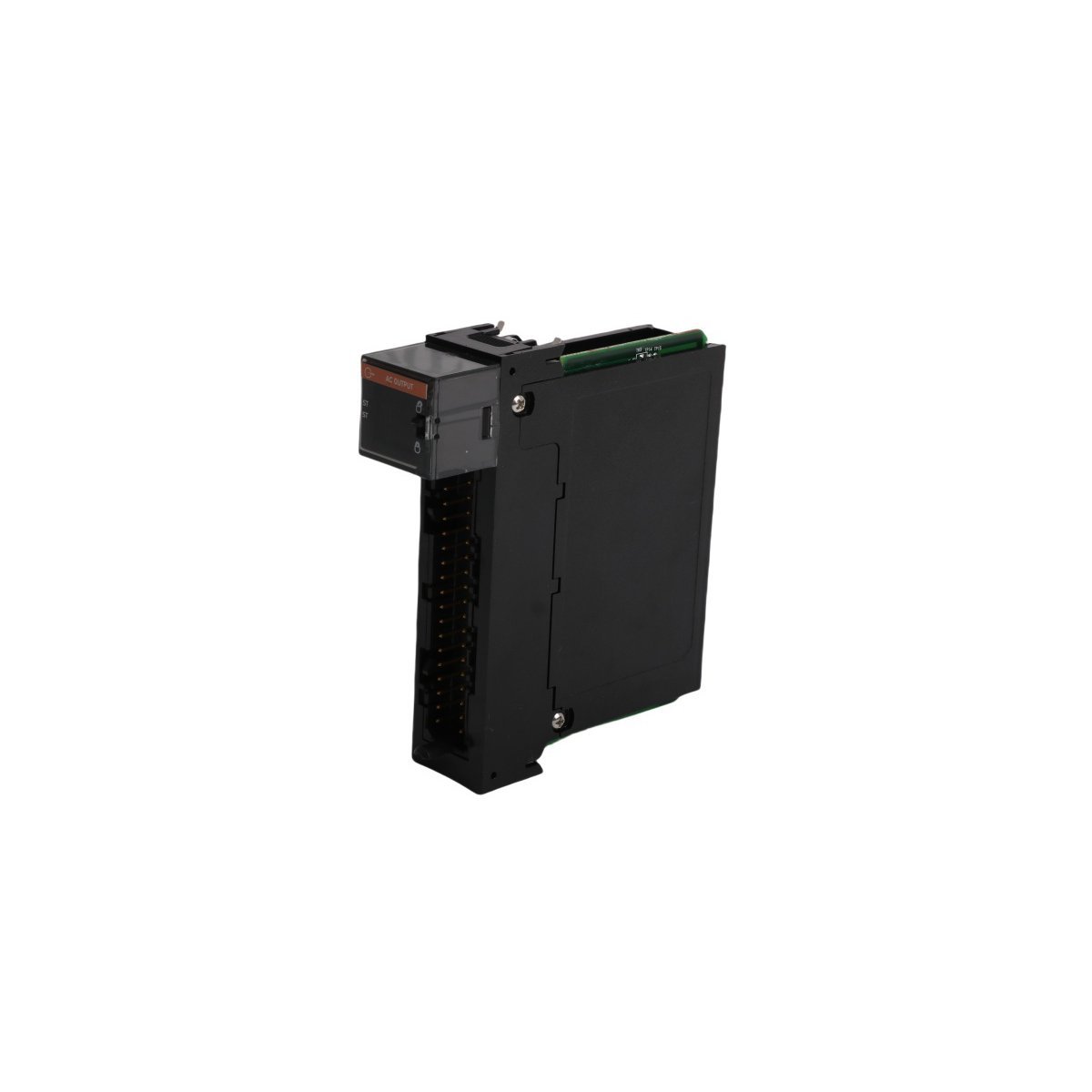

The Allen-Bradley 1756-OA16I serves as a high-performance discrete output solution for ControlLogix automation platforms. This module provides sixteen individually isolated channels for controlling AC loads. It supports a broad operating voltage range between 75V and 265V AC. Consequently, the unit handles both 120V and 240V nominal applications with ease. Engineers typically use this module to interface with motor starters, solenoid valves, and indicator lights. Its isolated design prevents electrical noise from affecting neighboring channels or the backplane.

Comprehensive Technical Specifications

Advanced Channel Isolation and Safety

Safety and signal integrity remain core strengths of the 1756-OA16I architecture. Because each of the sixteen points features individual isolation, the module eliminates ground loop issues. This isolation holds a continuous rating of 250V between outputs and the backplane. Furthermore, the hardware undergoes rigorous factory testing at 1350V AC for two seconds. Although the module does not include internal fuses, it provides robust surge protection. Users should install external fusing to protect the circuitry against overcurrent conditions.

Configuration and System Integration

The ControlLogix environment allows for precise configuration of each output state during faults. For instance, users can set points to hold the last state or turn off by default. The module fits into any standard 1756 chassis slot, including remote I/O configurations. It requires a Removable Terminal Block (RTB) such as the 1756-TBCH or 1756-TBS6H for field wiring. Integrated diagnostic features provide real-time status updates through the front-facing LED indicators. These lights help maintenance teams quickly identify active outputs or potential system errors.

Environmental Resilience and Performance

This module performs reliably in demanding industrial settings with temperatures up to 60°C. It manages thermal loads effectively with a maximum dissipation of 18.76 BTU per hour. Additionally, the 1756-OA16I withstands high-vibration environments and physical shocks up to 30G. The 20A inrush current capacity allows for the activation of heavy inductive loads. Its design maintains operational stability in humidity levels reaching 95 percent. This resilience makes it a standard choice for heavy manufacturing and energy infrastructure projects.
