Description

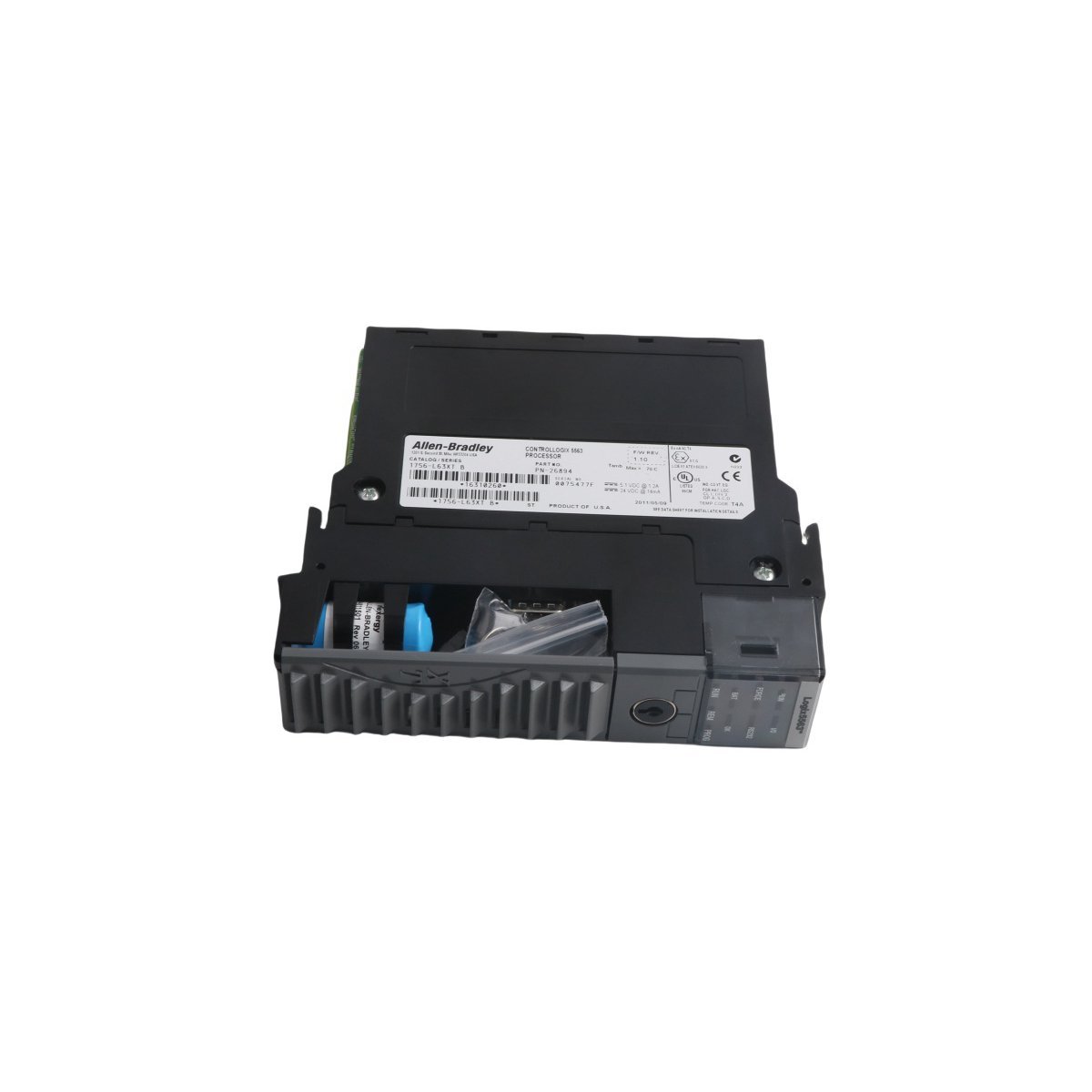

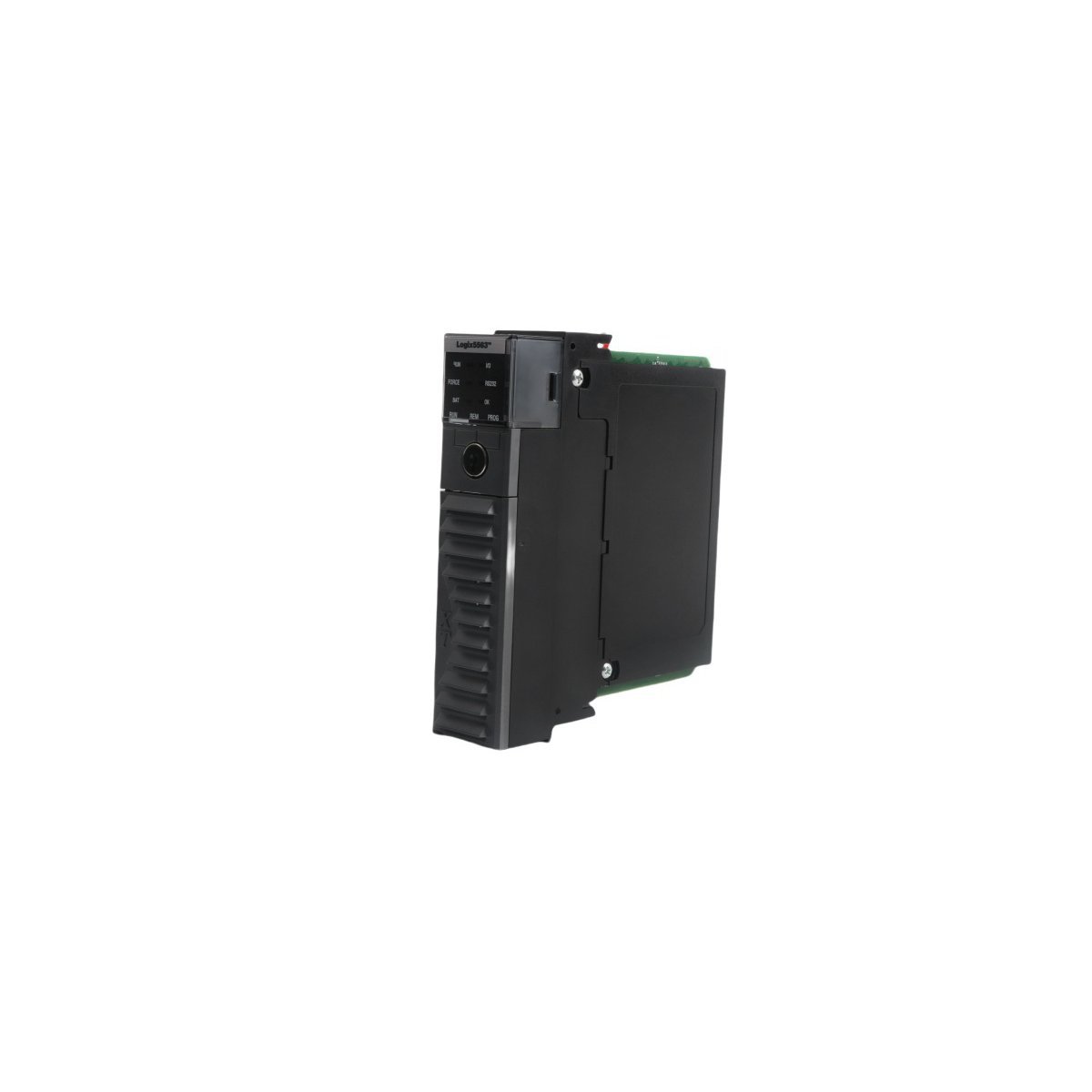

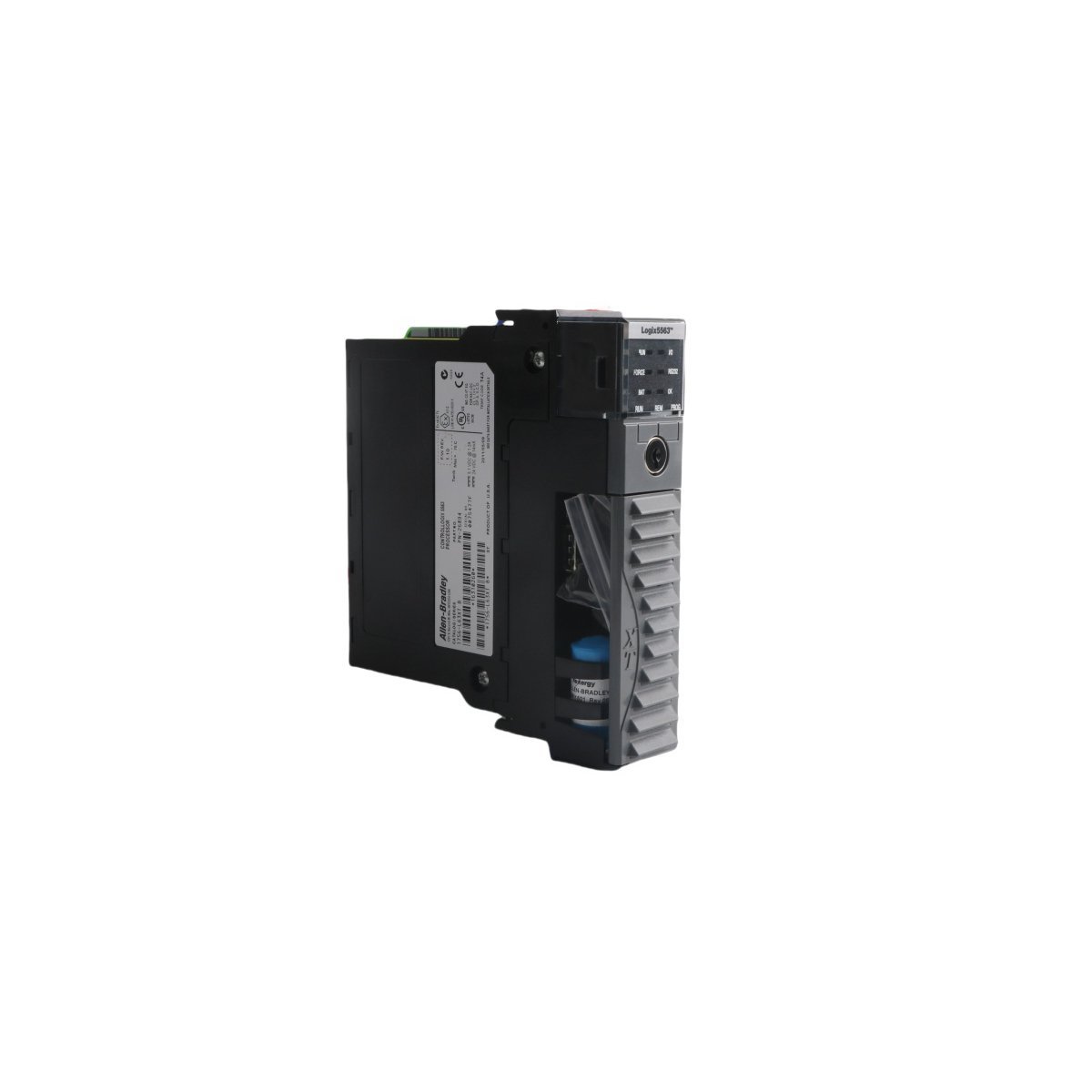

The Allen-Bradley 1756-L63XT belongs to the specialized ControlLogix-XT family for rigorous industrial climates. This processor thrives where standard controllers fail due to thermal stress. It maintains stable operations across a broad temperature range from -25°C to 70°C. Consequently, it eliminates the need for expensive enclosure cooling or heating systems. The internal circuitry features conformal coating to resist moisture and chemical contaminants. This robust construction ensures long-term reliability in oil, gas, and heavy manufacturing sectors.

Memory Capacity and Application Handling

The Logix5563XT provides 8 MB of user memory for complex program execution. It also includes 478 KB of dedicated I/O memory to manage high-speed data throughput. Users can further increase storage via optional CompactFlash cards for data logging and recipes. The controller supports 32 separate tasks to prioritize critical machine functions. Additionally, it manages up to 250 concurrent controller connections for distributed architectures. These capabilities allow the 1756-L63XT to govern large-scale automation projects with significant precision.

Connectivity and Network Integration

This processor features an integrated RS-232 serial port for local configuration and diagnostics. It integrates seamlessly with various industrial networks through separate communication modules. Supported protocols include EtherNet/IP, ControlNet, DeviceNet, and Data Highway Plus. The controller also handles up to 128,000 digital I/O points for massive system scalability. Furthermore, it supports 4,000 analog I/O points to accommodate precise instrumentation. This versatile networking allows the unit to function as a central hub in complex plant environments.

Technical Specifications
